Stonewall Details

Property	Value
Rupture Count	1,000
Ruptures Above Sect Min Mag	993
Ruptures w/ Nonzero Rates	138
Magnitude Range	[6.67, 8.12]
Length Range	[19, 454] km
Total Rate	2.556678E-5 /yr
Multi-Fault Rate	2.556678E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	44

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

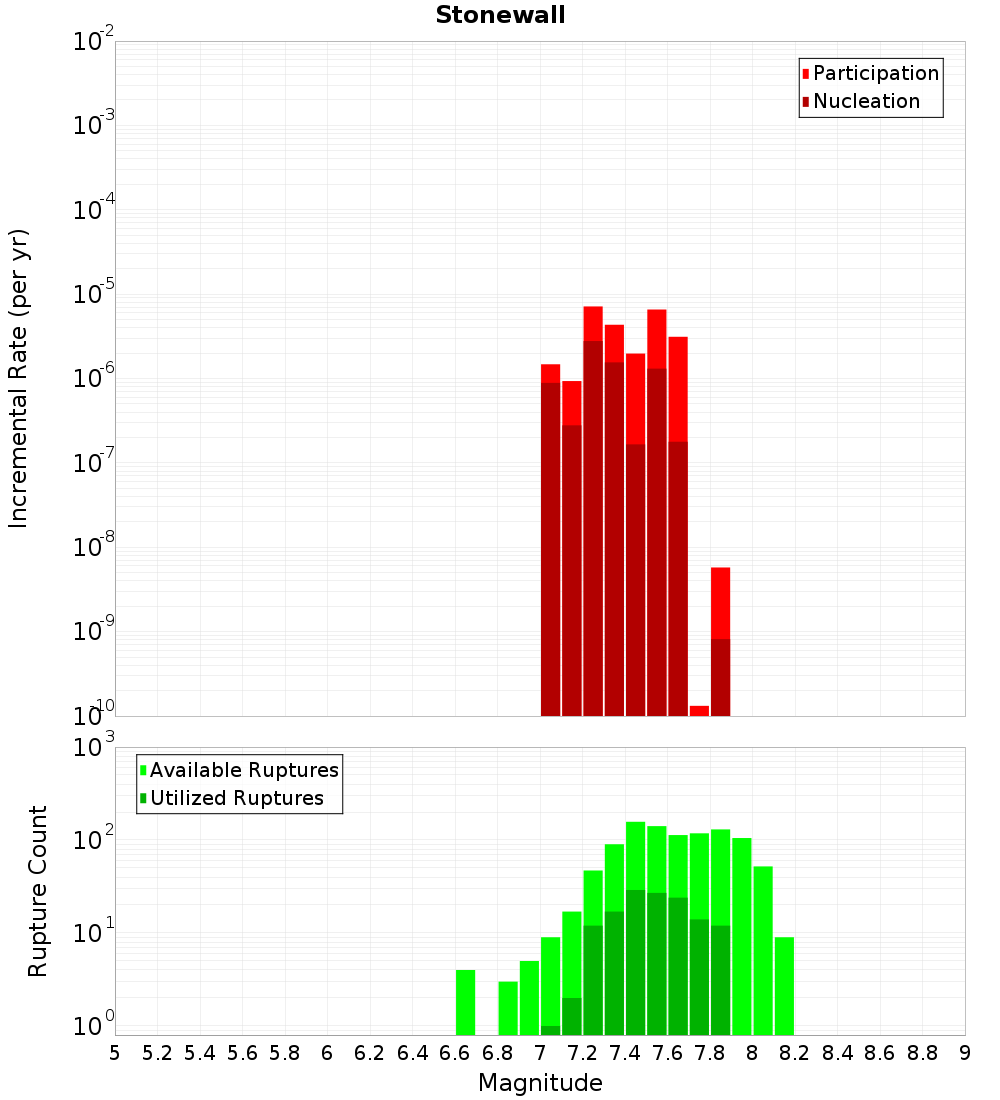

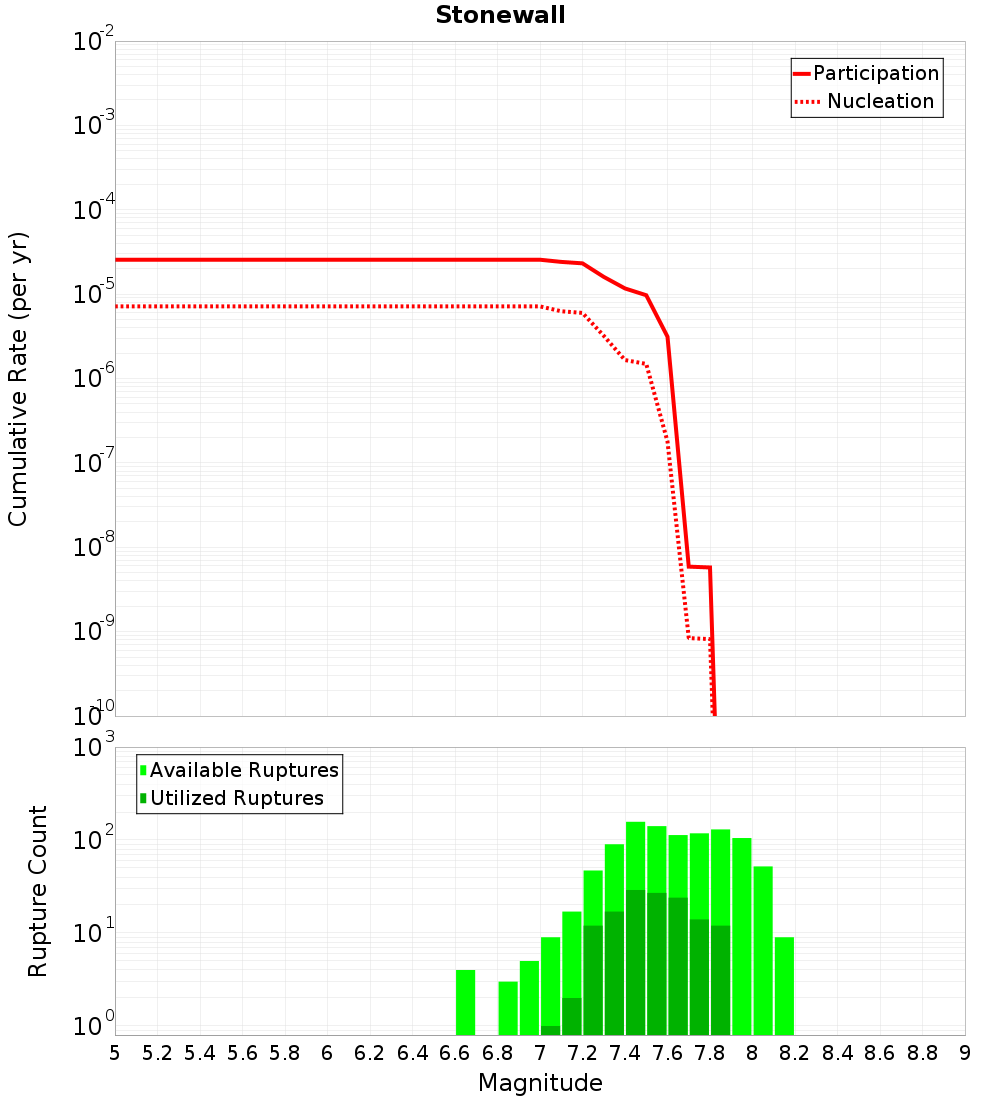

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

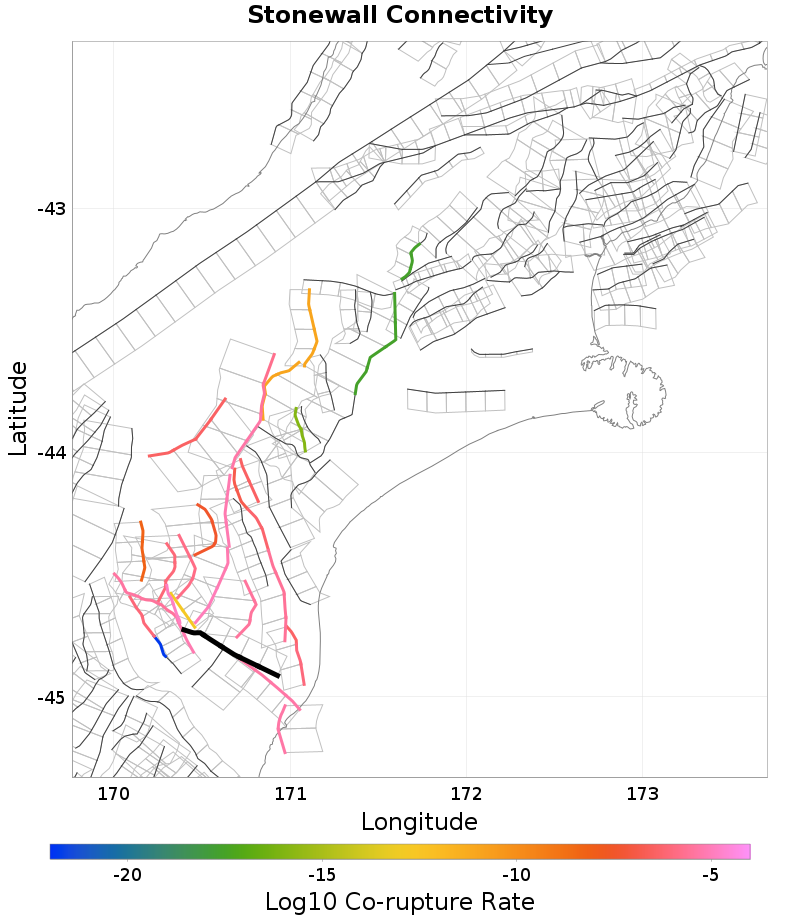

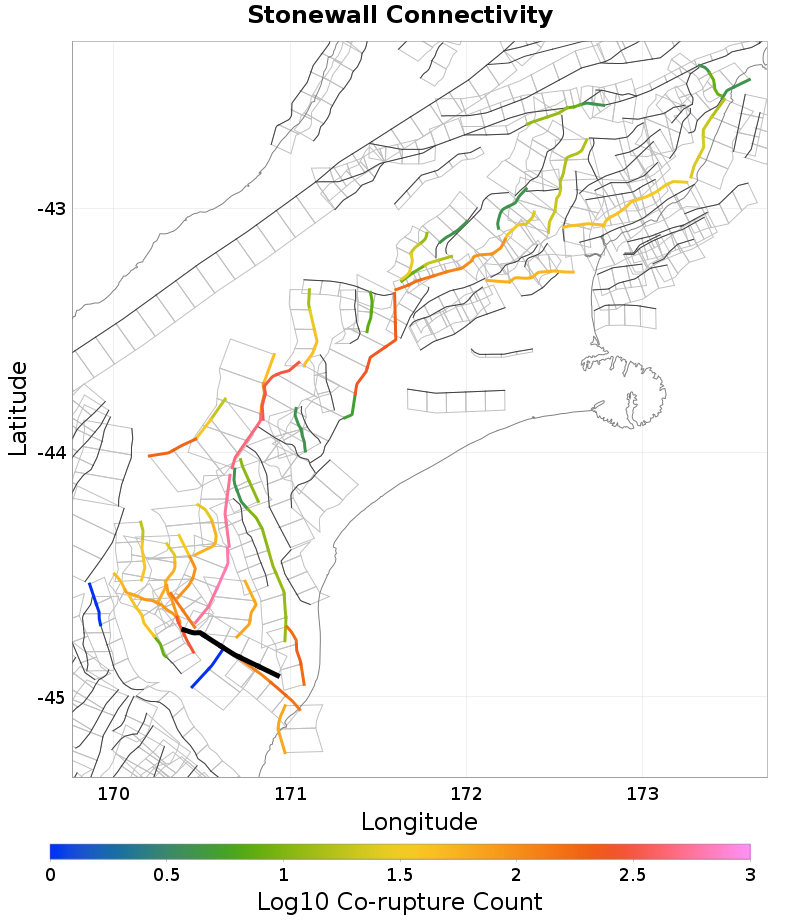

Connectivity

Nearby Sections

Fault Section
Campbell Hills, 0.27 km away
Dryburgh, 0.28 km away
Hunters, 0.33 km away
Waimate, 0.35 km away
Waitaki, 0.64 km away
Black Hill, 0.69 km away
Awahokomo, 0.84 km away
Kirkliston, 1.94 km away
Waitangi, 3.51 km away
Fern Gully, 6.14 km away
Middle Range, 9.97 km away
Mt Sutton, 13.56 km away
Awamoa, 14.16 km away

Campbell Hills, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	true
Co-rupture Count	69
Co-rupture Rate	3.1234047E-6

Dryburgh, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	true
Co-rupture Count	136
Co-rupture Rate	1.7176886E-13

Hunters, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	2.577172E-6

Waimate, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	true
Co-rupture Count	210
Co-rupture Rate	9.168679E-7

Waitaki, 0.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	true
Co-rupture Count	181
Co-rupture Rate	4.4727085E-6

Black Hill, 0.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Awahokomo, 0.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	true
Co-rupture Count	278
Co-rupture Rate	6.5885706E-6

Kirkliston, 1.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	true
Co-rupture Count	679
Co-rupture Rate	9.412638E-6

Waitangi, 3.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	true
Co-rupture Count	85
Co-rupture Rate	1.3277633E-5

Fern Gully, 6.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	false
Co-rupture Count	92
Co-rupture Rate	3.819451E-6

Middle Range, 9.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	false
Co-rupture Count	47
Co-rupture Rate	8.08015E-7

Mt Sutton, 13.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	false
Co-rupture Count	93
Co-rupture Rate	1.3684626E-6

Awamoa, 14.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?	true
Directly Connected?	false
Co-rupture Count	65
Co-rupture Rate	4.4727085E-6
