Wairarapa: Needles Details

PropertyValue
Rupture Count44,612
Ruptures Above Sect Min Mag44,608
Ruptures w/ Nonzero Rates3,425
Magnitude Range[6.75, 8.40]
Length Range[19, 925] km
Total Rate0.0036573156 /yr
Multi-Fault Rate0.0036573156 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults161

Table Of Contents

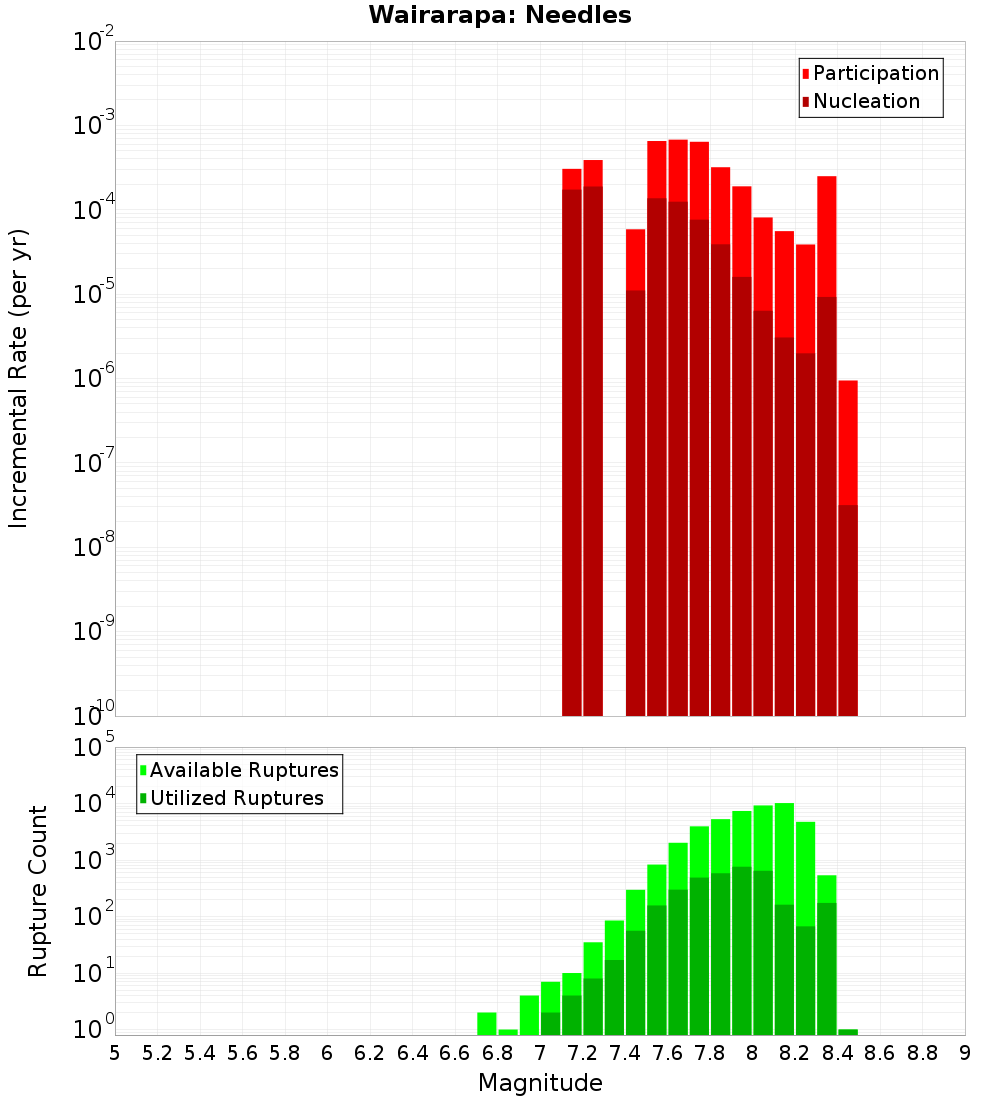

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

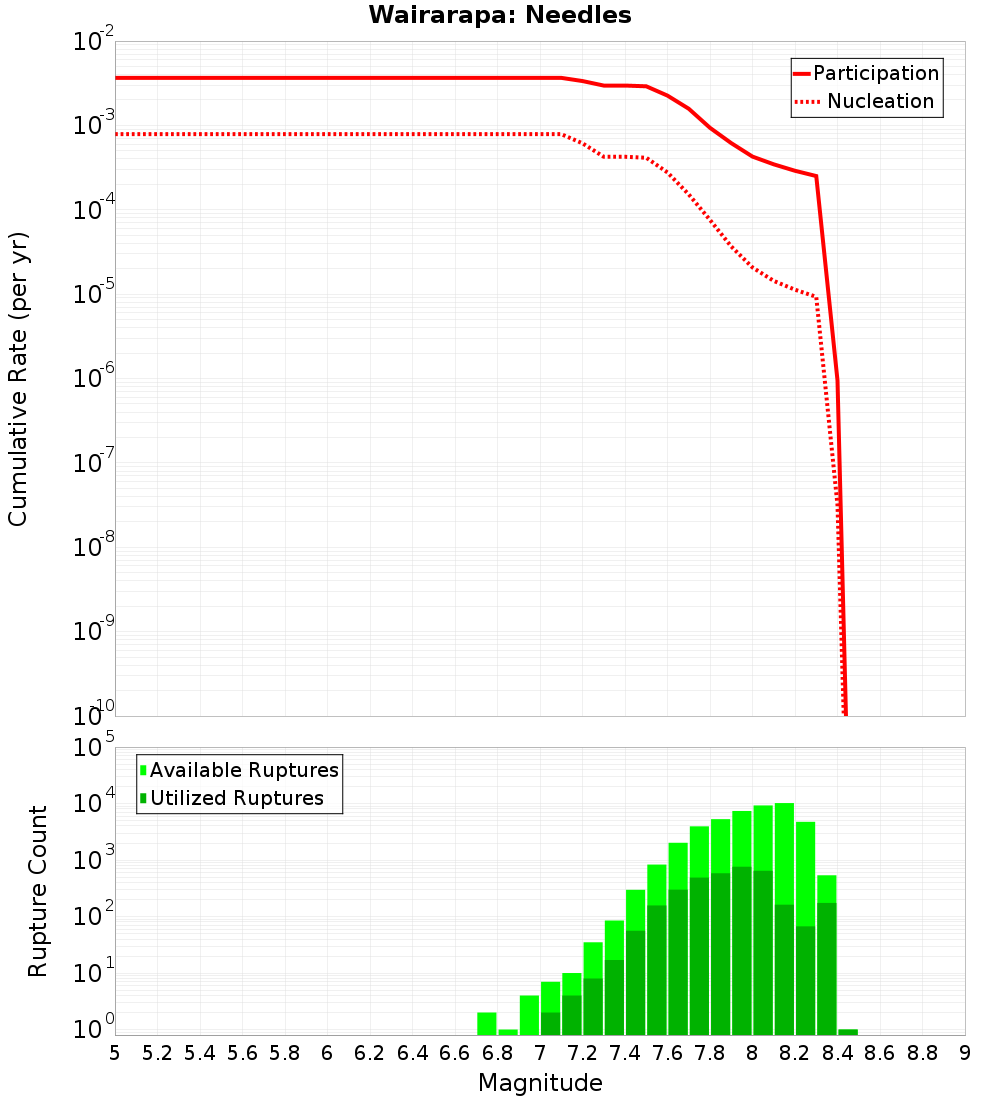

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

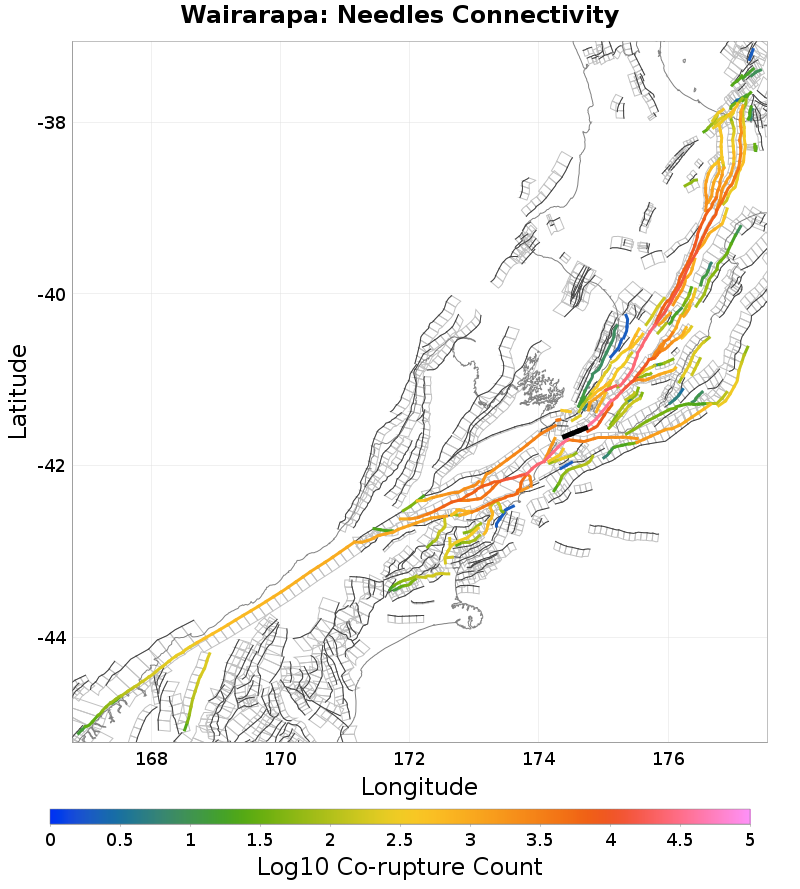

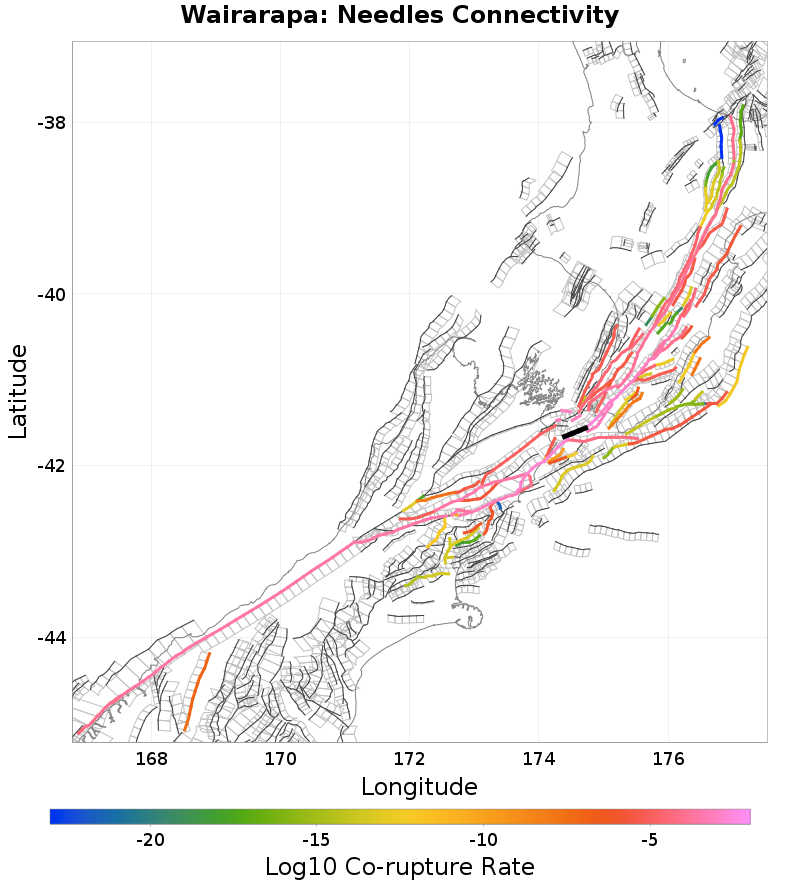

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0 km awayWairau 3, 9.87 km away
Cloudy 3, 0.29 km awayCloudy 1, 10.84 km away
Wharekauhau, 0.3 km awayWellington Hutt Valley: 2, 12.47 km away
Vernon 4, 0.42 km awayNeedles East 2, 12.75 km away
Needles, 4.57 km awayVernon 2, 14.03 km away
BooBoo, 5.6 km awayWellington Hutt Valley: 1, 14.52 km away
Cloudy 2, 6.58 km awayAwatere: Northeast 2, 14.79 km away
Vernon 3, 9.01 km awayOhariu, 14.92 km away
London Hill, 9.47 km away

Wairarapa: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?true
Directly Connected?true
Co-rupture Count36,897
Co-rupture Rate0.0030638785

Cloudy 3, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?true
Directly Connected?true
Co-rupture Count8,440
Co-rupture Rate7.346316E-4

Vernon 4, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?true
Directly Connected?true
Co-rupture Count33,033
Co-rupture Rate0.0016967038

BooBoo, 5.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?true
Directly Connected?true
Co-rupture Count3,601
Co-rupture Rate5.508554E-5

Cloudy 2, 6.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?true
Directly Connected?true
Co-rupture Count3,699
Co-rupture Rate4.971295E-4

Vernon 3, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

London Hill, 9.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?true
Directly Connected?false
Co-rupture Count2,277
Co-rupture Rate4.889889E-6

Wairau 3, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?true
Directly Connected?true
Co-rupture Count395
Co-rupture Rate8.550782E-4

Cloudy 1, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 12.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?true
Directly Connected?false
Co-rupture Count354
Co-rupture Rate1.6459709E-10

Vernon 2, 14.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?true
Directly Connected?true
Co-rupture Count217
Co-rupture Rate6.084035E-4

Awatere: Northeast 2, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?true
Directly Connected?false
Co-rupture Count3,213
Co-rupture Rate1.3107364E-5

Ohariu, 14.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMTcuMHRxdGFh
Connected?true
Directly Connected?false
Co-rupture Count422
Co-rupture Rate4.2540025E-5
