Chamberlain Details

PropertyValue
Rupture Count278
Ruptures Above Sect Min Mag275
Ruptures w/ Nonzero Rates85
Magnitude Range[6.80, 8.09]
Length Range[22, 420] km
Total Rate1.0480577E-5 /yr
Multi-Fault Rate1.0480577E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults33

Table Of Contents

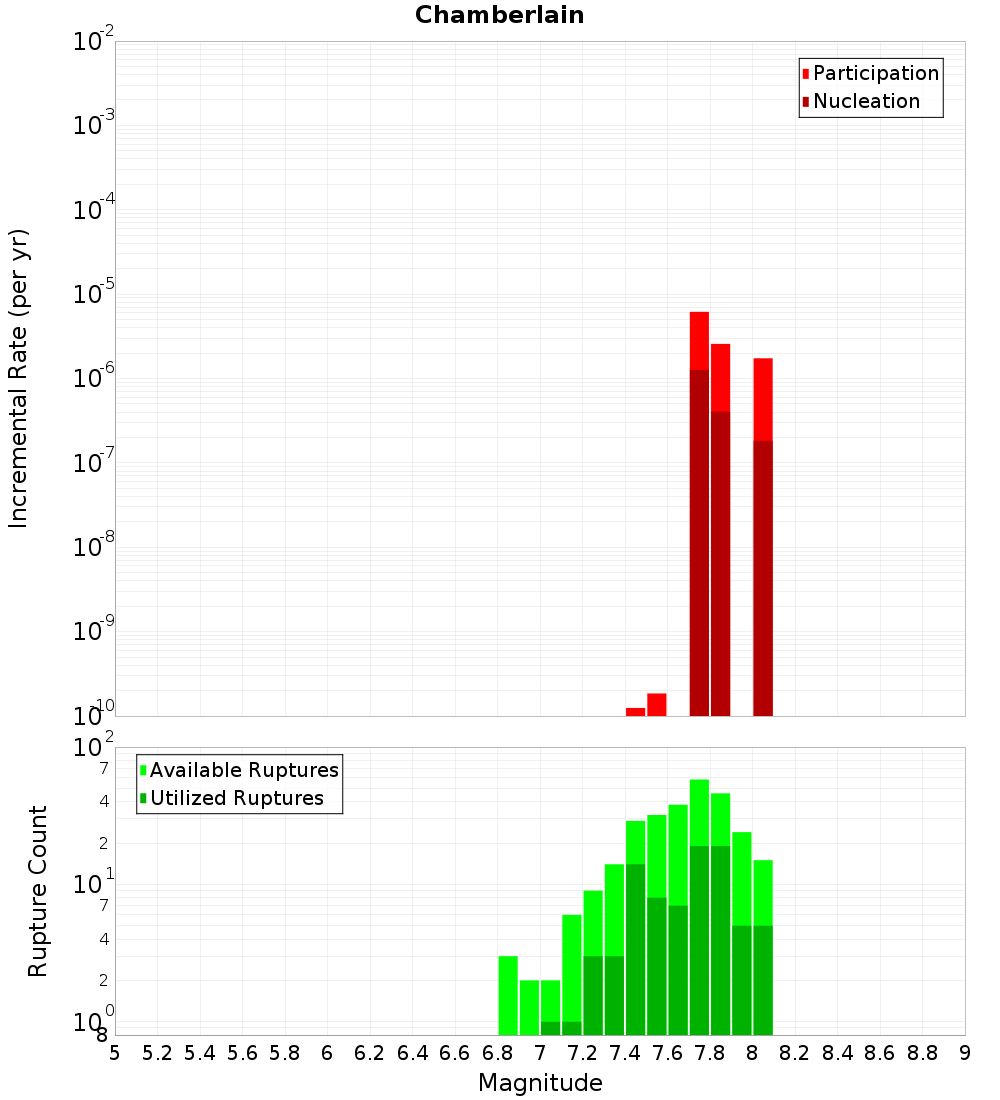

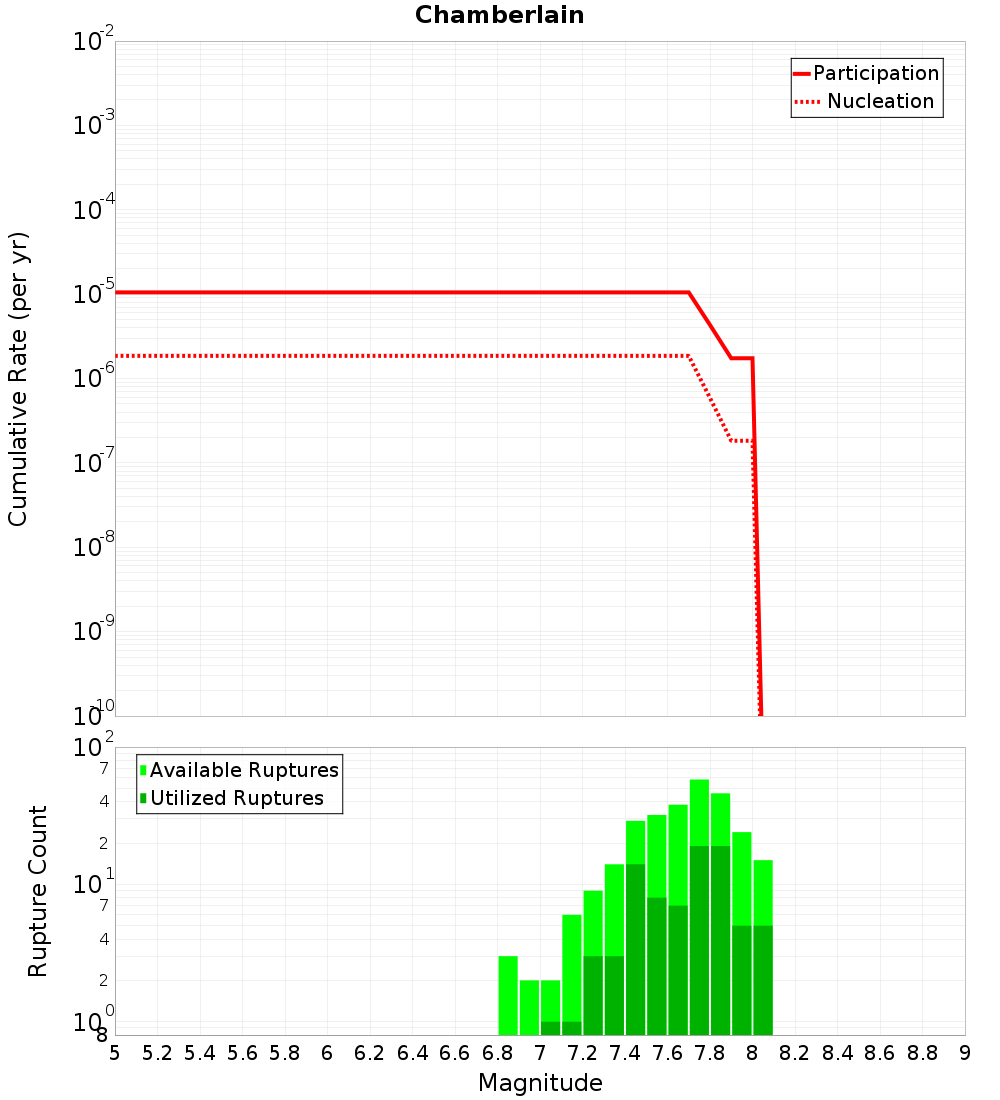

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

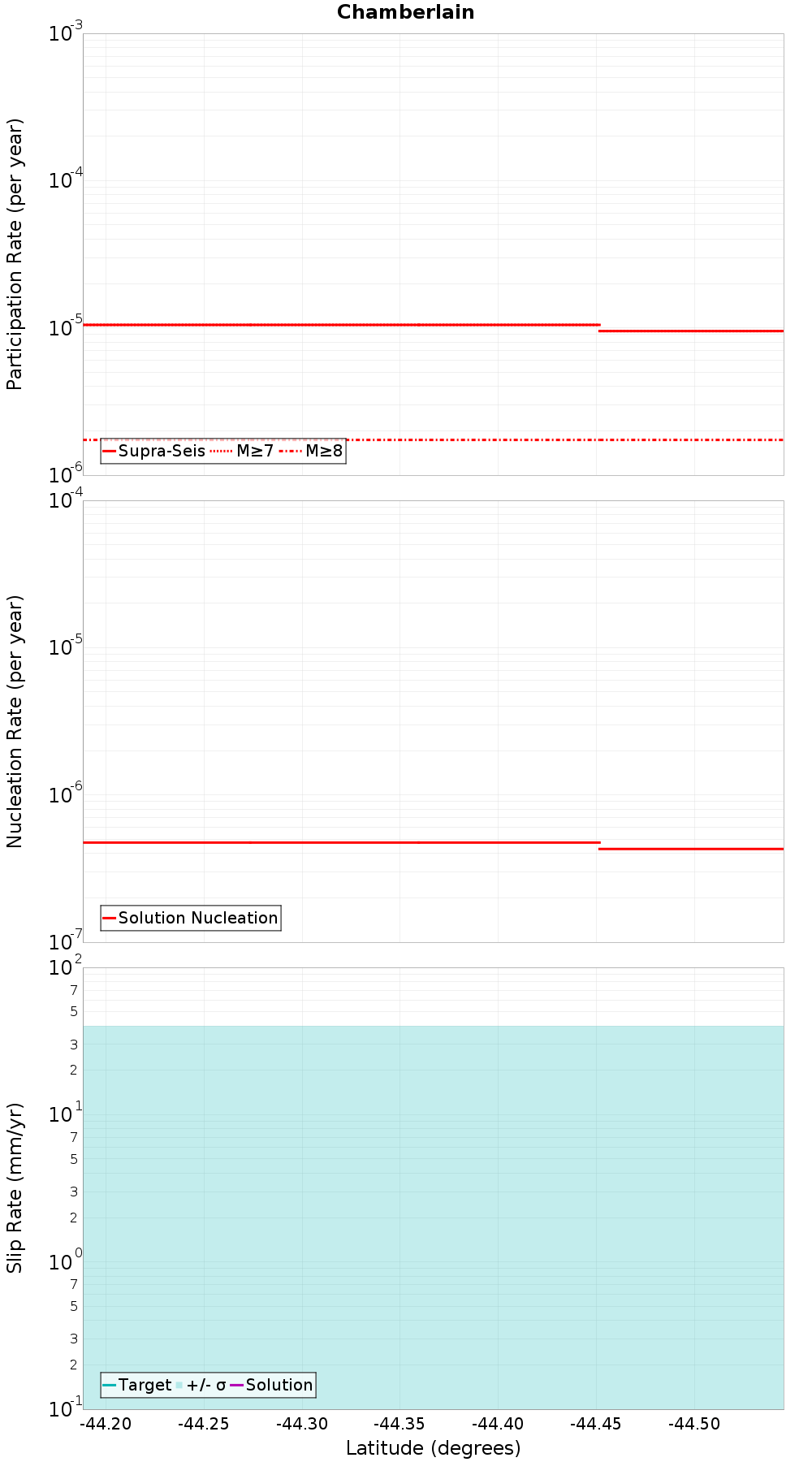

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

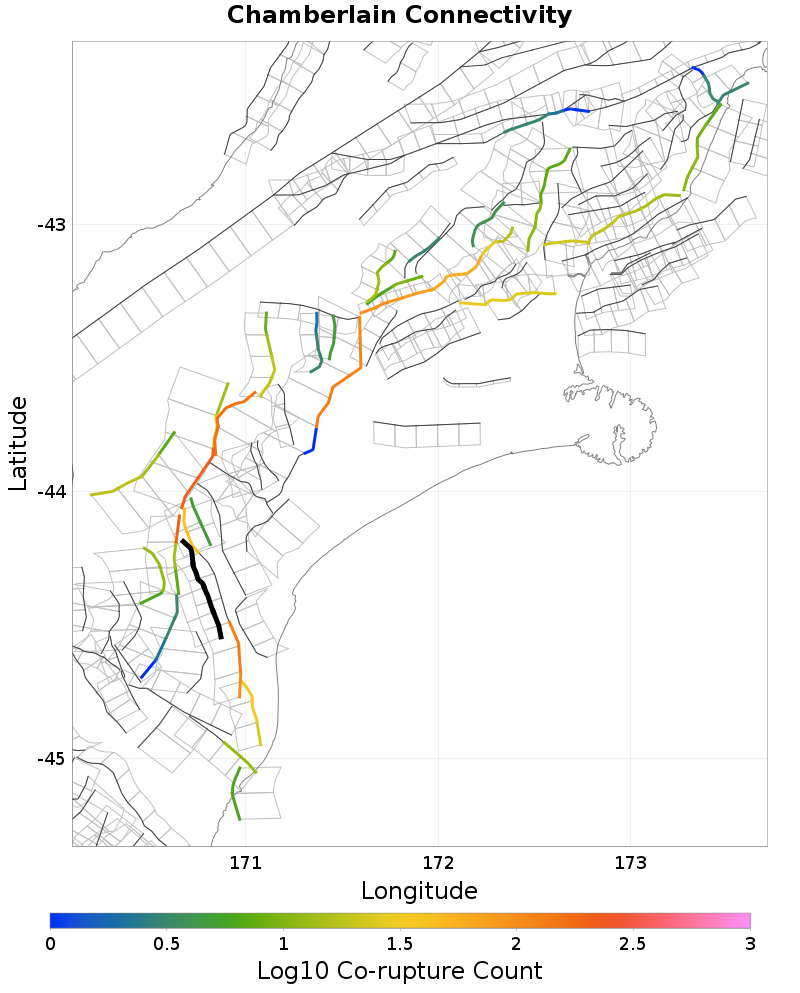

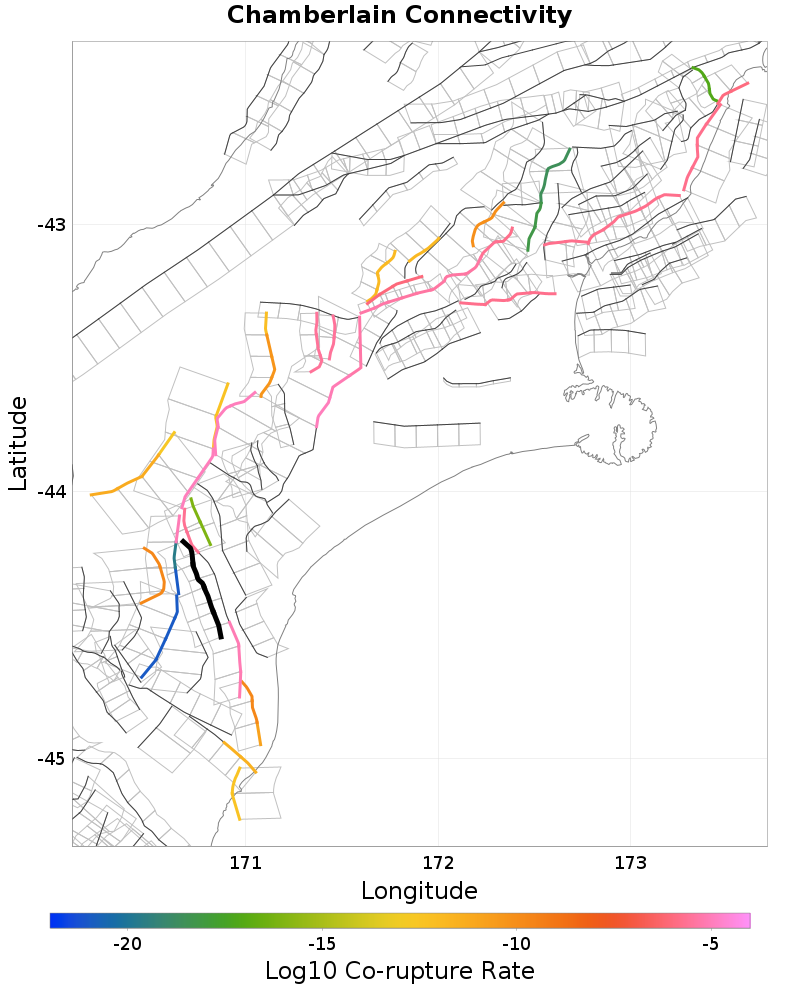

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Opawa, 1.37 km away
Hunters, 2.48 km away
Dalgety, 2.65 km away
Albury, 7.07 km away
Campbell Hills, 7.26 km away
Maungati, 8.42 km away
Kirkliston, 9.49 km away
Irishman Creek, 10.65 km away
Grampian, 11.5 km away
Brothers, 12.7 km away
Fox Peak, 14.1 km away

Opawa, 1.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?true
Co-rupture Count43
Co-rupture Rate2.138996E-6

Hunters, 2.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?true
Co-rupture Count126
Co-rupture Rate7.888564E-6

Dalgety, 2.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?true
Co-rupture Count199
Co-rupture Rate8.341379E-6

Albury, 7.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate7.889999E-17

Campbell Hills, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungati, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 9.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate9.926593E-22

Irishman Creek, 10.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate5.2409847E-12

Grampian, 11.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate1.886673E-10

Brothers, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fox Peak, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?false
Co-rupture Count209
Co-rupture Rate1.048037E-5
