Mascarin Details
| Property | Value |
|---|---|
| Rupture Count | 298 |
| Ruptures Above Sect Min Mag | 297 |
| Ruptures w/ Nonzero Rates | 115 |
| Magnitude Range | [7.03, 7.89] |
| Length Range | [28, 232] km |
| Total Rate | 2.4596544E-5 /yr |
| Multi-Fault Rate | 2.457568E-5 /yr (99.92%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 34 |
Table Of Contents

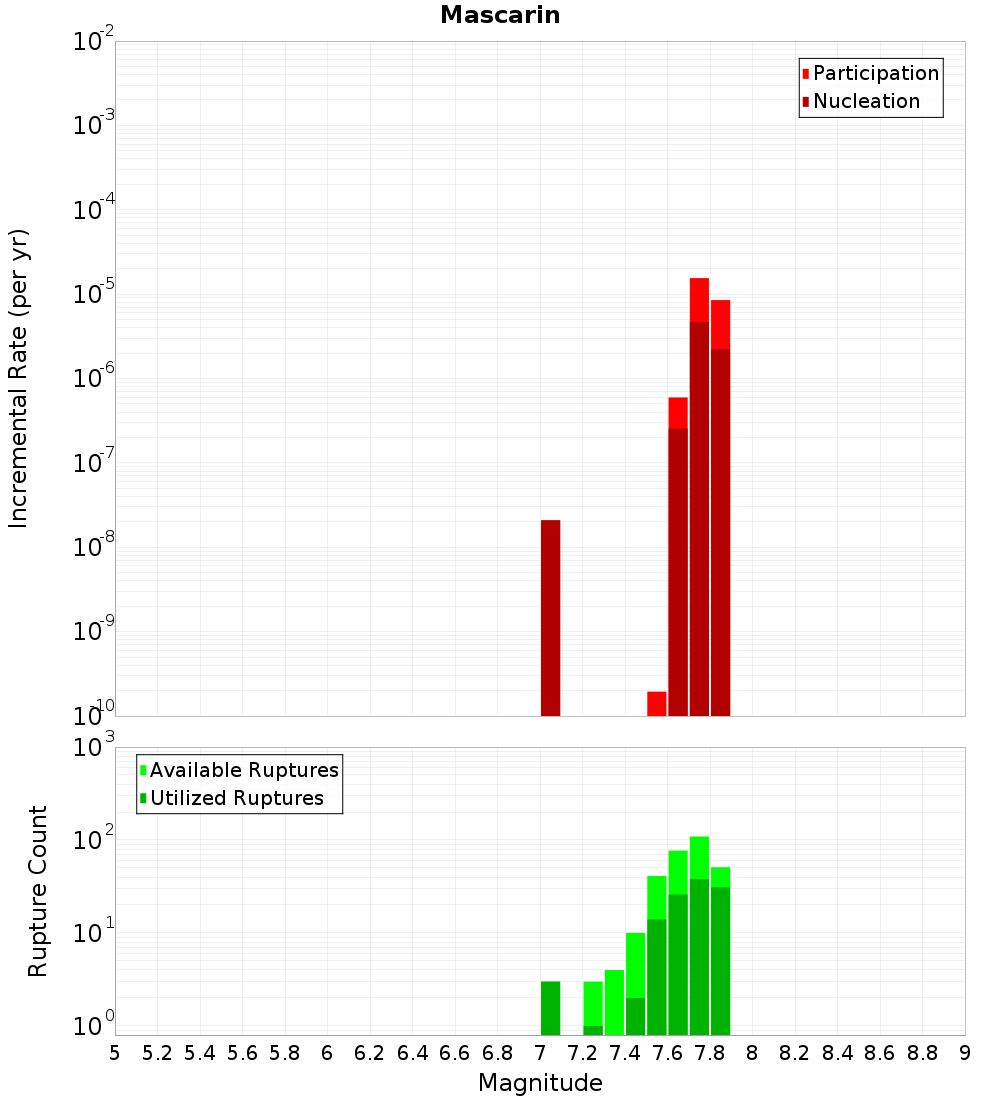

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

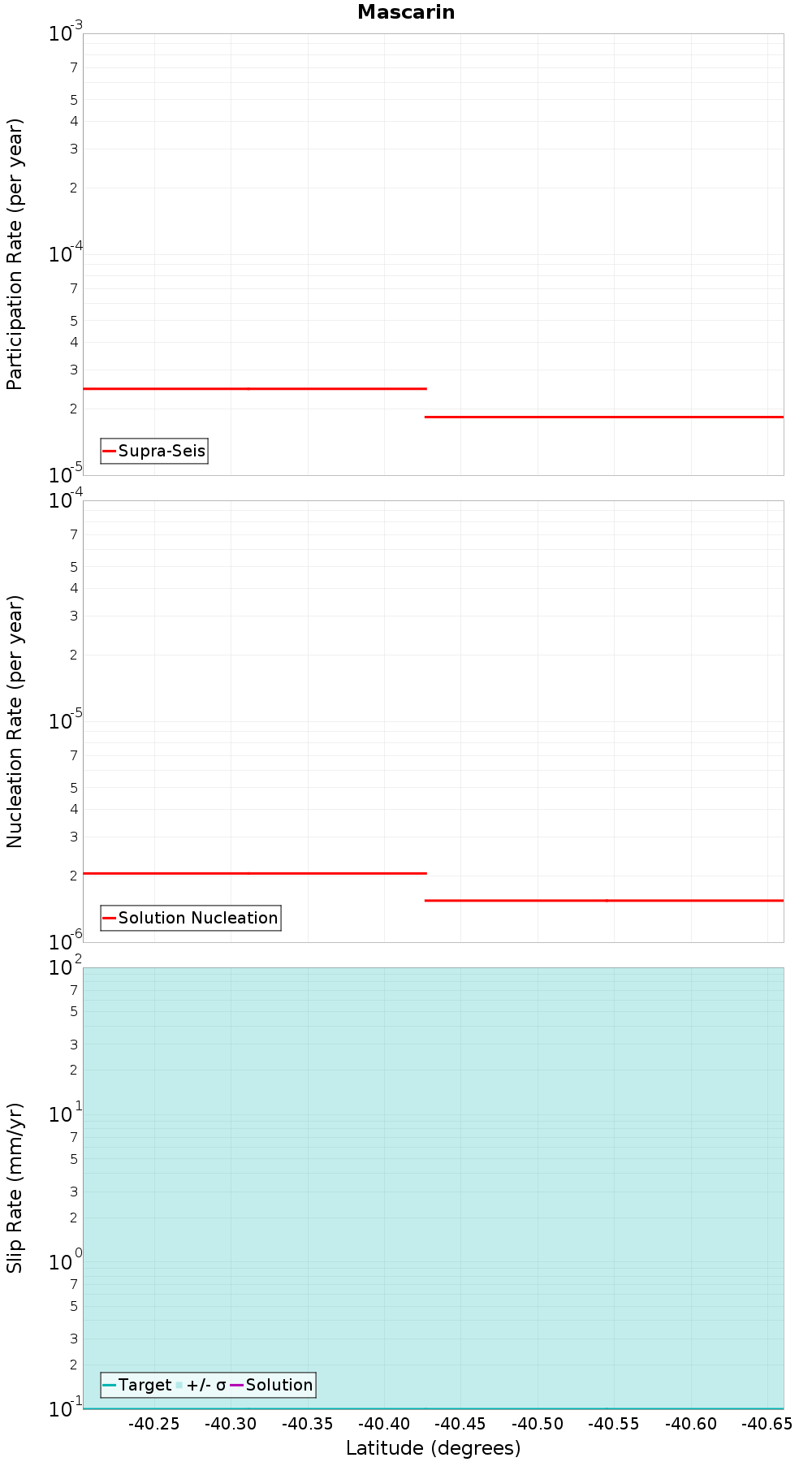

Along-Strike Values

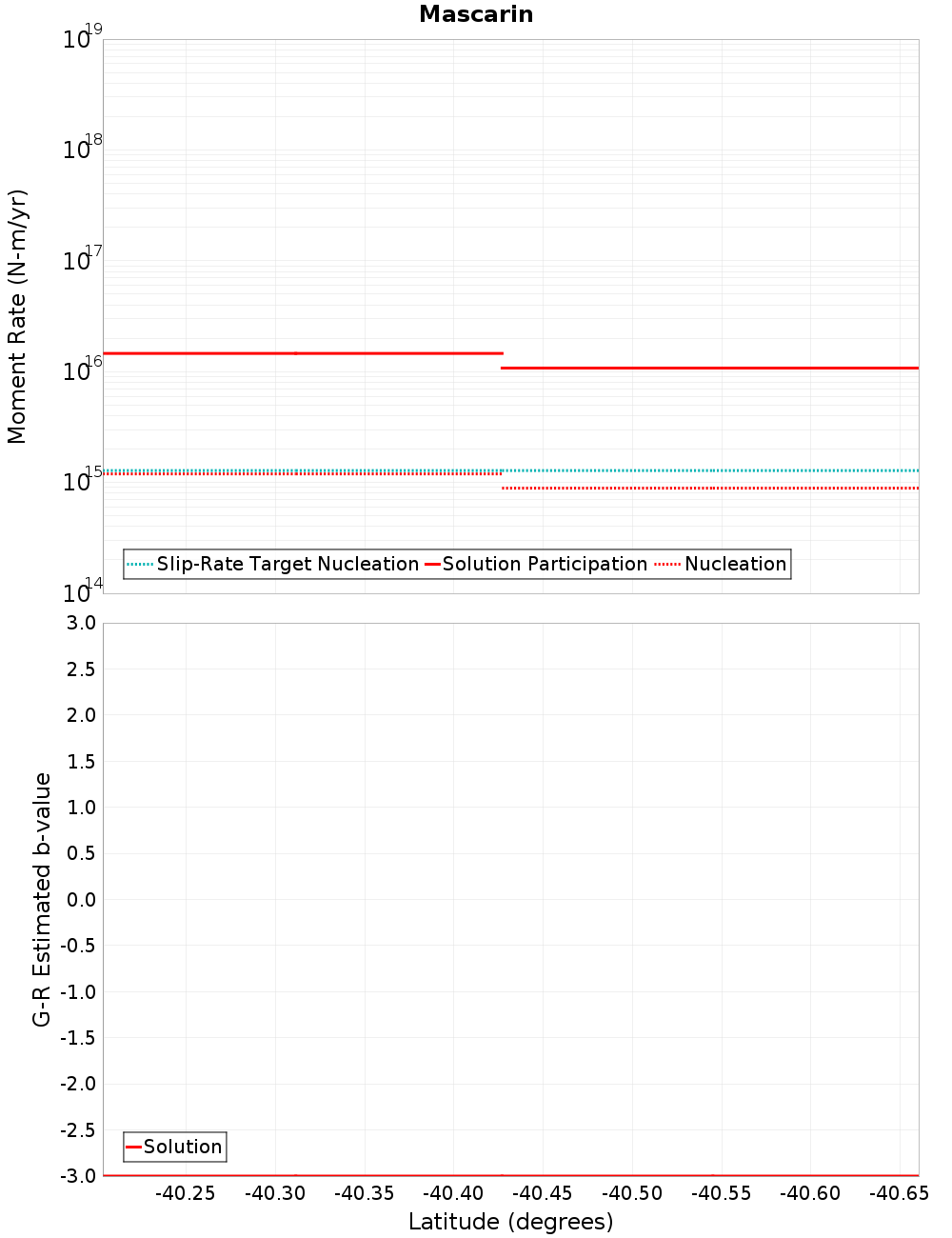

Moment-Rates and b-Values

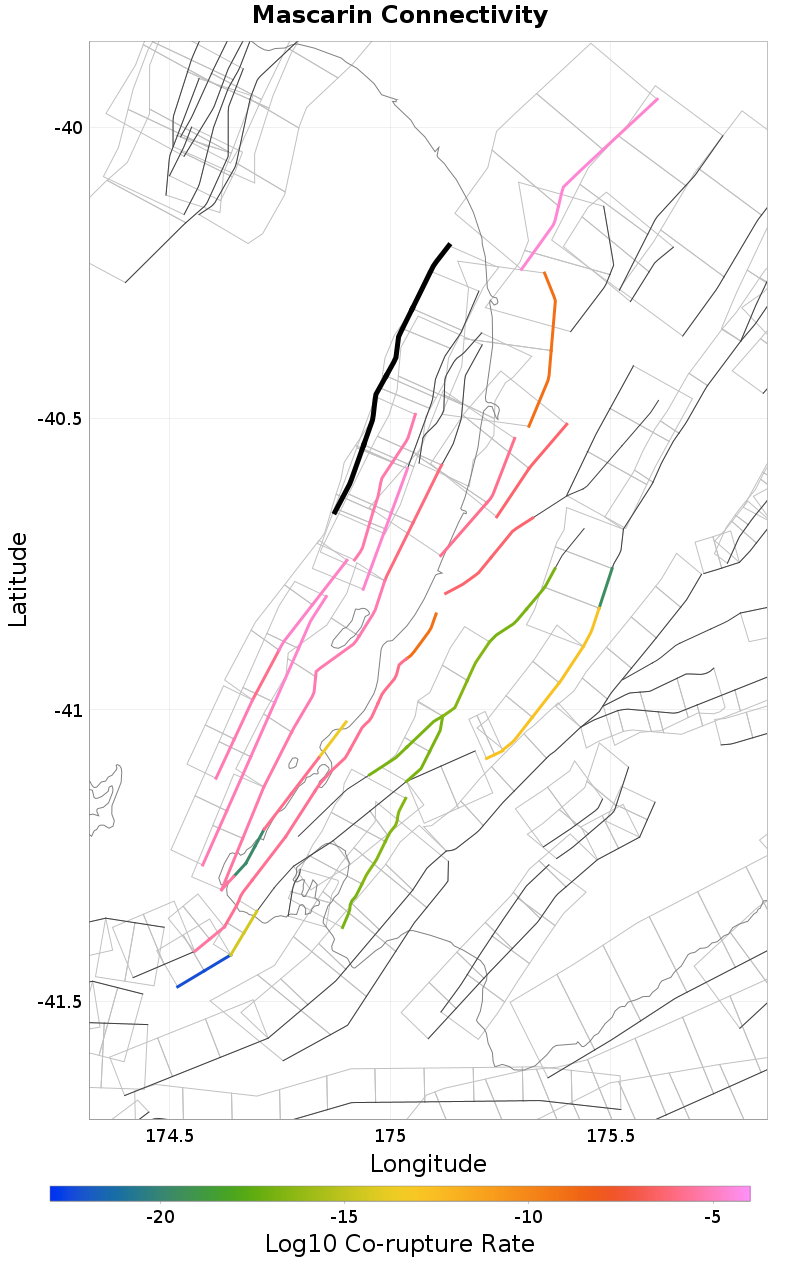

Connectivity
 |  |
|---|
Nearby Sections
Onepoto, 0.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 118 |
| Co-rupture Rate | 1.8619616E-5 |
Fisherman 3, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 52 |
| Co-rupture Rate | 4.8057077E-6 |
Poroutawhao, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 130 |
| Co-rupture Rate | 1.479388E-6 |
Himatangi, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 9.326547E-10 |
Otaheke North, 0.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 28 |
| Co-rupture Rate | 7.6733636E-7 |
Mt Stewart, 2.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Levin Anticline, 2.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 3.8301738E-7 |
Leedstown, 3.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 144 |
| Co-rupture Rate | 2.343193E-5 |
Fisherman 2, 6.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 50 |
| Co-rupture Rate | 1.358766E-5 |
Otaheke South, 7.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 90 |
| Co-rupture Rate | 5.6044387E-6 |
Rangitikei Offshore 1, 9.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rauoterangi, 11.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Taonui, 13.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
