Waikuku Details

PropertyValue
Rupture Count581
Ruptures Above Sect Min Mag564
Ruptures w/ Nonzero Rates211
Magnitude Range[6.49, 7.94]
Length Range[14, 311] km
Total Rate5.384606E-5 /yr
Multi-Fault Rate5.384606E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults29

Table Of Contents

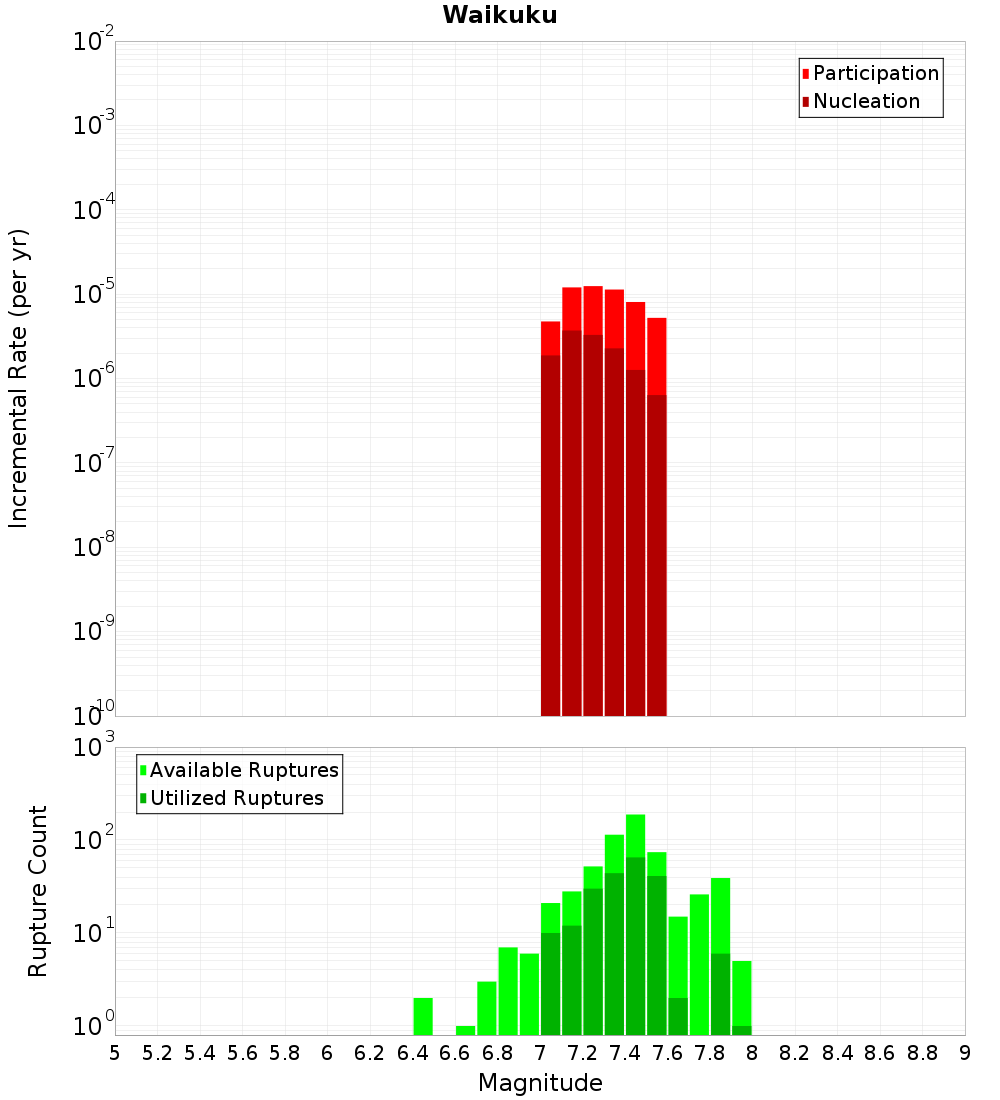

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

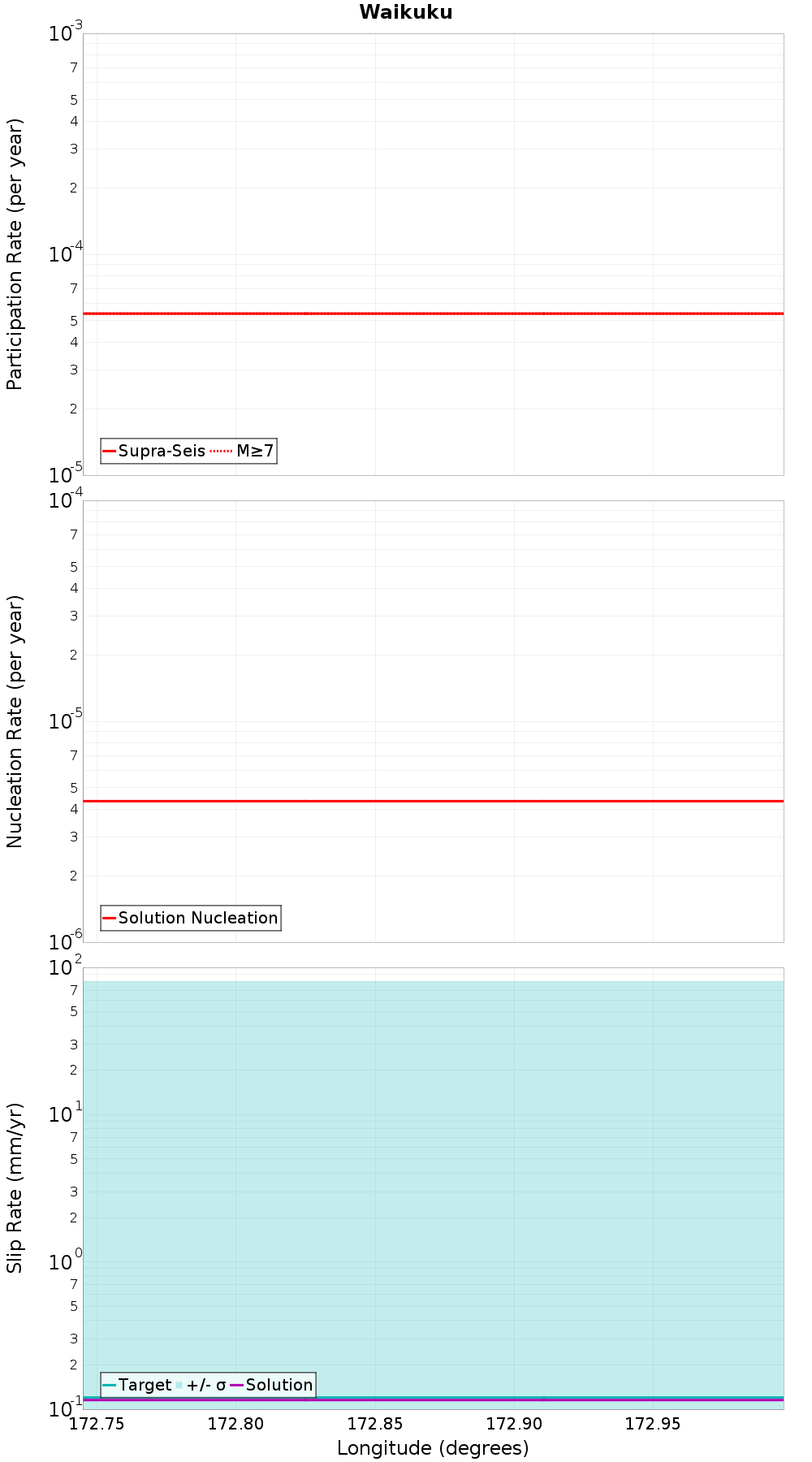

Along-Strike Values

(top)

Along-strike plot

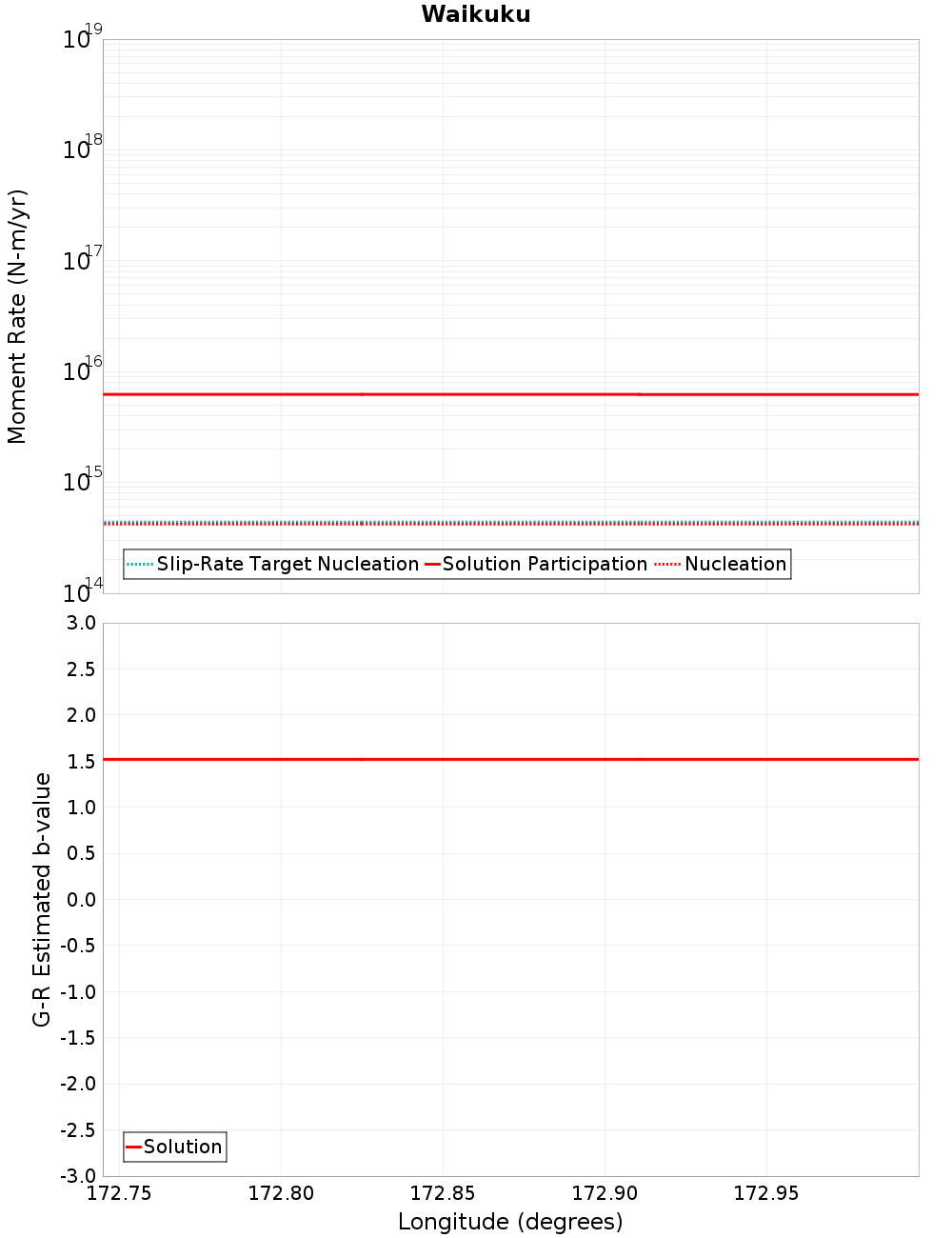

Moment-Rates and b-Values

(top)

Along-strike plot

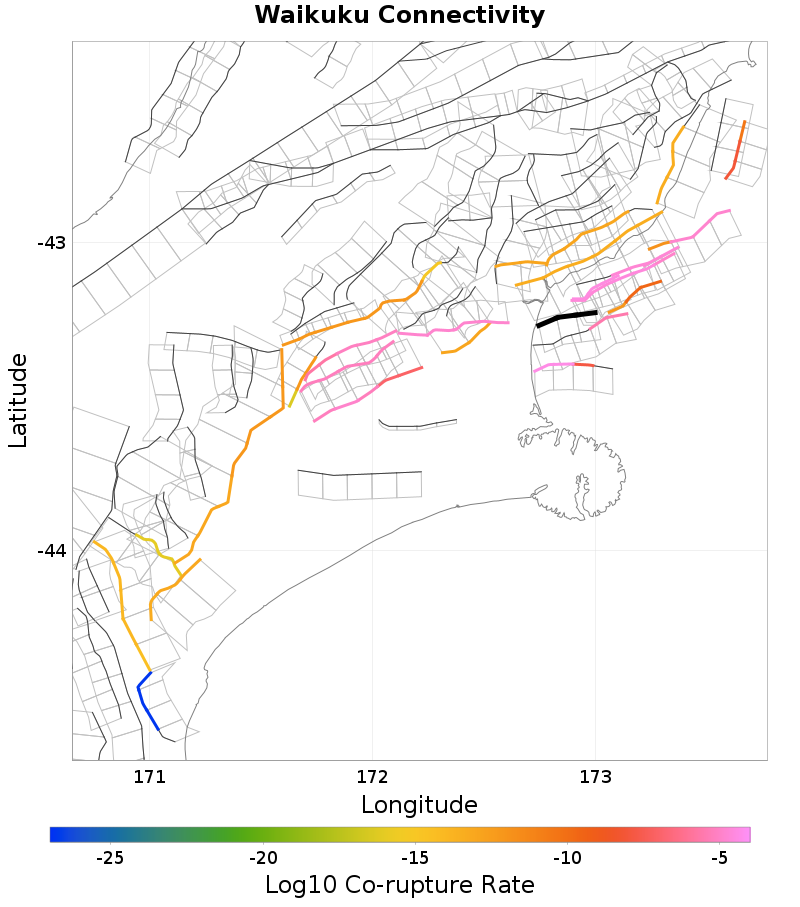

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pegasus Bay, 3.19 km away
Leithfield - NCVI - NCVII, 4.07 km away
North Canterbury Shelf 2, 4.61 km away
North Canterbury Shelf 4, 5.12 km away
Motunau, 9.01 km away
AmberBlyth, 9.2 km away
Starvation - Ashley, 11.22 km away
CenPeg1n2, 11.9 km away
OmihiLwrHuru, 14.73 km away

Pegasus Bay, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate2.714221E-6

Leithfield - NCVI - NCVII, 4.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?true
Co-rupture Count221
Co-rupture Rate2.9658979E-5

North Canterbury Shelf 2, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate3.097739E-5

North Canterbury Shelf 4, 5.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?true
Co-rupture Count124
Co-rupture Rate2.4230995E-10

Motunau, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.6828379E-5

AmberBlyth, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate4.1504618E-14

Starvation - Ashley, 11.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?true
Co-rupture Count474
Co-rupture Rate1.330724E-5

CenPeg1n2, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate4.052027E-5

OmihiLwrHuru, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjIuMHFhdWNU
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.1490082E-13
