Dry River - Huangarua: 2 Details

Property	Value
Rupture Count	626
Ruptures Above Sect Min Mag	618
Ruptures w/ Nonzero Rates	115
Magnitude Range	[6.28, 8.01]
Length Range	[9, 371] km
Total Rate	2.5224139E-4 /yr
Multi-Fault Rate	2.5224139E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	60

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

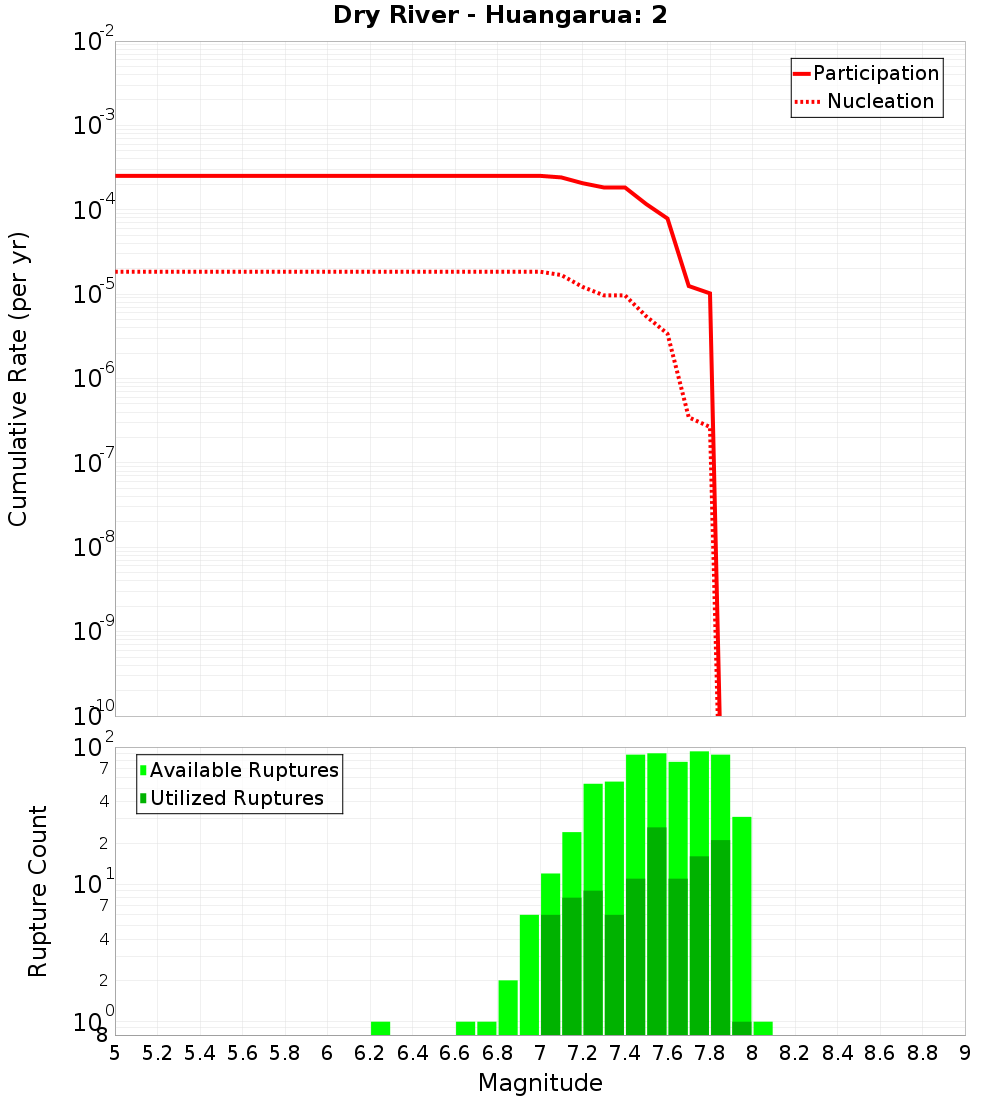

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

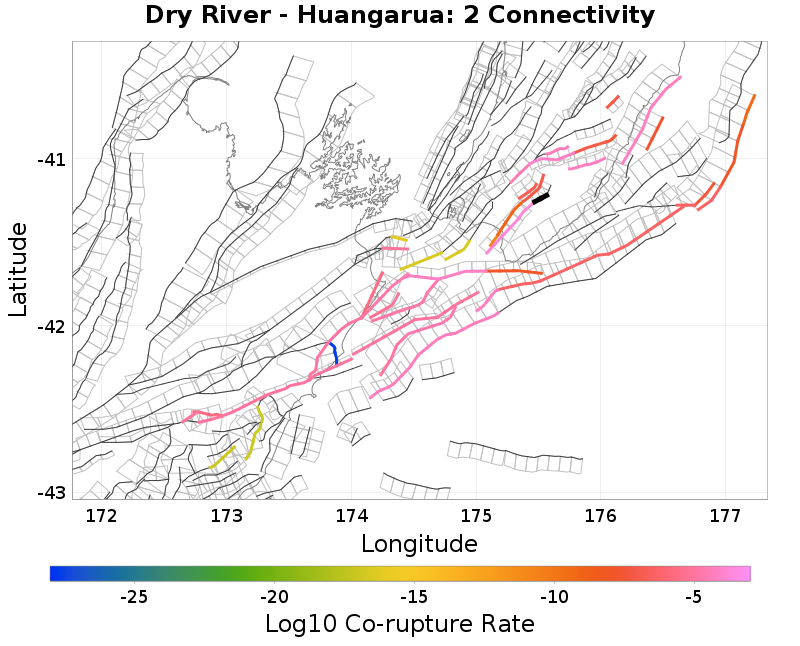

Connectivity

Nearby Sections

Fault Section
Dry River - Huangarua: 3, 0 km away
Dry River - Huangarua: 1, 0.11 km away
Martinborough, 4.43 km away
Bidwill, 7.05 km away
Otaraia, 7.52 km away
Masterton, 11.51 km away
Carterton, 12.78 km away

Dry River - Huangarua: 3, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjUuMG1XN2tp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 1, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjUuMG1XN2tp
Connected?	true
Directly Connected?	true
Co-rupture Count	546
Co-rupture Rate	1.9405855E-4

Martinborough, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjUuMG1XN2tp
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	9.563696E-8

Bidwill, 7.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjUuMG1XN2tp
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	1.8608345E-7

Otaraia, 7.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjUuMG1XN2tp
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	8.095001E-10

Masterton, 11.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjUuMG1XN2tp
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	3.8288483E-5

Carterton, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjUuMG1XN2tp
Connected?	true
Directly Connected?	true
Co-rupture Count	377
Co-rupture Rate	1.2663835E-4
