Awamoa Details
| Property | Value |
|---|---|
| Rupture Count | 159 |
| Ruptures Above Sect Min Mag | 159 |
| Ruptures w/ Nonzero Rates | 34 |
| Magnitude Range | [7.02, 8.15] |
| Length Range | [22, 277] km |
| Total Rate | 2.9107752E-5 /yr |
| Multi-Fault Rate | 9.030242E-6 /yr (31.02%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 26 |
Table Of Contents

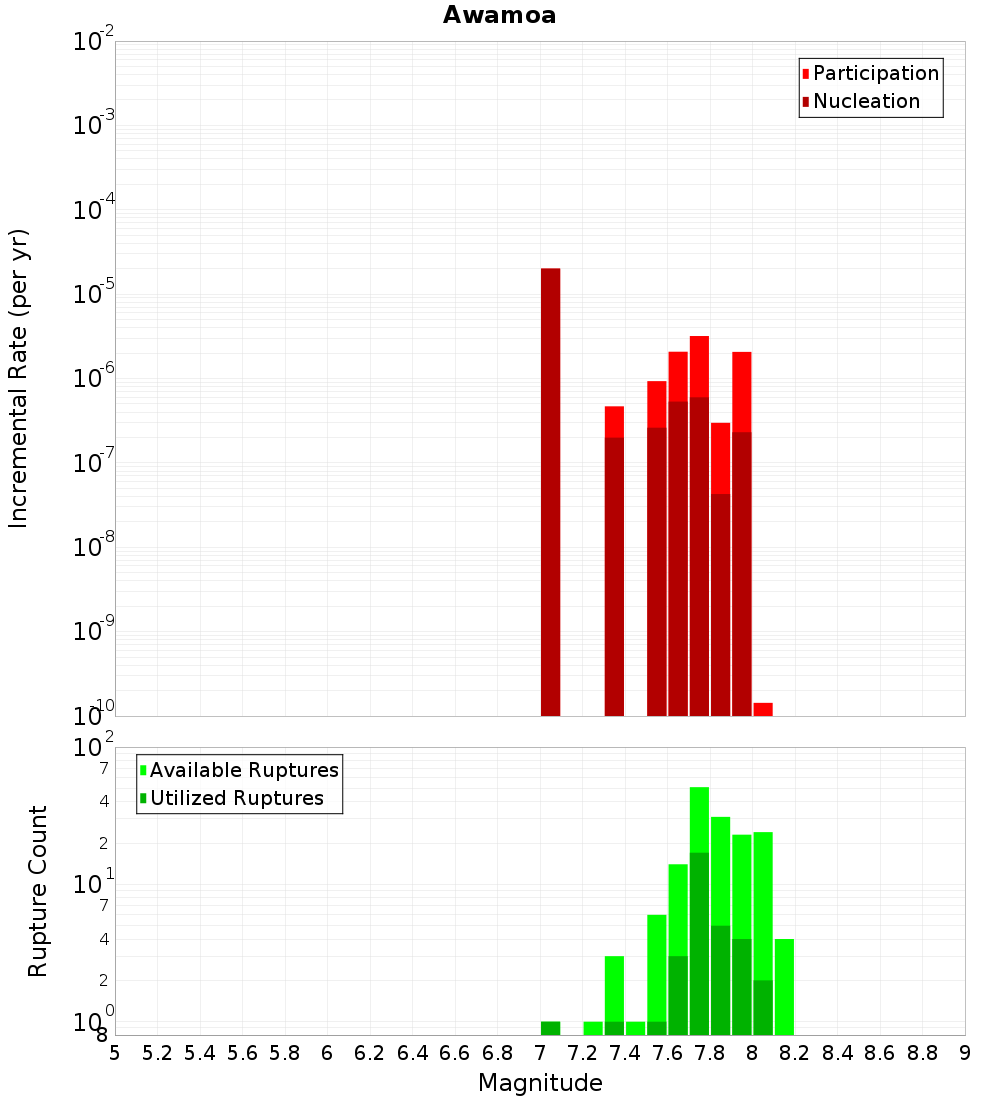

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

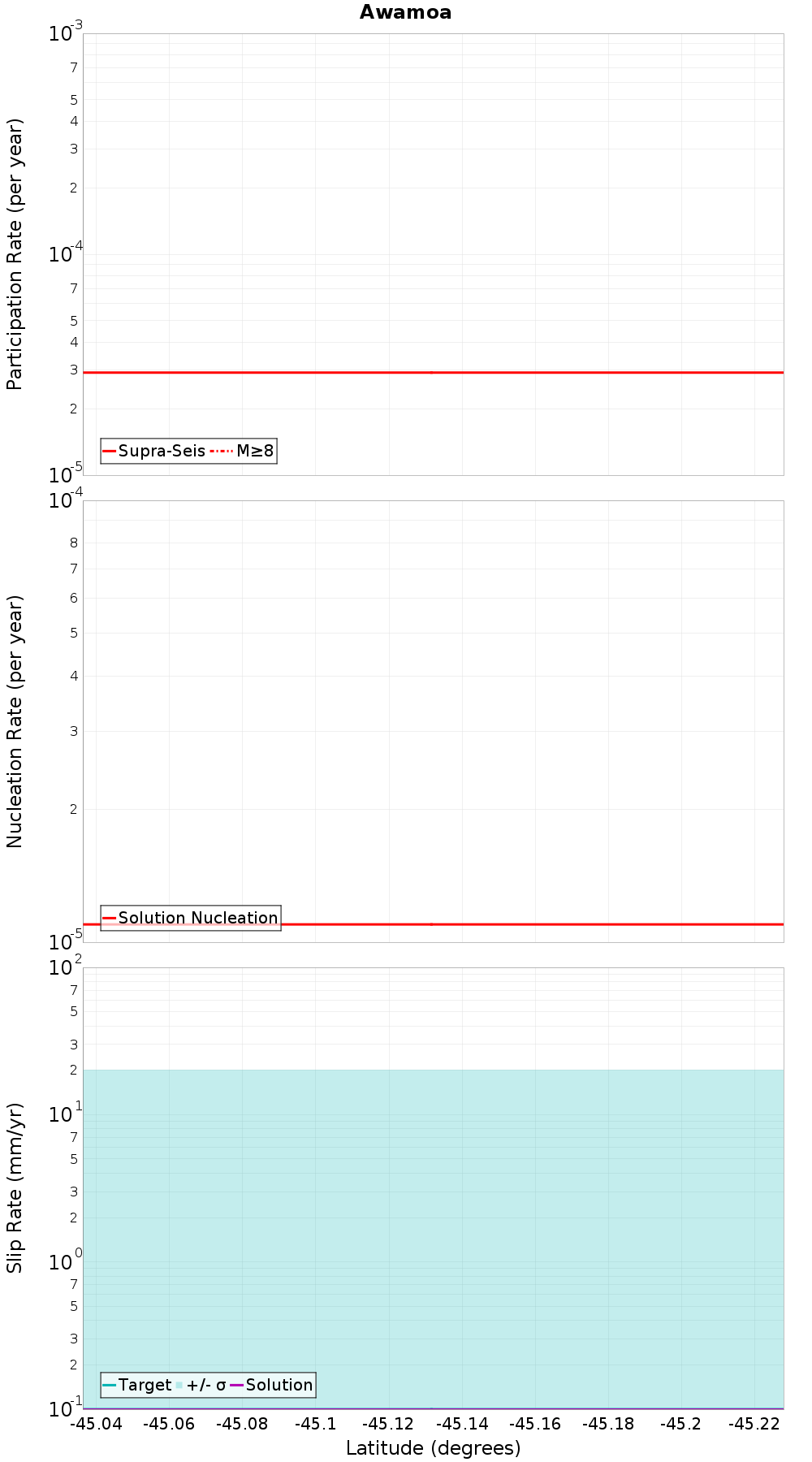

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Waitaki, 0.28 km away |
| Waimate, 8.62 km away |
| Stonewall, 14.16 km away |
Waitaki, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjYuMFJiSjdS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 158 |
| Co-rupture Rate | 9.030242E-6 |
Waimate, 8.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjYuMFJiSjdS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 59 |
| Co-rupture Rate | 3.299094E-6 |
Stonewall, 14.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMjYuMFJiSjdS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 65 |
| Co-rupture Rate | 2.4376461E-6 |
