Patoka - Rangiora Details

PropertyValue
Rupture Count4,610
Ruptures Above Sect Min Mag4,605
Ruptures w/ Nonzero Rates77
Magnitude Range[6.81, 8.24]
Length Range[22, 605] km
Total Rate0.0010013536 /yr
Multi-Fault Rate6.656472E-4 /yr (66.47%)
Directly-Connected Faults3
All Co-Rupturing Faults82

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

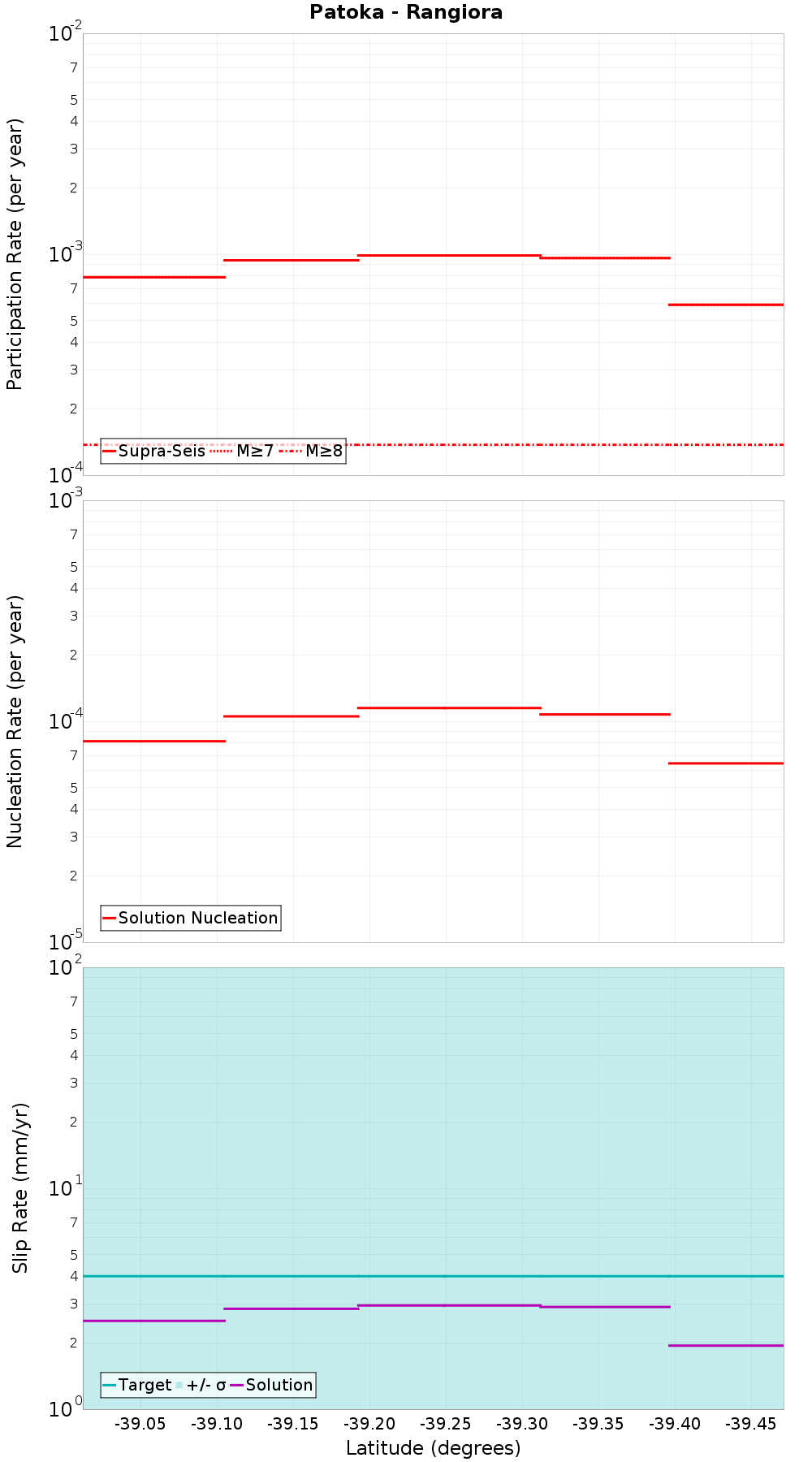

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: North, 0.41 km away
Awanui, 3.5 km away
Mohaka: South, 5.52 km away
Ruahine: North, 6.53 km away
Waiotahi: South, 7.72 km away
Waimana: South, 10.75 km away
Whakatane: South, 12.36 km away
Ruahine: Central, 12.66 km away
Hawke Bay 1, 12.96 km away
Wakarara, 14.99 km away

Mohaka: North, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?true
Co-rupture Count1,658
Co-rupture Rate2.4740392E-4

Awanui, 3.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?true
Co-rupture Count236
Co-rupture Rate3.1491945E-4

Mohaka: South, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?true
Co-rupture Count4,840
Co-rupture Rate1.9948794E-4

Ruahine: North, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?false
Co-rupture Count94
Co-rupture Rate0.0

Waiotahi: South, 7.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate1.660655E-4

Waimana: South, 10.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?false
Co-rupture Count1,030
Co-rupture Rate5.990363E-15

Whakatane: South, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?false
Co-rupture Count512
Co-rupture Rate8.1338425E-5

Ruahine: Central, 12.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 1, 12.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate8.245957E-24

Wakarara, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
