Poroutawhao Details

PropertyValue
Rupture Count310
Ruptures Above Sect Min Mag310
Ruptures w/ Nonzero Rates39
Magnitude Range[7.05, 7.88]
Length Range[27, 220] km
Total Rate7.60039E-5 /yr
Multi-Fault Rate7.60039E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults33

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

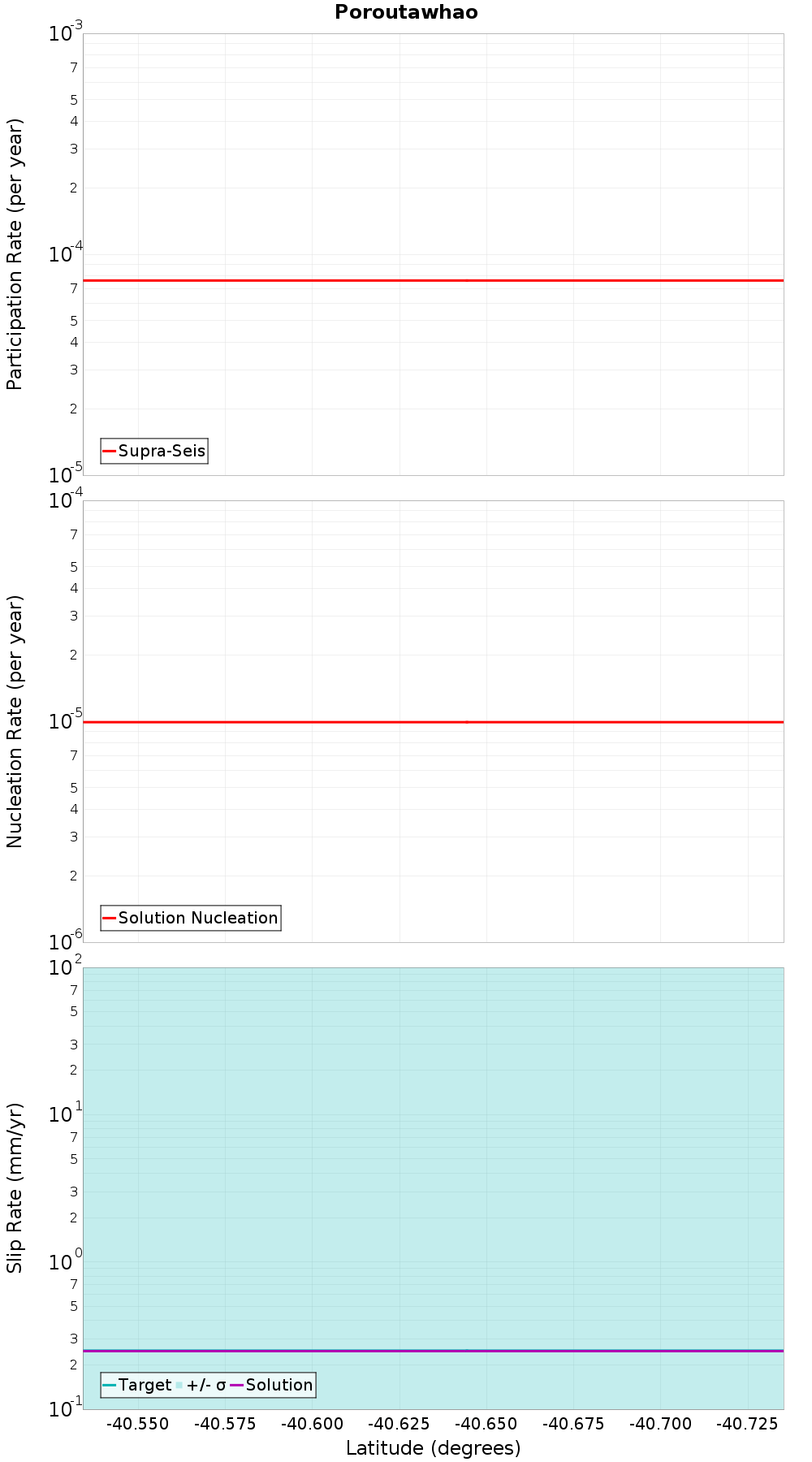

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

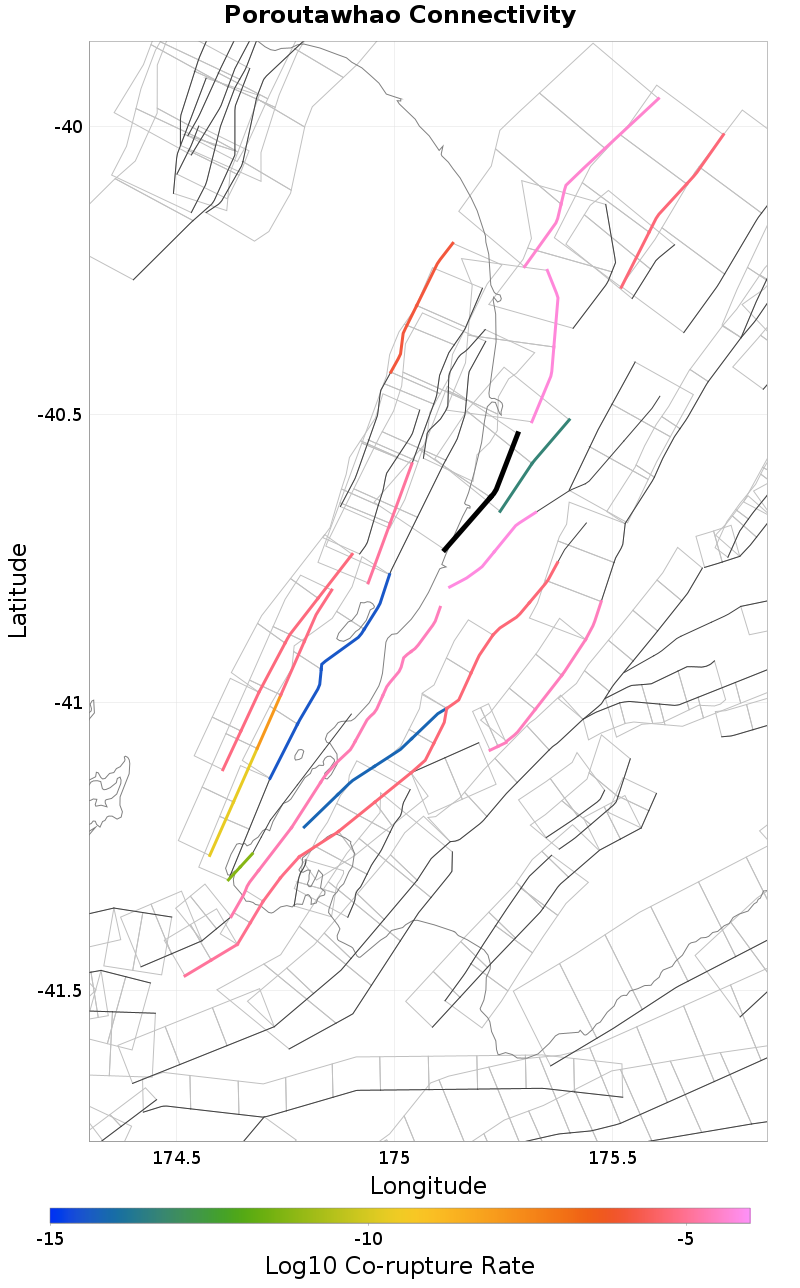

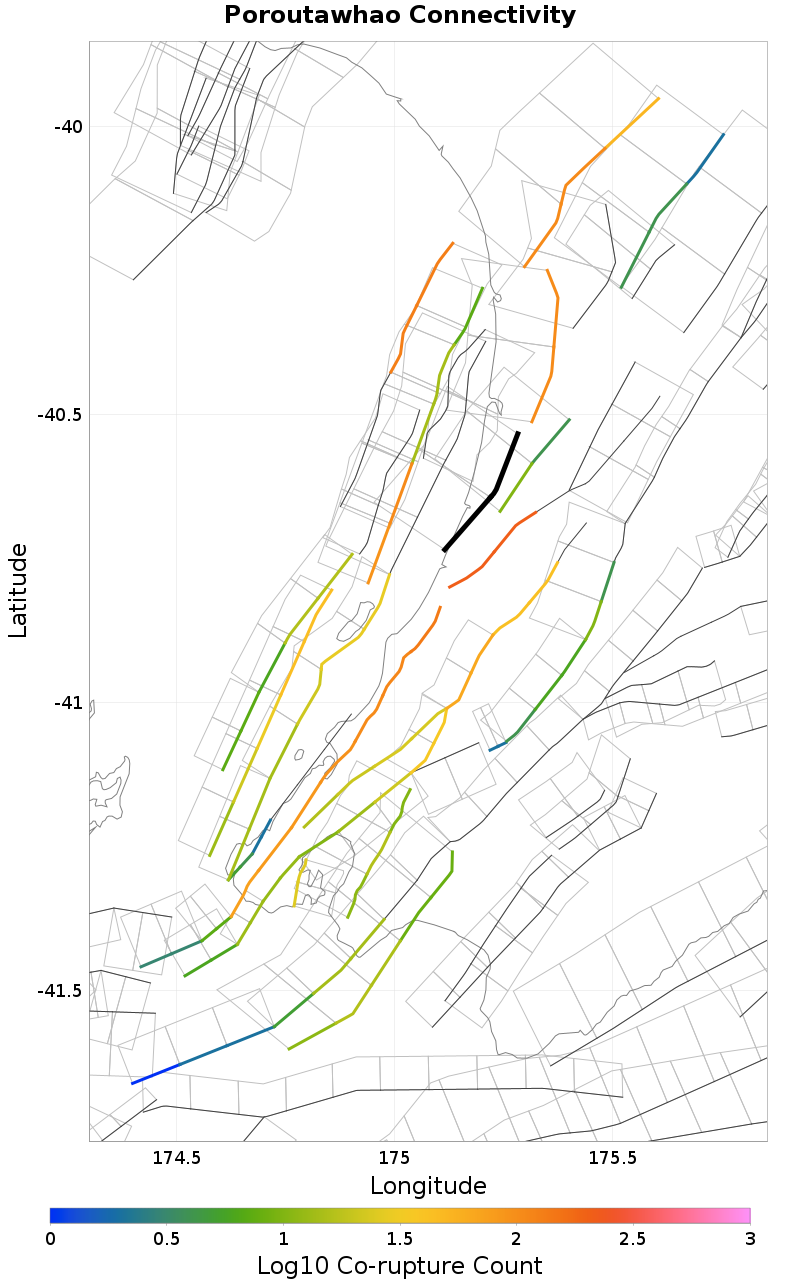

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mascarin, 0.23 km away
Rangitikei Offshore 1, 0.44 km away
Himatangi, 1.52 km away
Levin Anticline, 2.59 km away
Otaheke North, 4.09 km away
Onepoto, 5.72 km away
Fisherman 3, 6.43 km away
Northern Ohariu, 6.82 km away
Otaheke South, 10.02 km away
Ohariu, 11.17 km away
Fisherman 2, 12.07 km away
Tokomaru, 13.21 km away

Mascarin, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?true
Co-rupture Count130
Co-rupture Rate1.1940765E-6

Rangitikei Offshore 1, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Himatangi, 1.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?true
Co-rupture Count104
Co-rupture Rate4.8492246E-5

Levin Anticline, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate4.7785655E-14

Otaheke North, 4.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Onepoto, 5.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?true
Co-rupture Count105
Co-rupture Rate1.2310156E-5

Fisherman 3, 6.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 6.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?true
Co-rupture Count210
Co-rupture Rate5.6774352E-5

Otaheke South, 10.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate3.6130555E-15

Ohariu, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?false
Co-rupture Count141
Co-rupture Rate2.4340417E-5

Fisherman 2, 12.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate5.8074756E-6

Tokomaru, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwMzQuMG5ZOWVC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
