Kelly Details

PropertyValue
Rupture Count61,108
Ruptures Above Sect Min Mag61,093
Ruptures w/ Nonzero Rates3,280
Magnitude Range[6.61, 8.49]
Length Range[17, 973] km
Total Rate0.0042184168 /yr
Multi-Fault Rate0.0042184168 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults174

Table Of Contents

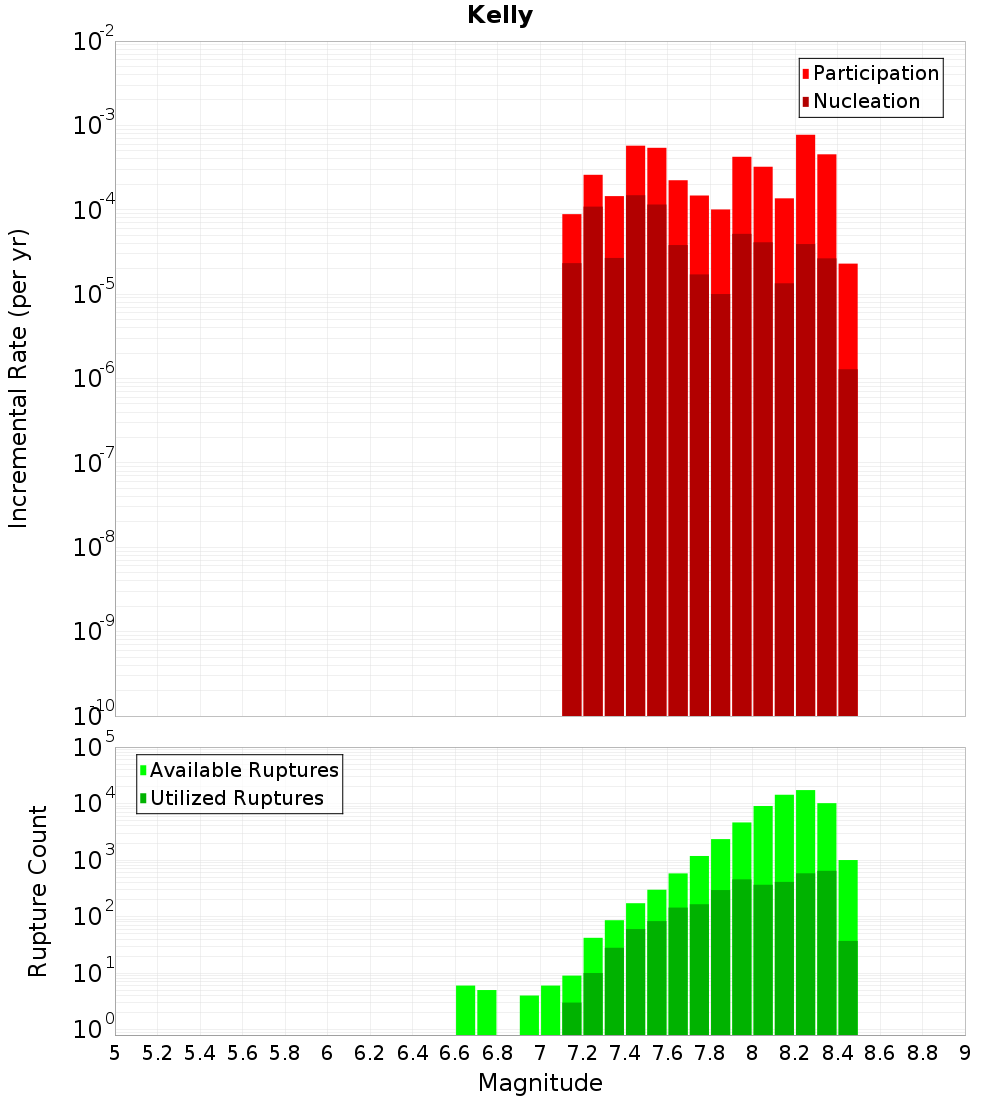

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

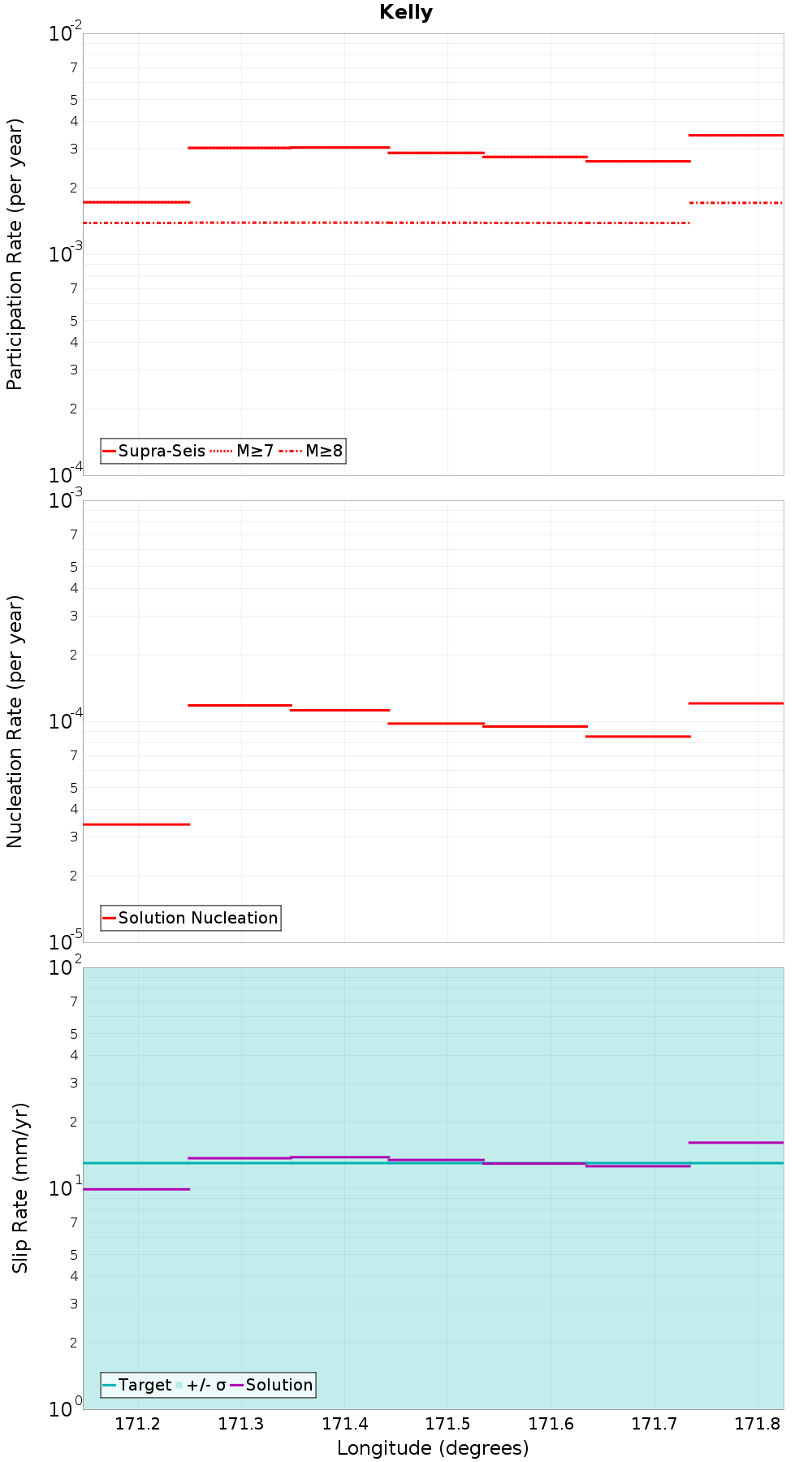

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

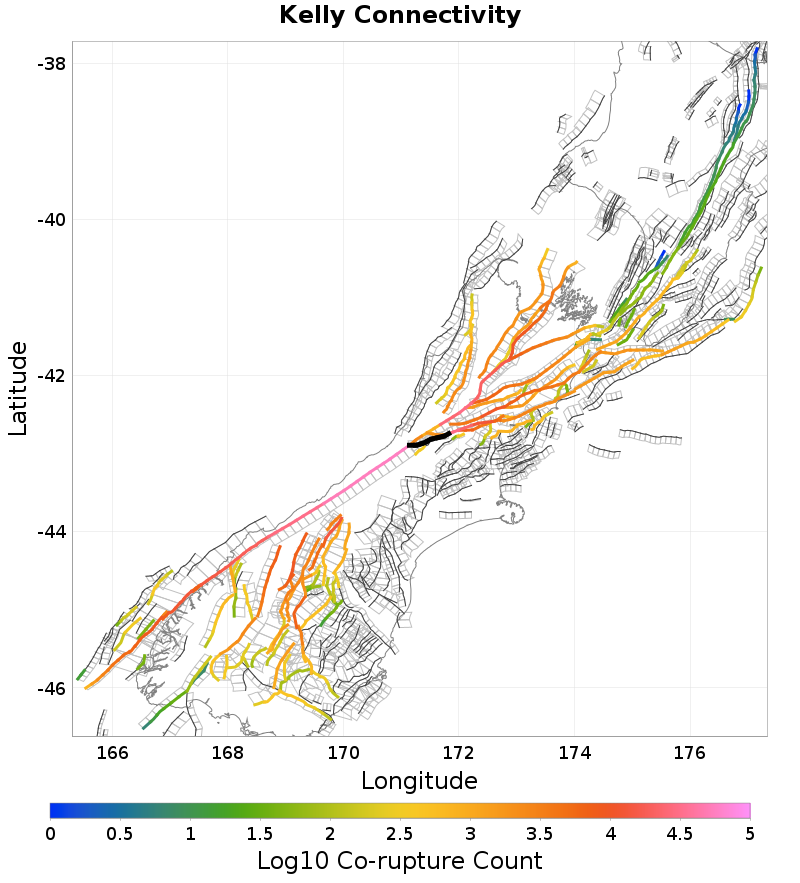

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.1 km away
Poulter, 9.5 km away
Cape Foulwind 1, 11.56 km away
Clarence: Southwest, 13.14 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMEZ1cWJH
Connected?true
Directly Connected?true
Co-rupture Count56,730
Co-rupture Rate0.0018294064

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMEZ1cWJH
Connected?true
Directly Connected?true
Co-rupture Count29,970
Co-rupture Rate0.0031017489

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMEZ1cWJH
Connected?true
Directly Connected?true
Co-rupture Count2,576
Co-rupture Rate8.331413E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMEZ1cWJH
Connected?true
Directly Connected?true
Co-rupture Count37,700
Co-rupture Rate0.0023355335

Browning Pass, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMEZ1cWJH
Connected?true
Directly Connected?false
Co-rupture Count321
Co-rupture Rate2.2629848E-4

Poulter, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMEZ1cWJH
Connected?true
Directly Connected?false
Co-rupture Count375
Co-rupture Rate4.9863606E-6

Cape Foulwind 1, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMEZ1cWJH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMEZ1cWJH
Connected?true
Directly Connected?false
Co-rupture Count10,808
Co-rupture Rate5.813769E-4

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMEZ1cWJH
Connected?true
Directly Connected?false
Co-rupture Count7,156
Co-rupture Rate0.0010568089

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMEZ1cWJH
Connected?true
Directly Connected?false
Co-rupture Count23,160
Co-rupture Rate0.0022032885
