Maungati Details

Property	Value
Rupture Count	844
Ruptures Above Sect Min Mag	839
Ruptures w/ Nonzero Rates	76
Magnitude Range	[6.67, 8.25]
Length Range	[16, 538] km
Total Rate	2.705638E-5 /yr
Multi-Fault Rate	2.705638E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	60

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

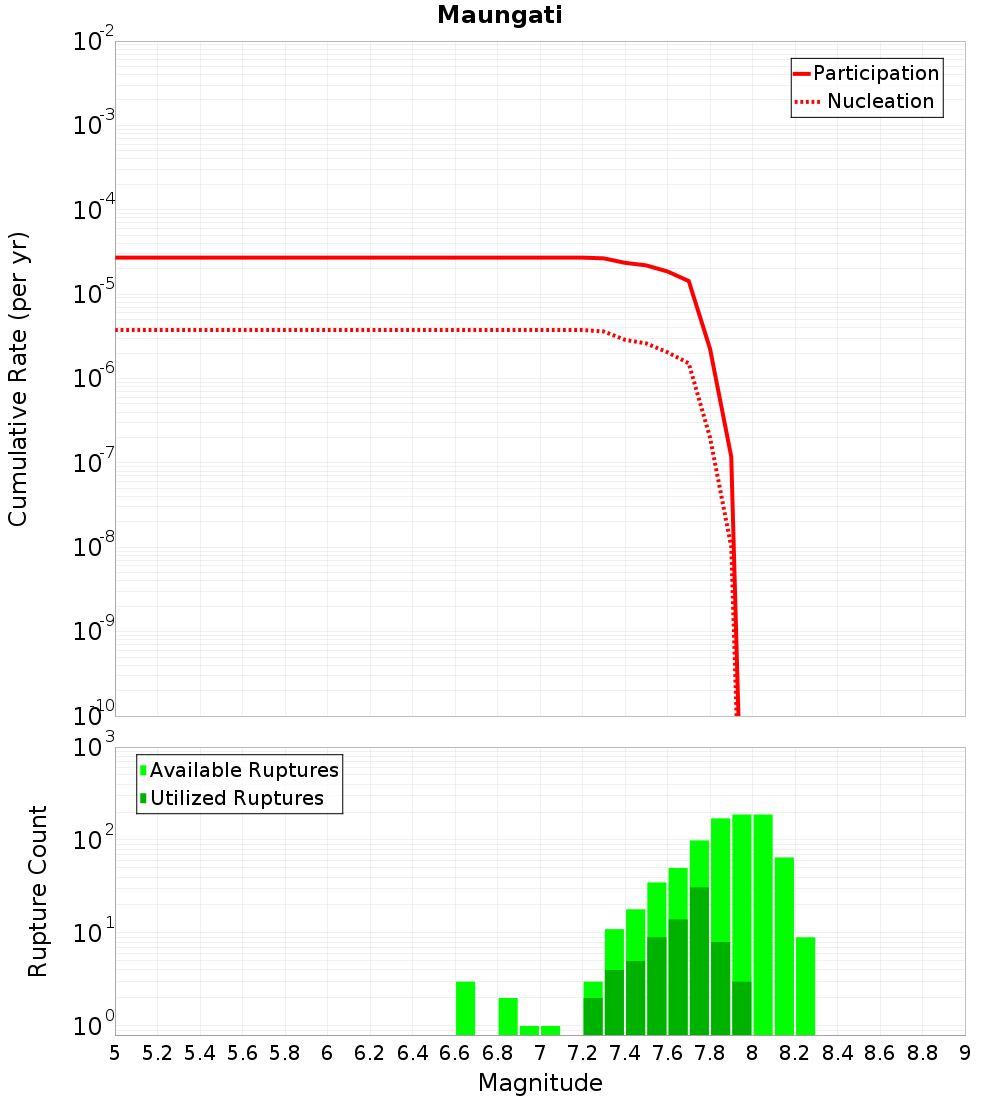

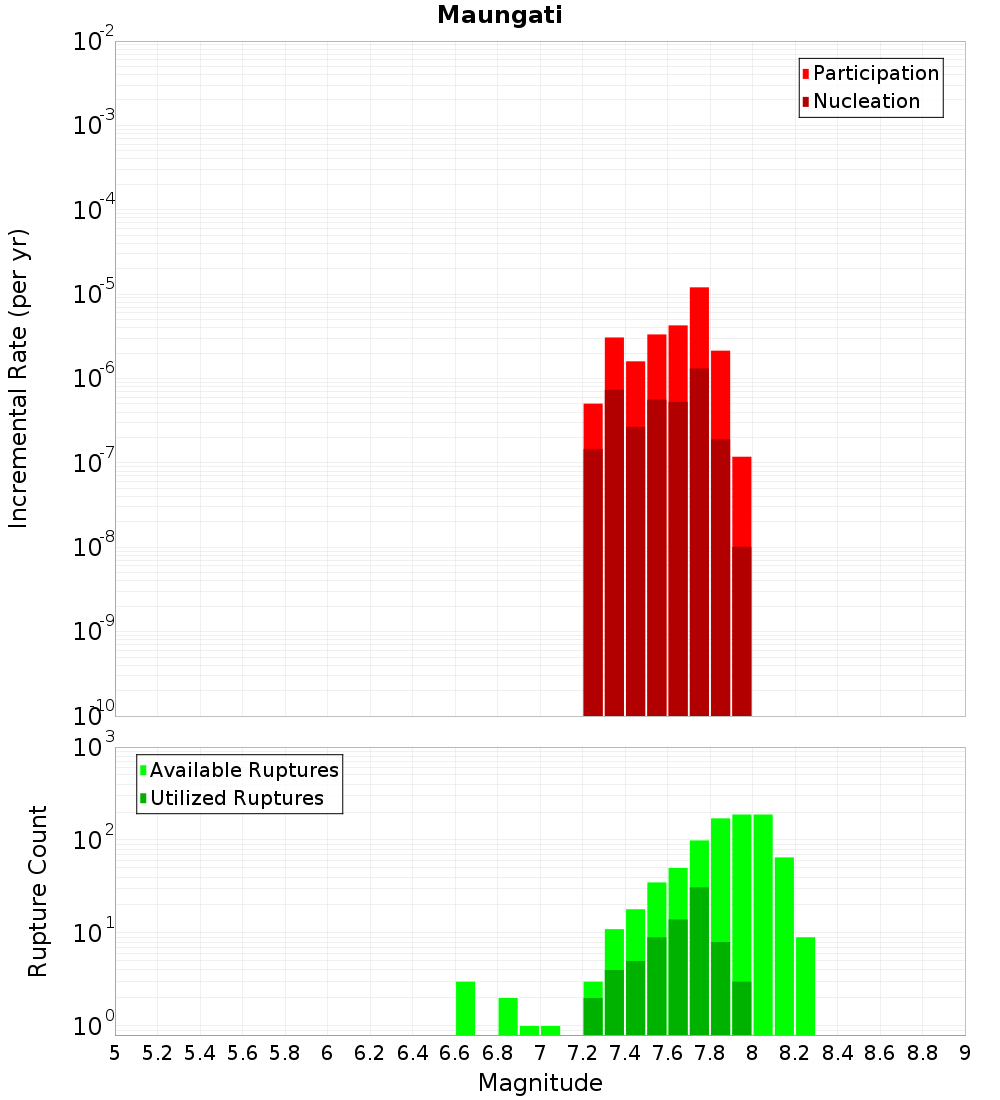

Magnitude-Frequency Distribution

Incremental	Cumulative

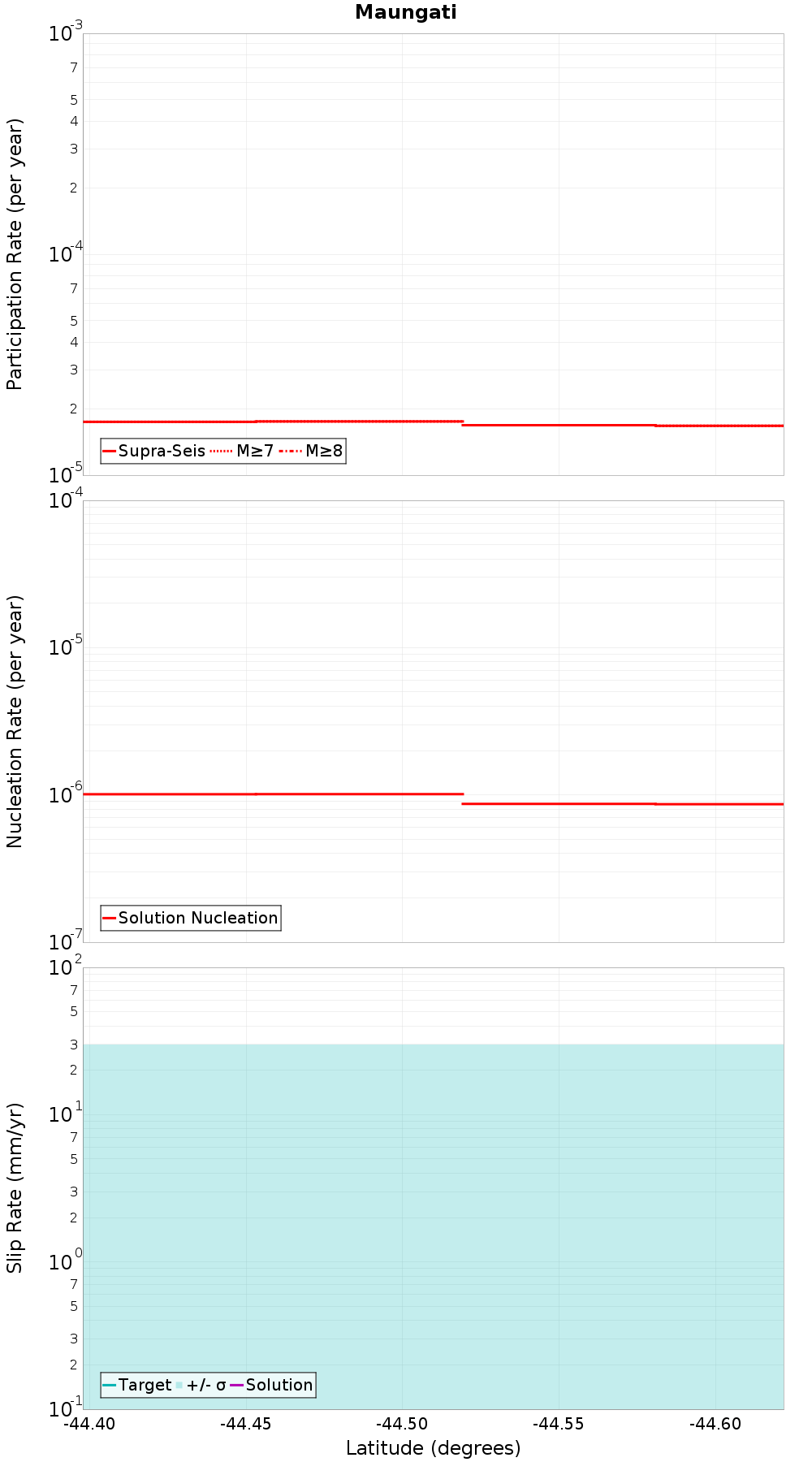

Along-Strike Values

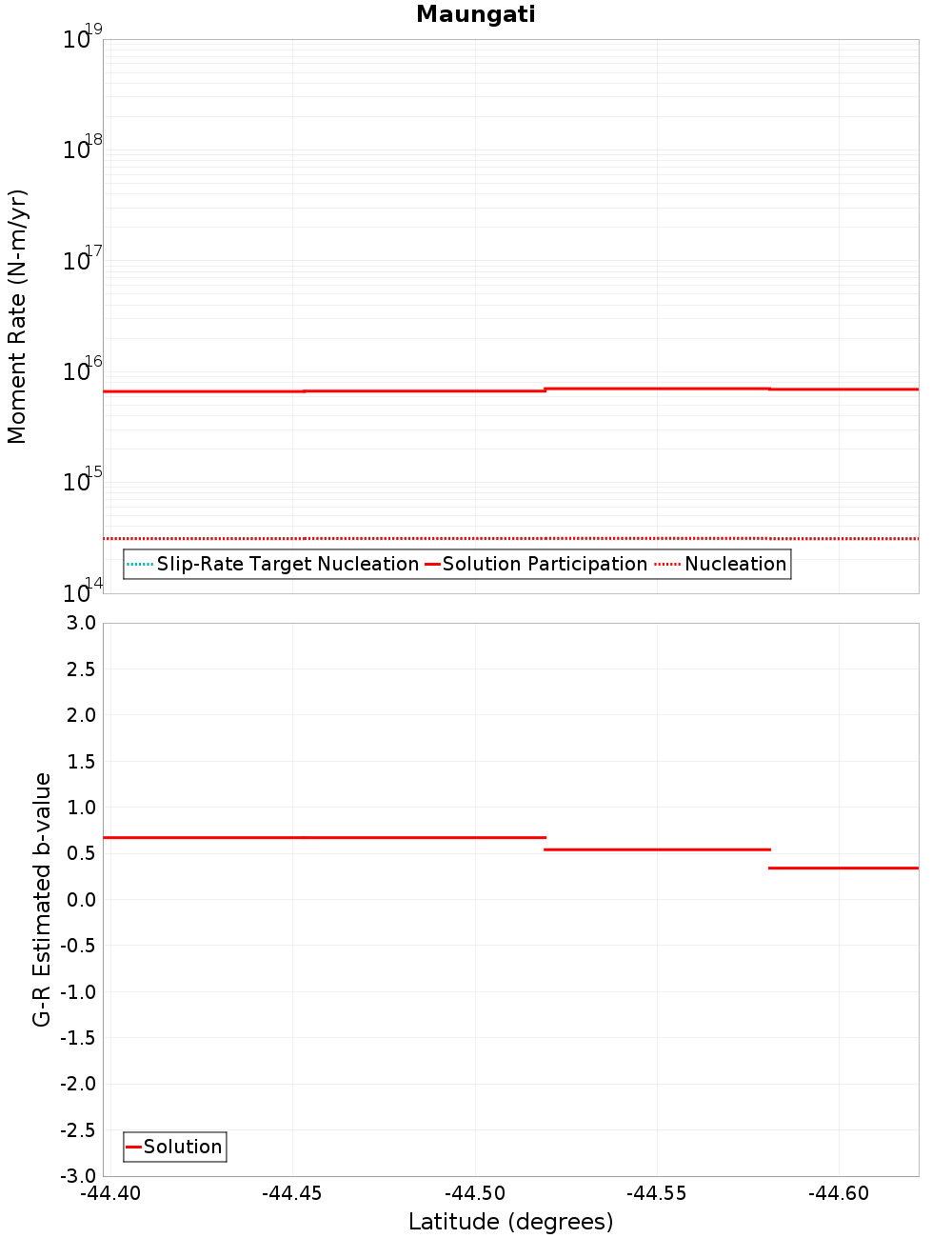

Moment-Rates and b-Values

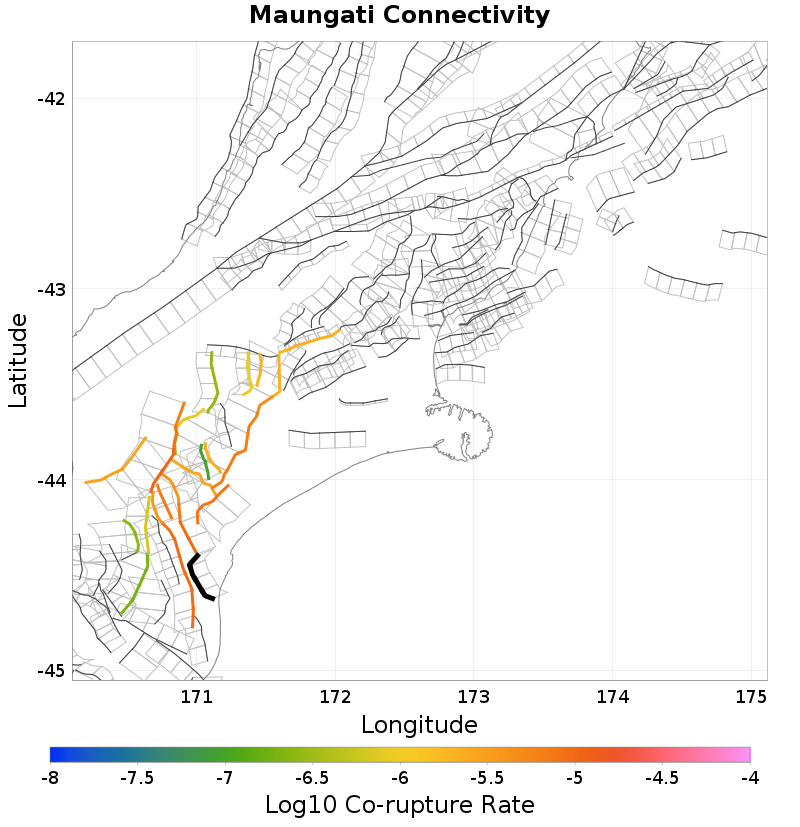

Connectivity

Nearby Sections

Fault Section
Brothers, 0.81 km away
Hunters, 3.56 km away
Rapuwai, 6.24 km away
Chamberlain, 8.42 km away
Waimate, 13.4 km away

Brothers, 0.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMFhzTkd5
Connected?	true
Directly Connected?	true
Co-rupture Count	696
Co-rupture Rate	9.935081E-6

Hunters, 3.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMFhzTkd5
Connected?	true
Directly Connected?	true
Co-rupture Count	102
Co-rupture Rate	9.669966E-6

Rapuwai, 6.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMFhzTkd5
Connected?	true
Directly Connected?	true
Co-rupture Count	173
Co-rupture Rate	7.5696275E-6

Chamberlain, 8.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMFhzTkd5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimate, 13.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNDQuMFhzTkd5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
