White Island 1 Details

Property	Value
Rupture Count	16,332
Ruptures Above Sect Min Mag	16,330
Ruptures w/ Nonzero Rates	970
Magnitude Range	[6.93, 8.48]
Length Range	[19, 694] km
Total Rate	1.9337368E-4 /yr
Multi-Fault Rate	1.933369E-4 /yr (99.98%)
Directly-Connected Faults	9
All Co-Rupturing Faults	79

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

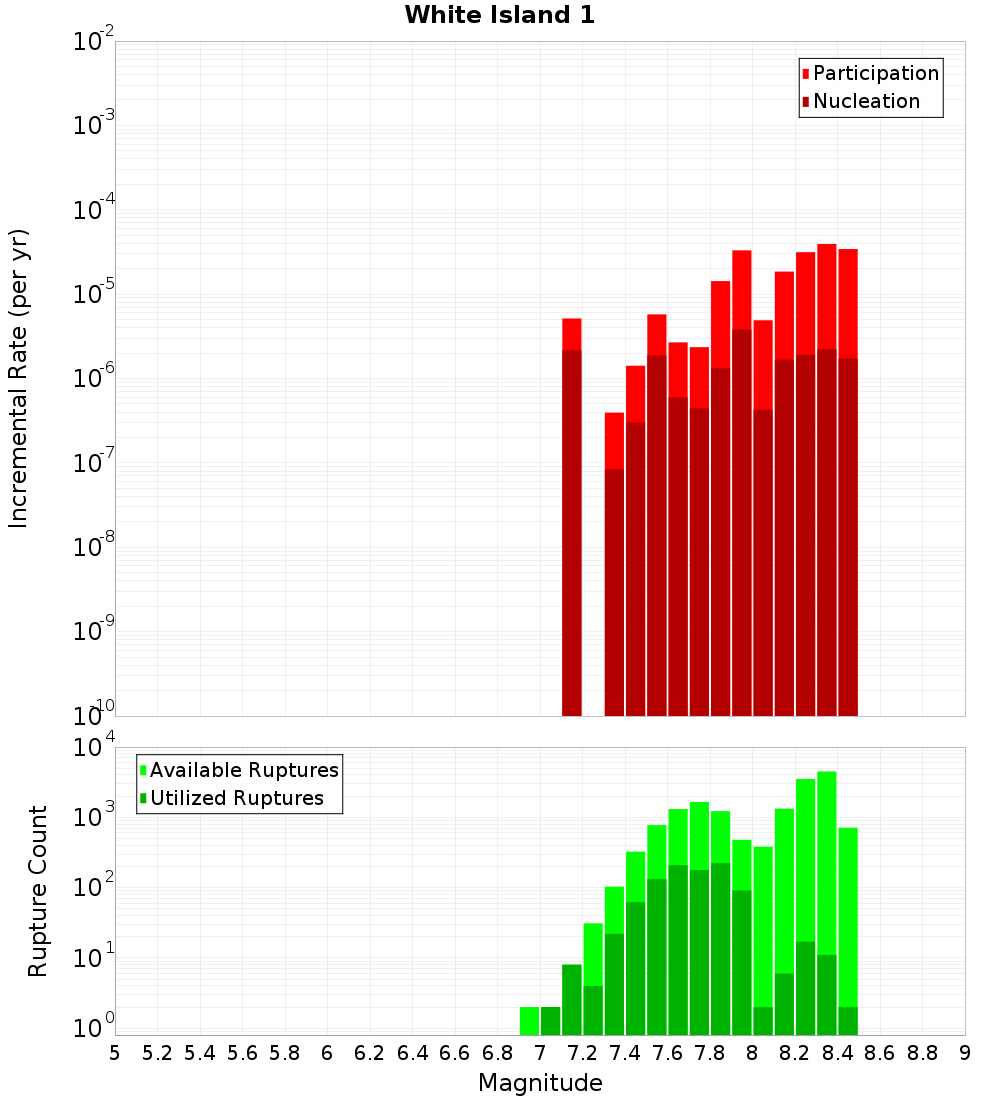

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

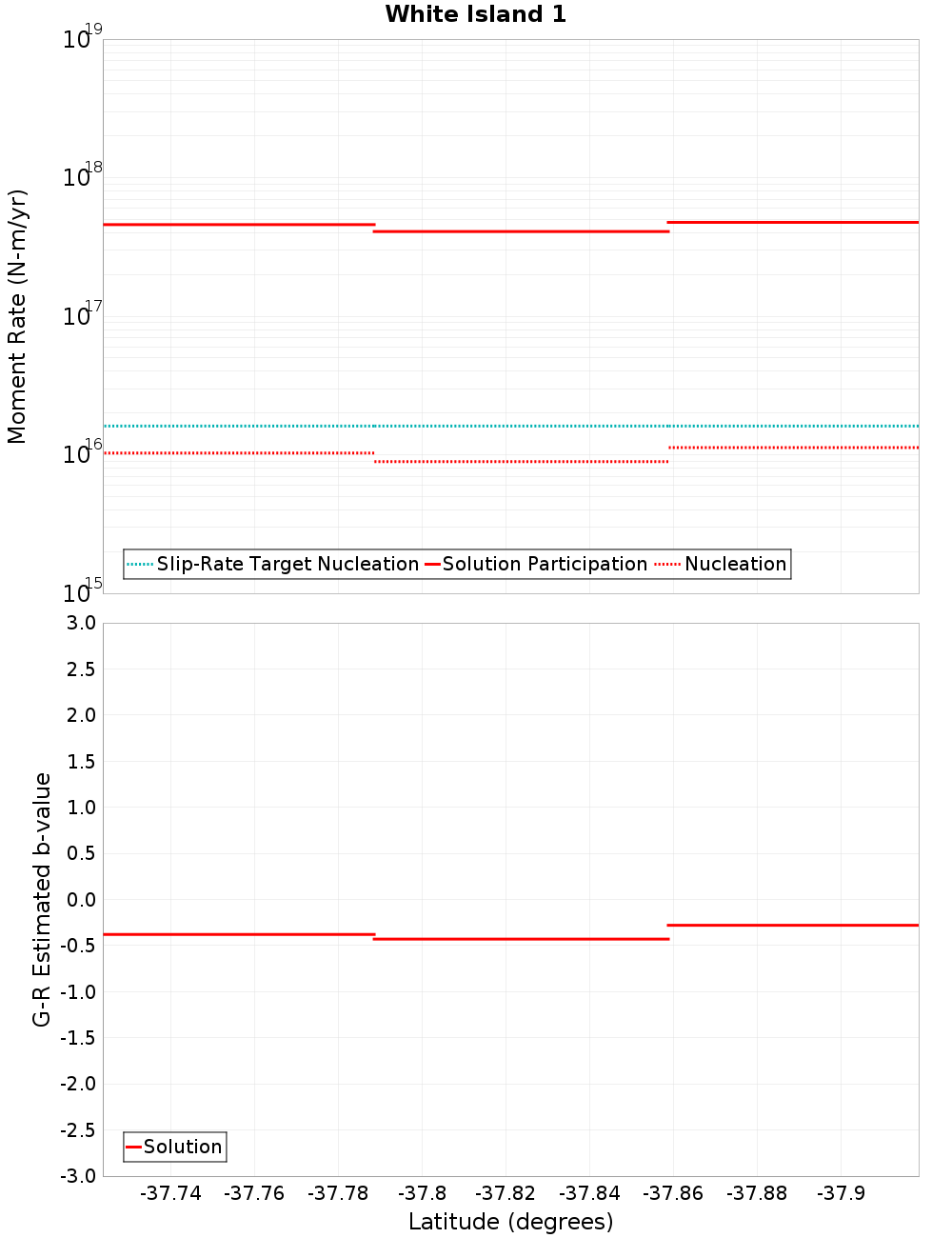

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Edgecumbe Coastal, 0 km away	Whakatane: North, 3.09 km away
Ohiwa 1, 0.17 km away	Edgecumbe 1987, 4.49 km away
Matata, 0.2 km away	Waimanawa - Waikaremoana, 5.15 km away
Keepa, 0.61 km away	Waimana: North, 7.11 km away
Rangitaiki 2, 0.77 km away	Calypso 2, 8.93 km away
Whakaari 4, 1.52 km away	Waiotahi: North, 9.79 km away
White Island 2, 1.95 km away	Braemar, 11.21 km away
Rangitaiki 1, 2 km away	Ohae 1, 13.68 km away
Otakiri, 2.46 km away	Opotiki 3, 13.82 km away

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	true
Co-rupture Count	6,552
Co-rupture Rate	6.8483656E-5

Ohiwa 1, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,553
Co-rupture Rate	5.3746327E-5

Matata, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	true
Co-rupture Count	7,371
Co-rupture Rate	1.08339926E-4

Keepa, 0.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	false
Co-rupture Count	2,575
Co-rupture Rate	9.662714E-5

Rangitaiki 2, 0.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	false
Co-rupture Count	3,158
Co-rupture Rate	2.3346383E-5

Whakaari 4, 1.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	true
Co-rupture Count	4,463
Co-rupture Rate	5.3216438E-5

White Island 2, 1.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	true
Co-rupture Count	3,422
Co-rupture Rate	7.83566E-5

Rangitaiki 1, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	true
Co-rupture Count	5,327
Co-rupture Rate	6.15233E-5

Otakiri, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,534
Co-rupture Rate	7.430897E-5

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Edgecumbe 1987, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	true
Co-rupture Count	7,353
Co-rupture Rate	6.838741E-5

Waimanawa - Waikaremoana, 5.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimana: North, 7.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	true
Co-rupture Count	6,708
Co-rupture Rate	1.068081E-4

Calypso 2, 8.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	false
Co-rupture Count	224
Co-rupture Rate	2.1184217E-8

Waiotahi: North, 9.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Braemar, 11.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	true
Directly Connected?	false
Co-rupture Count	1,517
Co-rupture Rate	5.401043E-5

Ohae 1, 13.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 13.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTYuMFJHdUtq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
