Catherine Details
| Property | Value |
|---|---|
| Rupture Count | 300 |
| Ruptures Above Sect Min Mag | 300 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [7.01, 8.21] |
| Length Range | [20, 354] km |
| Total Rate | 1.1101003E-5 /yr |
| Multi-Fault Rate | 1.1101003E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 33 |
Table Of Contents

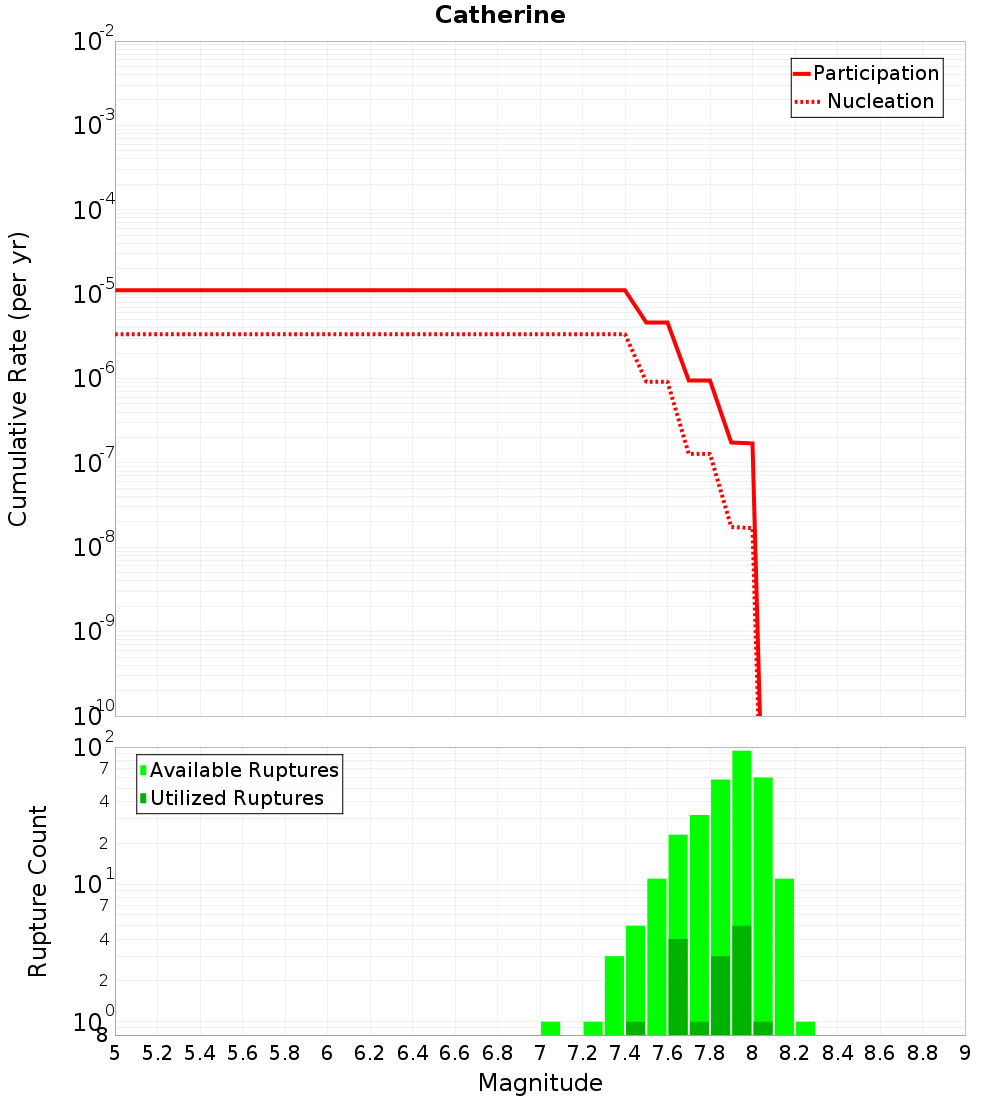

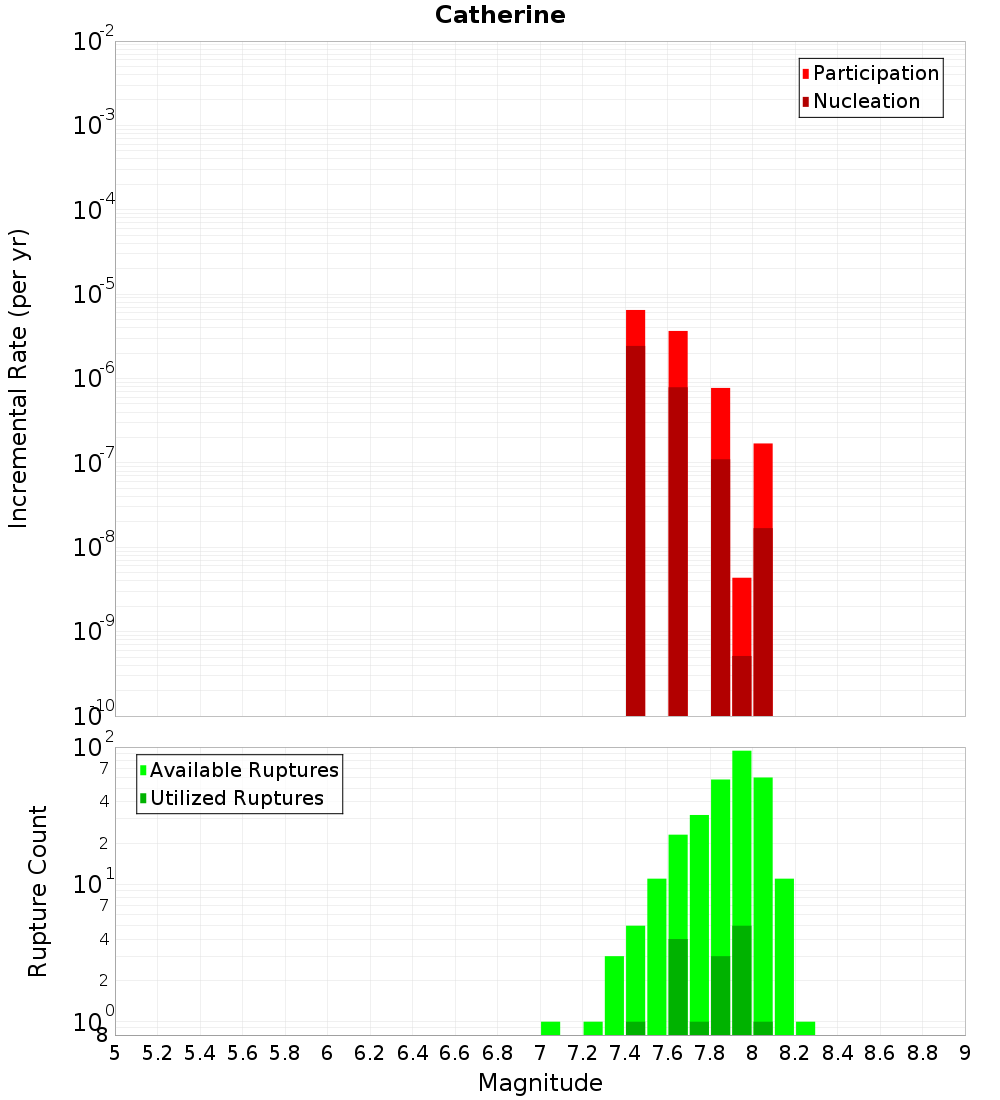

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

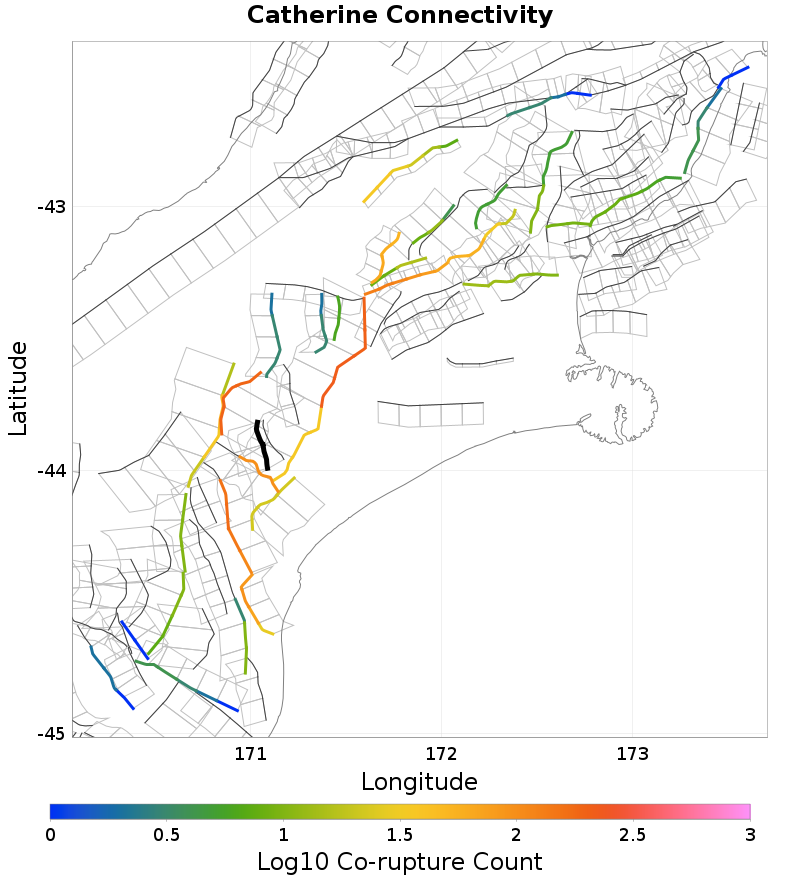

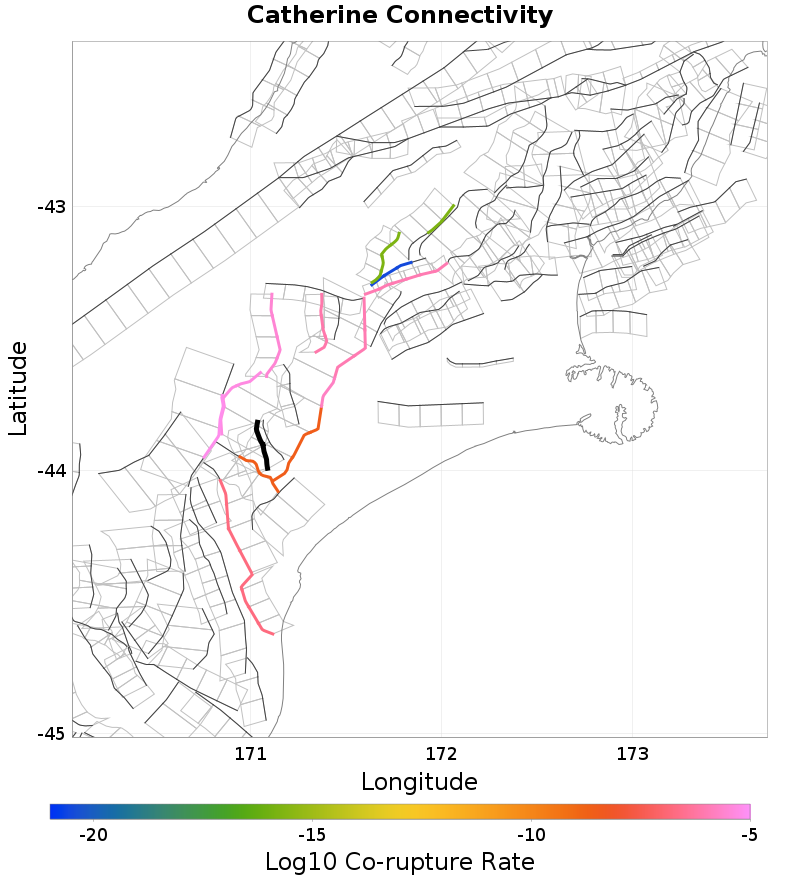

Connectivity
 |  |
|---|
Nearby Sections
Ben McLeod, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTguMFdrMmND | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 195 |
| Co-rupture Rate | 4.606835E-6 |
Hutt Peel, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTguMFdrMmND | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 217 |
| Co-rupture Rate | 1.7045269E-6 |
Brothers, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTguMFdrMmND | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 175 |
| Co-rupture Rate | 1.7156071E-7 |
Edith, 2.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTguMFdrMmND | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Sugarloaf, 2.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTguMFdrMmND | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 97 |
| Co-rupture Rate | 2.7704576E-9 |
Irishman Creek, 8.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTguMFdrMmND | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opawa, 8.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTguMFdrMmND | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 10.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTguMFdrMmND | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 22 |
| Co-rupture Rate | 0.0 |
Fox Peak, 13.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNTguMFdrMmND | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 51 |
| Co-rupture Rate | 6.4913984E-6 |
