Hillfoot Details

Property	Value
Rupture Count	21,927
Ruptures Above Sect Min Mag	21,924
Ruptures w/ Nonzero Rates	708
Magnitude Range	[7.20, 8.72]
Length Range	[27, 963] km
Total Rate	1.4261195E-5 /yr
Multi-Fault Rate	1.3960429E-5 /yr (97.89%)
Directly-Connected Faults	10
All Co-Rupturing Faults	102

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

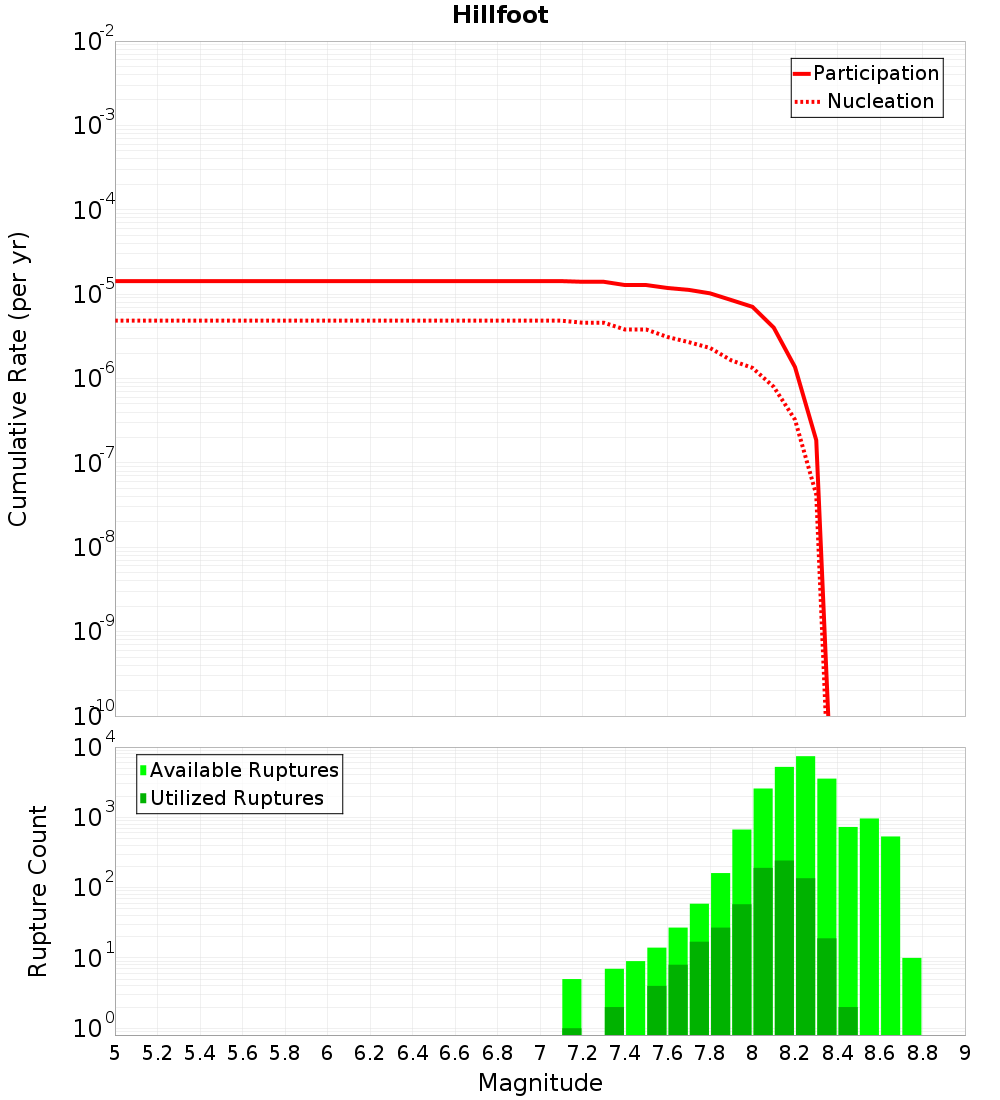

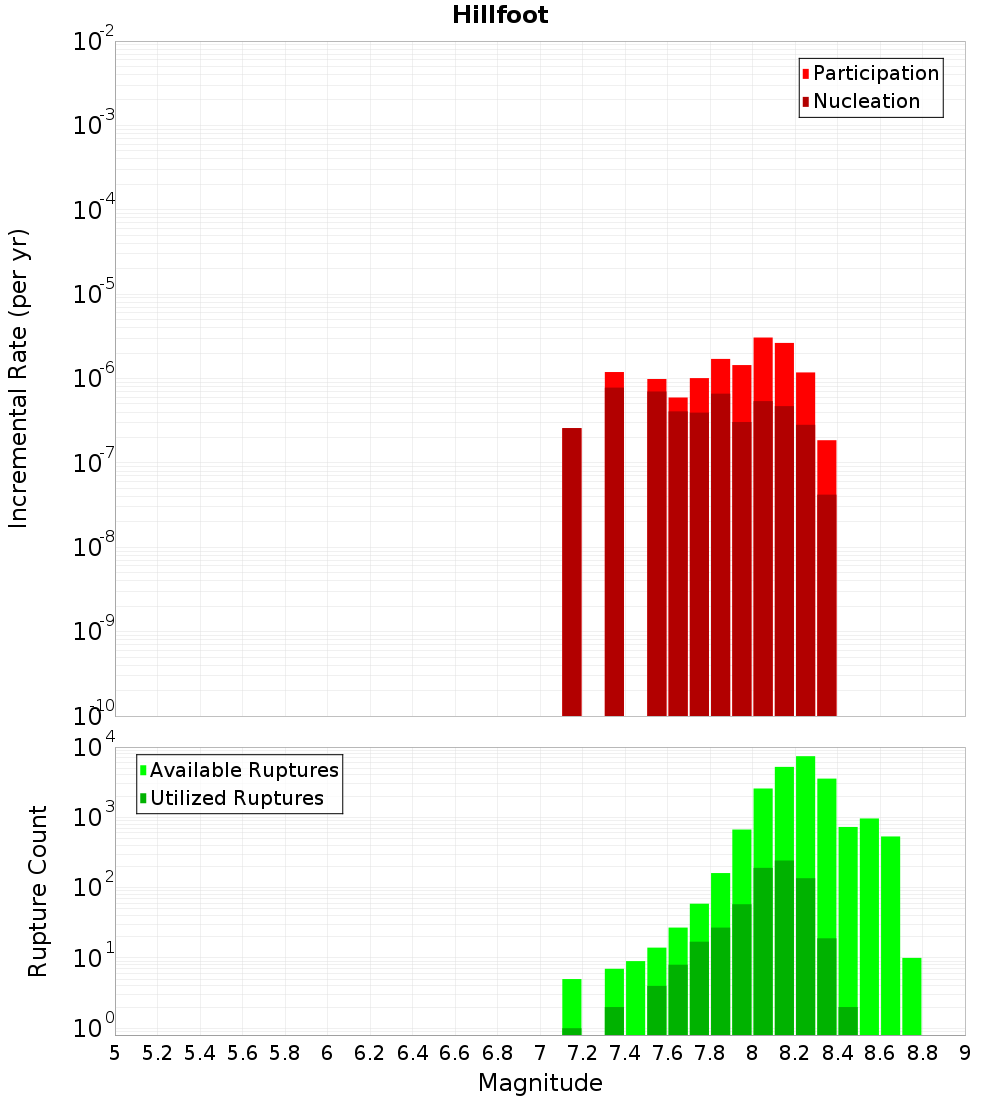

Magnitude-Frequency Distribution

Incremental	Cumulative

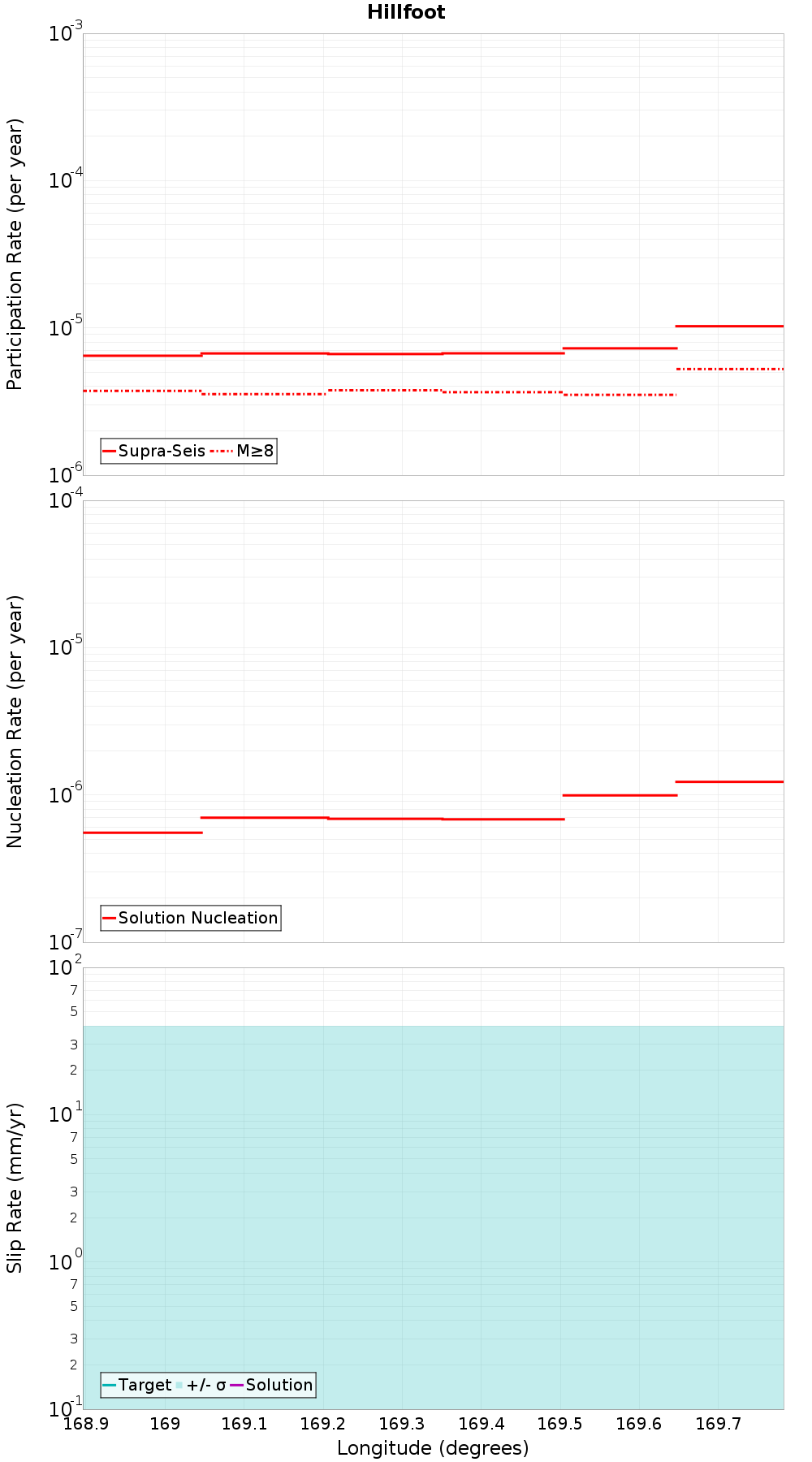

Along-Strike Values

Moment-Rates and b-Values

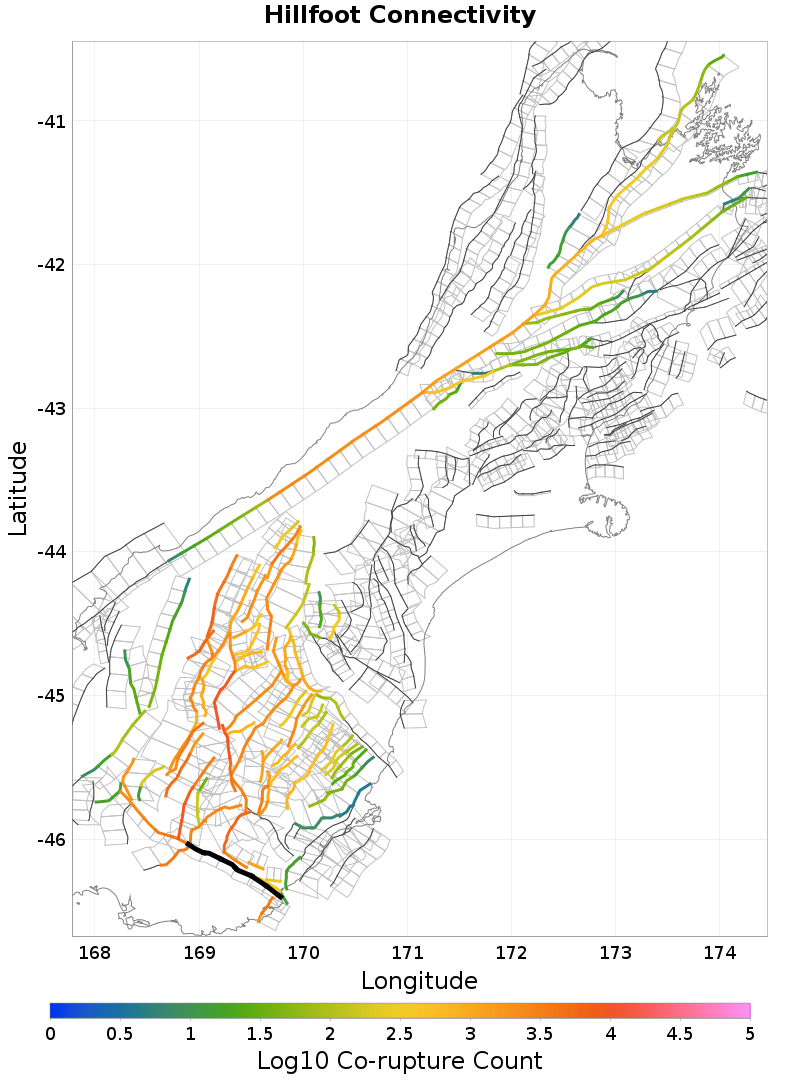

Connectivity

Nearby Sections

Fault Section
Hokonui, 0 km away
Hedgehope, 0.31 km away
Little Hillfoot, 0.55 km away
Waikaka, 0.9 km away
Settlement, 2.07 km away
Otanomomo, 3.97 km away
Beacon Hill, 4.04 km away
Waikaia, 4.54 km away
Blue Mountain, 6.17 km away
Titri South, 7.63 km away
Clifton, 8.54 km away
Spylaw, 11.54 km away

Hokonui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	3,709
Co-rupture Rate	2.891535E-6

Hedgehope, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	3,450
Co-rupture Rate	4.728346E-11

Little Hillfoot, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	383
Co-rupture Rate	2.92932E-11

Waikaka, 0.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,756
Co-rupture Rate	9.2871835E-7

Settlement, 2.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	3,740
Co-rupture Rate	1.0256734E-5

Otanomomo, 3.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	226
Co-rupture Rate	0.0

Beacon Hill, 4.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,645
Co-rupture Rate	1.1540942E-6

Waikaia, 4.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	10,327
Co-rupture Rate	2.6385708E-6

Blue Mountain, 6.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	5,512
Co-rupture Rate	4.971979E-6

Titri South, 7.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	0.0

Clifton, 8.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,186
Co-rupture Rate	3.2879868E-6

Spylaw, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,394
Co-rupture Rate	1.6624515E-8
