Hump Ridge Details
| Property | Value |
|---|---|
| Rupture Count | 95 |
| Ruptures Above Sect Min Mag | 90 |
| Ruptures w/ Nonzero Rates | 31 |
| Magnitude Range | [7.03, 8.18] |
| Length Range | [22, 273] km |
| Total Rate | 2.0275741E-4 /yr |
| Multi-Fault Rate | 2.7717946E-5 /yr (13.67%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

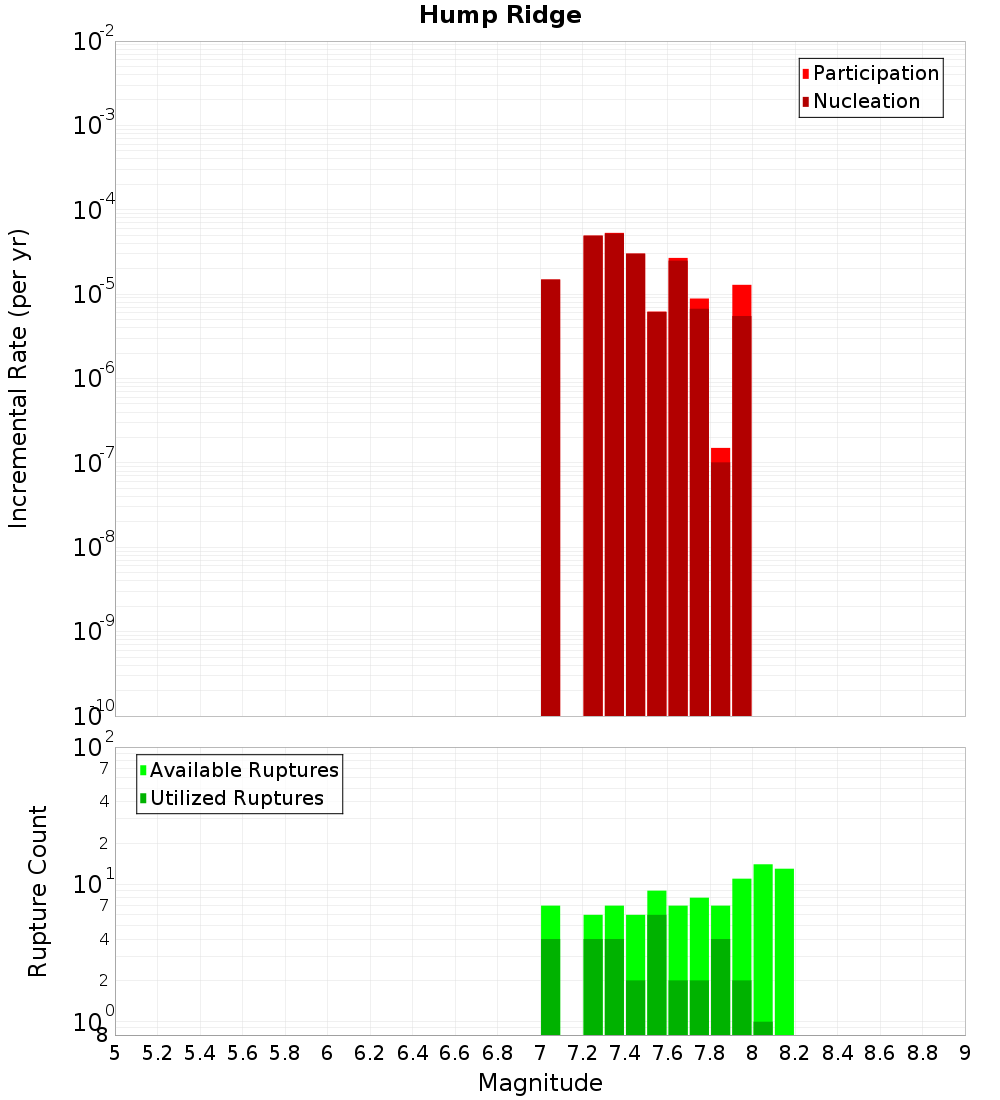

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

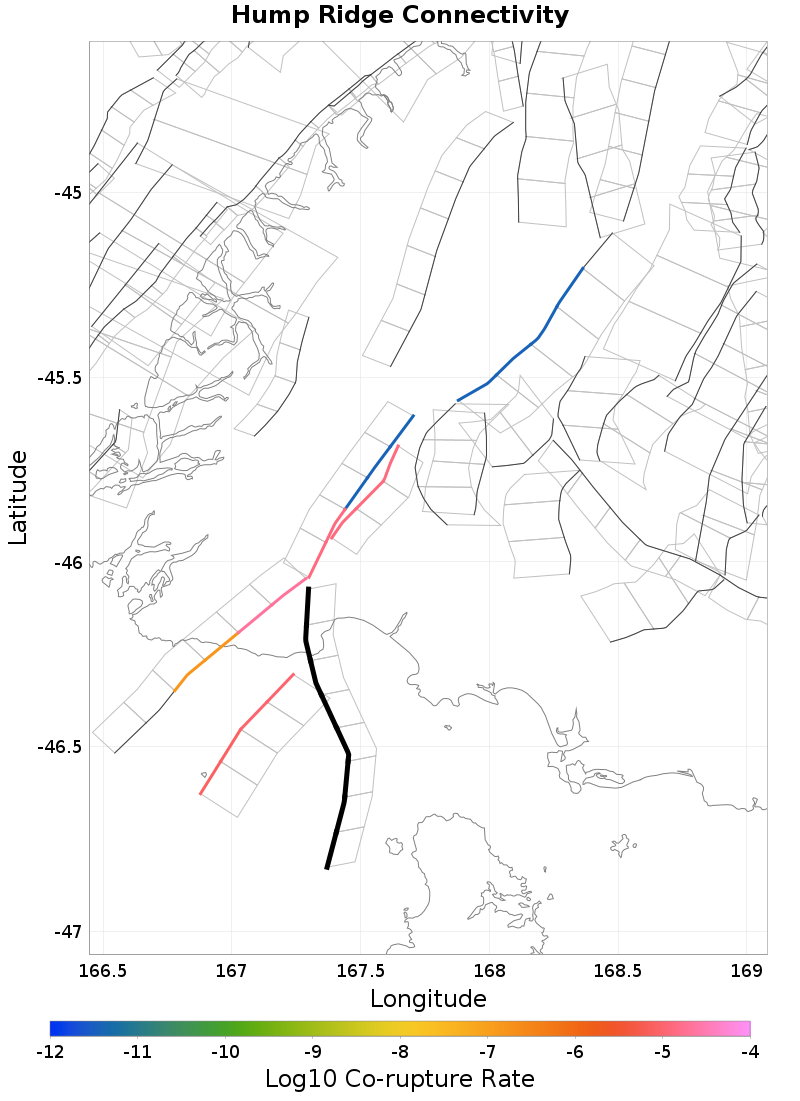

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: South, 3.03 km away |
| Hauroko: North, 3.59 km away |
| Solander, 5.29 km away |
| Monowai, 10.79 km away |
Hauroko: South, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 61 |
| Co-rupture Rate | 2.191941E-5 |
Hauroko: North, 3.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 45 |
| Co-rupture Rate | 1.28959055E-5 |
Solander, 5.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 9.856028E-6 |
Monowai, 10.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjEuMDVLVmJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 1.2895902E-5 |
