Cross Eden Details

PropertyValue
Rupture Count1,216
Ruptures Above Sect Min Mag1,215
Ruptures w/ Nonzero Rates62
Magnitude Range[6.95, 8.24]
Length Range[19, 298] km
Total Rate9.612787E-6 /yr
Multi-Fault Rate9.612787E-6 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults36

Table Of Contents

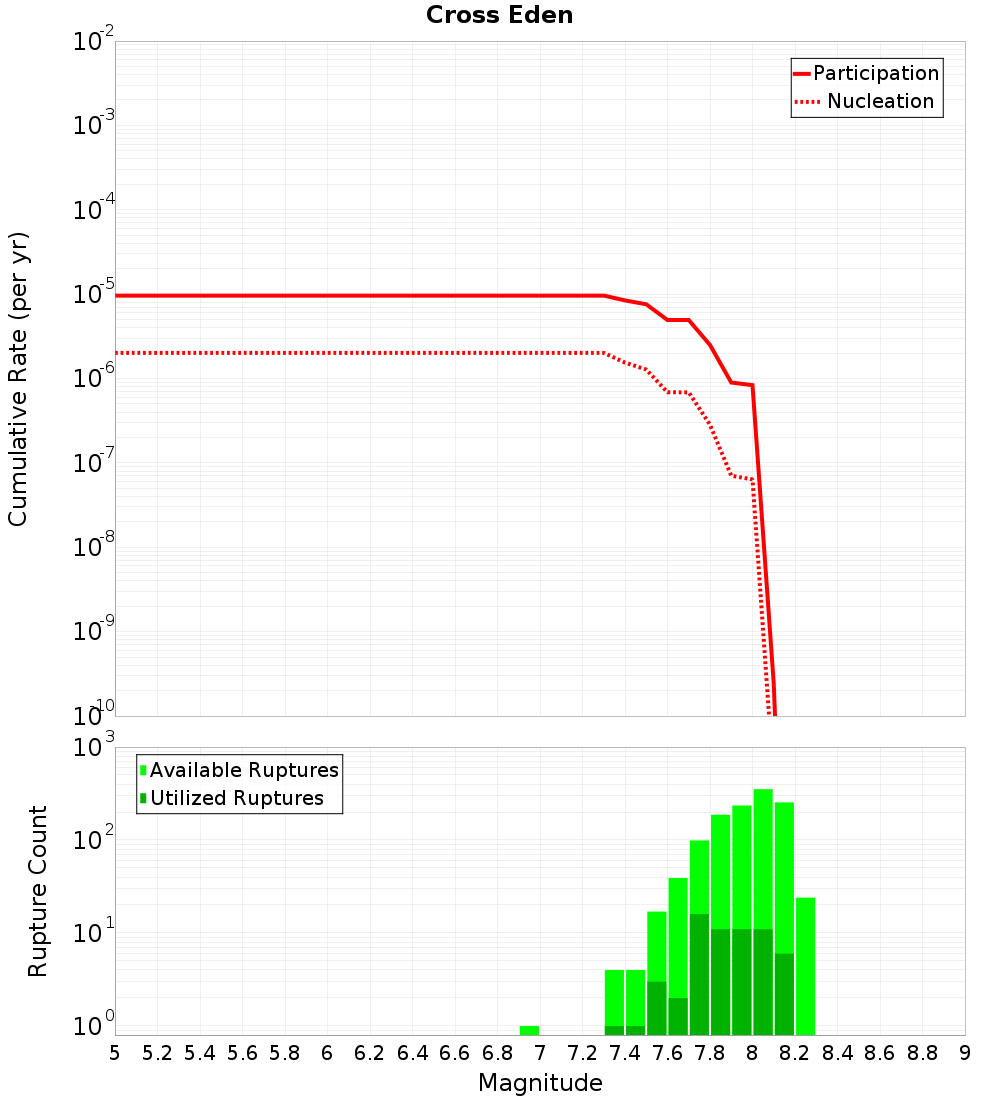

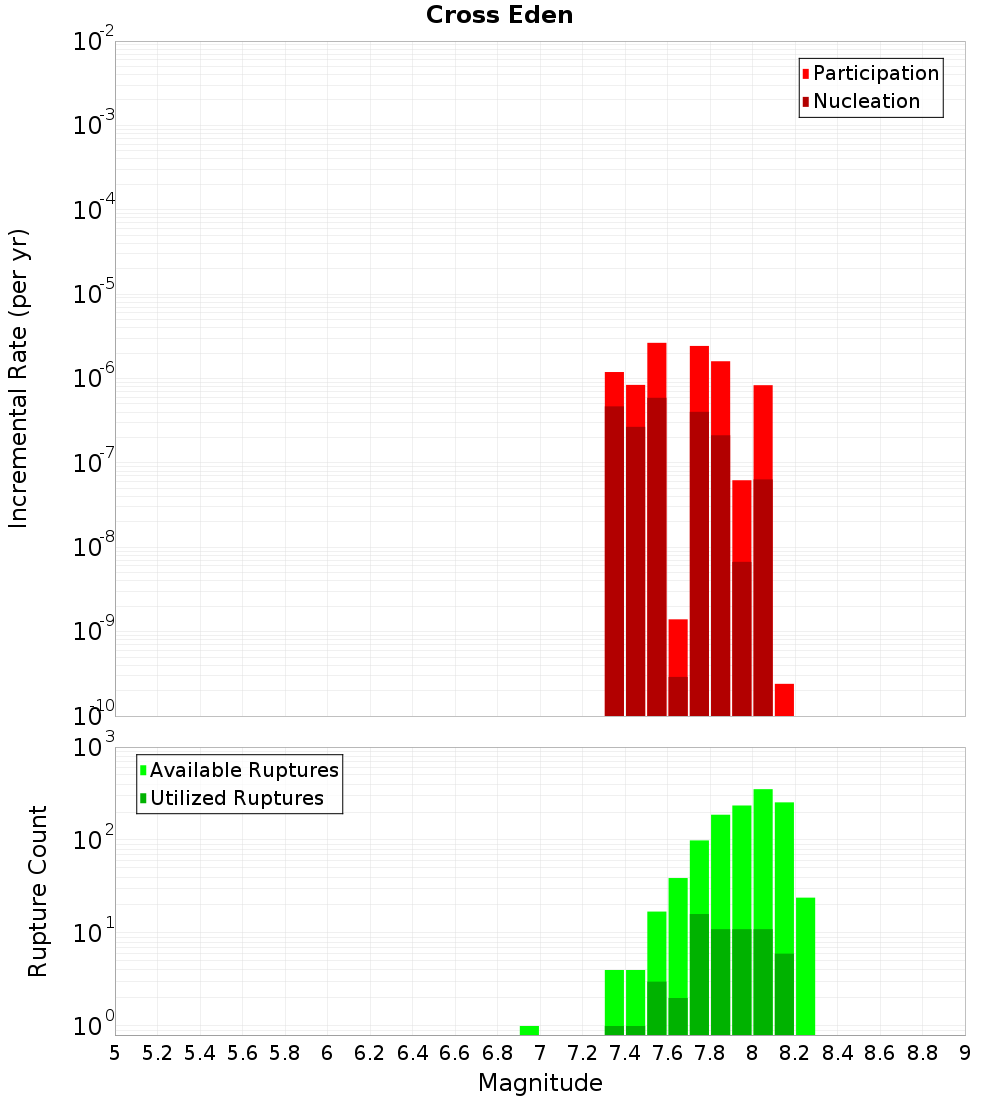

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

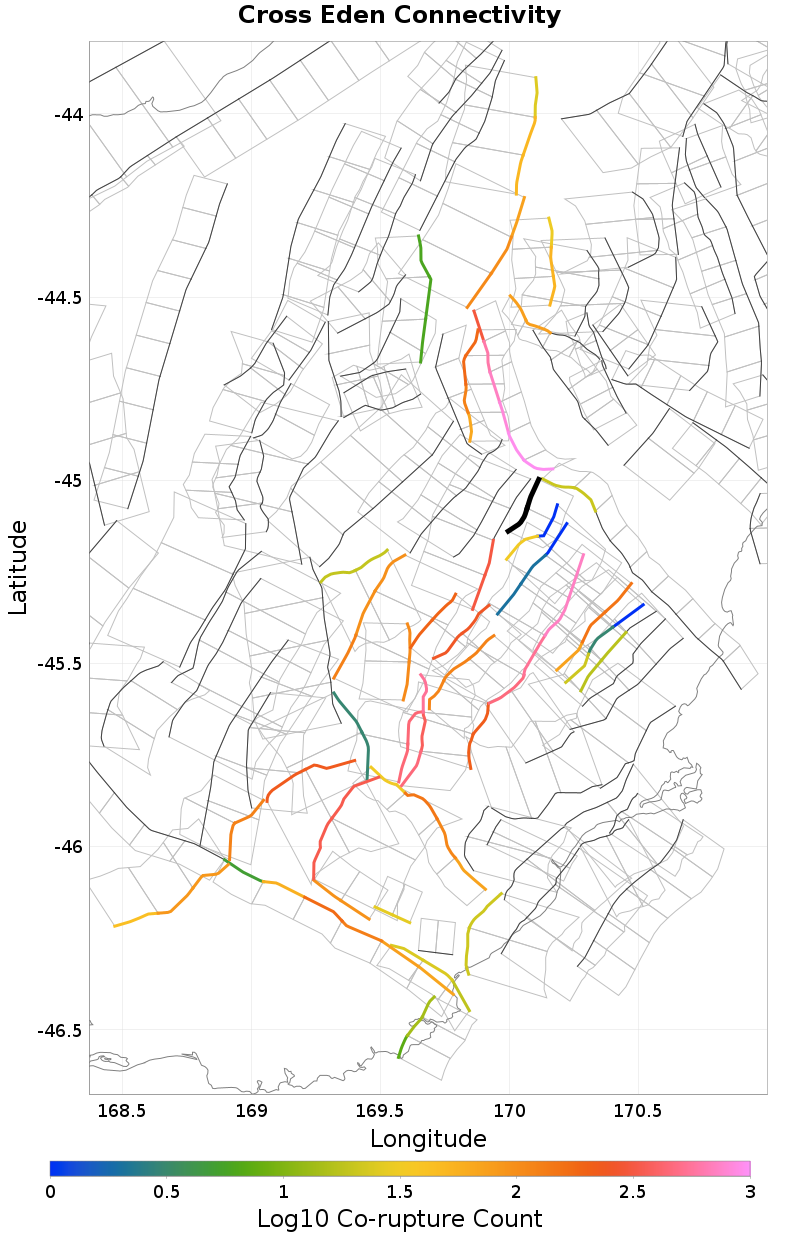

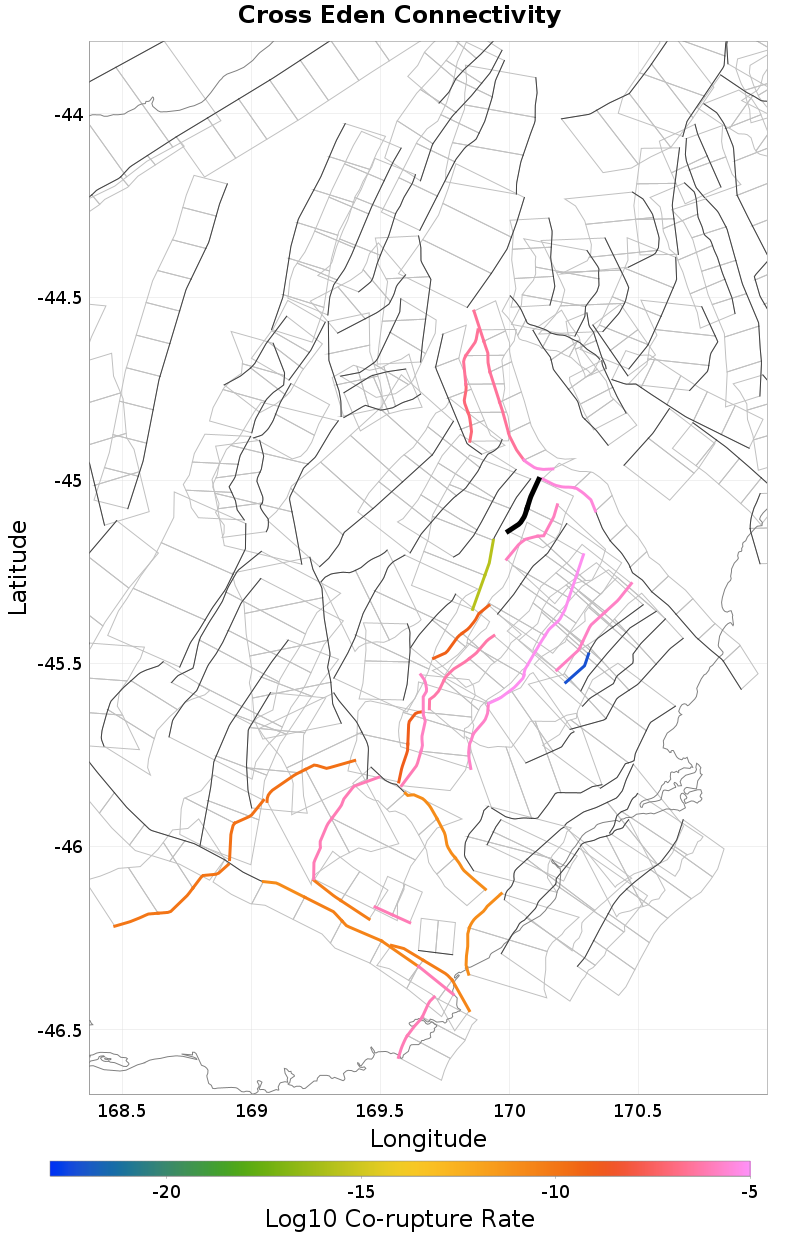

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hyde North, 0.18 km away
Waihemo, 1.13 km away
Gimmerburn, 2.3 km away
Hawkdun, 3.2 km away
Ranfurly, 4.43 km away
Horse Flat, 7.44 km away
Garibaldi, 7.5 km away
Waipiata, 10.38 km away
Billys Ridge, 13.09 km away

Hyde North, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjIuMHIyWEZm
Connected?true
Directly Connected?true
Co-rupture Count777
Co-rupture Rate7.0696806E-6

Waihemo, 1.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjIuMHIyWEZm
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate3.055962E-6

Gimmerburn, 2.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjIuMHIyWEZm
Connected?true
Directly Connected?true
Co-rupture Count314
Co-rupture Rate2.2373444E-16

Hawkdun, 3.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjIuMHIyWEZm
Connected?true
Directly Connected?true
Co-rupture Count949
Co-rupture Rate3.352089E-6

Ranfurly, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjIuMHIyWEZm
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate1.1934126E-6

Horse Flat, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjIuMHIyWEZm
Connected?true
Directly Connected?true
Co-rupture Count151
Co-rupture Rate1.4782692E-6

Garibaldi, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjIuMHIyWEZm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waipiata, 10.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjIuMHIyWEZm
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Billys Ridge, 13.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjIuMHIyWEZm
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate5.293956E-23
