Acton Details
| Property | Value |
|---|---|
| Rupture Count | 4,435 |
| Ruptures Above Sect Min Mag | 4,434 |
| Ruptures w/ Nonzero Rates | 203 |
| Magnitude Range | [6.99, 8.52] |
| Length Range | [23, 963] km |
| Total Rate | 6.341135E-5 /yr |
| Multi-Fault Rate | 6.0766946E-5 /yr (95.83%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 64 |
Table Of Contents

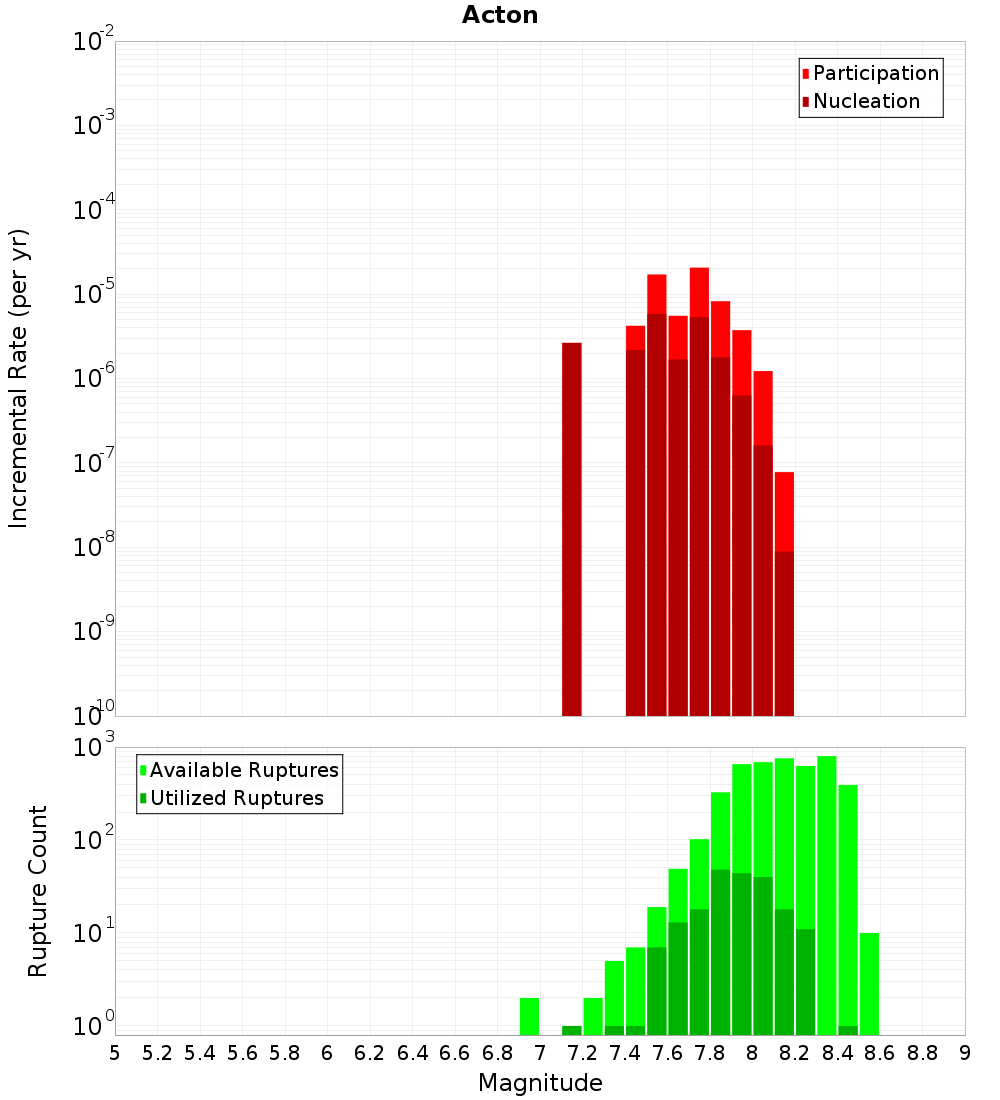

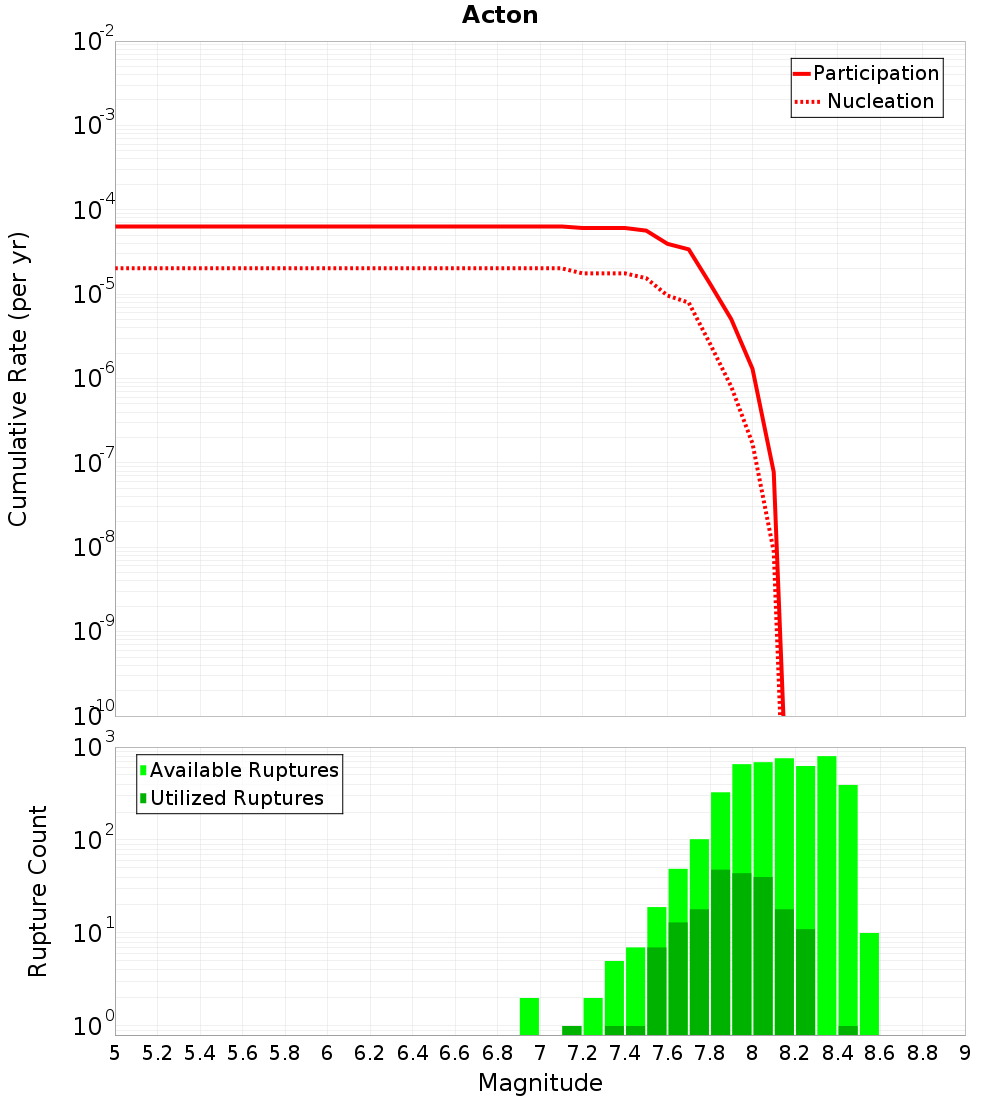

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

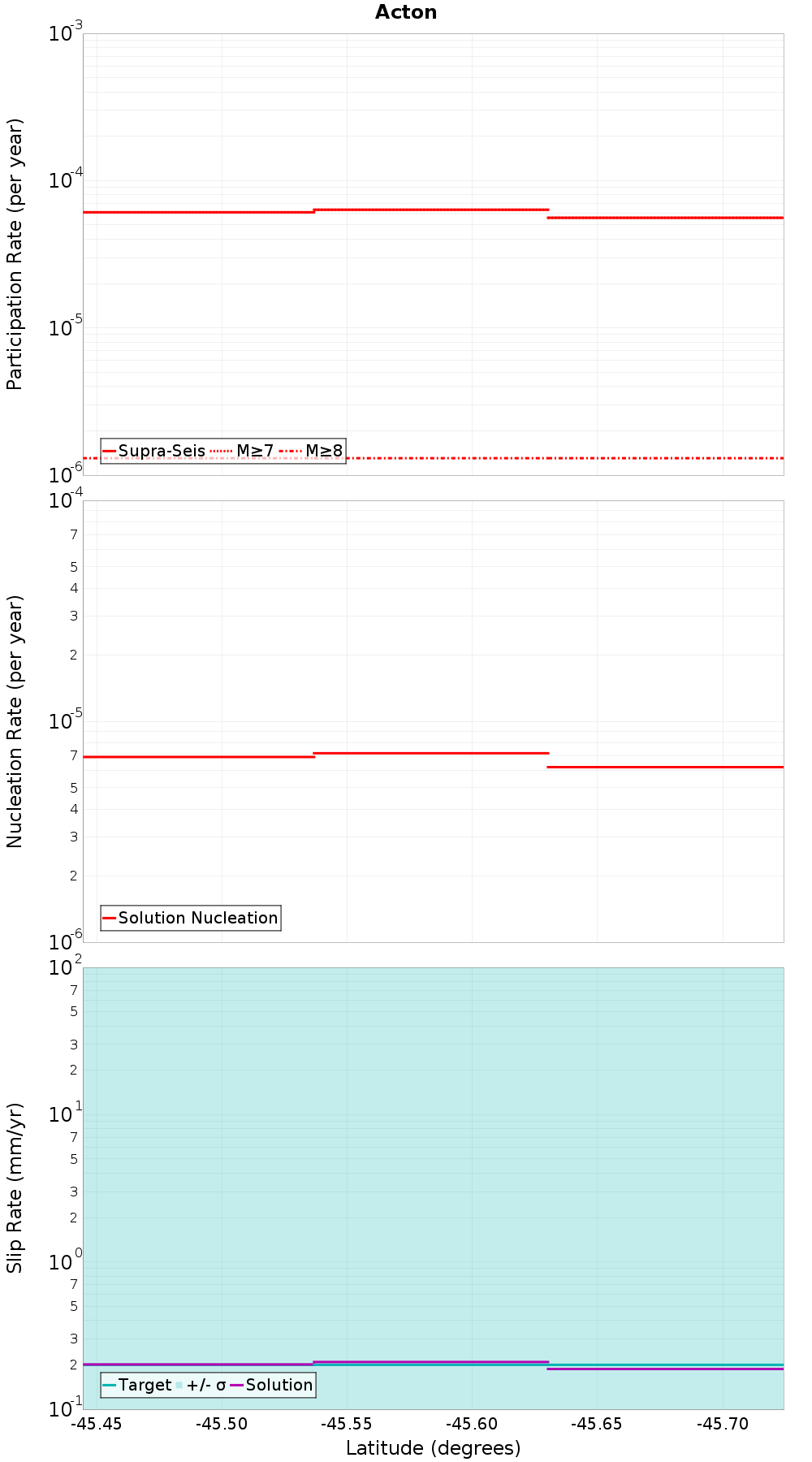

Along-Strike Values
Moment-Rates and b-Values

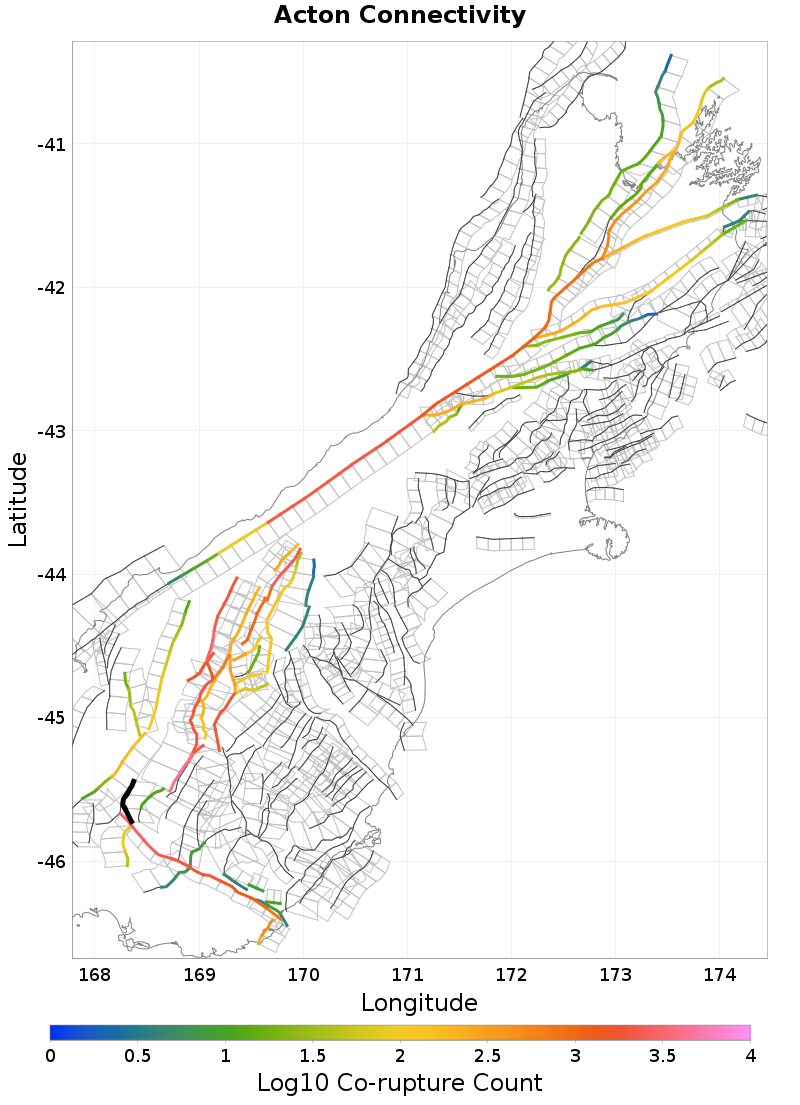

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Nevis, 0.95 km away |
| Mossburn, 1.57 km away |
| Hokonui, 1.83 km away |
| White Hill, 3.1 km away |
| Mid Dome, 3.19 km away |
| Moonlight South, 11.93 km away |
Nevis, 0.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjUuMFNXVTkz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,201 |
| Co-rupture Rate | 5.8298046E-5 |
Mossburn, 1.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjUuMFNXVTkz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hokonui, 1.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjUuMFNXVTkz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,902 |
| Co-rupture Rate | 1.1283663E-5 |
White Hill, 3.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjUuMFNXVTkz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 86 |
| Co-rupture Rate | 7.460451E-6 |
Mid Dome, 3.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjUuMFNXVTkz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Moonlight South, 11.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjUuMFNXVTkz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 194 |
| Co-rupture Rate | 1.4533424E-6 |
