Paddys Ridge Details

Property	Value
Rupture Count	7,506
Ruptures Above Sect Min Mag	7,505
Ruptures w/ Nonzero Rates	662
Magnitude Range	[6.85, 8.41]
Length Range	[21, 771] km
Total Rate	1.766193E-5 /yr
Multi-Fault Rate	1.766193E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	75

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

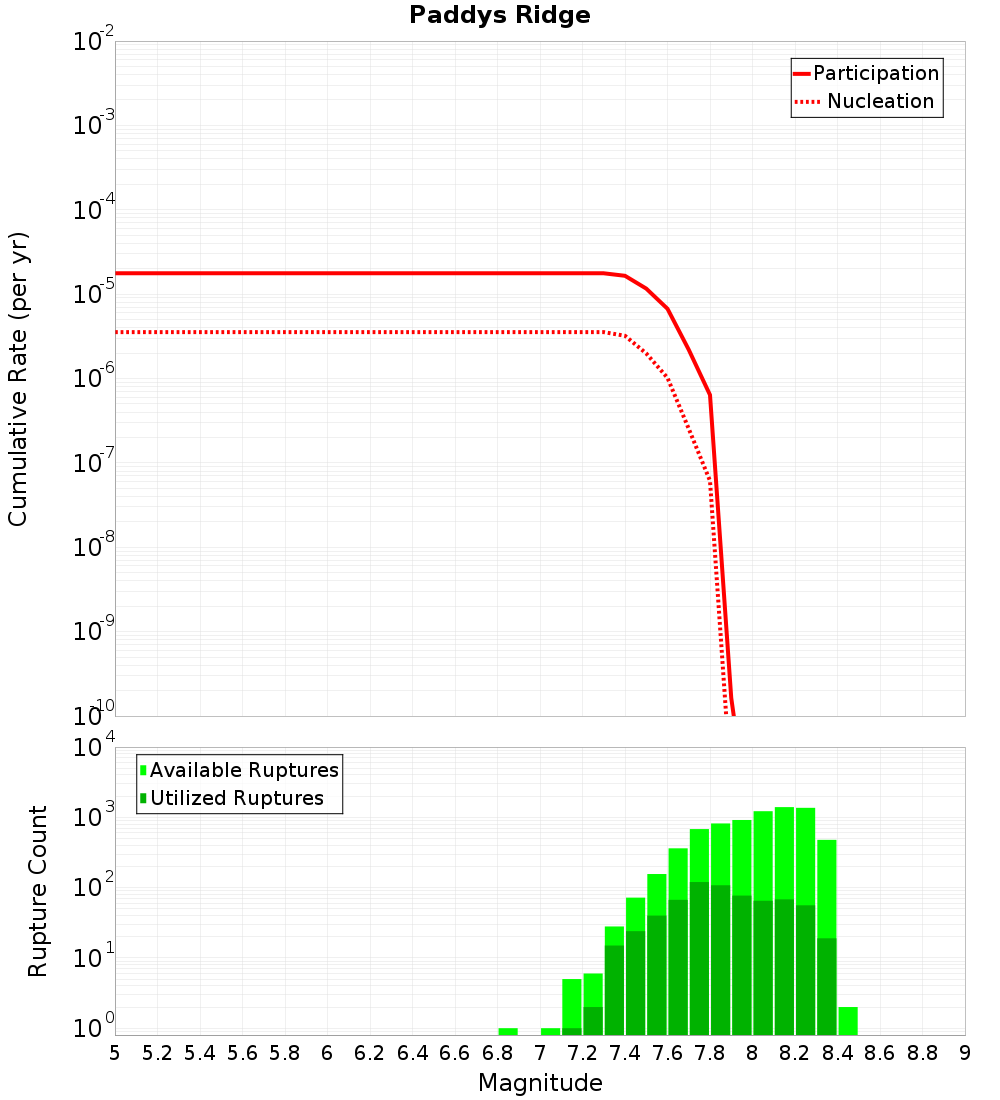

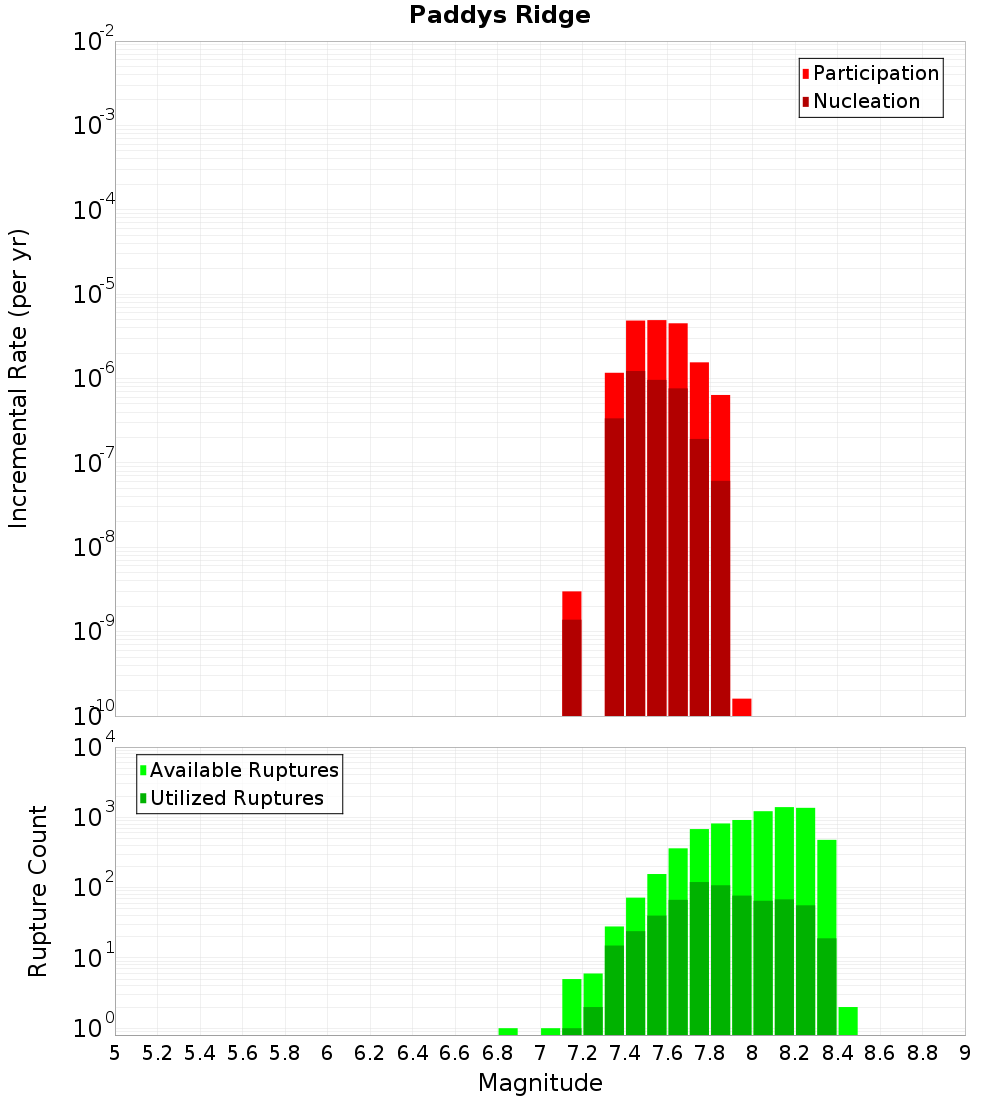

Magnitude-Frequency Distribution

Incremental	Cumulative

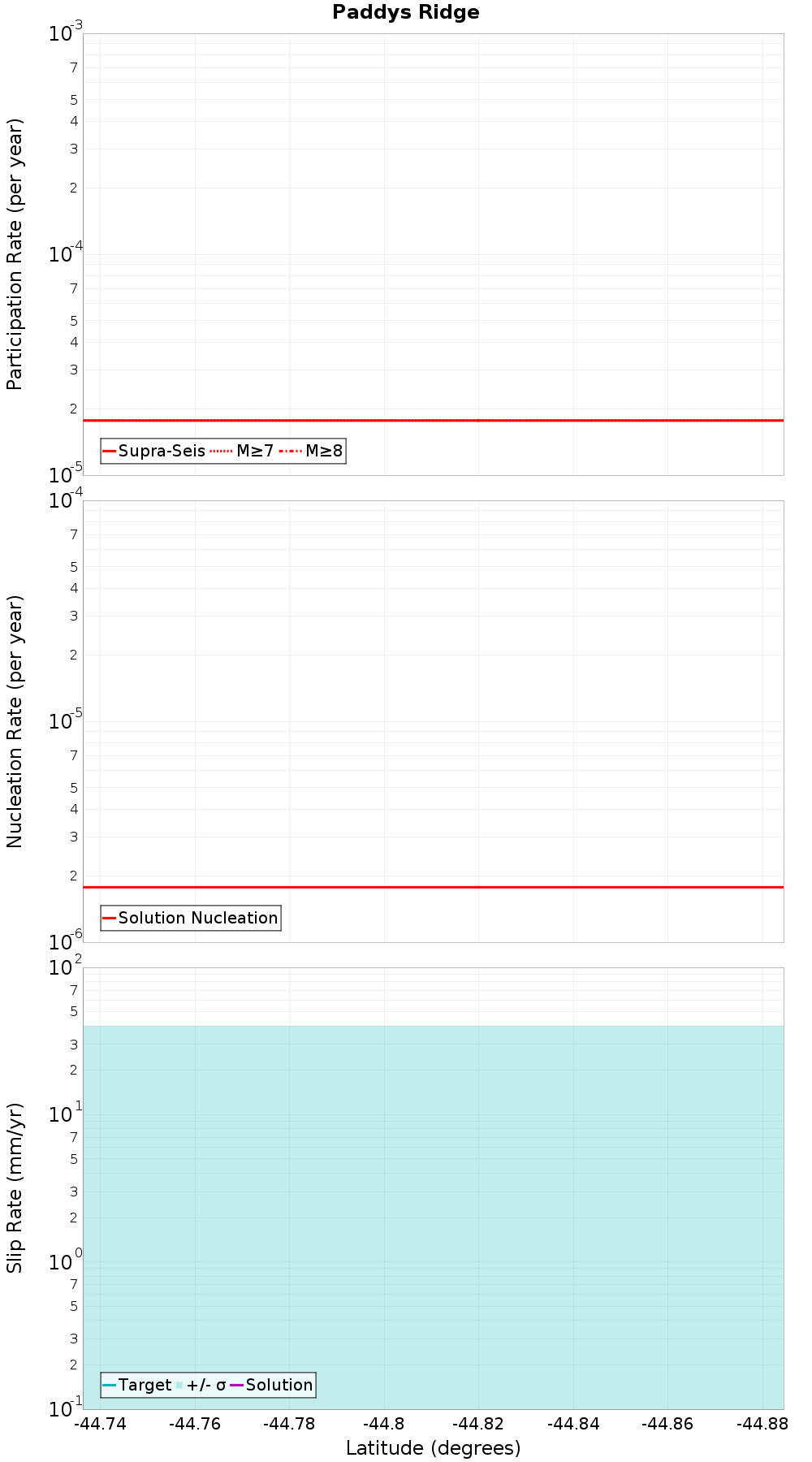

Along-Strike Values

Moment-Rates and b-Values

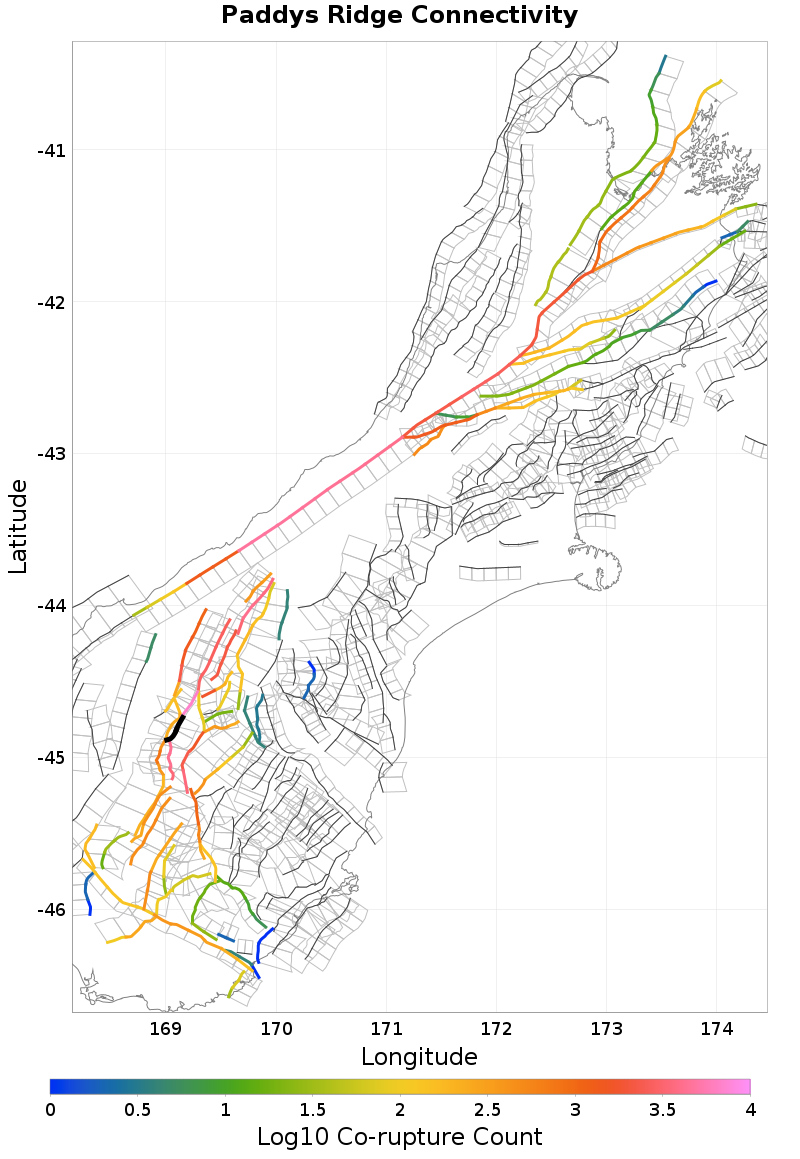

Connectivity

Nearby Sections

Fault Section
Pisa, 0.29 km away
Roaring Meg, 0.41 km away
NW Cardrona South, 1.01 km away
Cardrona - Hawea, 1.23 km away
NW Cardrona North, 1.63 km away
Dunstan, 5.61 km away
Cluden, 5.99 km away
Motatapu, 10.98 km away
Goodger, 11.59 km away
Grandview, 12.33 km away
Lindis River, 13.84 km away

Pisa, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjkuMGM4dk1p
Connected?	true
Directly Connected?	true
Co-rupture Count	3,759
Co-rupture Rate	9.992283E-7

Roaring Meg, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjkuMGM4dk1p
Connected?	true
Directly Connected?	true
Co-rupture Count	4,193
Co-rupture Rate	1.7025869E-6

NW Cardrona South, 1.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjkuMGM4dk1p
Connected?	true
Directly Connected?	true
Co-rupture Count	804
Co-rupture Rate	3.222377E-6

Cardrona - Hawea, 1.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjkuMGM4dk1p
Connected?	true
Directly Connected?	true
Co-rupture Count	6,842
Co-rupture Rate	1.0331308E-6

NW Cardrona North, 1.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjkuMGM4dk1p
Connected?	true
Directly Connected?	false
Co-rupture Count	246
Co-rupture Rate	1.03125394E-7

Dunstan, 5.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjkuMGM4dk1p
Connected?	true
Directly Connected?	true
Co-rupture Count	413
Co-rupture Rate	1.2733856E-5

Cluden, 5.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjkuMGM4dk1p
Connected?	true
Directly Connected?	true
Co-rupture Count	356
Co-rupture Rate	1.4745767E-5

Motatapu, 10.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjkuMGM4dk1p
Connected?	true
Directly Connected?	false
Co-rupture Count	143
Co-rupture Rate	6.5077566E-13

Goodger, 11.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjkuMGM4dk1p
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	2.7393019E-17

Grandview, 12.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjkuMGM4dk1p
Connected?	true
Directly Connected?	false
Co-rupture Count	92
Co-rupture Rate	5.011862E-13

Lindis River, 13.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwNjkuMGM4dk1p
Connected?	true
Directly Connected?	false
Co-rupture Count	89
Co-rupture Rate	1.6765361E-13
