Hopkins Details

Property	Value
Rupture Count	57,033
Ruptures Above Sect Min Mag	57,031
Ruptures w/ Nonzero Rates	1,427
Magnitude Range	[7.09, 8.72]
Length Range	[24, 963] km
Total Rate	6.6109715E-5 /yr
Multi-Fault Rate	6.4964086E-5 /yr (98.27%)
Directly-Connected Faults	7
All Co-Rupturing Faults	108

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

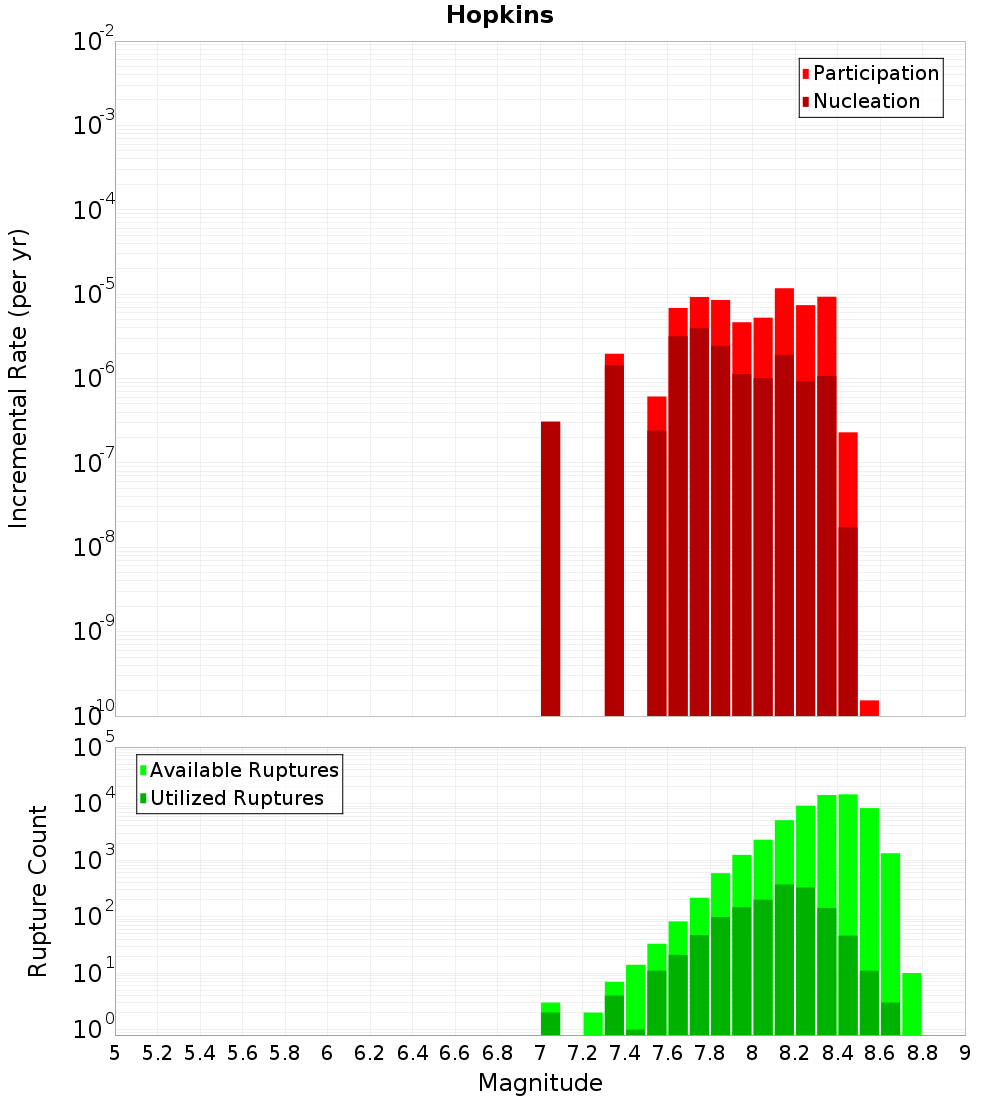

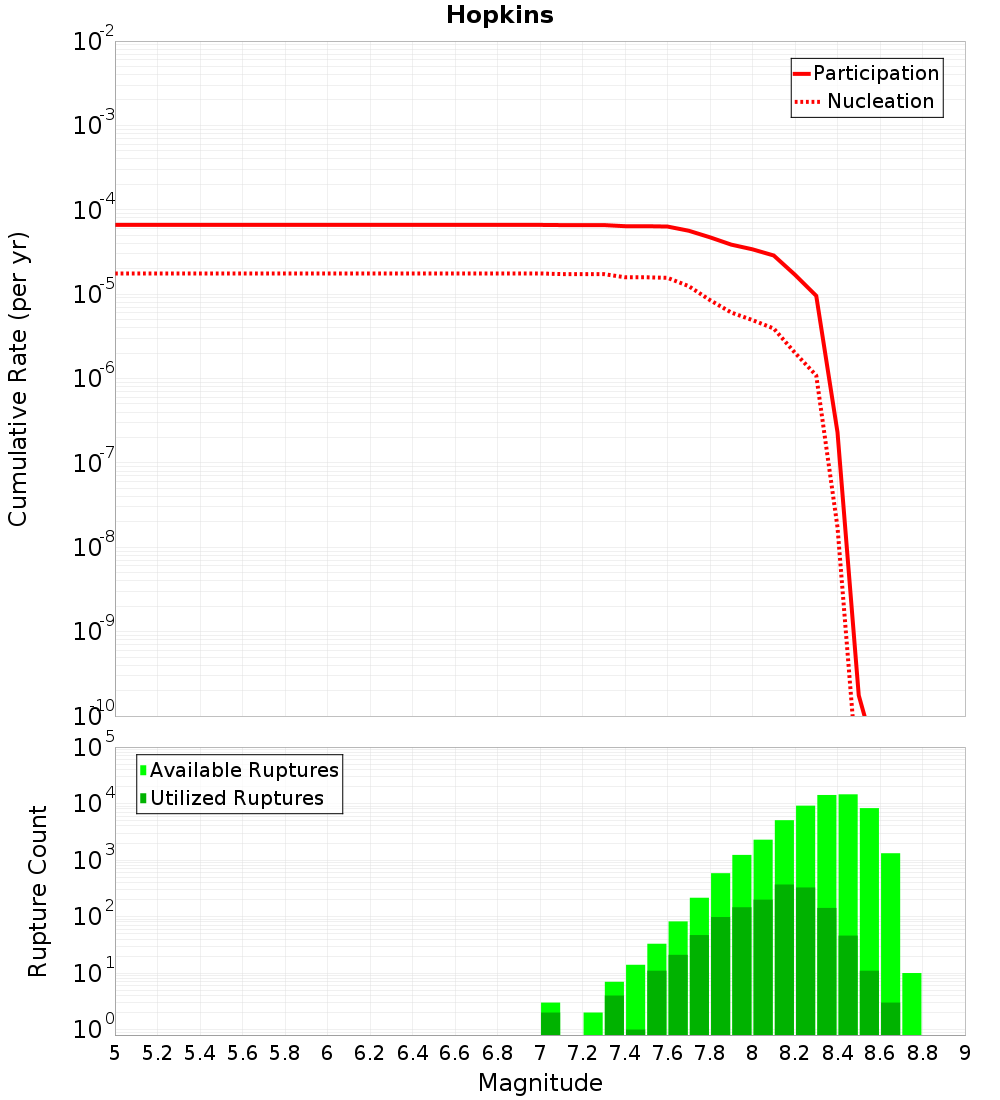

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

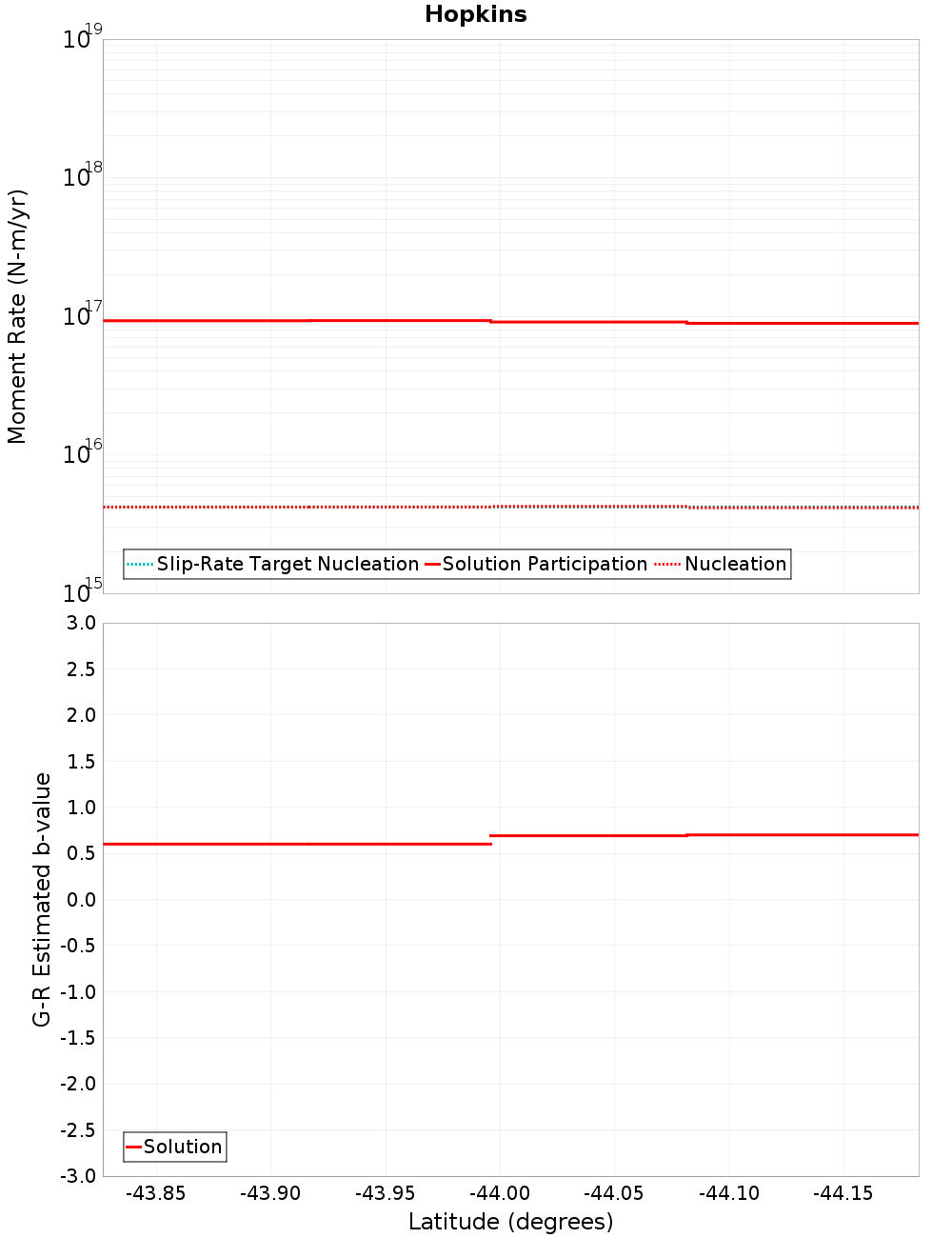

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Dingle, 1.8 km away
Barrier Range, 1.83 km away
Wanaka, 1.91 km away
Huxley, 3.39 km away
Ostler North, 4.64 km away
Alpine: Jacksons to Kaniere, 5.91 km away
Hunter Valley, 7.71 km away

Dingle, 1.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODIuMHNLa04y
Connected?	true
Directly Connected?	true
Co-rupture Count	19,929
Co-rupture Rate	5.728342E-6

Barrier Range, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODIuMHNLa04y
Connected?	true
Directly Connected?	true
Co-rupture Count	3,128
Co-rupture Rate	4.5532815E-6

Wanaka, 1.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODIuMHNLa04y
Connected?	true
Directly Connected?	true
Co-rupture Count	40,051
Co-rupture Rate	1.7115904E-6

Huxley, 3.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODIuMHNLa04y
Connected?	true
Directly Connected?	true
Co-rupture Count	8,388
Co-rupture Rate	5.494263E-6

Ostler North, 4.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODIuMHNLa04y
Connected?	true
Directly Connected?	true
Co-rupture Count	140
Co-rupture Rate	4.3576307E-8

Alpine: Jacksons to Kaniere, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODIuMHNLa04y
Connected?	true
Directly Connected?	true
Co-rupture Count	51,362
Co-rupture Rate	5.827932E-5

Hunter Valley, 7.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODIuMHNLa04y
Connected?	true
Directly Connected?	true
Co-rupture Count	7,647
Co-rupture Rate	2.7875394E-5
