Hunters Details

Property	Value
Rupture Count	578
Ruptures Above Sect Min Mag	569
Ruptures w/ Nonzero Rates	113
Magnitude Range	[6.77, 8.09]
Length Range	[21, 420] km
Total Rate	6.37275E-5 /yr
Multi-Fault Rate	6.313943E-5 /yr (99.08%)
Directly-Connected Faults	7
All Co-Rupturing Faults	35

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

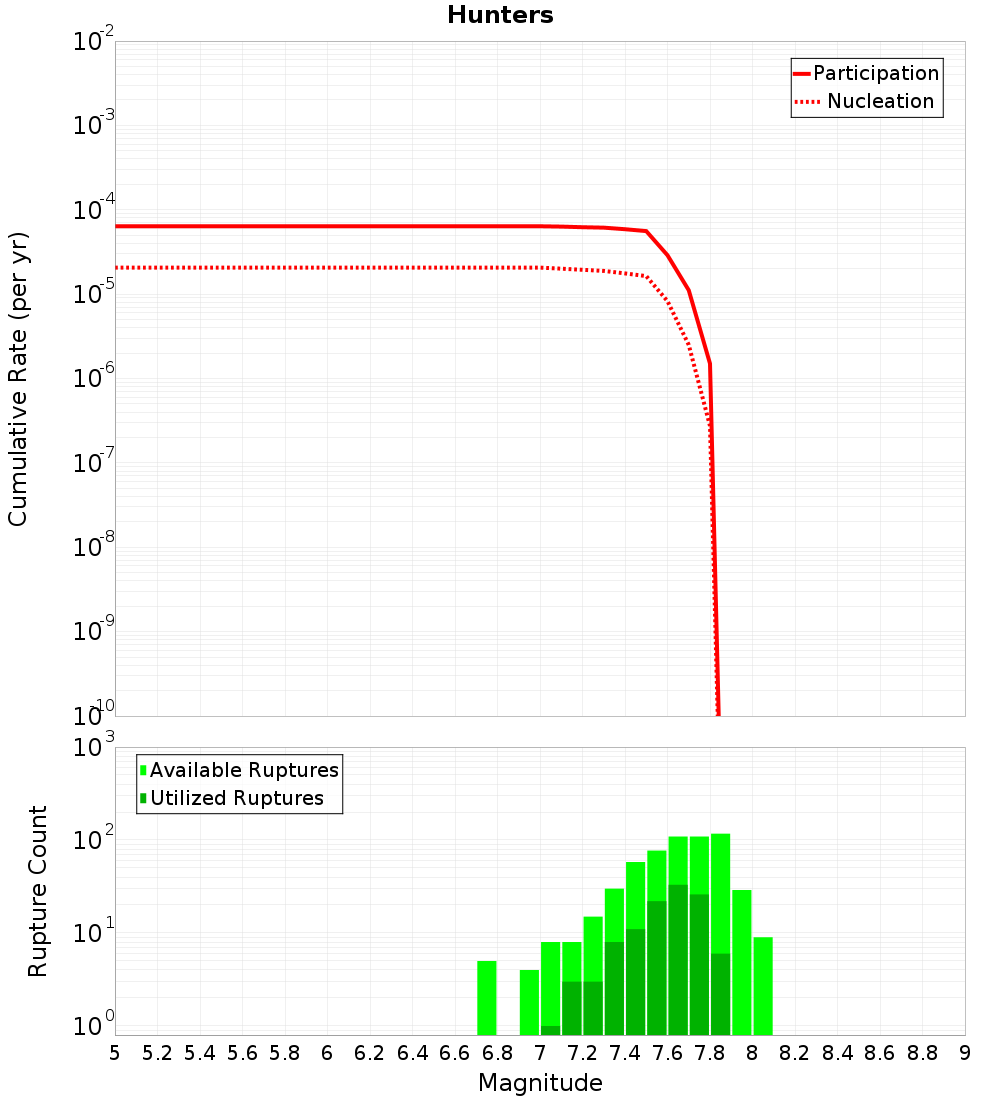

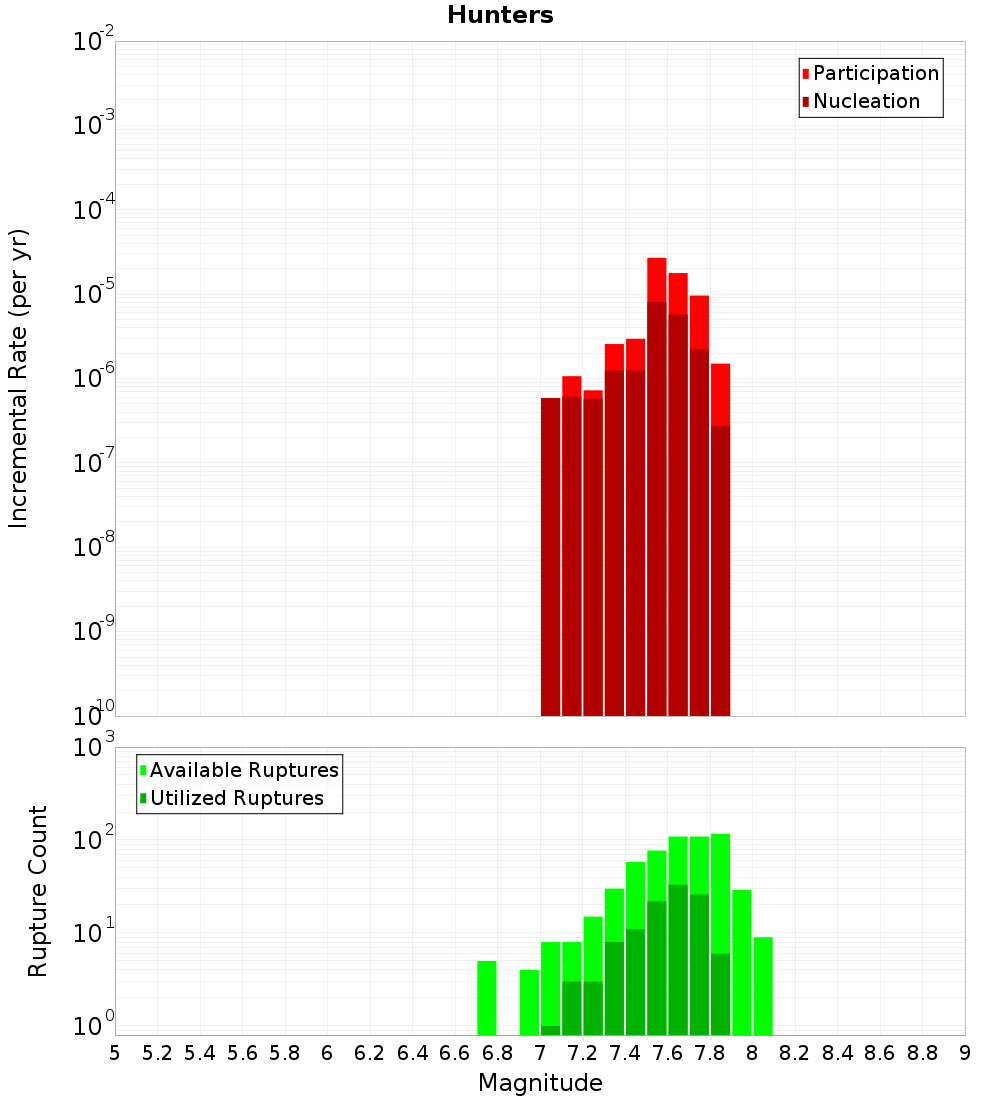

Magnitude-Frequency Distribution

Incremental	Cumulative

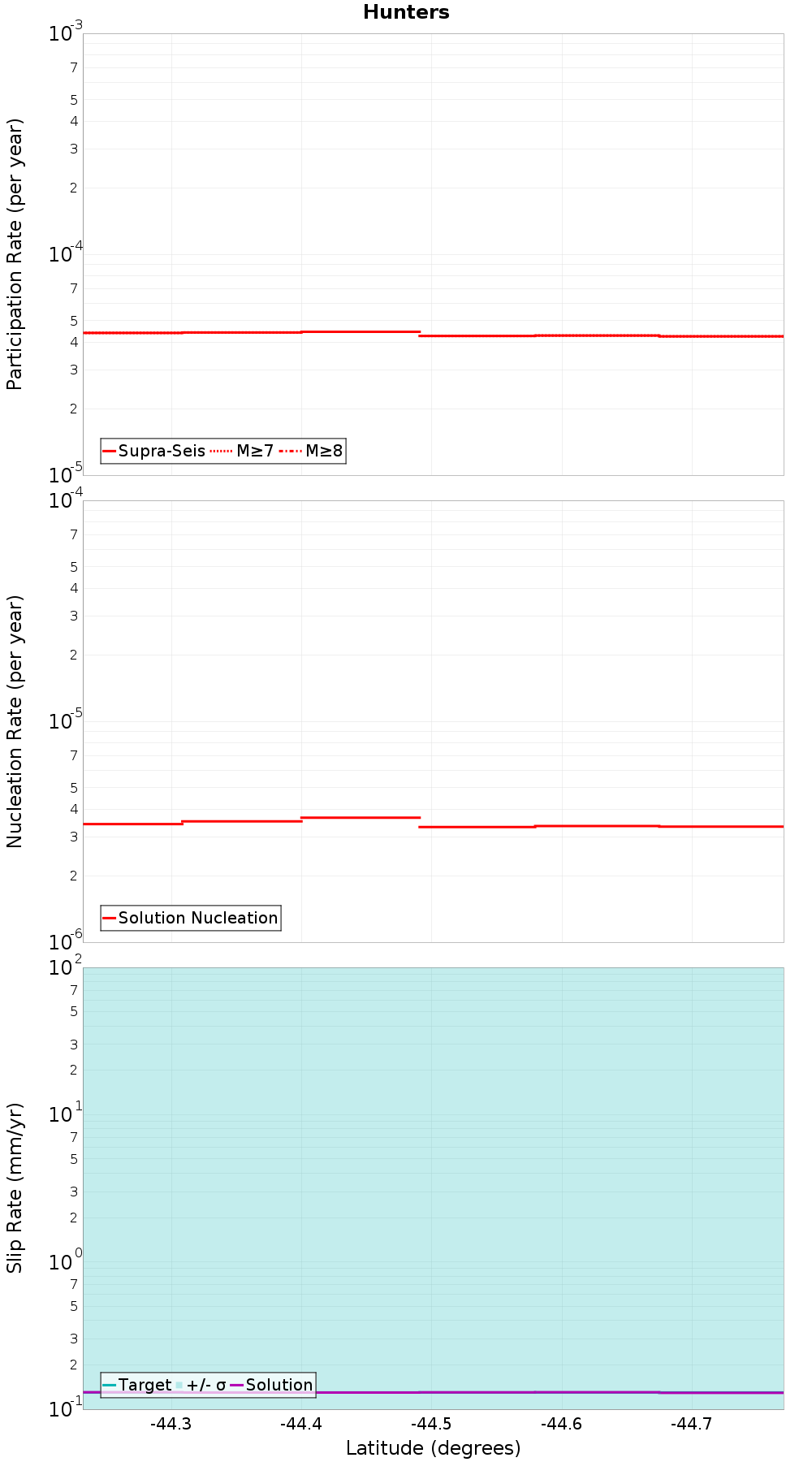

Along-Strike Values

Moment-Rates and b-Values

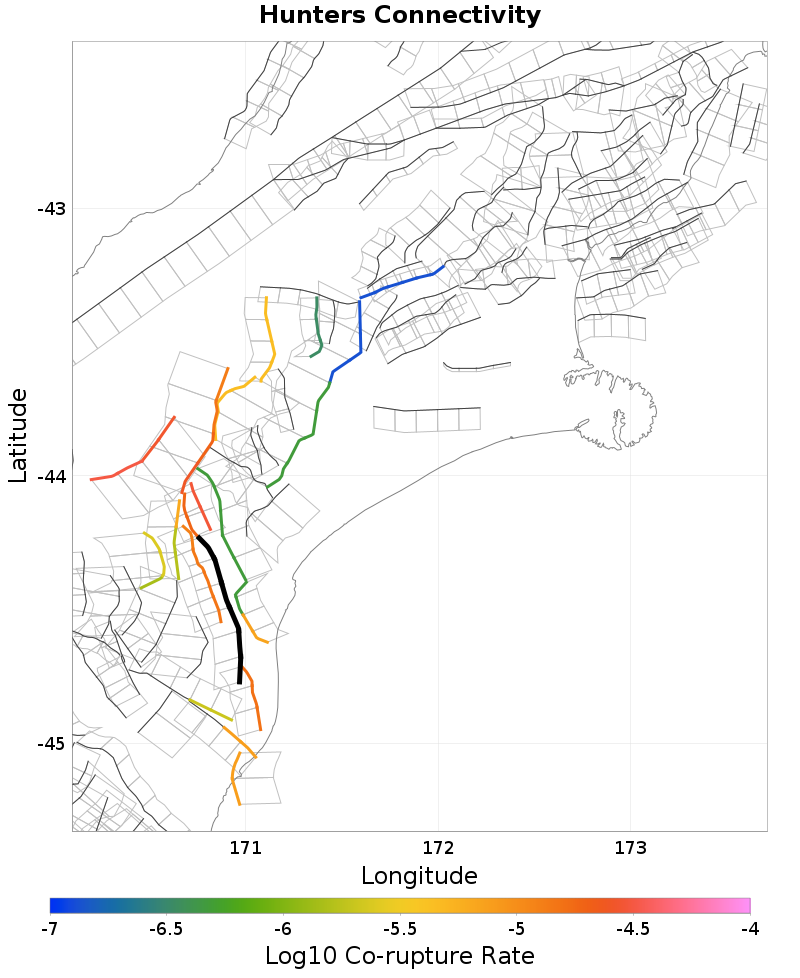

Connectivity

Nearby Sections

Fault Section
Stonewall, 0.33 km away
Opawa, 0.54 km away
Waimate, 0.59 km away
Chamberlain, 2.48 km away
Maungati, 3.56 km away
Albury, 4.68 km away
Brothers, 7.39 km away
Dalgety, 8.91 km away
Campbell Hills, 11.24 km away
Black Hill, 11.54 km away
Grampian, 14.81 km away
Kirkliston, 14.9 km away

Stonewall, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	2.046702E-6

Opawa, 0.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	true
Directly Connected?	true
Co-rupture Count	166
Co-rupture Rate	1.8598641E-5

Waimate, 0.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	true
Directly Connected?	true
Co-rupture Count	118
Co-rupture Rate	1.5907593E-5

Chamberlain, 2.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	true
Directly Connected?	true
Co-rupture Count	126
Co-rupture Rate	1.4736495E-5

Maungati, 3.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	true
Directly Connected?	true
Co-rupture Count	102
Co-rupture Rate	7.3643682E-6

Albury, 4.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	true
Directly Connected?	true
Co-rupture Count	196
Co-rupture Rate	2.9190081E-5

Brothers, 7.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	true
Directly Connected?	false
Co-rupture Count	75
Co-rupture Rate	4.719586E-7

Dalgety, 8.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	true
Directly Connected?	false
Co-rupture Count	95
Co-rupture Rate	6.221468E-6

Campbell Hills, 11.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Black Hill, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grampian, 14.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	2.427687E-6

Kirkliston, 14.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
