Te Whaiti South Details

PropertyValue
Rupture Count7,613
Ruptures Above Sect Min Mag7,603
Ruptures w/ Nonzero Rates56
Magnitude Range[6.75, 8.32]
Length Range[20, 713] km
Total Rate4.7832154E-4 /yr
Multi-Fault Rate4.7112812E-4 /yr (98.50%)
Directly-Connected Faults7
All Co-Rupturing Faults98

Table Of Contents

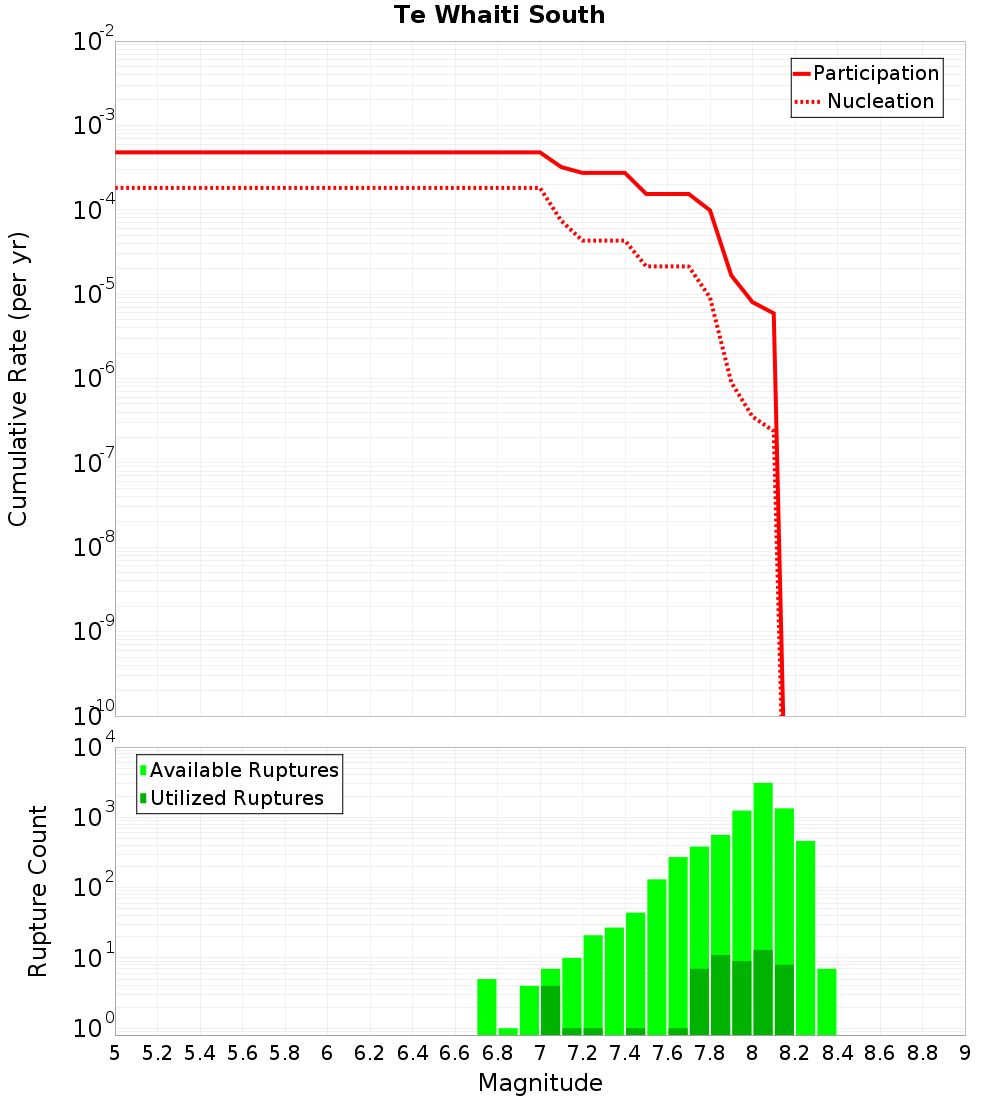

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

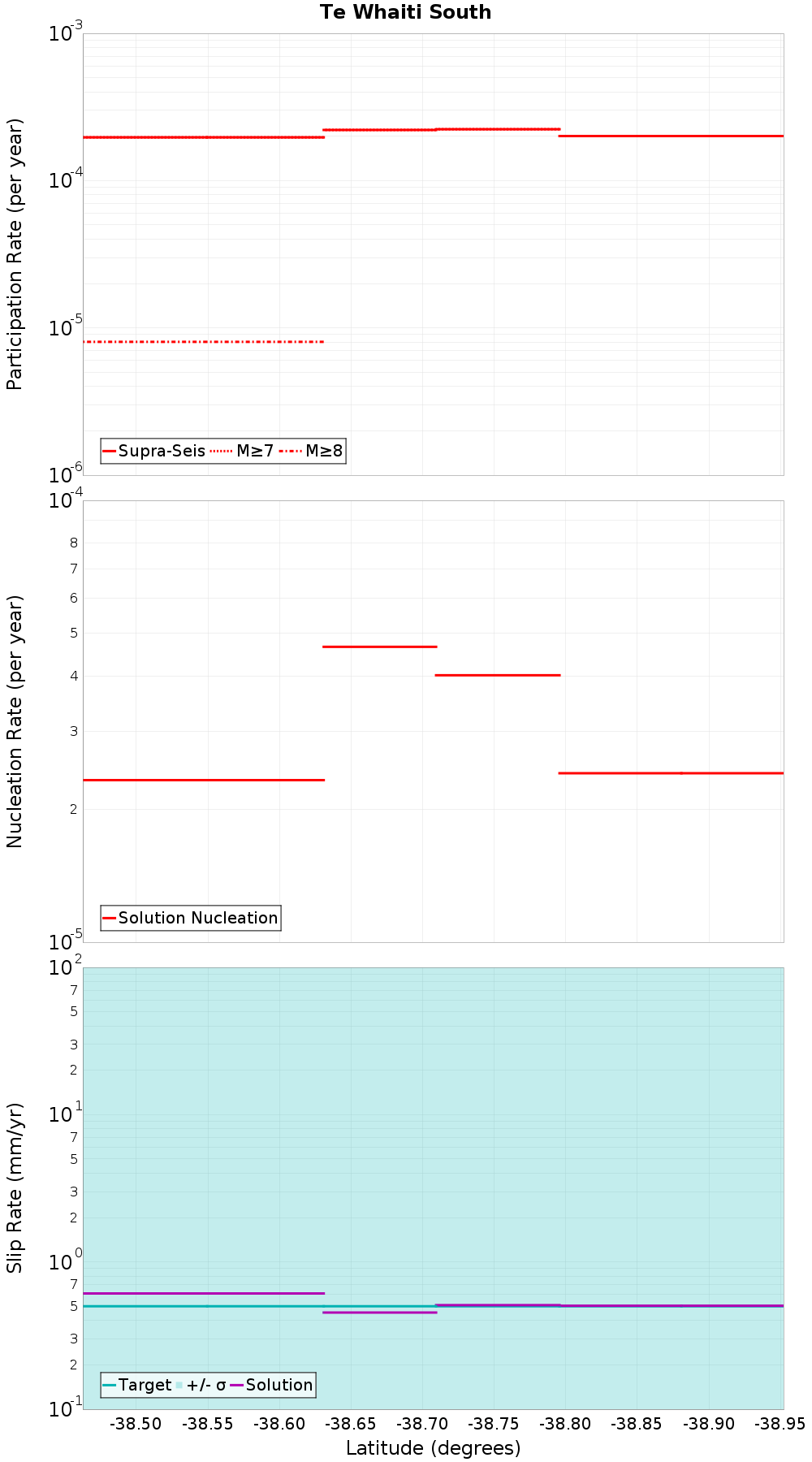

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

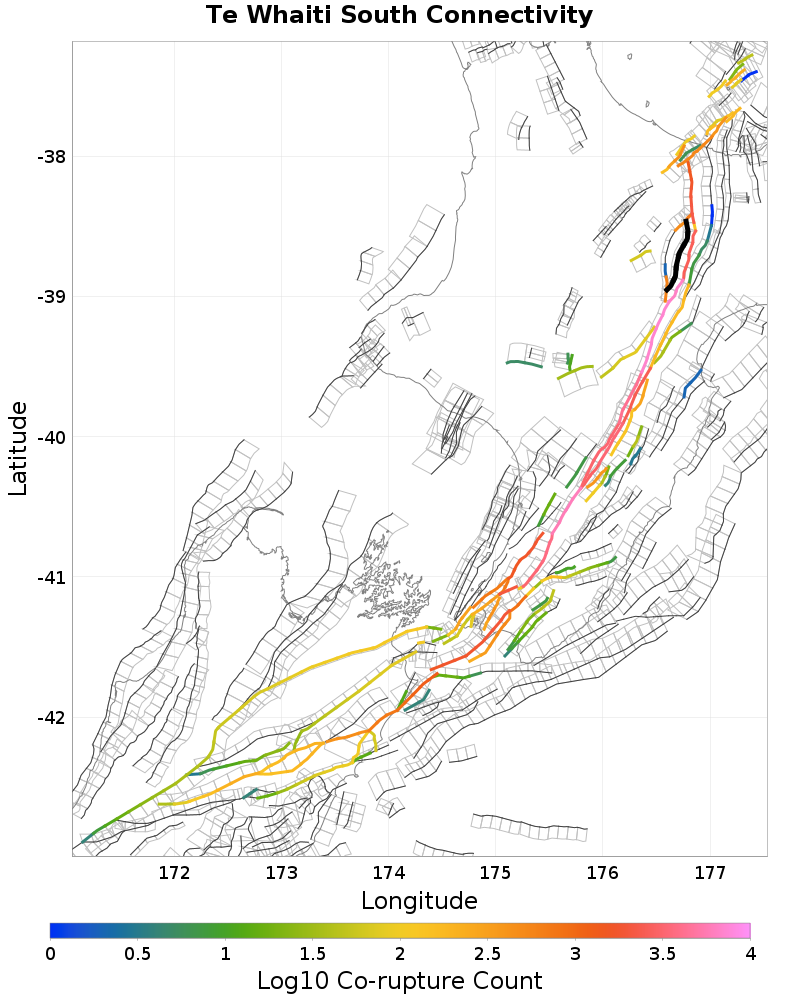

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Whaiti North, 0 km away
Wheao: North, 0 km away
Wheao: South, 0.44 km away
Waiohau: South, 0.76 km away
Waiohau: North, 1.94 km away
Ruahine: North, 9.06 km away
Whakatane: South, 11.9 km away
Kaingaroa 1, 13.7 km away
Waimana: South, 14.57 km away
Whakatane: North, 14.65 km away

Te Whaiti North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?true
Directly Connected?true
Co-rupture Count697
Co-rupture Rate6.93329E-5

Wheao: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?true
Directly Connected?true
Co-rupture Count477
Co-rupture Rate0.0

Wheao: South, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?true
Directly Connected?true
Co-rupture Count608
Co-rupture Rate7.654916E-10

Waiohau: South, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?true
Directly Connected?true
Co-rupture Count6,625
Co-rupture Rate9.8424345E-5

Waiohau: North, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?true
Directly Connected?true
Co-rupture Count2,295
Co-rupture Rate1.272655E-4

Ruahine: North, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?true
Directly Connected?false
Co-rupture Count7,110
Co-rupture Rate9.842435E-5

Whakatane: South, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?true
Directly Connected?true
Co-rupture Count186
Co-rupture Rate1.1930738E-4

Kaingaroa 1, 13.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate1.3380234E-4

Waimana: South, 14.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakatane: North, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwODQuMHpMZjlR
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.1930738E-4
