Keepa Details

PropertyValue
Rupture Count5,238
Ruptures Above Sect Min Mag5,237
Ruptures w/ Nonzero Rates211
Magnitude Range[6.62, 8.47]
Length Range[11, 645] km
Total Rate7.889277E-5 /yr
Multi-Fault Rate7.889277E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults73

Table Of Contents

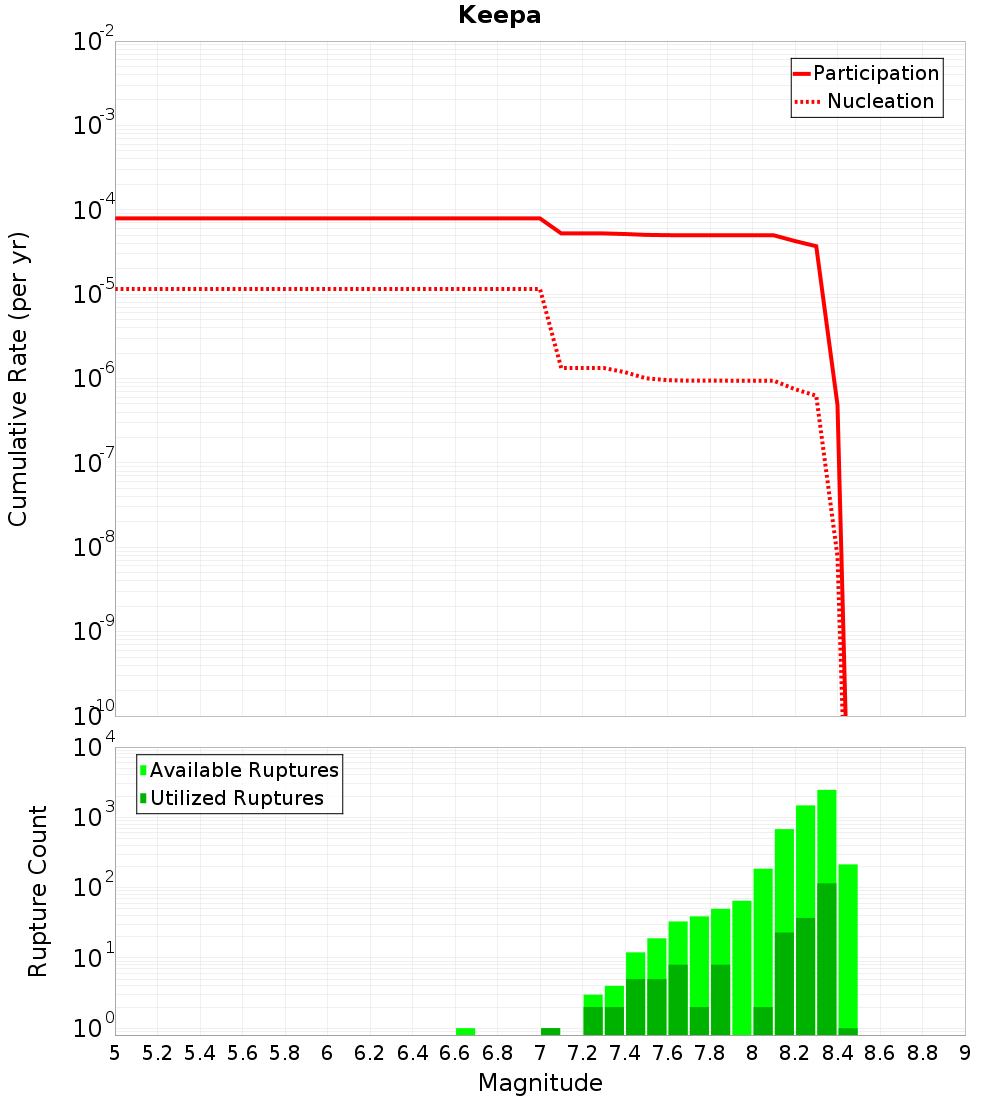

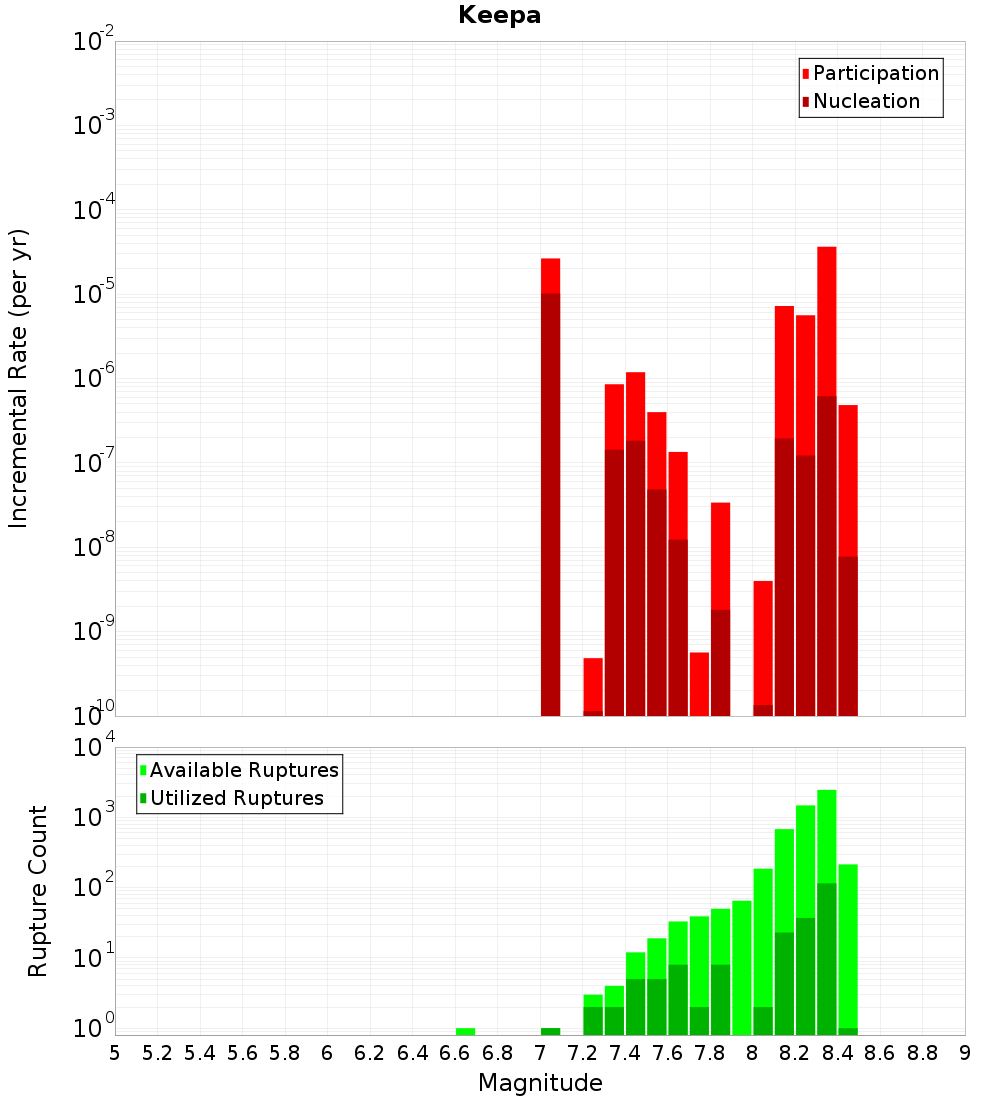

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

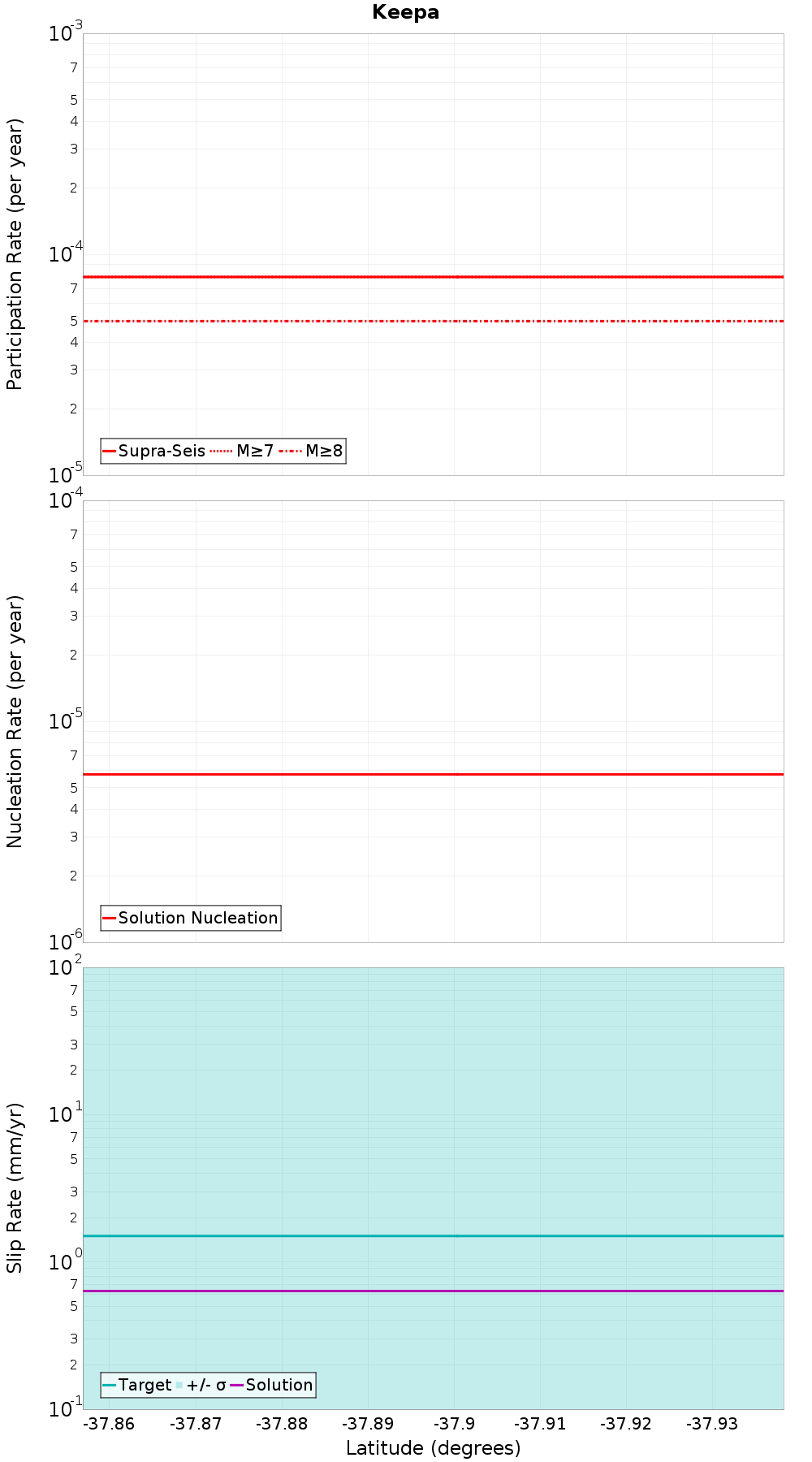

Along-Strike Values

(top)

Along-strike plot

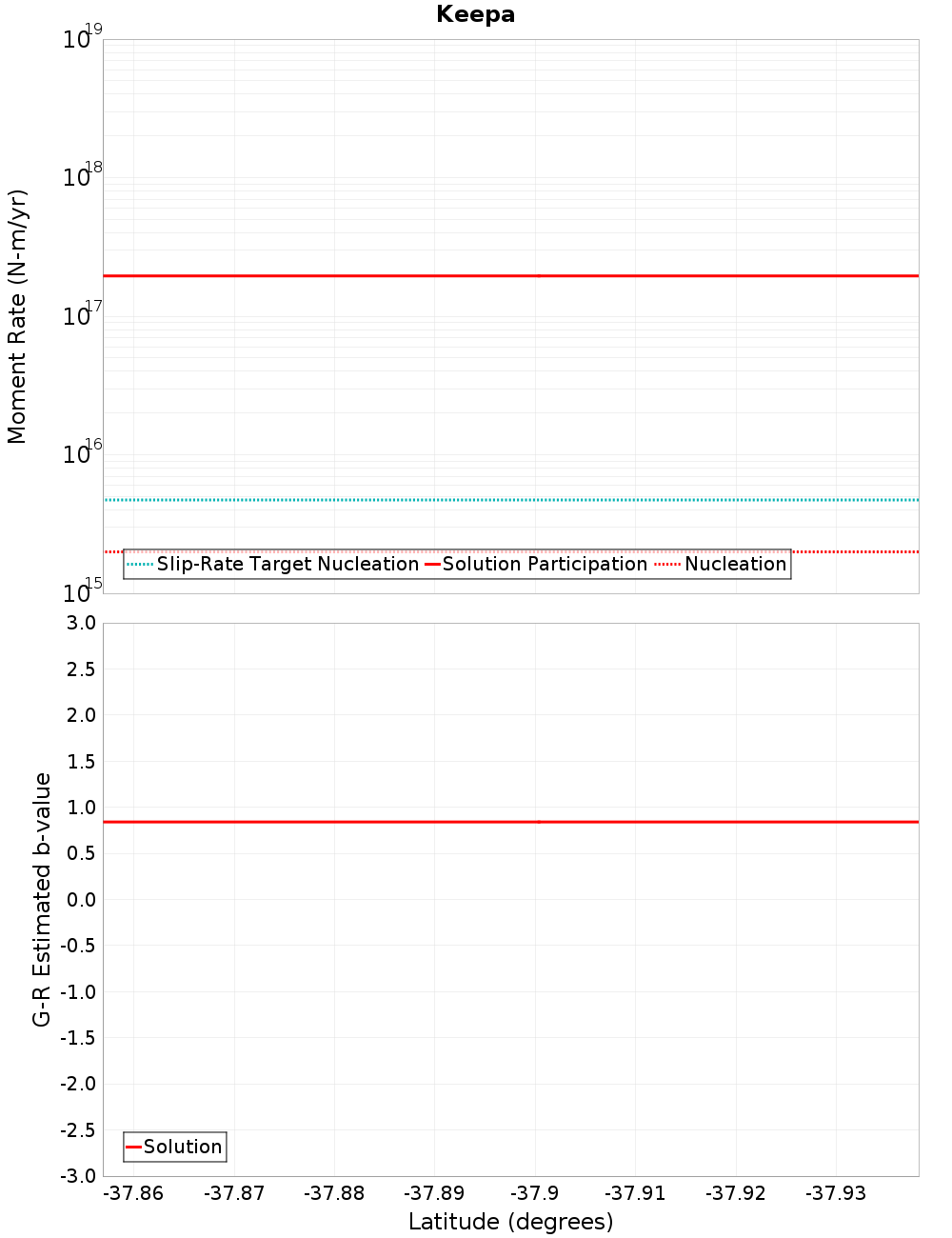

Moment-Rates and b-Values

(top)

Along-strike plot

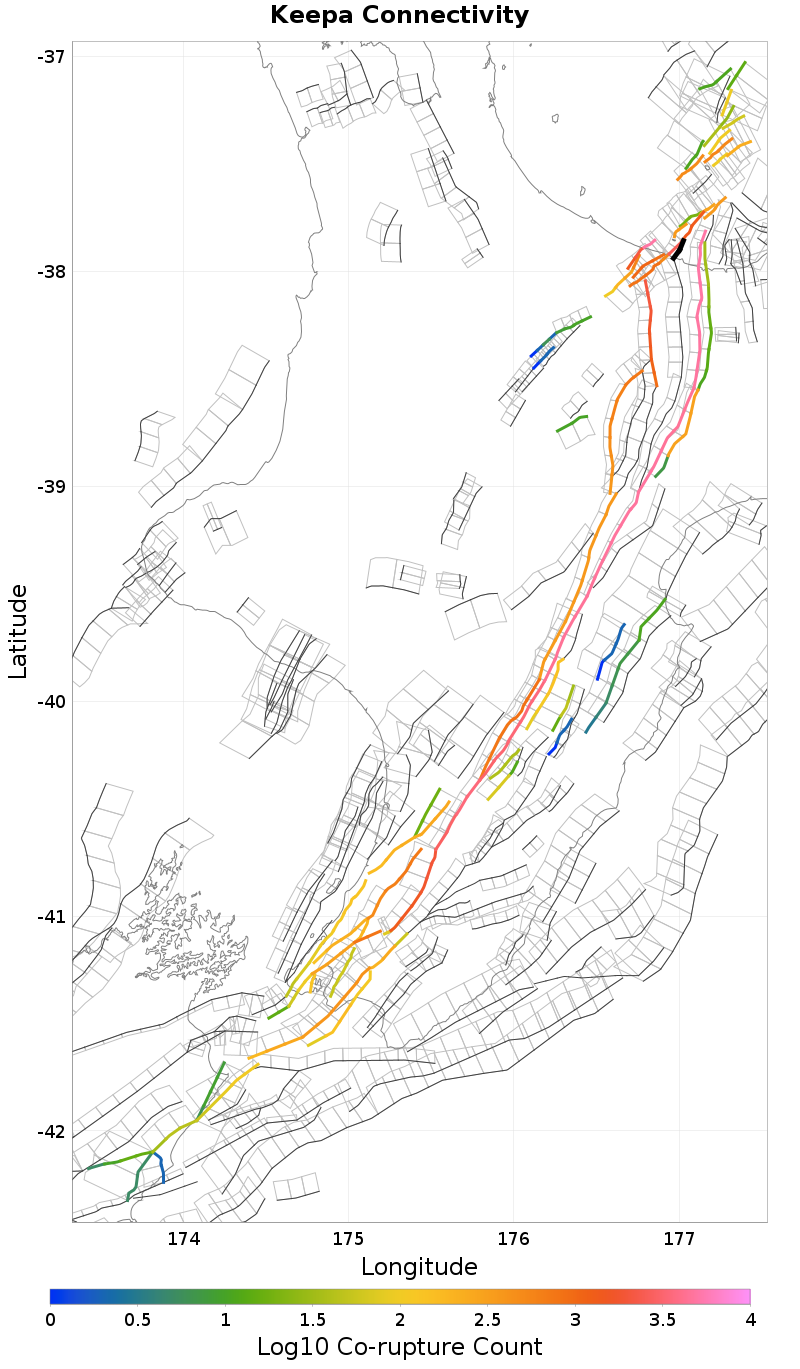

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Whakatane: North, 0 km away
White Island 1, 0.61 km away
Matata, 0.66 km away
Otakiri, 2.9 km away
Edgecumbe Coastal, 3.06 km away
Rangitaiki 1, 4.87 km away
Rangitaiki 2, 7.49 km away
Edgecumbe 1987, 8.09 km away
Waimana: North, 9.02 km away
Waimanawa - Waikaremoana, 10.55 km away
Braemar, 10.56 km away
Waiotahi: North, 11.27 km away

Whakatane: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 0.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?true
Directly Connected?false
Co-rupture Count2,788
Co-rupture Rate5.136333E-5

Matata, 0.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?true
Directly Connected?true
Co-rupture Count4,955
Co-rupture Rate7.889264E-5

Otakiri, 2.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?true
Directly Connected?false
Co-rupture Count1,077
Co-rupture Rate1.6565304E-5

Edgecumbe Coastal, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?true
Directly Connected?false
Co-rupture Count530
Co-rupture Rate2.1617377E-6

Rangitaiki 1, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?true
Directly Connected?false
Co-rupture Count364
Co-rupture Rate5.3286512E-6

Rangitaiki 2, 7.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate1.345433E-7

Edgecumbe 1987, 8.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?true
Directly Connected?false
Co-rupture Count900
Co-rupture Rate2.9885202E-6

Waimana: North, 9.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?true
Directly Connected?true
Co-rupture Count5,052
Co-rupture Rate4.9830458E-5

Waimanawa - Waikaremoana, 10.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Braemar, 10.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?true
Directly Connected?false
Co-rupture Count612
Co-rupture Rate1.5314285E-5

Waiotahi: North, 11.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkwOTcuMENkU1VV
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate0.0
