Gimmerburn Details

Property	Value
Rupture Count	9,102
Ruptures Above Sect Min Mag	9,099
Ruptures w/ Nonzero Rates	384
Magnitude Range	[6.89, 8.17]
Length Range	[22, 448] km
Total Rate	1.7031046E-4 /yr
Multi-Fault Rate	1.0280426E-4 /yr (60.36%)
Directly-Connected Faults	8
All Co-Rupturing Faults	49

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

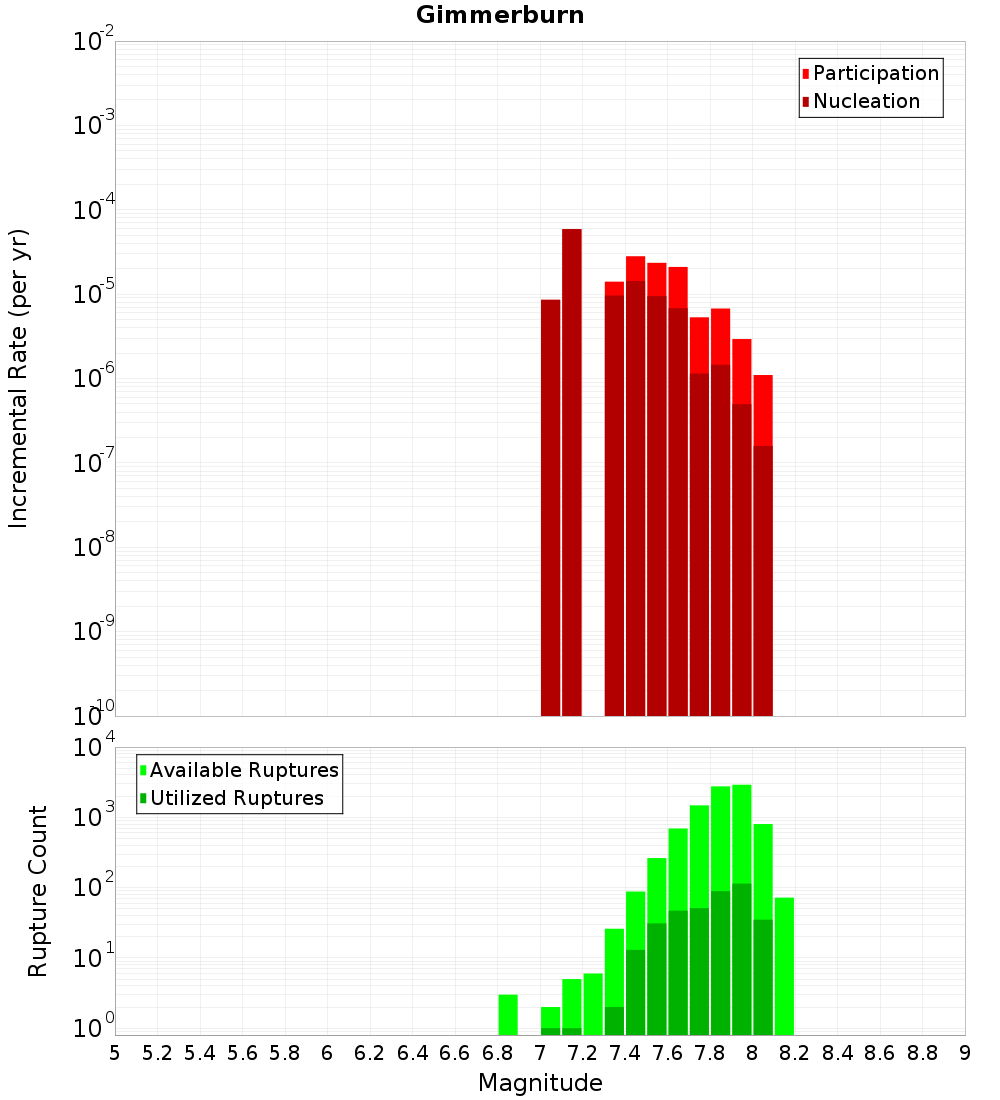

Magnitude-Frequency Distribution

Incremental	Cumulative

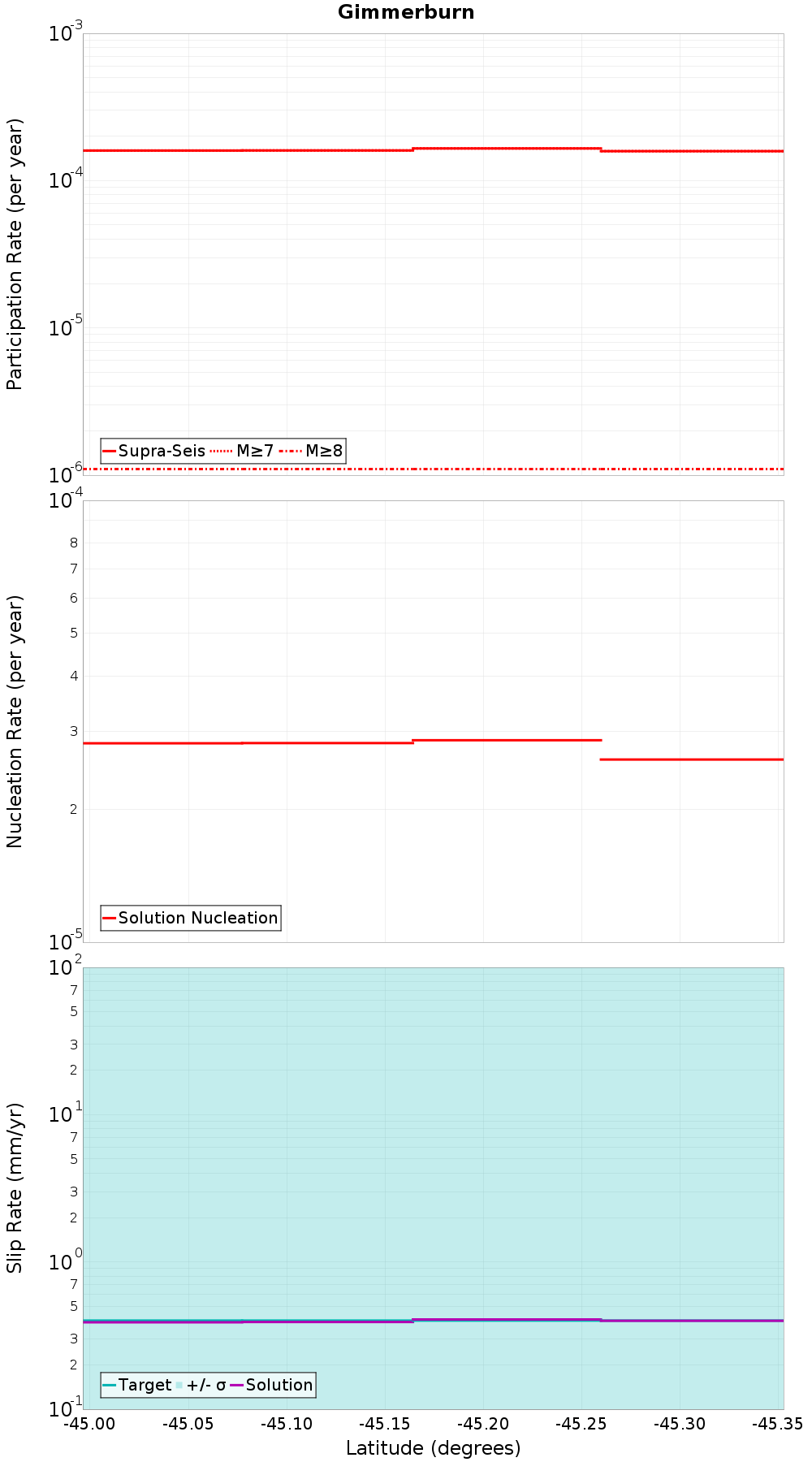

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Little Valley, 0.22 km away
Long Valley, 0.33 km away
Pylap, 2.27 km away
Cross Eden, 2.3 km away
Waihemo, 3.59 km away
Hawkdun, 3.64 km away
Garibaldi, 3.79 km away
Galloway, 4.14 km away
Blue Lake, 4.56 km away
Ranfurly, 4.96 km away
Omarama Saddle, 6.74 km away
Waipiata, 7.59 km away
Raggedy - Blackstone, 10.19 km away
Logan Burn, 10.21 km away

Little Valley, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	true
Co-rupture Count	4,248
Co-rupture Rate	1.8115203E-5

Long Valley, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	true
Co-rupture Count	3,687
Co-rupture Rate	5.675167E-5

Pylap, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	true
Co-rupture Count	1,692
Co-rupture Rate	1.0110956E-5

Cross Eden, 2.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	true
Co-rupture Count	314
Co-rupture Rate	0.0

Waihemo, 3.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkdun, 3.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	true
Co-rupture Count	3,252
Co-rupture Rate	1.136067E-5

Garibaldi, 3.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	true
Co-rupture Count	1,970
Co-rupture Rate	1.2789625E-5

Galloway, 4.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	true
Co-rupture Count	757
Co-rupture Rate	2.5757241E-5

Blue Lake, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	true
Co-rupture Count	3,077
Co-rupture Rate	2.3797696E-5

Ranfurly, 4.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Omarama Saddle, 6.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	false
Co-rupture Count	1,512
Co-rupture Rate	1.2298205E-5

Waipiata, 7.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	9.625877E-7

Raggedy - Blackstone, 10.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	false
Co-rupture Count	410
Co-rupture Rate	2.3446923E-6

Logan Burn, 10.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?	true
Directly Connected?	false
Co-rupture Count	589
Co-rupture Rate	1.8728888E-12
