Hope: Kakapo-2-Hamner Details

PropertyValue
Rupture Count7,603
Ruptures Above Sect Min Mag7,599
Ruptures w/ Nonzero Rates423
Magnitude Range[6.27, 8.42]
Length Range[6, 946] km
Total Rate0.003187776 /yr
Multi-Fault Rate0.003187776 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults150

Table Of Contents

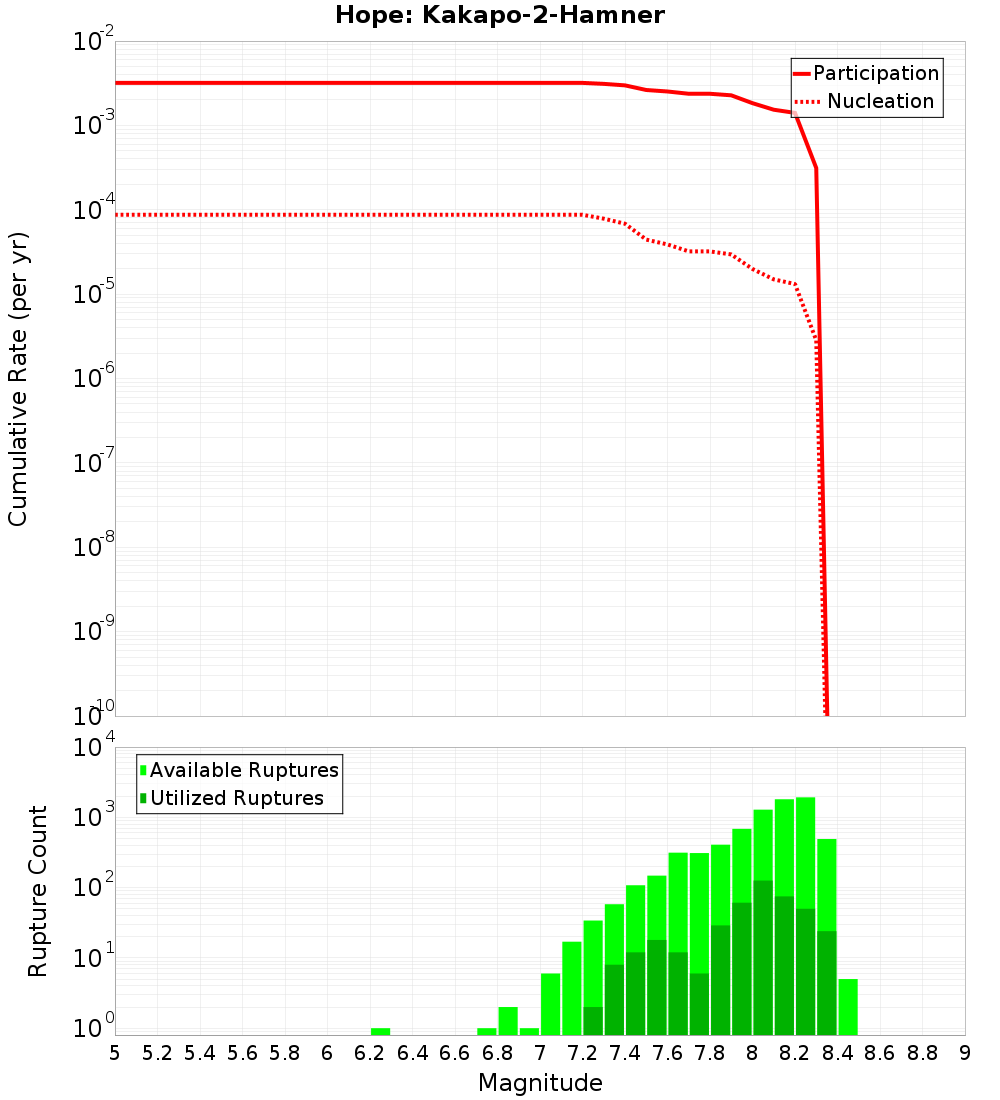

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

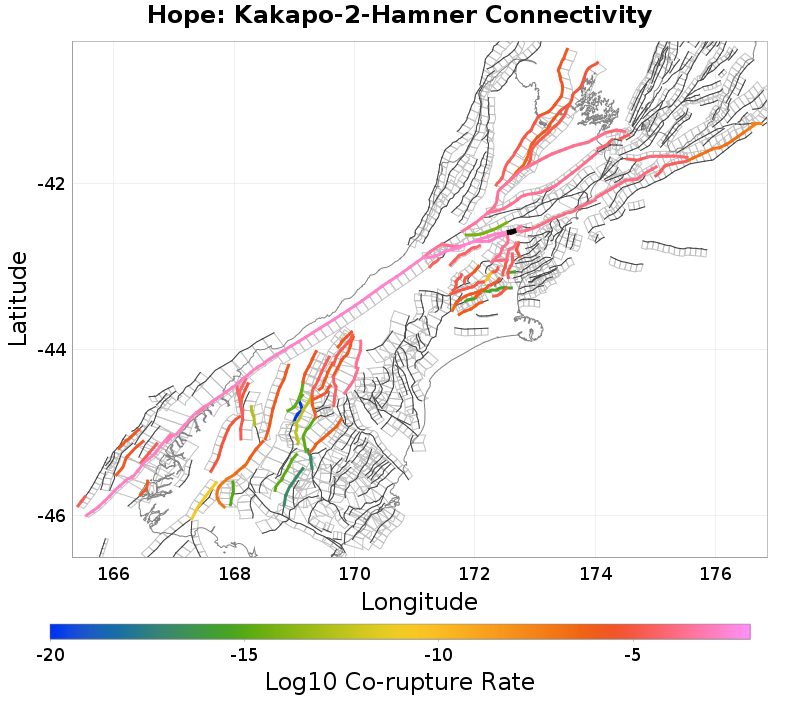

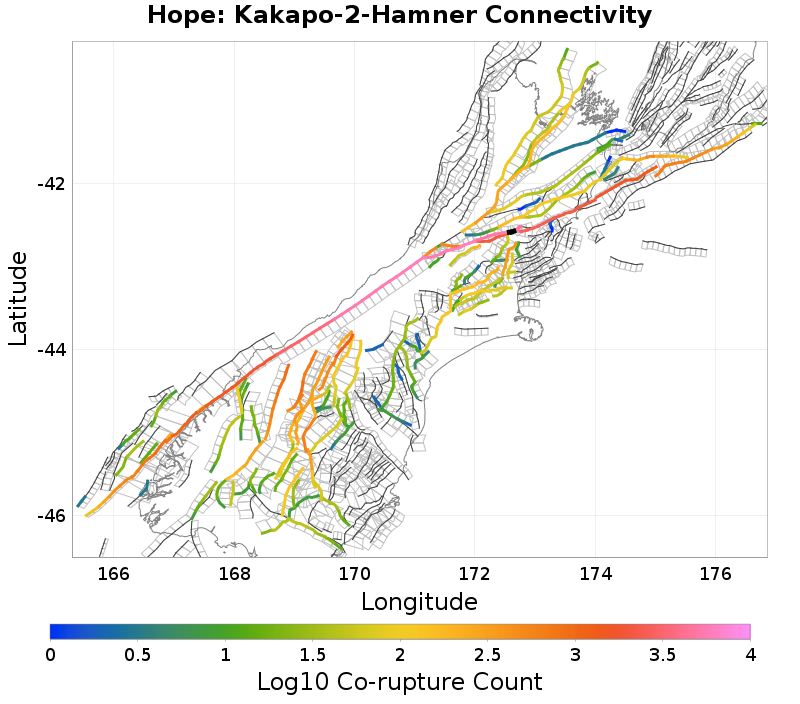

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kakapo, 0 km away
Hope: Hanmer NW, 0 km away
Hope: Hope River, 0 km away
Hope: Hamner SW, 0 km away
Esk North, 4.29 km away
Hanmer, 7.2 km away
Hope: Hamner SE, 10.42 km away
Clarence: Southwest, 12.23 km away
Hurunui Peak, 12.99 km away

Kakapo, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?true
Co-rupture Count2,436
Co-rupture Rate0.0013328182

Hope: Hanmer NW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?false
Co-rupture Count4,428
Co-rupture Rate4.5528254E-4

Hope: Hope River, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?true
Co-rupture Count5,367
Co-rupture Rate0.0018788411

Hope: Hamner SW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?true
Co-rupture Count5,950
Co-rupture Rate4.7778757E-4

Esk North, 4.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?true
Co-rupture Count57
Co-rupture Rate1.8650551E-4

Hanmer, 7.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SE, 10.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?false
Co-rupture Count2,627
Co-rupture Rate1.16881376E-4

Clarence: Southwest, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate6.5543227E-15

Hurunui Peak, 12.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?false
Co-rupture Count377
Co-rupture Rate1.4102977E-4
