Kakapo Details

PropertyValue
Rupture Count8,213
Ruptures Above Sect Min Mag8,205
Ruptures w/ Nonzero Rates266
Magnitude Range[6.76, 8.39]
Length Range[20, 862] km
Total Rate0.0014249155 /yr
Multi-Fault Rate0.0014249155 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults137

Table Of Contents

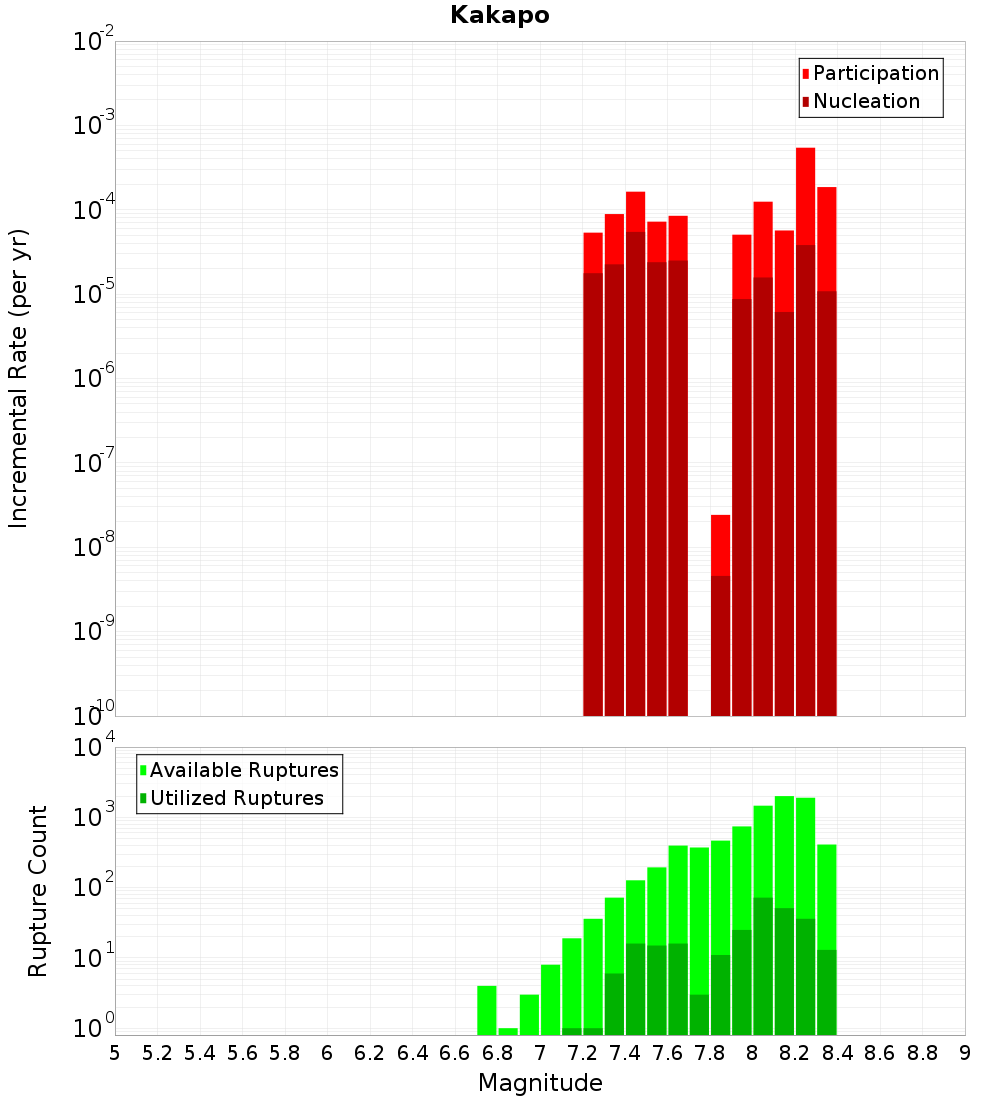

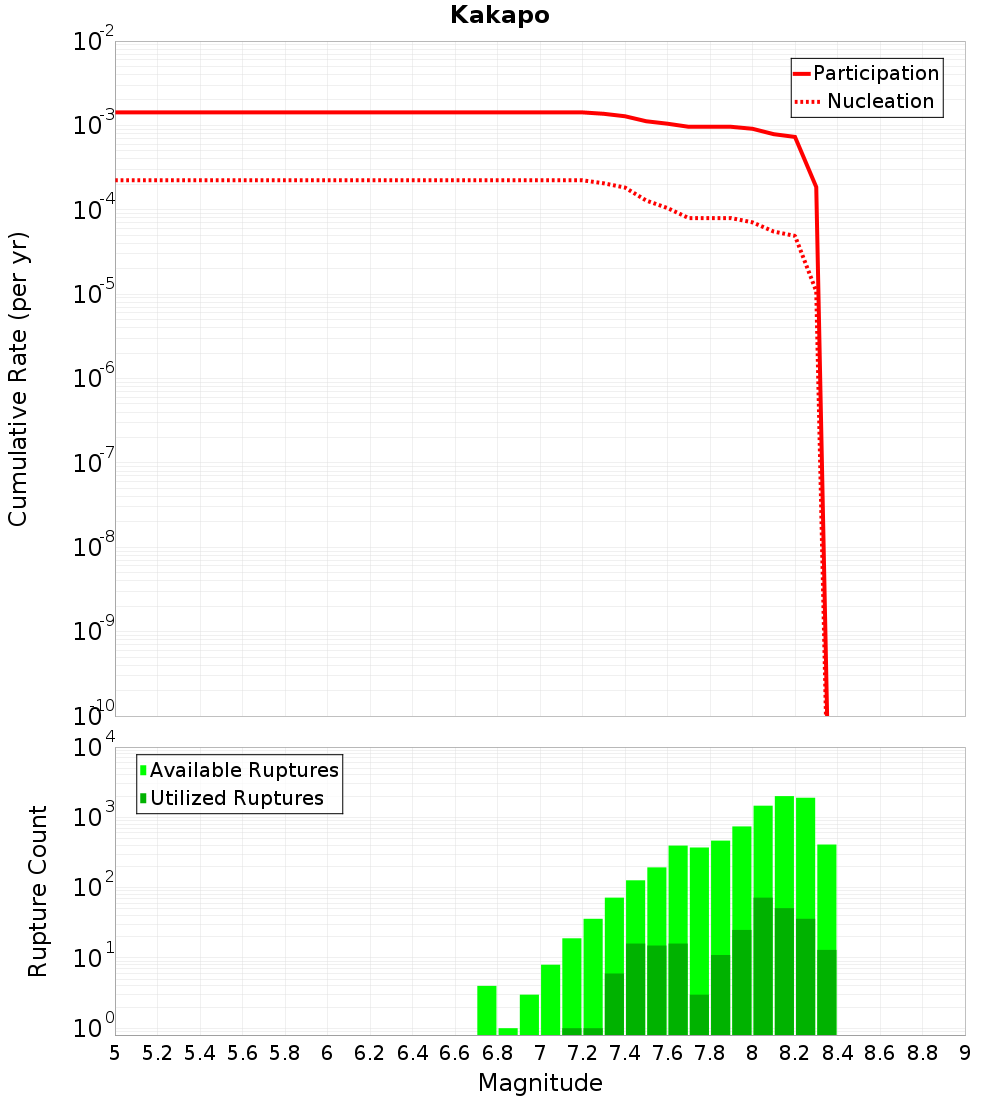

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

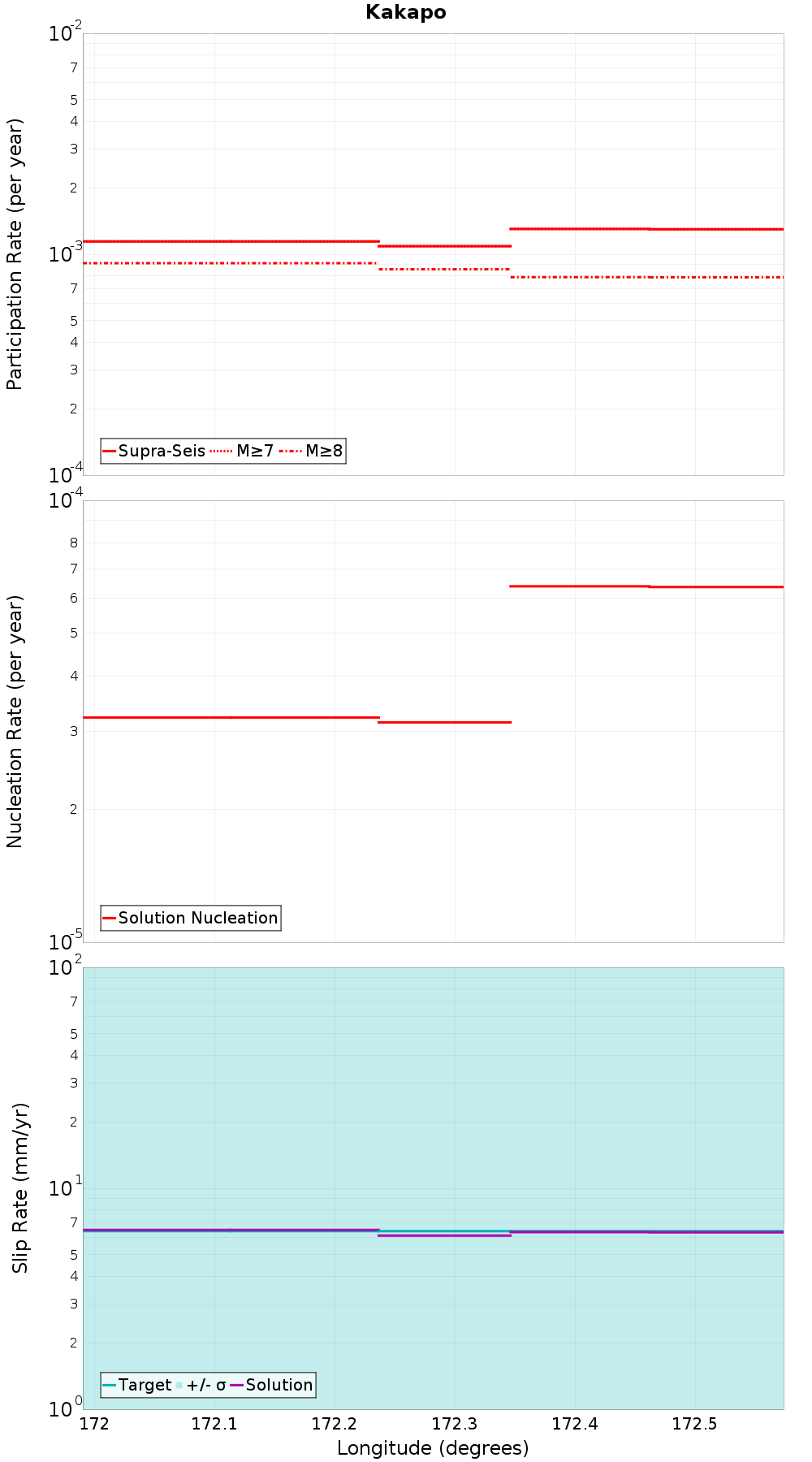

Along-Strike Values

(top)

Along-strike plot

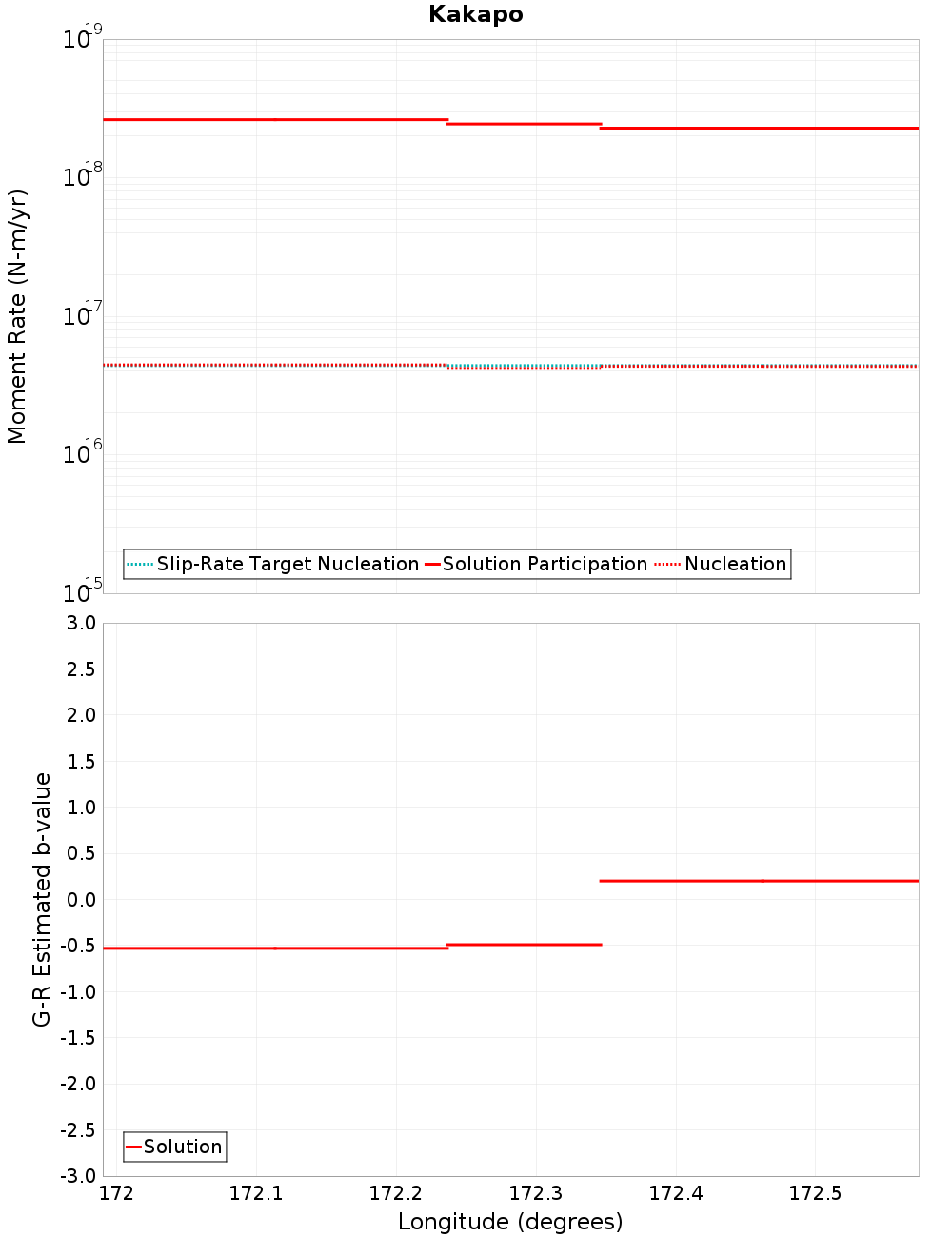

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hurunui, 0 km away
Hope: Hope River, 0 km away
Esk North, 0.09 km away
Poulter, 5.65 km away
Hurunui Peak, 5.94 km away
Hope: Hanmer NW, 6.3 km away
Hope: Hamner SW, 6.3 km away
Alpine: Kaniere to Springs Junction, 6.32 km away
Clarence: Southwest, 8.64 km away
Hanmer, 12.92 km away
Hope: Taramakau, 14.38 km away
Kelly, 14.38 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?true
Co-rupture Count2,436
Co-rupture Rate0.0013328182

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?true
Co-rupture Count6,997
Co-rupture Rate0.0010782111

Hope: Hope River, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?true
Co-rupture Count686
Co-rupture Rate6.7659275E-5

Esk North, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?true
Co-rupture Count107
Co-rupture Rate1.3185054E-4

Poulter, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?true
Co-rupture Count522
Co-rupture Rate6.4719854E-5

Hurunui Peak, 5.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?true
Co-rupture Count1,326
Co-rupture Rate1.5195686E-4

Hope: Hanmer NW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?false
Co-rupture Count847
Co-rupture Rate1.7120871E-4

Hope: Hamner SW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?false
Co-rupture Count1,618
Co-rupture Rate1.936198E-4

Alpine: Kaniere to Springs Junction, 6.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?false
Co-rupture Count939
Co-rupture Rate2.2051894E-4

Clarence: Southwest, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?true
Co-rupture Count1,940
Co-rupture Rate5.6340814E-5

Hanmer, 12.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Taramakau, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?false
Co-rupture Count1,146
Co-rupture Rate1.1858413E-4

Kelly, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDEuMEZKTW9p
Connected?true
Directly Connected?false
Co-rupture Count7,156
Co-rupture Rate0.0010259923
