Motu o Kura East Details
| Property | Value |
|---|---|
| Rupture Count | 3,657 |
| Ruptures Above Sect Min Mag | 3,634 |
| Ruptures w/ Nonzero Rates | 2,824 |
| Magnitude Range | [6.61, 8.21] |
| Length Range | [18, 626] km |
| Total Rate | 8.04167E-4 /yr |
| Multi-Fault Rate | 7.228268E-4 /yr (89.89%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 35 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

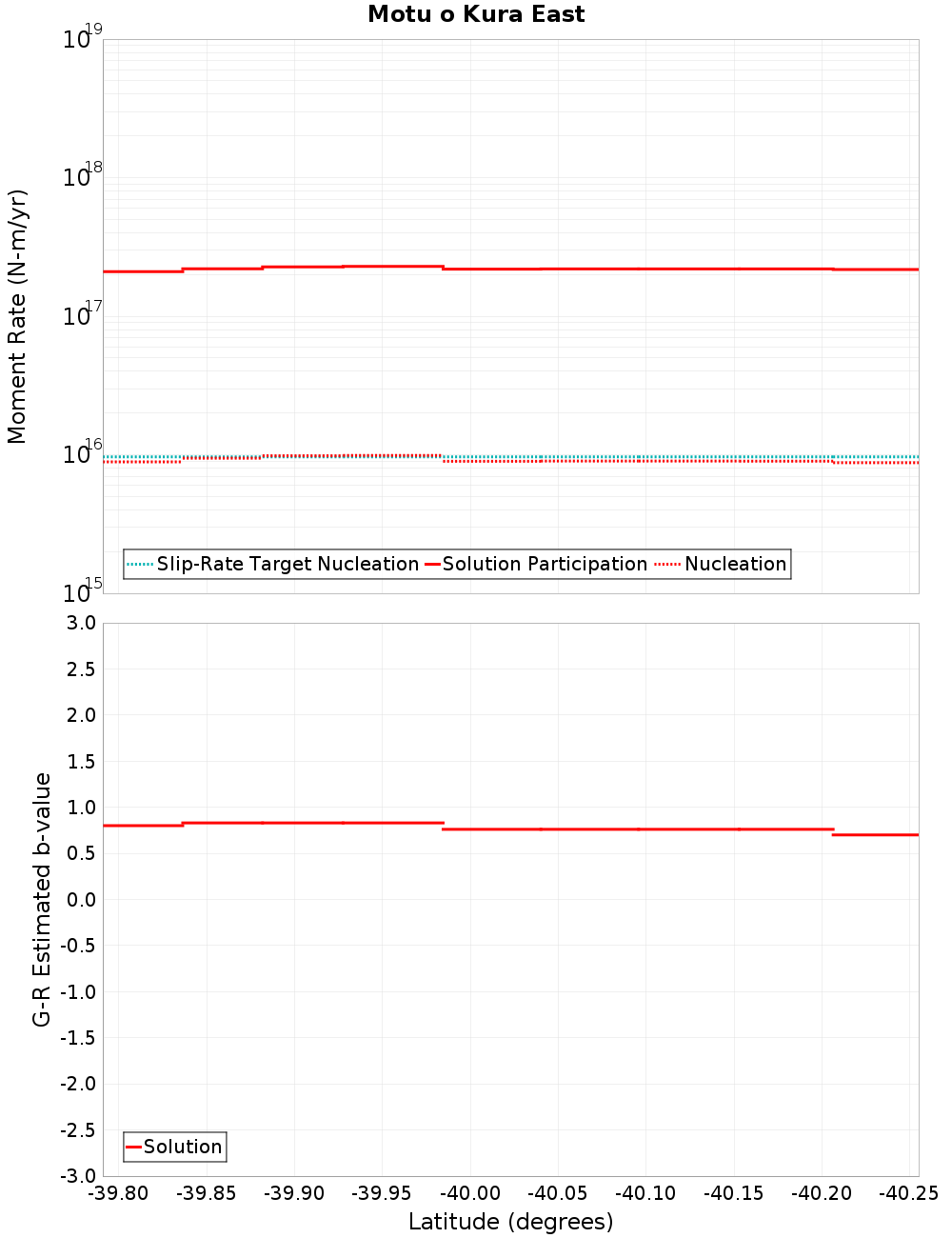

Moment-Rates and b-Values

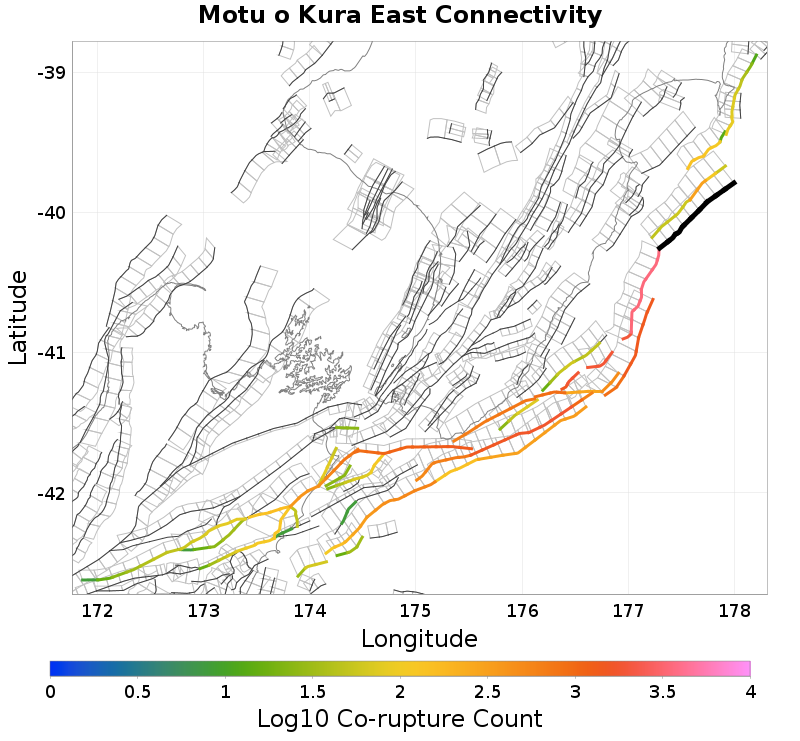

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Madden Banks, 0.5 km away |
| Motu o Kura Ridge, 6.46 km away |
| Motuokura North, 7.07 km away |
Madden Banks, 0.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDguMHNXTWVH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,547 |
| Co-rupture Rate | 6.474887E-4 |
Motu o Kura Ridge, 6.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDguMHNXTWVH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 57 |
| Co-rupture Rate | 2.0762687E-4 |
Motuokura North, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMDguMHNXTWVH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 303 |
| Co-rupture Rate | 1.2174101E-4 |
