NW Cardrona South Details

Property	Value
Rupture Count	13,387
Ruptures Above Sect Min Mag	13,385
Ruptures w/ Nonzero Rates	52
Magnitude Range	[6.82, 8.50]
Length Range	[19, 952] km
Total Rate	9.9375815E-5 /yr
Multi-Fault Rate	9.9375815E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	74

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

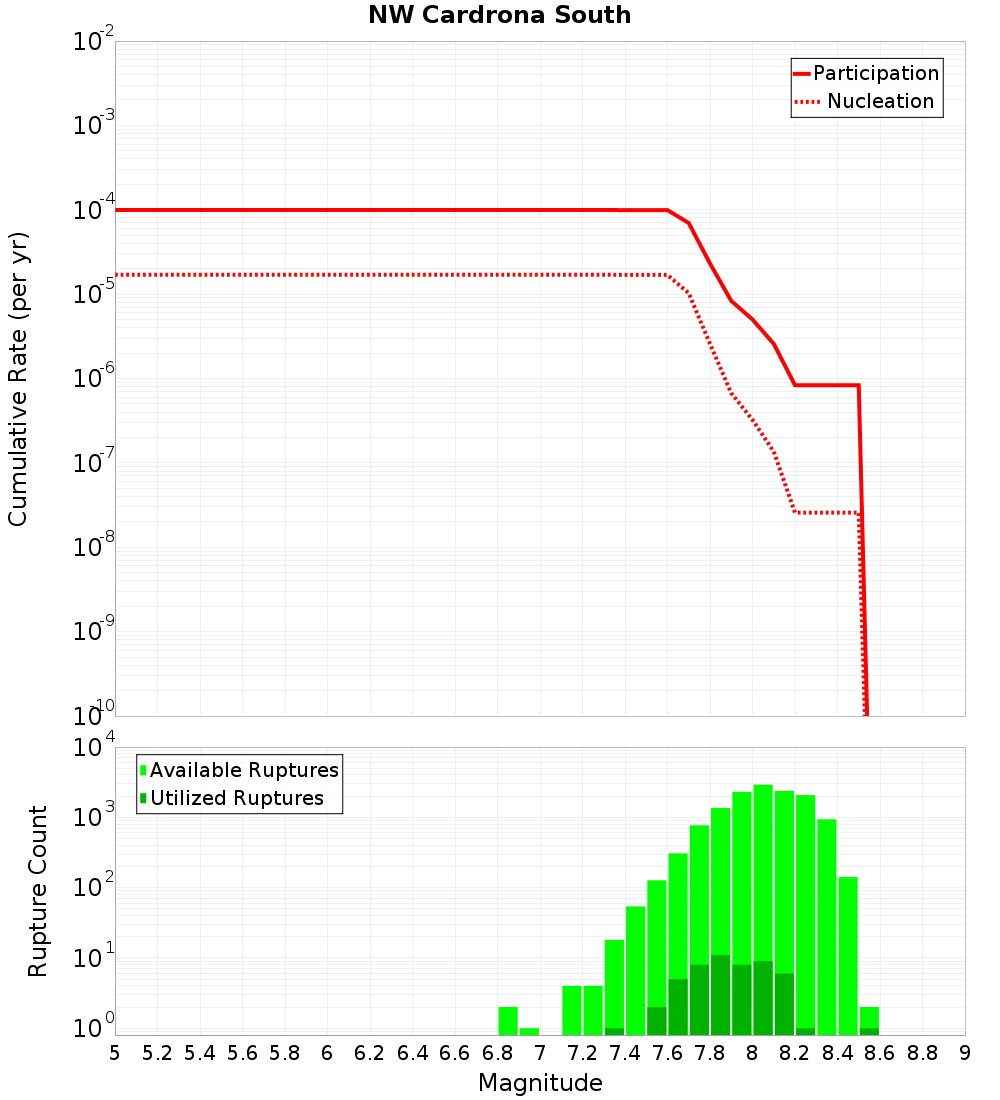

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Nevis, 0.47 km away
Paddys Ridge, 1.01 km away
NW Cardrona North, 1.15 km away
Roaring Meg, 2.76 km away
Pisa, 5.46 km away
Roaring Lion, 10.86 km away
Motatapu, 11.75 km away
West Wakatipu, 12.07 km away

Nevis, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMTguNXVqeTc0
Connected?	true
Directly Connected?	true
Co-rupture Count	3,462
Co-rupture Rate	9.6421216E-5

Paddys Ridge, 1.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMTguNXVqeTc0
Connected?	true
Directly Connected?	true
Co-rupture Count	804
Co-rupture Rate	3.5164874E-6

NW Cardrona North, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMTguNXVqeTc0
Connected?	true
Directly Connected?	true
Co-rupture Count	11,988
Co-rupture Rate	9.585932E-5

Roaring Meg, 2.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMTguNXVqeTc0
Connected?	true
Directly Connected?	true
Co-rupture Count	513
Co-rupture Rate	3.3078155E-7

Pisa, 5.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMTguNXVqeTc0
Connected?	true
Directly Connected?	true
Co-rupture Count	5,891
Co-rupture Rate	2.6238165E-6

Roaring Lion, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMTguNXVqeTc0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,872
Co-rupture Rate	4.818327E-22

Motatapu, 11.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMTguNXVqeTc0
Connected?	true
Directly Connected?	false
Co-rupture Count	5,116
Co-rupture Rate	3.7903206E-5

West Wakatipu, 12.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMTguNXVqeTc0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
