Kaiwara North Details

PropertyValue
Rupture Count6,647
Ruptures Above Sect Min Mag6,647
Ruptures w/ Nonzero Rates122
Magnitude Range[7.13, 8.39]
Length Range[25, 560] km
Total Rate8.60076E-5 /yr
Multi-Fault Rate8.60076E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults91

Table Of Contents

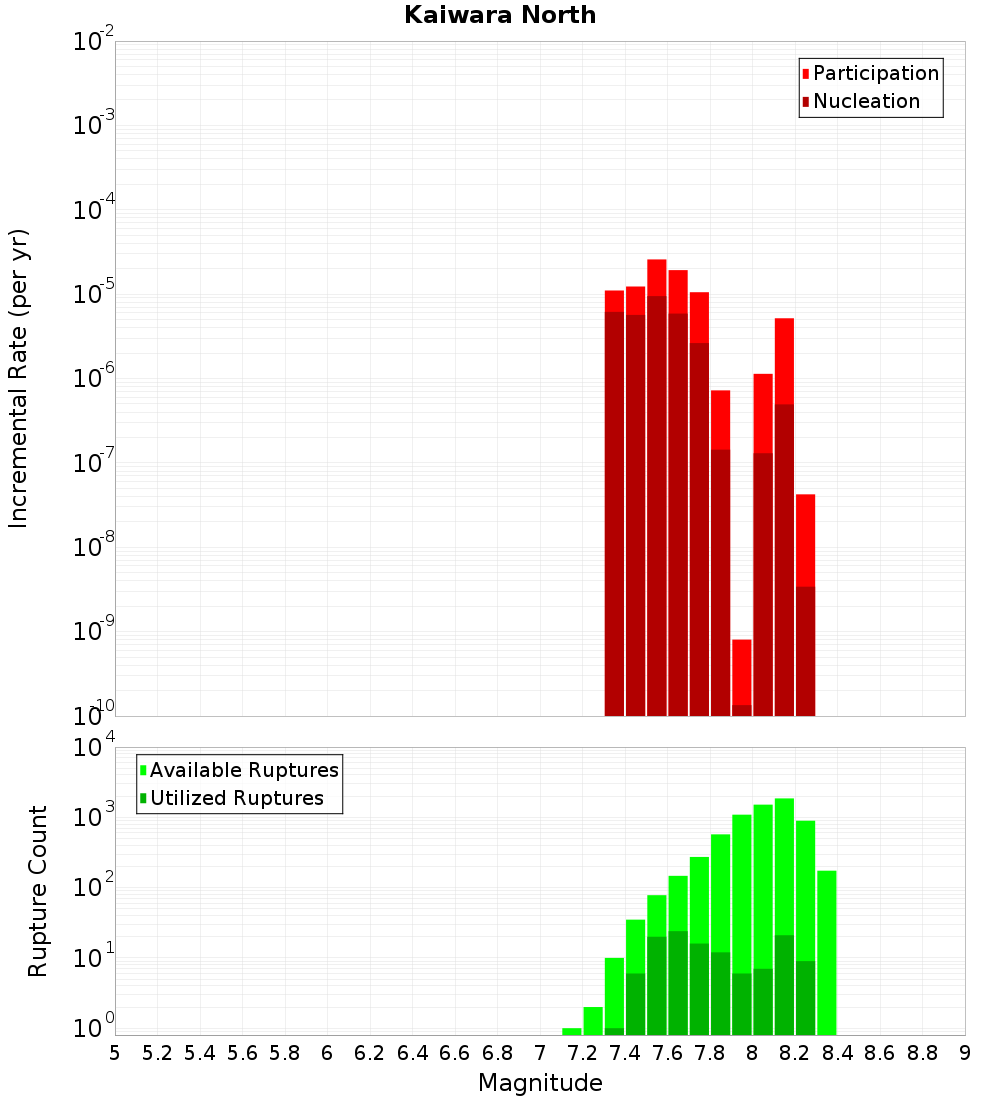

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

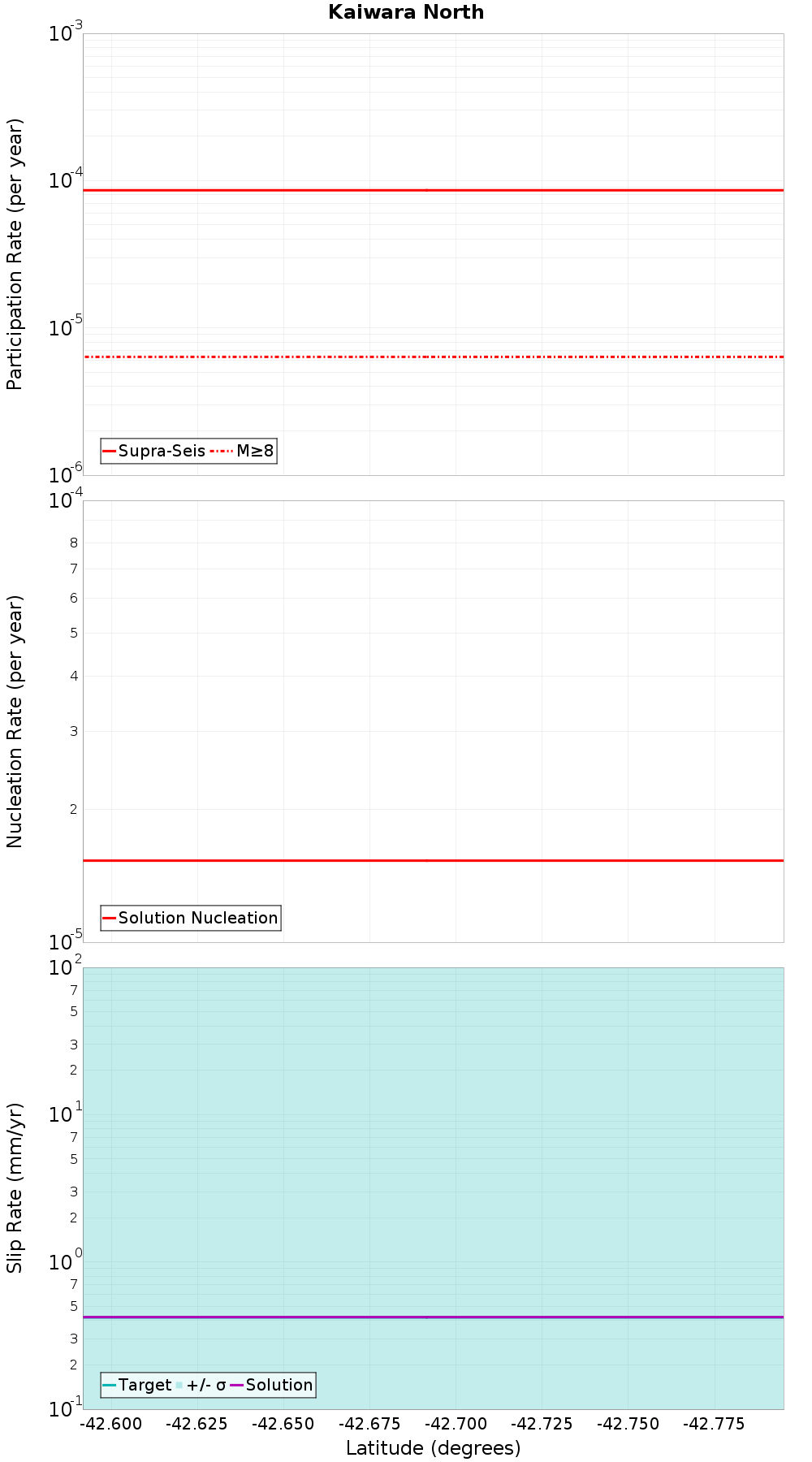

Along-Strike Values

(top)

Along-strike plot

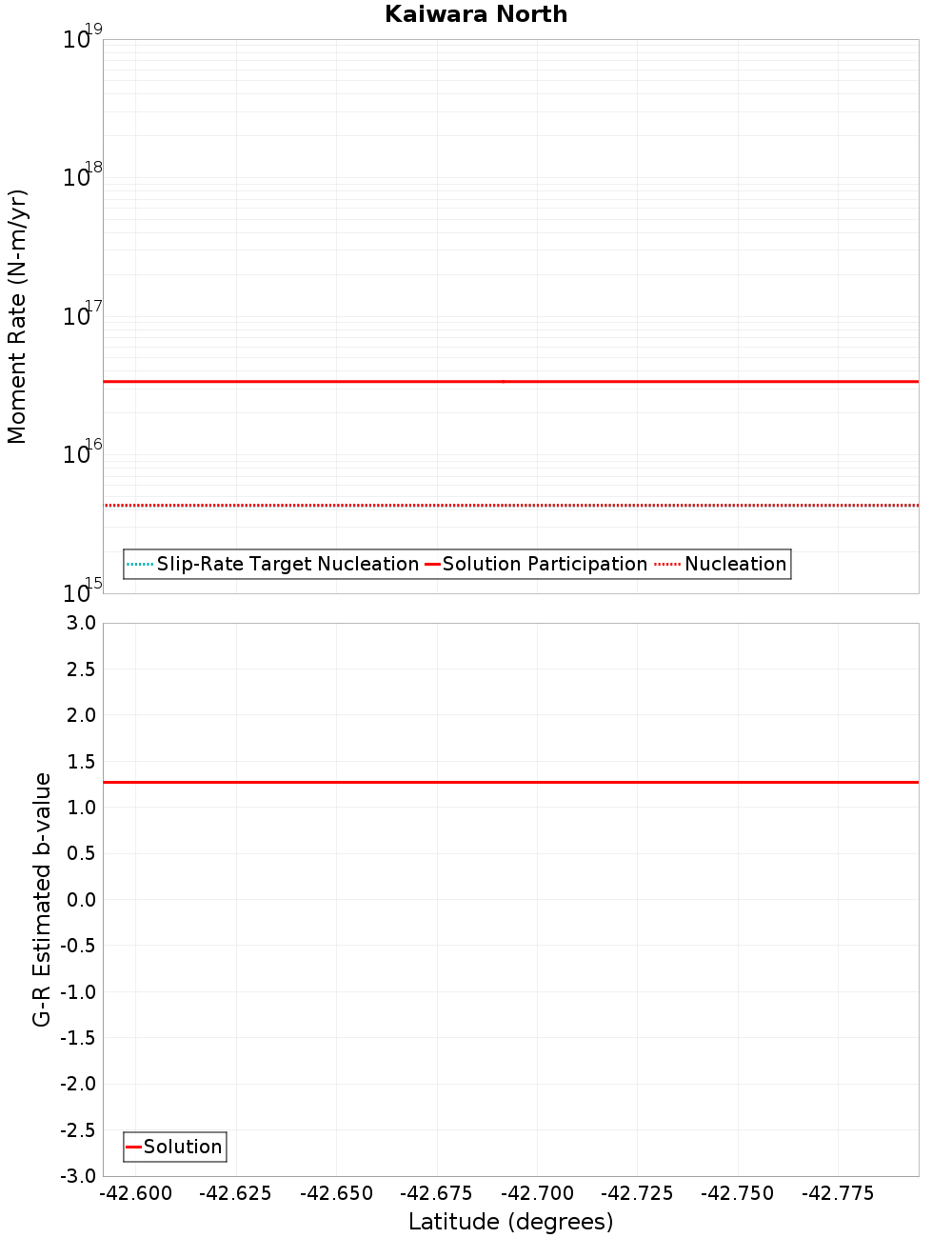

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Lowry, 0.15 km awayHanmer, 5.4 km away
The Humps, 0.22 km awayHope: Conway, 6.51 km away
Leonard Mound, 0.3 km awayHawkswood, 9.21 km away
Mt Culverden, 0.53 km awayOmihiLwrHuru, 10.71 km away
Leader: South, 0.57 km awayLeader: North, 10.78 km away
Leader: Central, 2.03 km awayKaiwara South, 11.67 km away
Hundalee, 3.47 km awayHope: Hamner SE, 12.43 km away
Alexander, 5.18 km awayStoneJug, 13.46 km away

Lowry, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?true
Directly Connected?true
Co-rupture Count2,422
Co-rupture Rate2.0257696E-5

The Humps, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leonard Mound, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?true
Directly Connected?true
Co-rupture Count424
Co-rupture Rate1.9772731E-5

Mt Culverden, 0.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?true
Directly Connected?true
Co-rupture Count2,537
Co-rupture Rate2.666426E-5

Leader: South, 0.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: Central, 2.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?true
Directly Connected?true
Co-rupture Count6,159
Co-rupture Rate1.2091937E-5

Hundalee, 3.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?true
Directly Connected?true
Co-rupture Count174
Co-rupture Rate6.1551706E-5

Alexander, 5.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?true
Directly Connected?true
Co-rupture Count1,296
Co-rupture Rate2.8044982E-5

Hanmer, 5.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 6.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?true
Directly Connected?false
Co-rupture Count4,692
Co-rupture Rate4.3811237E-6

Hawkswood, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

OmihiLwrHuru, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?true
Directly Connected?false
Co-rupture Count97
Co-rupture Rate5.975848E-7

Leader: North, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?true
Directly Connected?false
Co-rupture Count1,220
Co-rupture Rate7.709123E-6

Kaiwara South, 11.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?true
Directly Connected?false
Co-rupture Count632
Co-rupture Rate2.1732708E-6

Hope: Hamner SE, 12.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

StoneJug, 13.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjMuMFlZRGNp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
