Ruby Bay - Moutere Details
| Property | Value |
|---|---|
| Rupture Count | 9,112 |
| Ruptures Above Sect Min Mag | 9,108 |
| Ruptures w/ Nonzero Rates | 411 |
| Magnitude Range | [6.92, 8.46] |
| Length Range | [24, 947] km |
| Total Rate | 7.4195654E-5 /yr |
| Multi-Fault Rate | 5.8812817E-5 /yr (79.27%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 68 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

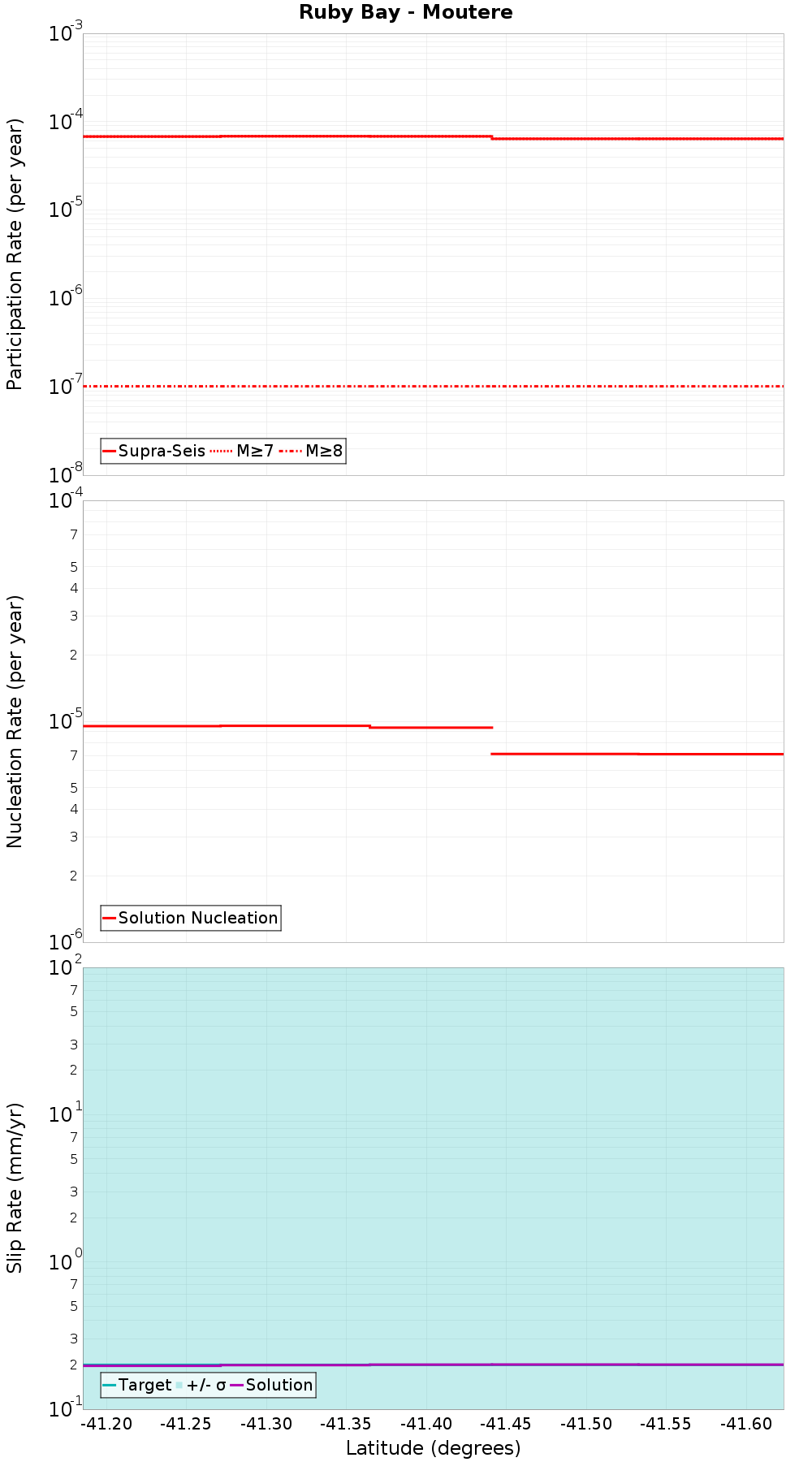

Along-Strike Values

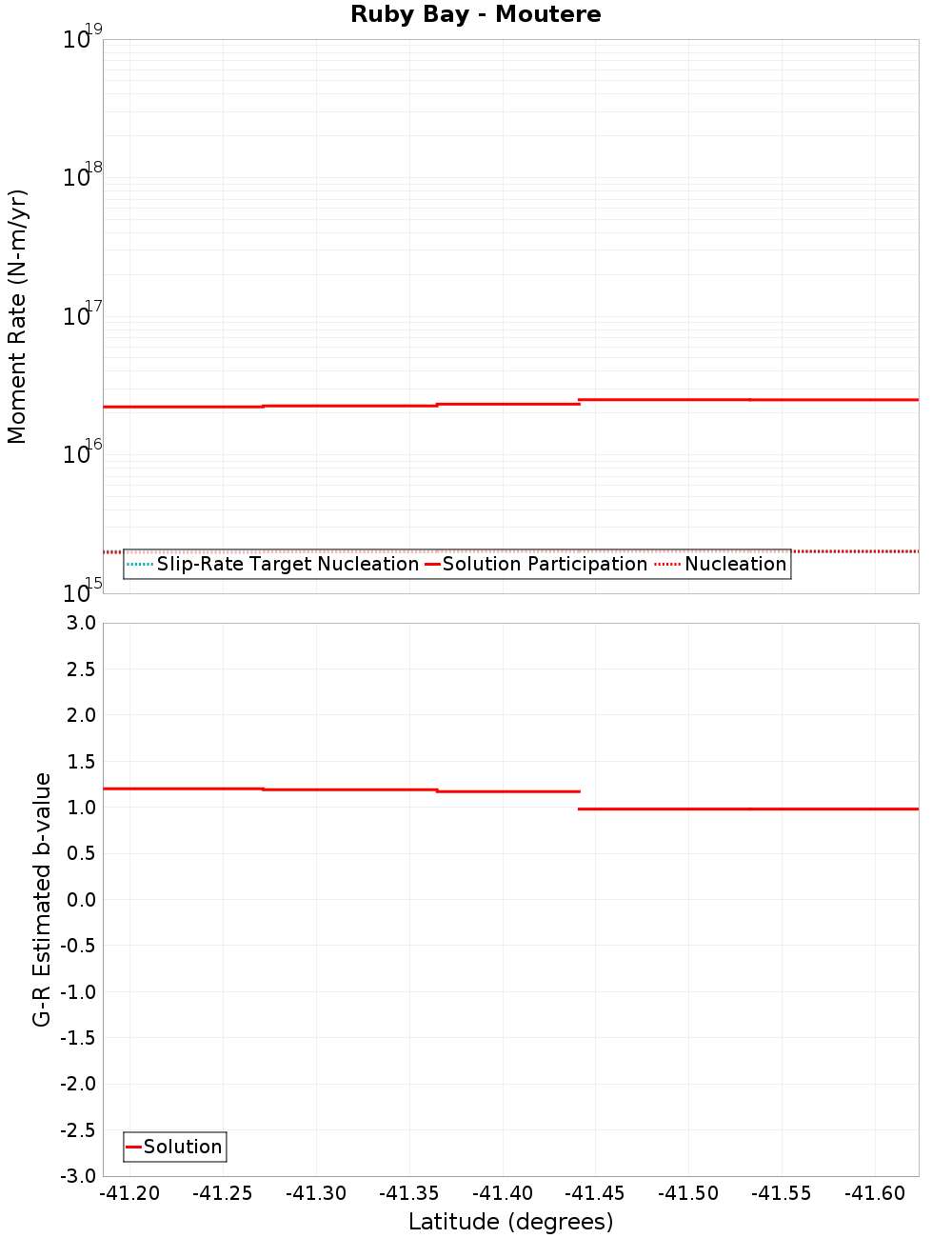

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Surville, 0.09 km away |
| Tutaki, 3.43 km away |
| Flaxmore - Waimea - Tahunanui, 9.4 km away |
| Wairau, 14.99 km away |
Surville, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjkuMDU2OG56 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,925 |
| Co-rupture Rate | 9.038565E-6 |
Tutaki, 3.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjkuMDU2OG56 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9,010 |
| Co-rupture Rate | 4.109716E-5 |
Flaxmore - Waimea - Tahunanui, 9.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjkuMDU2OG56 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 36 |
| Co-rupture Rate | 1.6555601E-5 |
Wairau, 14.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMjkuMDU2OG56 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
