Ariel Bank Details

PropertyValue
Rupture Count272
Ruptures Above Sect Min Mag262
Ruptures w/ Nonzero Rates70
Magnitude Range[6.51, 7.79]
Length Range[13, 220] km
Total Rate0.0021558756 /yr
Multi-Fault Rate0.0021558756 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults10

Table Of Contents

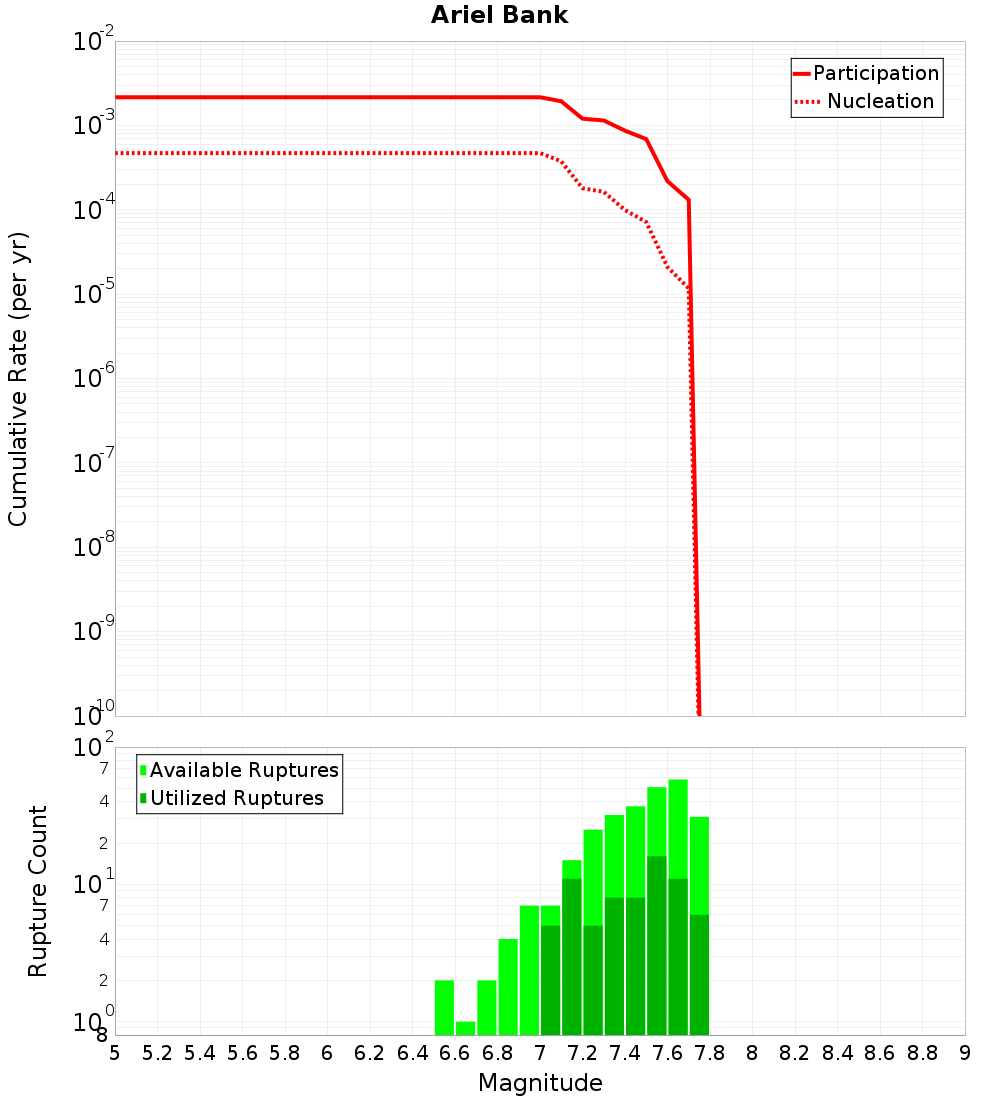

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

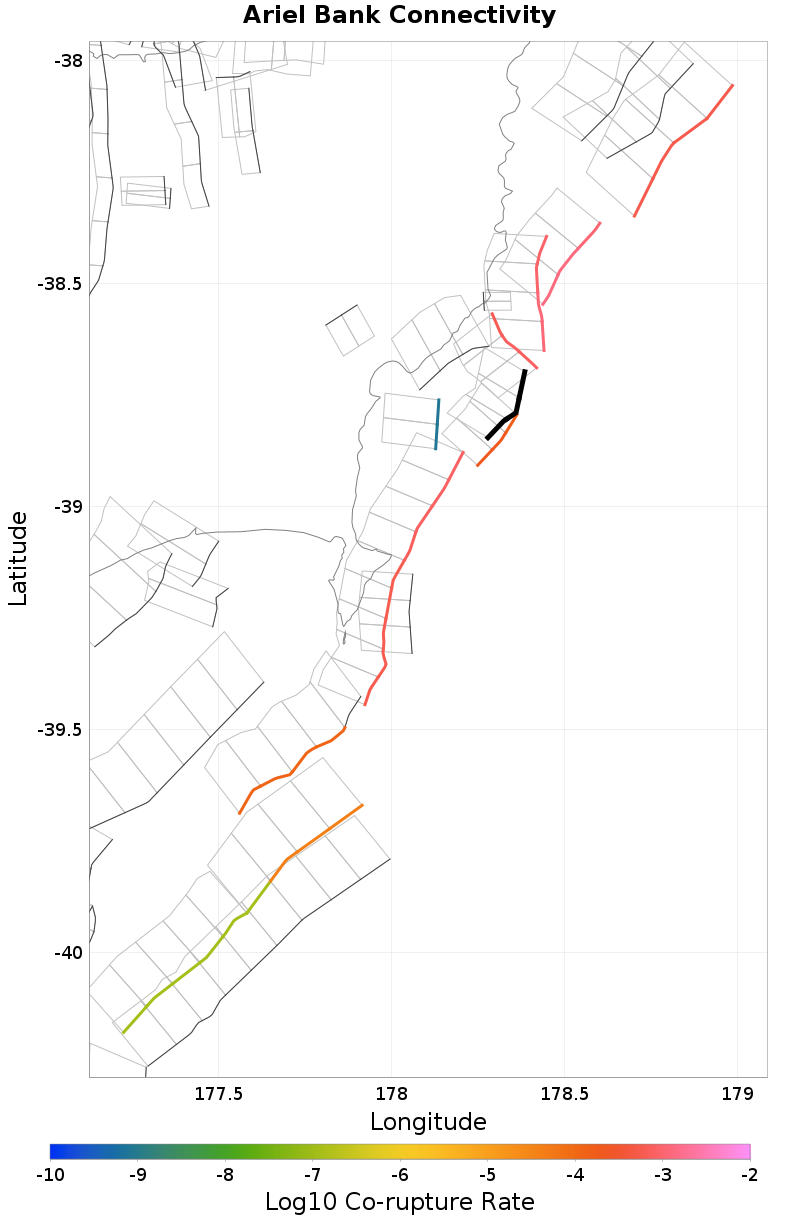

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Ikaarongamai, 0.36 km away
Ariel East, 0.48 km away
Gable End North, 2.13 km away
Lachlan 3, 6.74 km away
Gable End South, 7.12 km away
Poverty Bay, 8.84 km away
Pakarae, 10.5 km away

Te Ikaarongamai, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMzYuMFBIUUht
Connected?true
Directly Connected?true
Co-rupture Count25
Co-rupture Rate7.674224E-4

Ariel East, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMzYuMFBIUUht
Connected?true
Directly Connected?true
Co-rupture Count109
Co-rupture Rate1.9846702E-4

Gable End North, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMzYuMFBIUUht
Connected?true
Directly Connected?true
Co-rupture Count190
Co-rupture Rate0.001126951

Lachlan 3, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMzYuMFBIUUht
Connected?true
Directly Connected?true
Co-rupture Count232
Co-rupture Rate8.024204E-4

Gable End South, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMzYuMFBIUUht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poverty Bay, 8.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMzYuMFBIUUht
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate8.365867E-10

Pakarae, 10.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxMzYuMFBIUUht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
