Alpine: Kaniere to Springs Junction Details

Property	Value
Rupture Count	128,579
Ruptures Above Sect Min Mag	128,572
Ruptures w/ Nonzero Rates	2,232
Magnitude Range	[6.96, 8.72]
Length Range	[21, 1,132] km
Total Rate	0.006766972 /yr
Multi-Fault Rate	0.0044576437 /yr (65.87%)
Directly-Connected Faults	11
All Co-Rupturing Faults	175

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

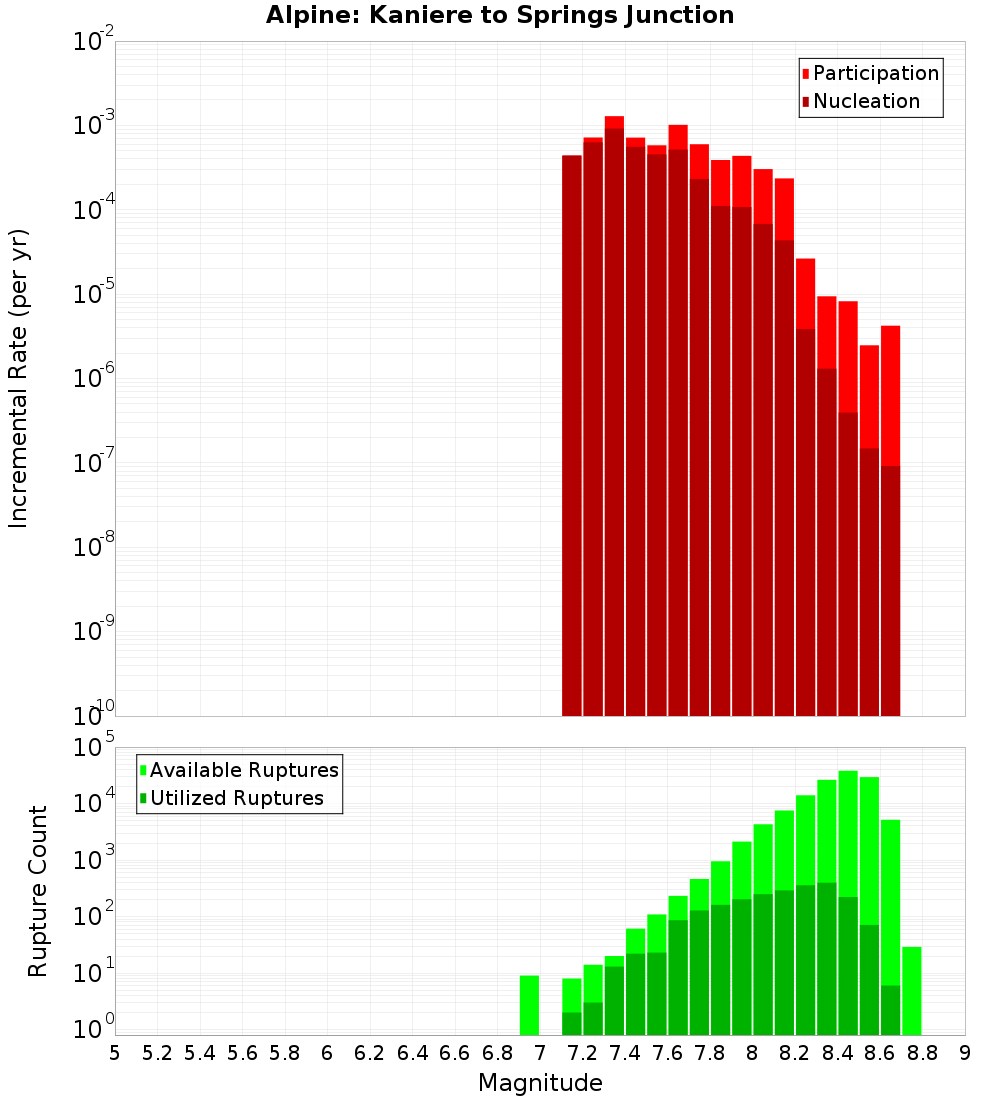

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Alpine: Jacksons to Kaniere, 0 km away
Kelly, 0 km away
Awatere: Southwest, 0 km away
Browning Pass, 0.16 km away
Hope: Hurunui, 0.19 km away
Clarence: Southwest, 0.21 km away
Hope: Taramakau, 0.23 km away
Fowlers, 0.24 km away
Hope: Hope River, 2.94 km away
Kakapo, 6.32 km away
White Creek - buried, 12.03 km away
Esk North, 14.76 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	true
Co-rupture Count	67,926
Co-rupture Rate	1.05524254E-4

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	true
Co-rupture Count	117,557
Co-rupture Rate	0.0022581788

Kelly, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	true
Co-rupture Count	37,469
Co-rupture Rate	7.132562E-4

Awatere: Southwest, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	true
Co-rupture Count	27,971
Co-rupture Rate	8.2711945E-4

Browning Pass, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	true
Co-rupture Count	21,986
Co-rupture Rate	3.33883E-4

Hope: Hurunui, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	true
Co-rupture Count	11,511
Co-rupture Rate	6.197591E-4

Clarence: Southwest, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	true
Co-rupture Count	6,884
Co-rupture Rate	4.4365783E-4

Hope: Taramakau, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	true
Co-rupture Count	2,939
Co-rupture Rate	8.731107E-4

Fowlers, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	true
Co-rupture Count	5,401
Co-rupture Rate	7.111348E-5

Hope: Hope River, 2.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	true
Co-rupture Count	10,955
Co-rupture Rate	2.92397E-4

Kakapo, 6.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	false
Co-rupture Count	939
Co-rupture Rate	1.1403936E-8

White Creek - buried, 12.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	true
Directly Connected?	true
Co-rupture Count	7,516
Co-rupture Rate	7.427255E-5

Esk North, 14.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMDNhRW14
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
