Titri South Details

PropertyValue
Rupture Count498
Ruptures Above Sect Min Mag498
Ruptures w/ Nonzero Rates148
Magnitude Range[7.09, 8.16]
Length Range[29, 359] km
Total Rate6.4863045E-5 /yr
Multi-Fault Rate4.2425763E-5 /yr (65.41%)
Directly-Connected Faults4
All Co-Rupturing Faults61

Table Of Contents

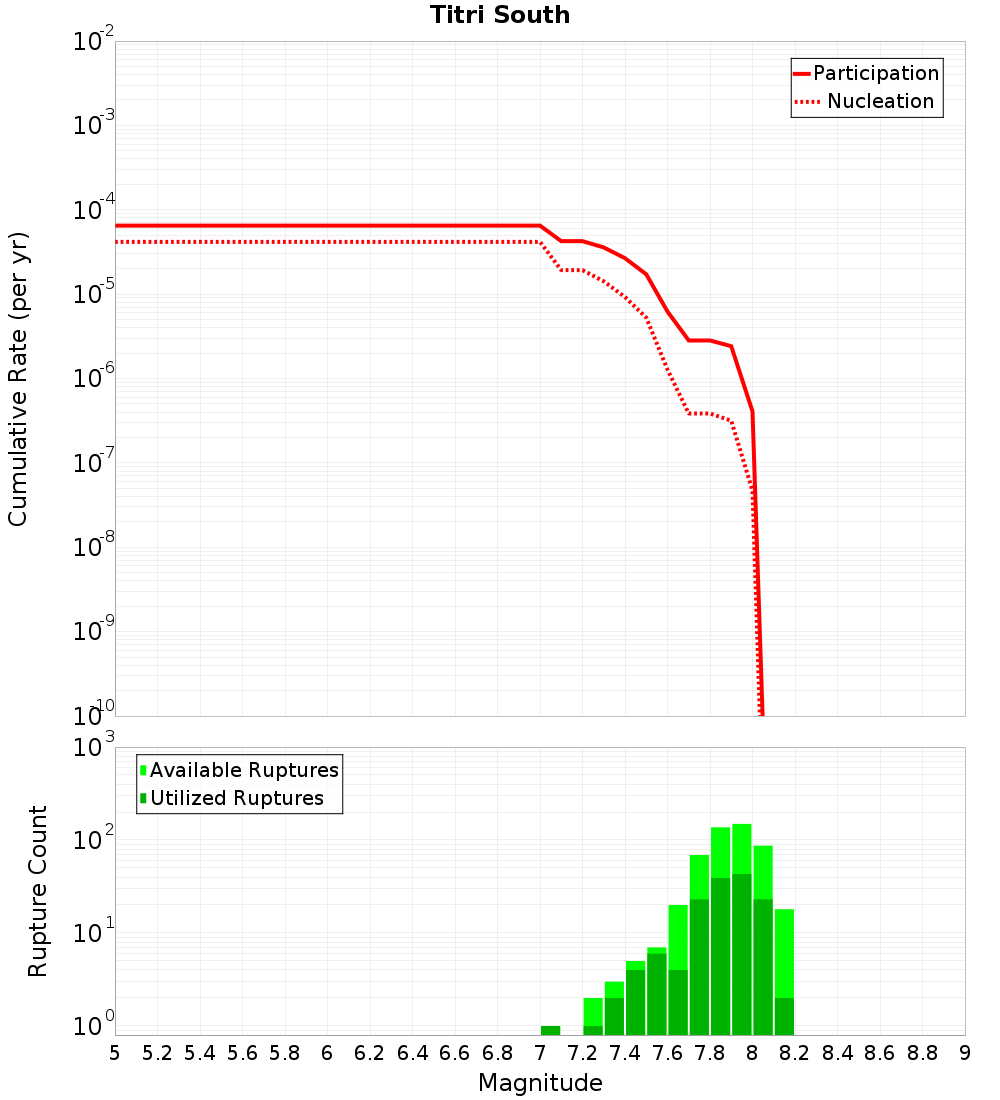

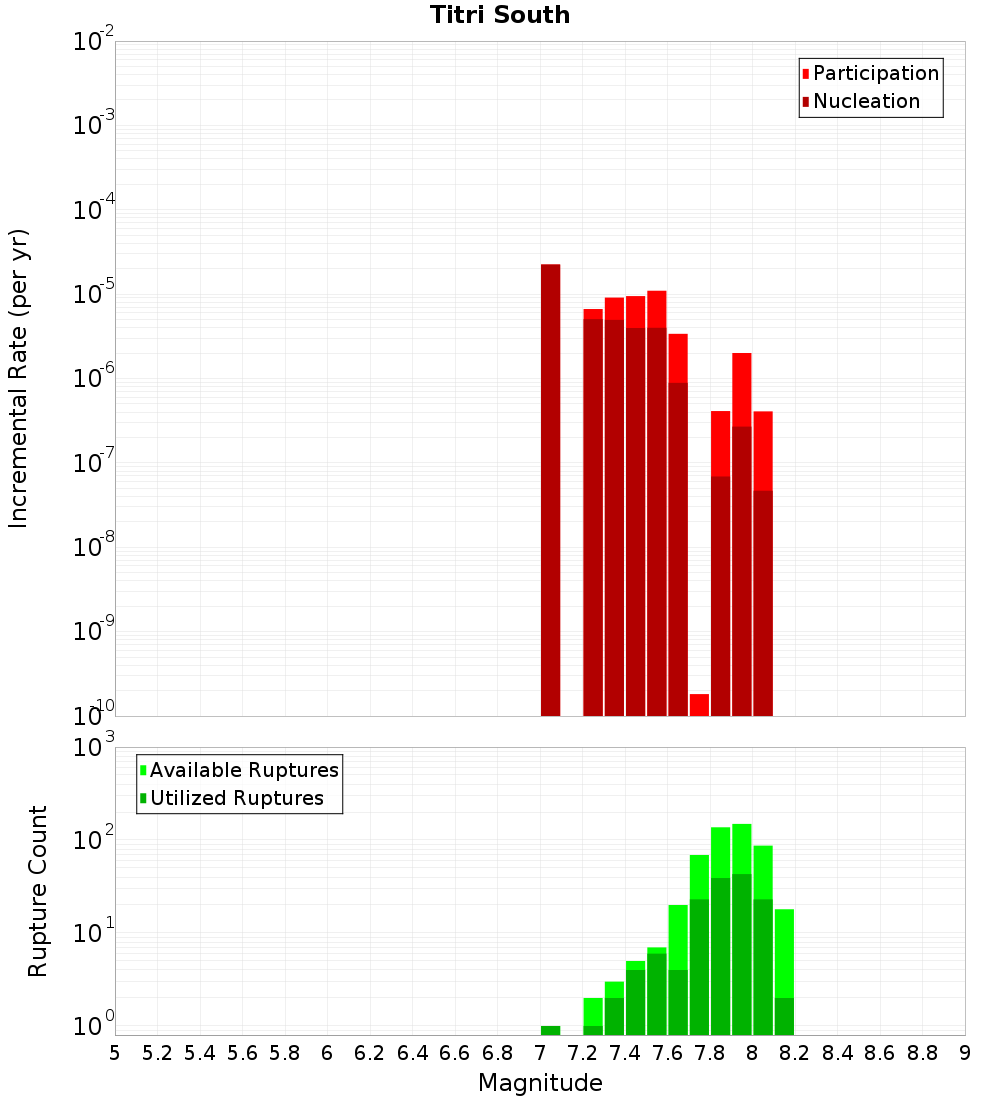

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

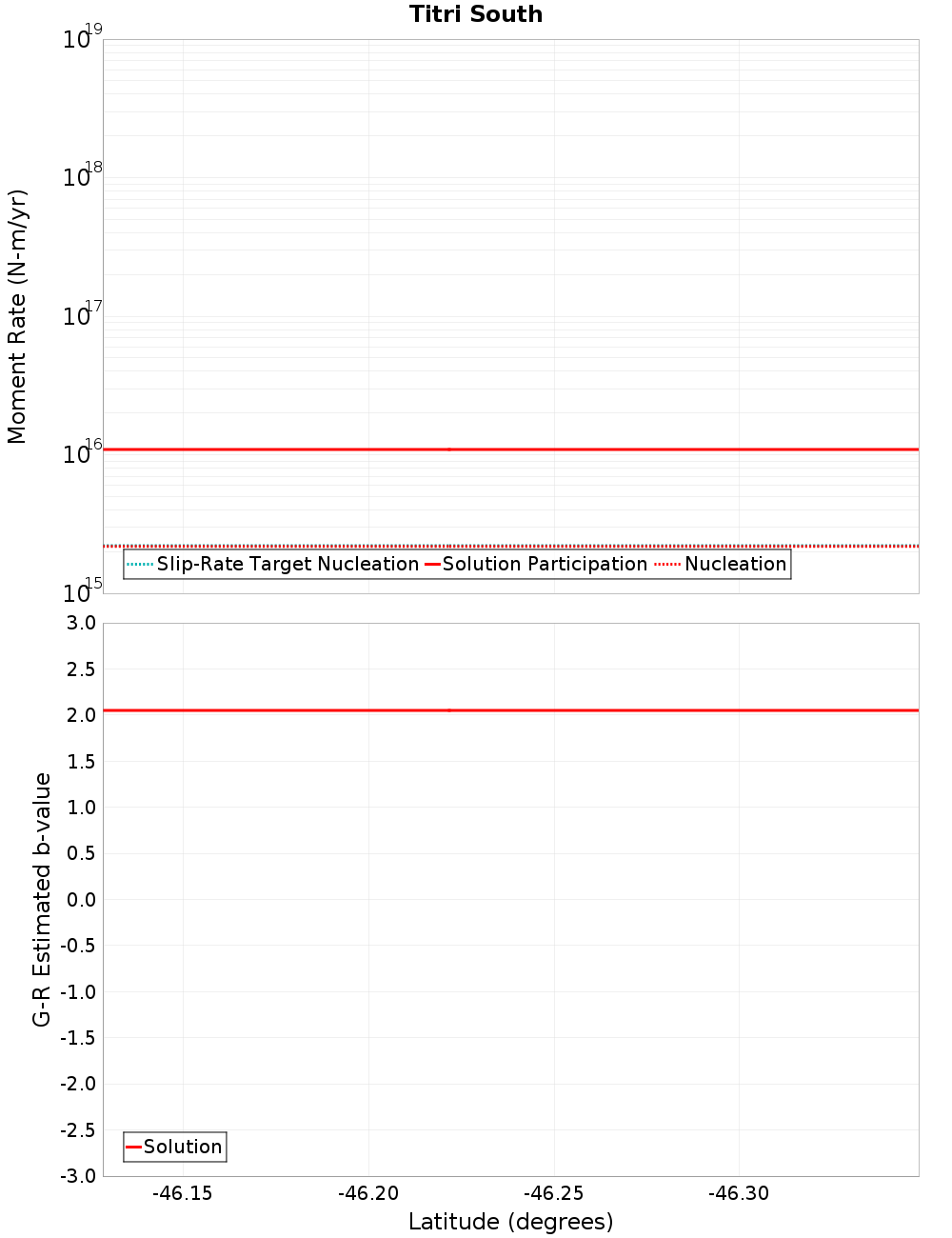

Moment-Rates and b-Values

(top)

Along-strike plot

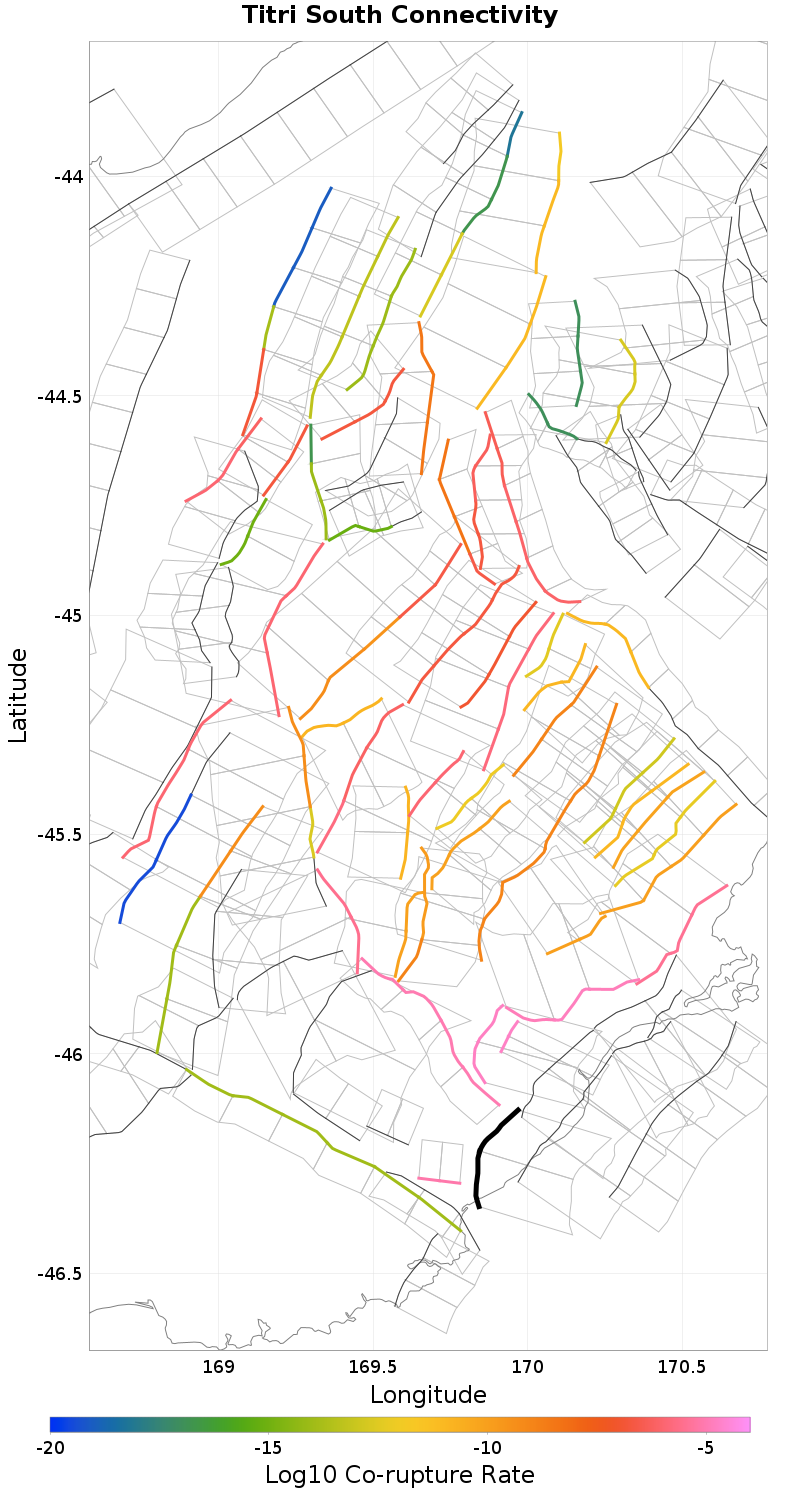

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Titri Central, 0.34 km away
Otanomomo, 4.13 km away
Tuapeka, 4.19 km away
Akatore, 5.02 km away
Little Hillfoot, 5.15 km away
Hillfoot, 7.63 km away
Waitahuna 1, 8.31 km away
Green Island, 10.73 km away
Waitahuna 2, 11.05 km away
Settlement, 11.67 km away
Titri North, 14.14 km away

Titri Central, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otanomomo, 4.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?true
Directly Connected?true
Co-rupture Count72
Co-rupture Rate7.5717403E-6

Tuapeka, 4.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?true
Directly Connected?true
Co-rupture Count460
Co-rupture Rate9.288909E-6

Akatore, 5.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Little Hillfoot, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hillfoot, 7.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate1.0496967E-14

Waitahuna 1, 8.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate1.6356682E-5

Green Island, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 11.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate1.7970326E-5

Settlement, 11.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri North, 14.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
