Waimana: South Details

Property	Value
Rupture Count	24,353
Ruptures Above Sect Min Mag	24,349
Ruptures w/ Nonzero Rates	467
Magnitude Range	[6.92, 8.51]
Length Range	[25, 1,132] km
Total Rate	4.1094757E-4 /yr
Multi-Fault Rate	3.8381037E-4 /yr (93.40%)
Directly-Connected Faults	5
All Co-Rupturing Faults	126

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

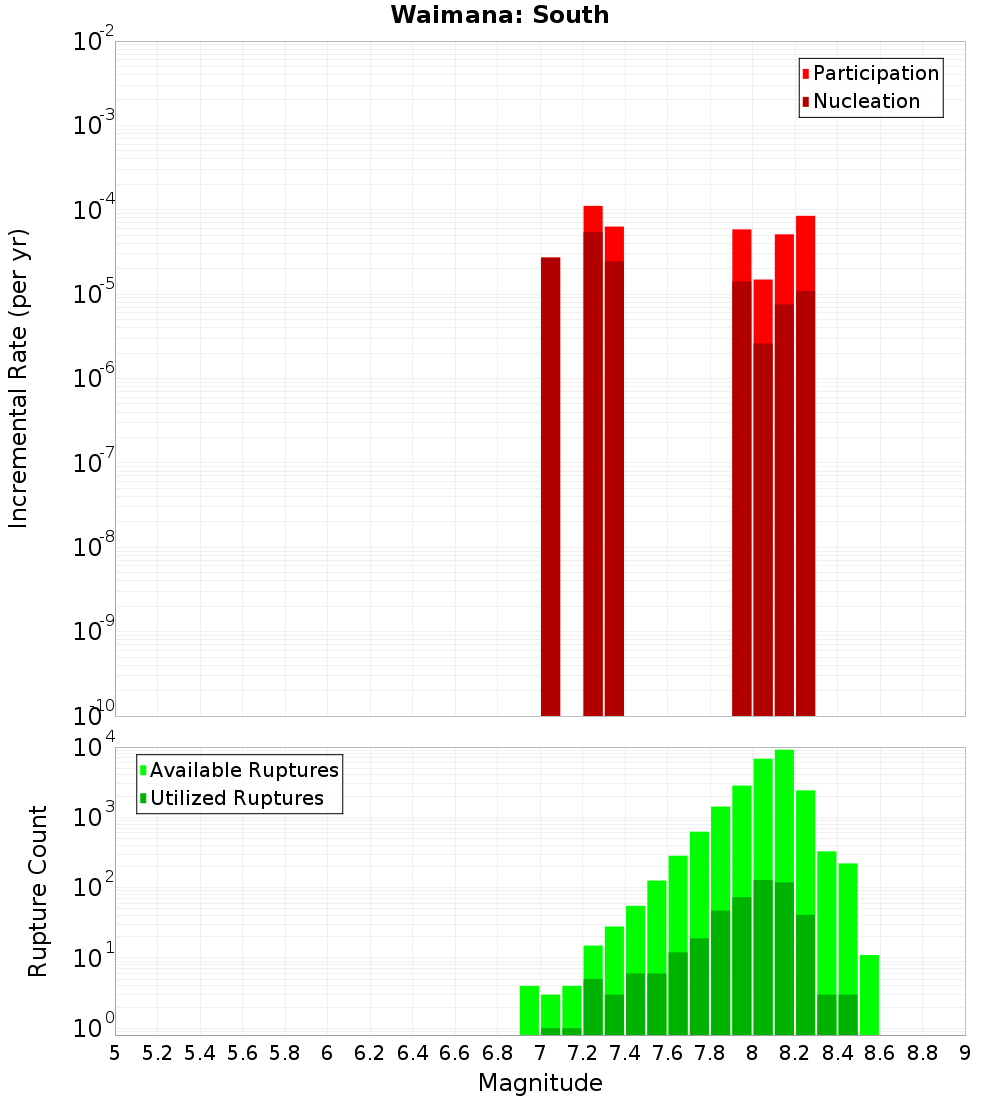

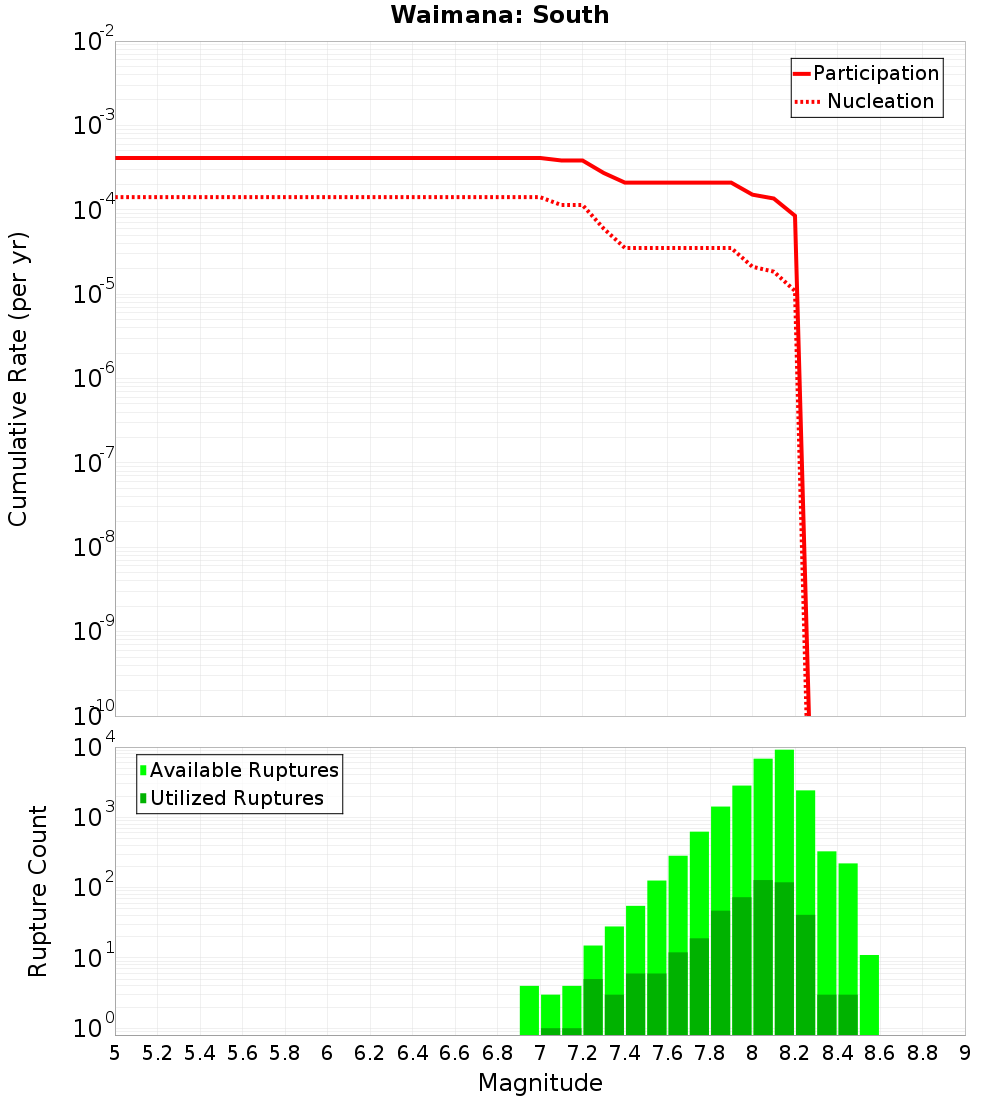

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

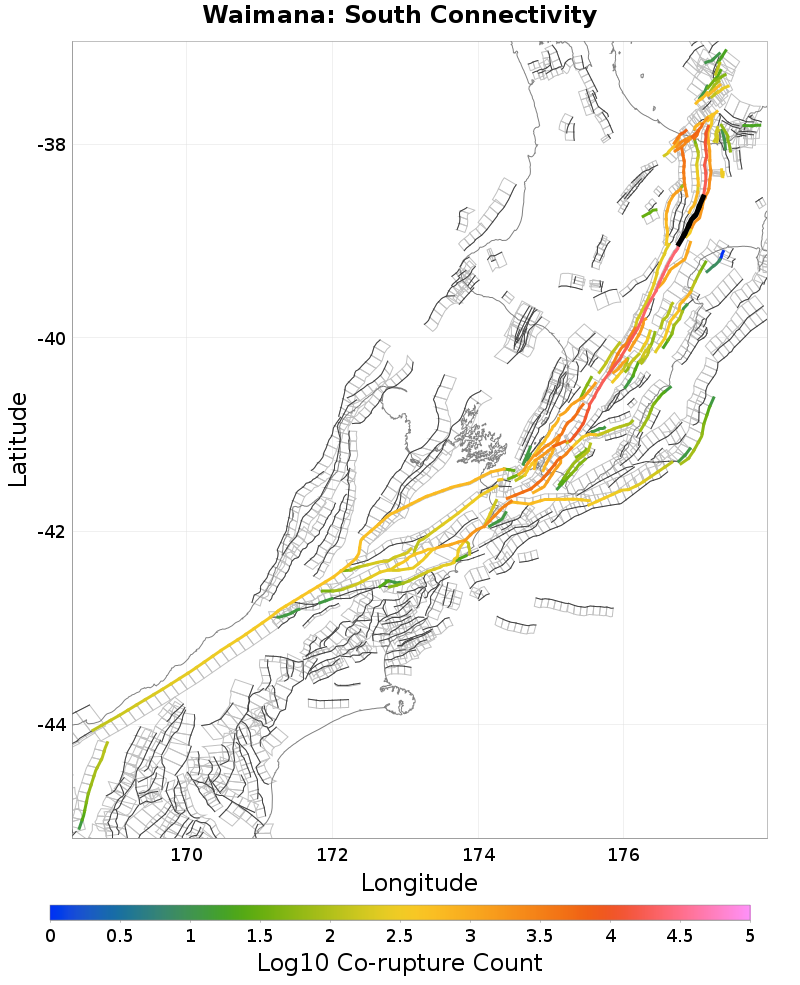

Connectivity

Nearby Sections

Fault Section
Waimana: North, 0 km away
Whakatane: South, 0 km away
Mohaka: North, 0 km away
Waiotahi: South, 2.15 km away
Waiotahi: North, 2.4 km away
Waiohau: South, 8.02 km away
Whakatane: North, 8.55 km away
Patoka - Rangiora, 10.75 km away
Ruahine: North, 11.54 km away
Wheao: South, 14.54 km away
Te Whaiti South, 14.57 km away

Waimana: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?	true
Directly Connected?	true
Co-rupture Count	17,662
Co-rupture Rate	2.0940865E-4

Whakatane: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?	true
Directly Connected?	true
Co-rupture Count	693
Co-rupture Rate	1.06883415E-13

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?	true
Directly Connected?	true
Co-rupture Count	23,921
Co-rupture Rate	2.0940865E-4

Waiotahi: South, 2.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?	true
Directly Connected?	true
Co-rupture Count	2,028
Co-rupture Rate	1.744017E-4

Waiotahi: North, 2.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?	true
Directly Connected?	true
Co-rupture Count	2,202
Co-rupture Rate	1.7487535E-12

Waiohau: South, 8.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 8.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?	true
Directly Connected?	false
Co-rupture Count	481
Co-rupture Rate	9.5017534E-14

Patoka - Rangiora, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?	true
Directly Connected?	false
Co-rupture Count	1,030
Co-rupture Rate	3.3011015E-13

Ruahine: North, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?	true
Directly Connected?	false
Co-rupture Count	244
Co-rupture Rate	1.1704606E-22

Wheao: South, 14.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?	true
Directly Connected?	false
Co-rupture Count	1,066
Co-rupture Rate	5.3576782E-14

Te Whaiti South, 14.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxNTIuMFVmQW9Q
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
