Grandview Details

Property	Value
Rupture Count	14,146
Ruptures Above Sect Min Mag	14,144
Ruptures w/ Nonzero Rates	372
Magnitude Range	[6.80, 8.46]
Length Range	[20, 856] km
Total Rate	2.8365415E-5 /yr
Multi-Fault Rate	2.8365415E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	70

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

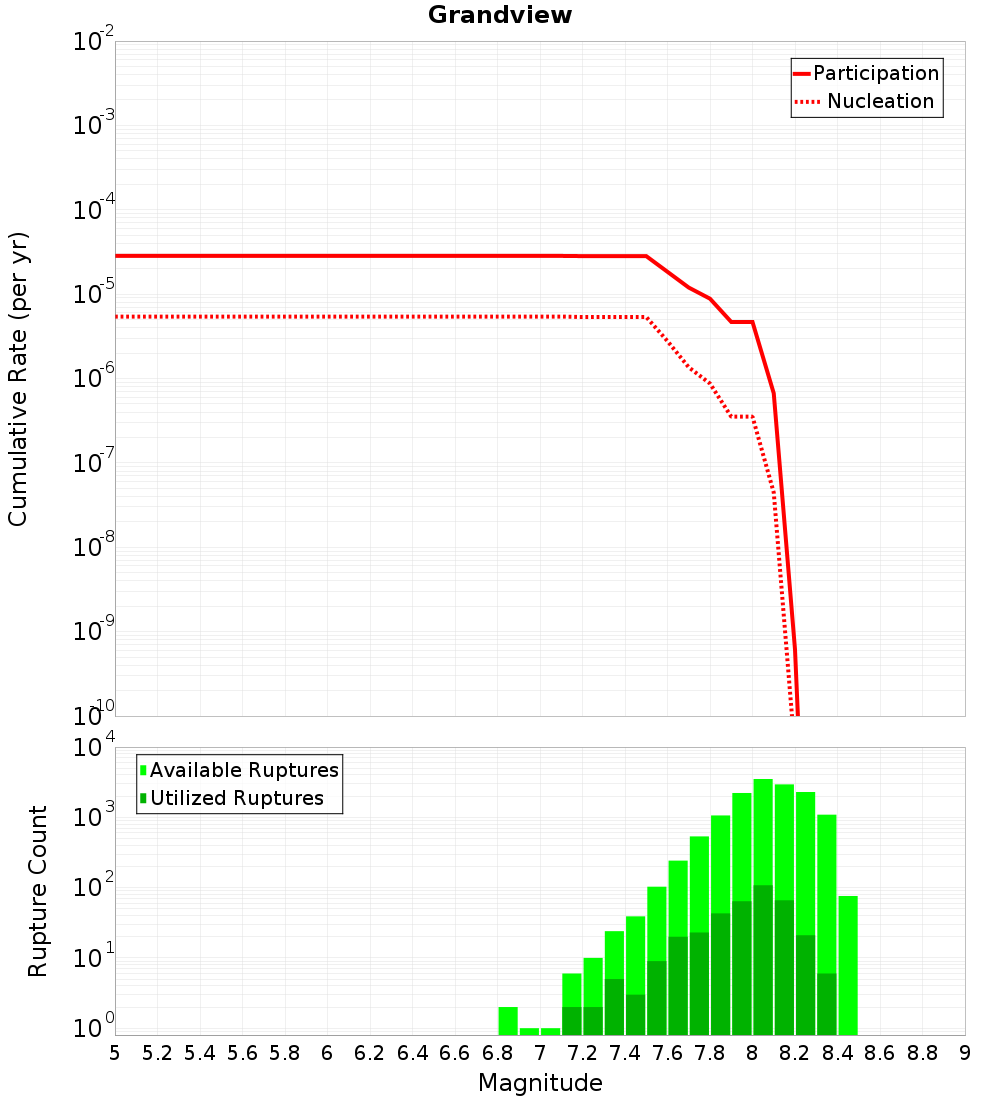

Magnitude-Frequency Distribution

Incremental	Cumulative

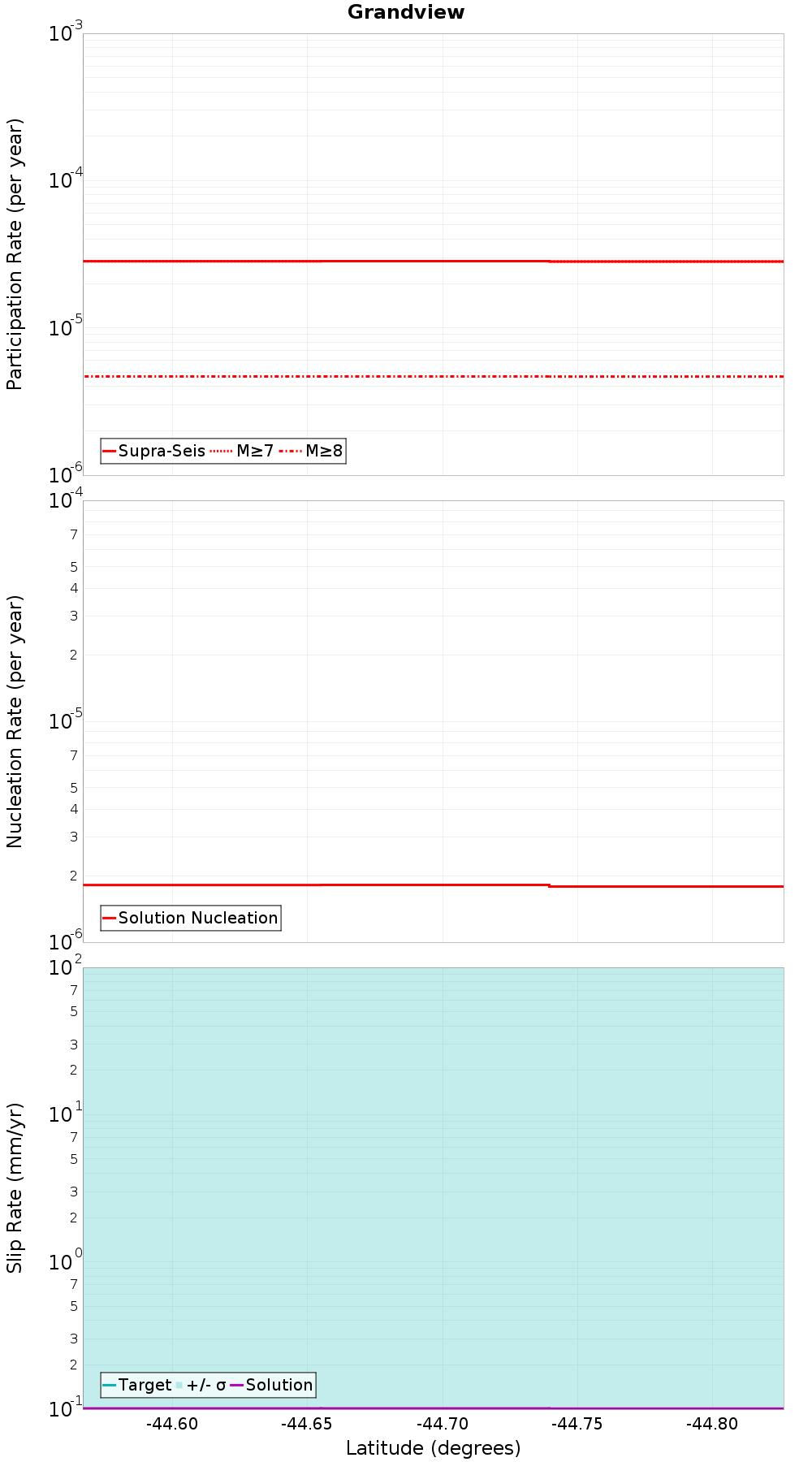

Along-Strike Values

Moment-Rates and b-Values

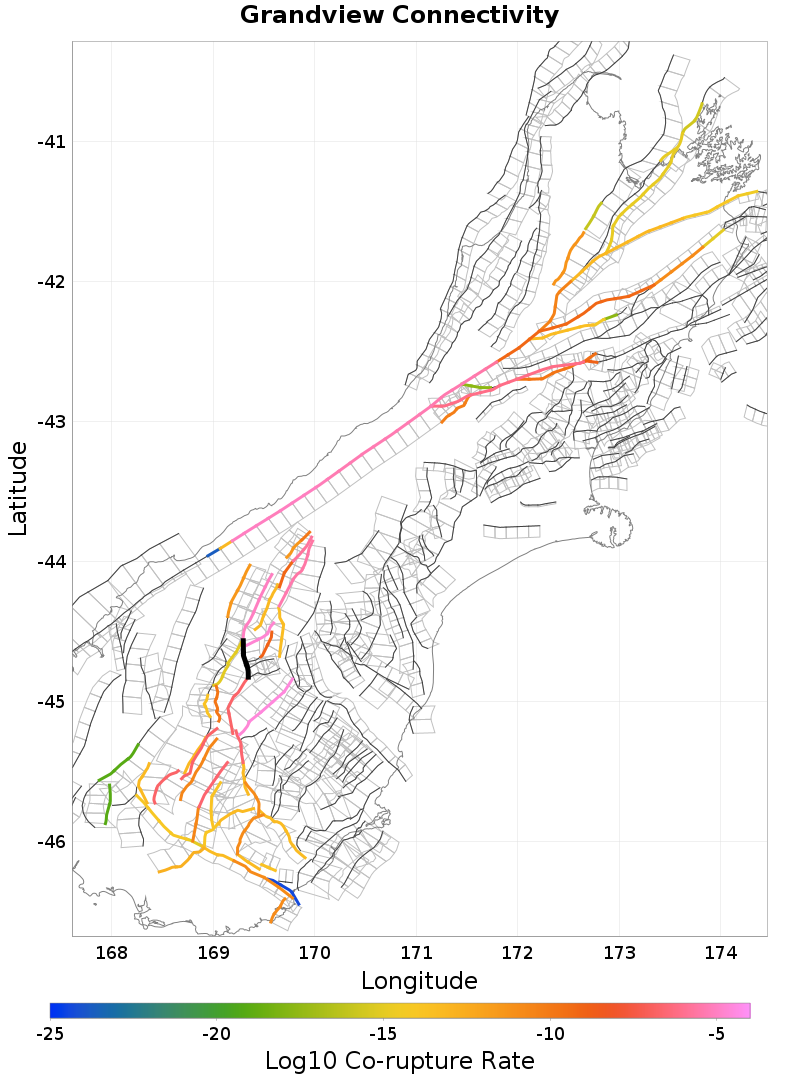

Connectivity

Nearby Sections

Fault Section	Fault Section
Cluden, 0.17 km away	Hunter Valley, 1.98 km away
Dunstan, 0.21 km away	Dingle, 9.64 km away
Goodger, 0.22 km away	Motatapu, 11.63 km away
Lindis River, 0.23 km away	Paddys Ridge, 12.33 km away
Timaru Creek, 0.3 km away	Wanaka, 12.54 km away
Cardrona - Hawea, 0.97 km away	NW Cardrona North, 14.11 km away
Dromedary, 1.36 km away	Raggedy - Blackstone, 14.9 km away
Pisa, 1.55 km away	Ostler South, 14.98 km away

Cluden, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dunstan, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	true
Co-rupture Count	4,133
Co-rupture Rate	2.8027875E-5

Goodger, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	0.0

Lindis River, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	true
Co-rupture Count	152
Co-rupture Rate	1.1913303E-9

Timaru Creek, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	true
Co-rupture Count	6,034
Co-rupture Rate	1.945934E-5

Cardrona - Hawea, 0.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	false
Co-rupture Count	66
Co-rupture Rate	8.323382E-16

Dromedary, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	true
Co-rupture Count	2,521
Co-rupture Rate	4.3110152E-14

Pisa, 1.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	true
Co-rupture Count	7,733
Co-rupture Rate	1.78977E-7

Hunter Valley, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	true
Co-rupture Count	5,223
Co-rupture Rate	8.89678E-6

Dingle, 9.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	false
Co-rupture Count	2,706
Co-rupture Rate	6.457953E-14

Motatapu, 11.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Paddys Ridge, 12.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	false
Co-rupture Count	92
Co-rupture Rate	8.323382E-16

Wanaka, 12.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	false
Co-rupture Count	2,065
Co-rupture Rate	3.502201E-12

NW Cardrona North, 14.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	true
Directly Connected?	false
Co-rupture Count	34
Co-rupture Rate	0.0

Raggedy - Blackstone, 14.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ostler South, 14.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMEE3Q3dp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
