Cape Foulwind 2 Details
| Property | Value |
|---|---|
| Rupture Count | 2,538 |
| Ruptures Above Sect Min Mag | 2,529 |
| Ruptures w/ Nonzero Rates | 723 |
| Magnitude Range | [6.93, 8.20] |
| Length Range | [20, 369] km |
| Total Rate | 2.1980047E-4 /yr |
| Multi-Fault Rate | 1.3904924E-4 /yr (63.26%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 11 |
Table Of Contents

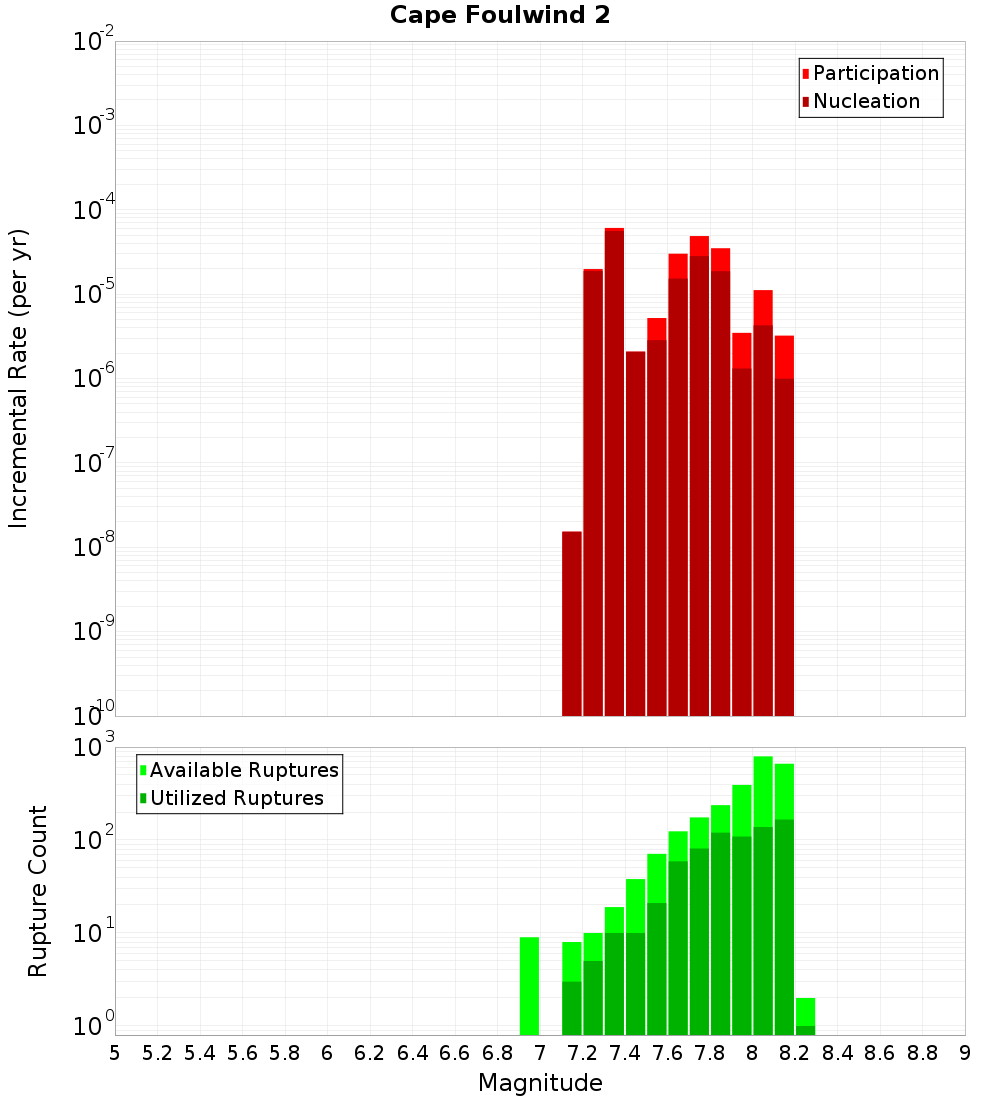

Magnitude-Frequency Distribution

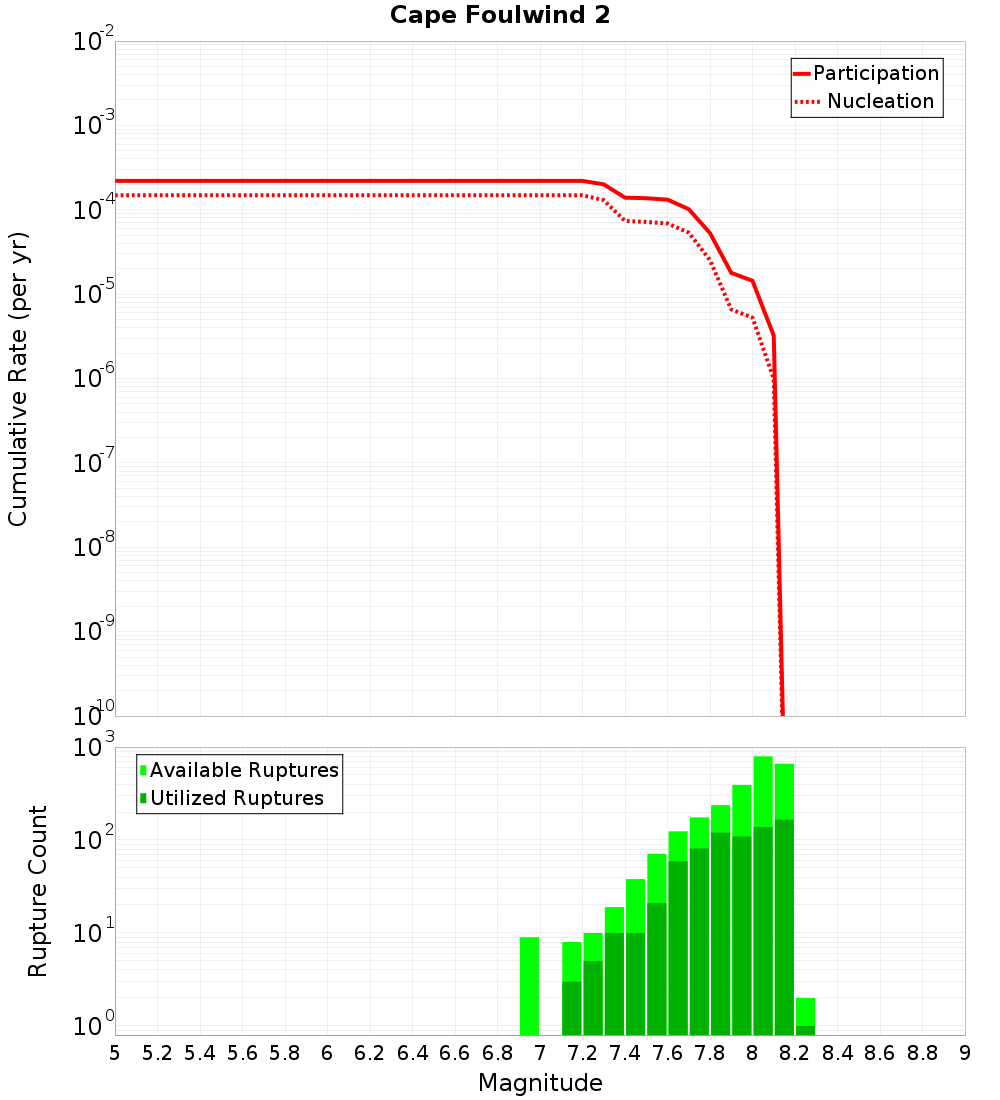

| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

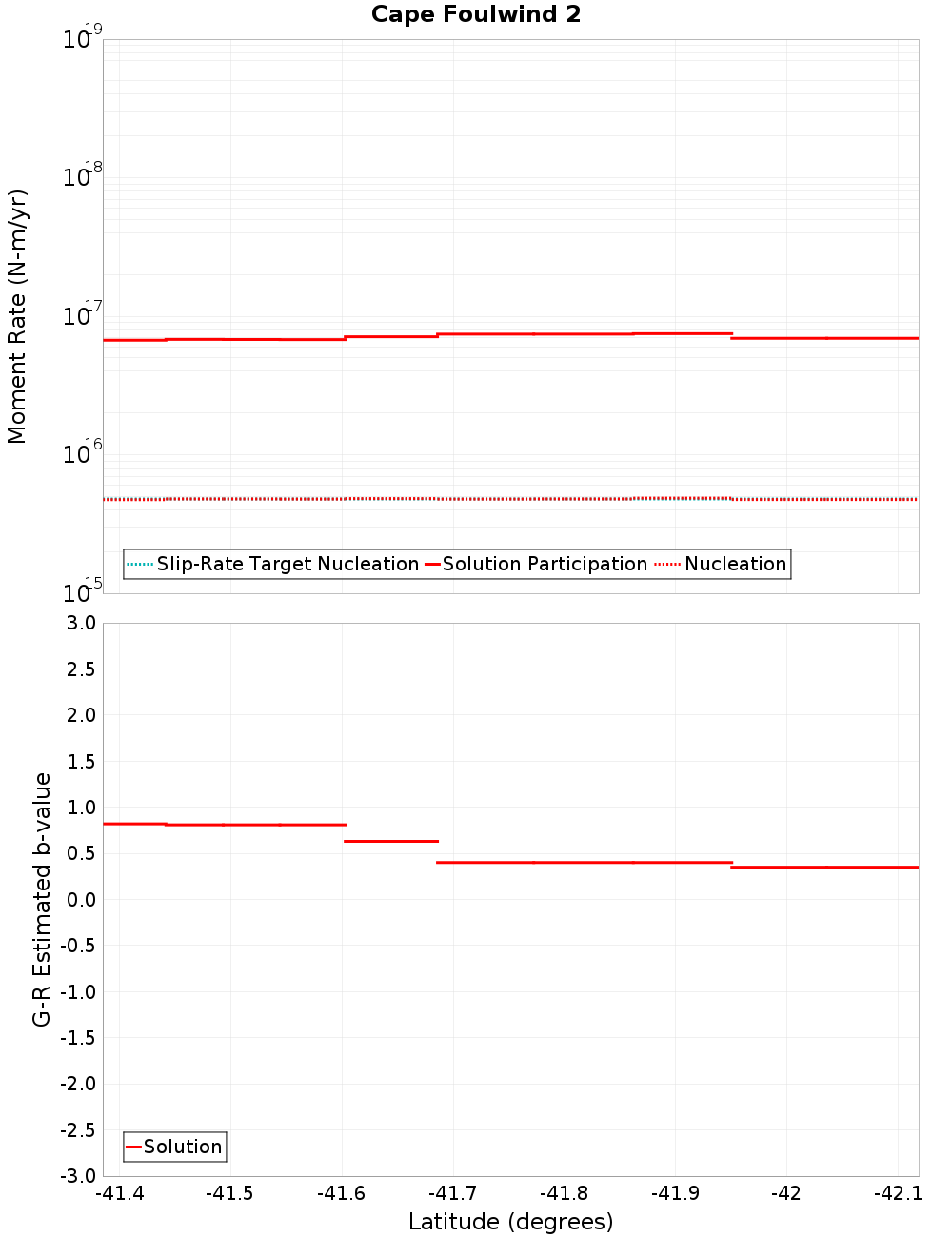

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Cape Foulwind 1, 0 km away |
| Maimai, 0.27 km away |
| Maimai: South, 4.77 km away |
| Paparoa West, 8.12 km away |
| Cape Foulwind 4, 8.22 km away |
| Kongahau, 8.54 km away |
| Maimai: North, 14.88 km away |
Cape Foulwind 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,399 |
| Co-rupture Rate | 9.109017E-5 |
Maimai, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 805 |
| Co-rupture Rate | 1.9195122E-5 |
Maimai: South, 4.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,040 |
| Co-rupture Rate | 4.486696E-5 |
Paparoa West, 8.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 71 |
| Co-rupture Rate | 3.3297027E-5 |
Cape Foulwind 4, 8.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,901 |
| Co-rupture Rate | 2.7890244E-5 |
Kongahau, 8.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 294 |
| Co-rupture Rate | 2.5180145E-6 |
Maimai: North, 14.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
