Mohaka: South Details

Property	Value
Rupture Count	66,085
Ruptures Above Sect Min Mag	66,079
Ruptures w/ Nonzero Rates	469
Magnitude Range	[7.08, 8.71]
Length Range	[25, 1,132] km
Total Rate	7.736117E-4 /yr
Multi-Fault Rate	7.503203E-4 /yr (96.99%)
Directly-Connected Faults	11
All Co-Rupturing Faults	132

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

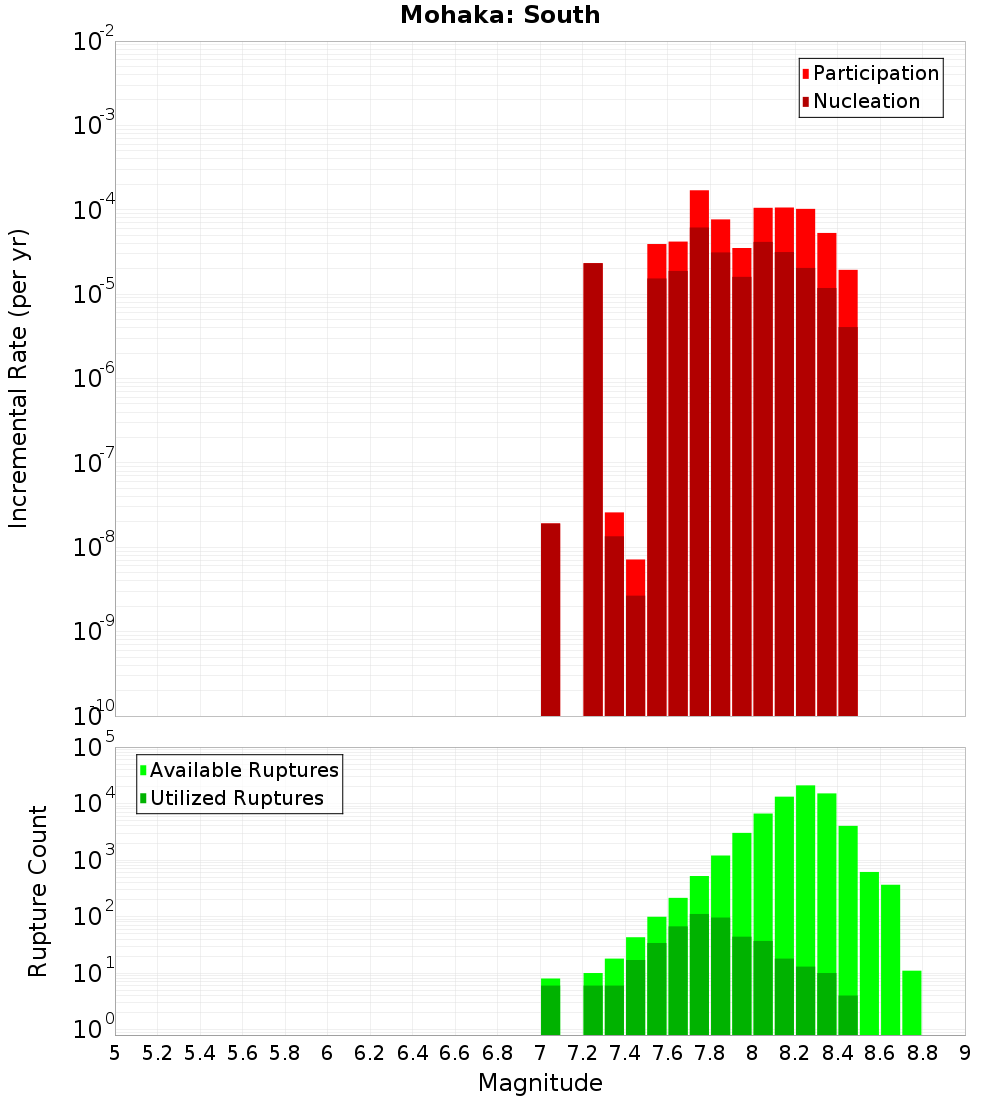

Magnitude-Frequency Distribution

Incremental	Cumulative

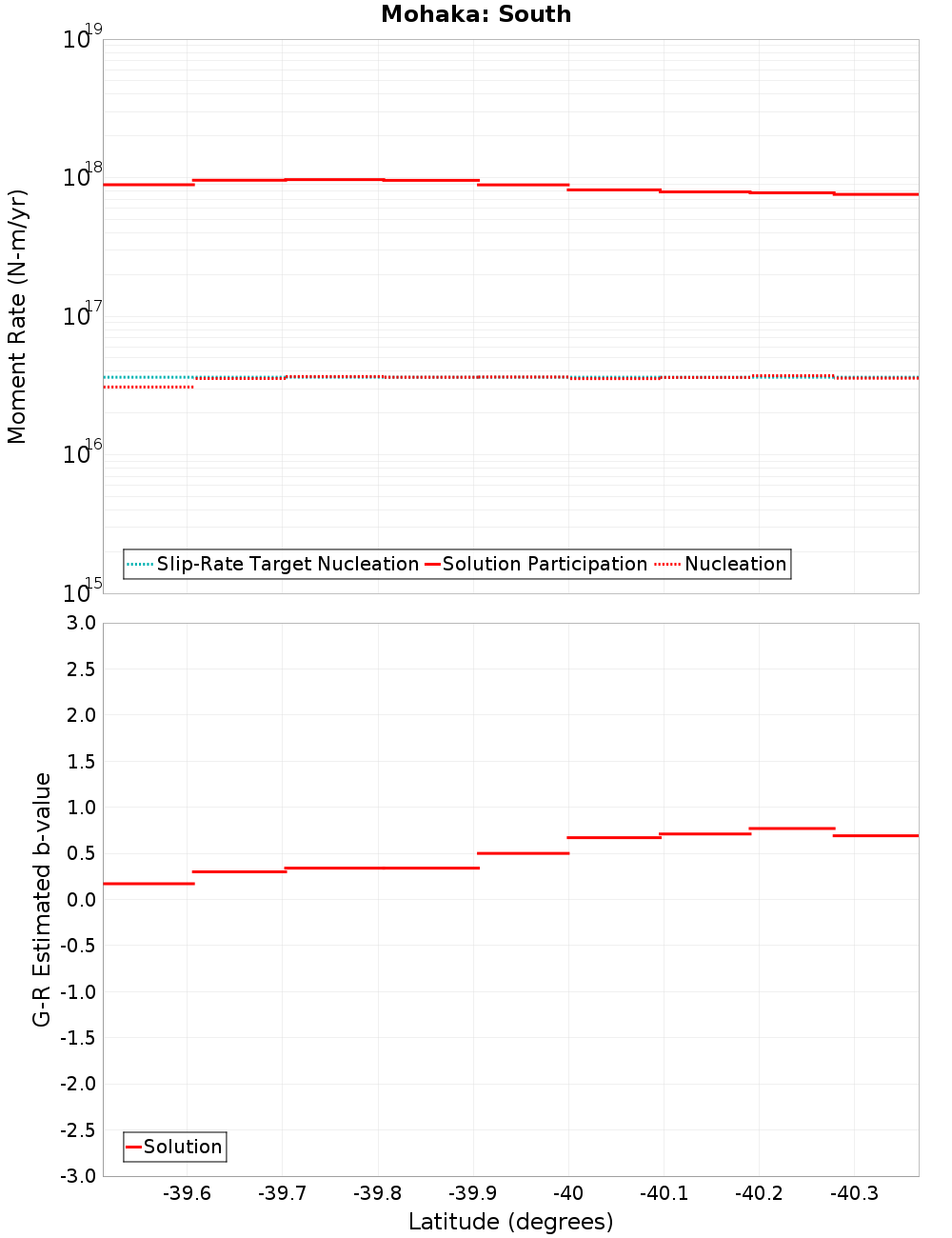

Along-Strike Values

Moment-Rates and b-Values

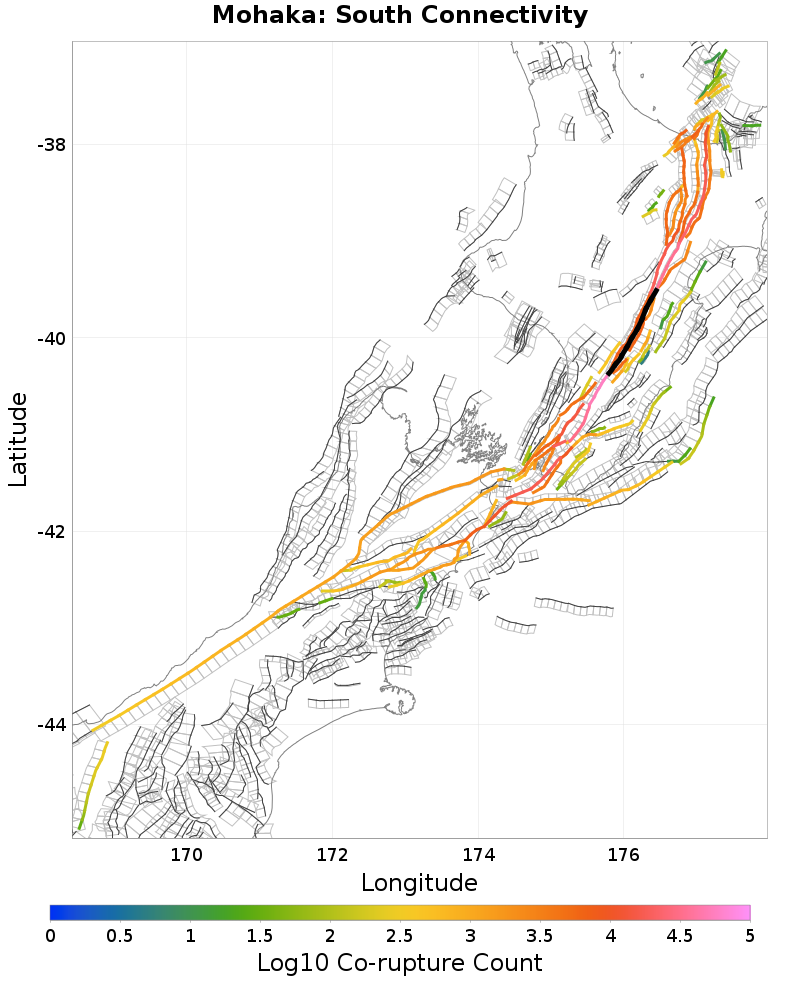

Connectivity

Nearby Sections

Fault Section	Fault Section
Wellington: Pahiatua, 0 km away	Ruahine: North, 4.35 km away
Mohaka: North, 0 km away	Patoka - Rangiora, 5.52 km away
Ruahine: South, 0 km away	Ruataniwha, 6.61 km away
Wakarara, 0.13 km away	Maunga, 9.06 km away
Rangefront, 0.2 km away	Pohangina, 9.44 km away
Woodville, 0.4 km away	Awanui, 12.7 km away
Ruahine: Central, 2.68 km away	Tokomaru, 14.28 km away
Pahiatua, 4.26 km away	Te Heka, 14.94 km away

Wellington: Pahiatua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	57,491
Co-rupture Rate	5.10923E-4

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	36,988
Co-rupture Rate	2.3194523E-4

Ruahine: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	7,982
Co-rupture Rate	6.108717E-5

Wakarara, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,264
Co-rupture Rate	2.6812544E-5

Rangefront, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	6,994
Co-rupture Rate	7.110767E-5

Woodville, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	5,524
Co-rupture Rate	2.8845718E-5

Ruahine: Central, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	7,389
Co-rupture Rate	7.2746145E-5

Pahiatua, 4.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,138
Co-rupture Rate	5.595207E-5

Ruahine: North, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	18,590
Co-rupture Rate	1.8443106E-7

Patoka - Rangiora, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	4,420
Co-rupture Rate	1.5209072E-4

Ruataniwha, 6.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,094
Co-rupture Rate	1.0354796E-5

Maunga, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	false
Co-rupture Count	469
Co-rupture Rate	1.0362437E-5

Pohangina, 9.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	false
Co-rupture Count	466
Co-rupture Rate	1.6351778E-5

Awanui, 12.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	false
Co-rupture Count	289
Co-rupture Rate	3.9152565E-5

Tokomaru, 14.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	false
Co-rupture Count	205
Co-rupture Rate	5.0805975E-6

Te Heka, 14.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0
