Pahaua Details

Property	Value
Rupture Count	8,138
Ruptures Above Sect Min Mag	8,125
Ruptures w/ Nonzero Rates	1,179
Magnitude Range	[6.88, 8.32]
Length Range	[19, 492] km
Total Rate	8.2101003E-4 /yr
Multi-Fault Rate	5.052854E-4 /yr (61.54%)
Directly-Connected Faults	7
All Co-Rupturing Faults	60

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

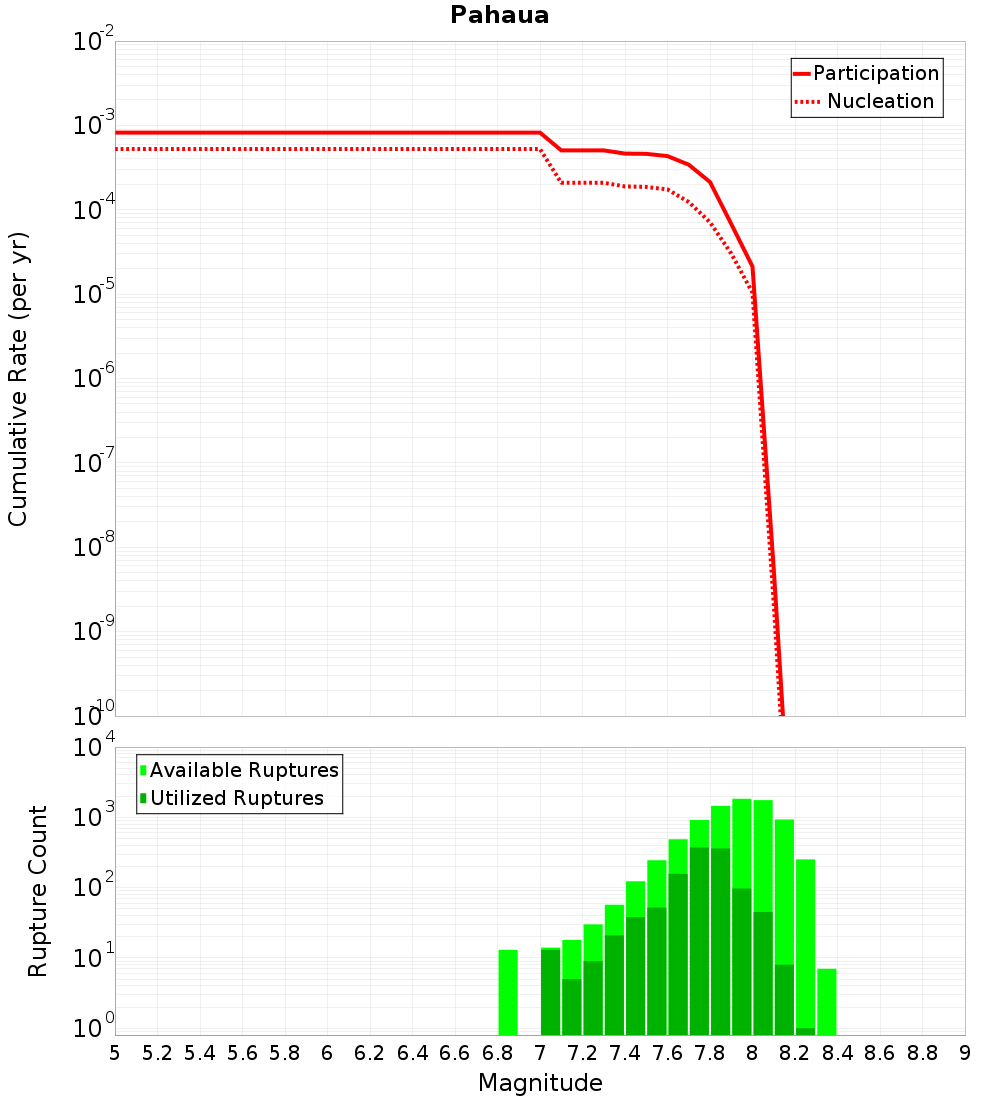

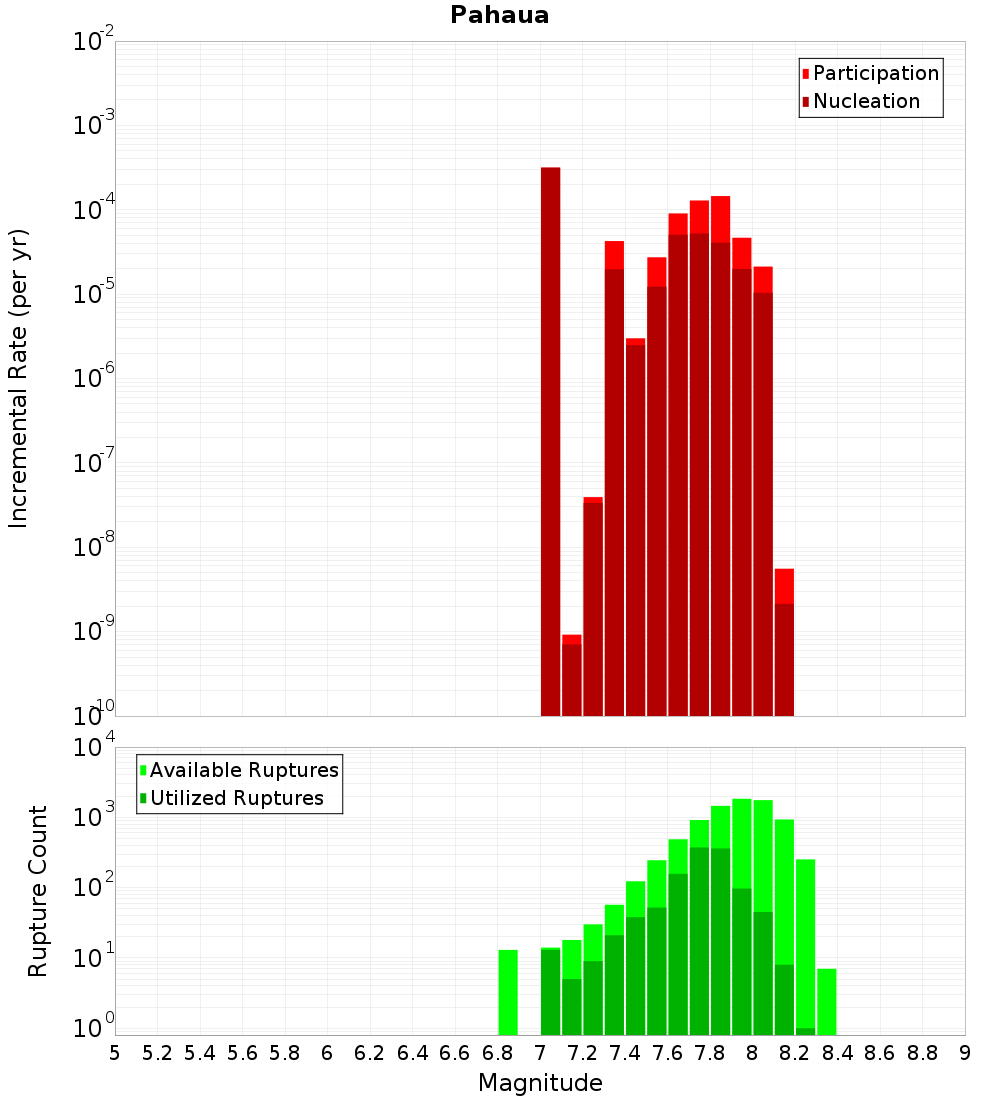

Magnitude-Frequency Distribution

Incremental	Cumulative

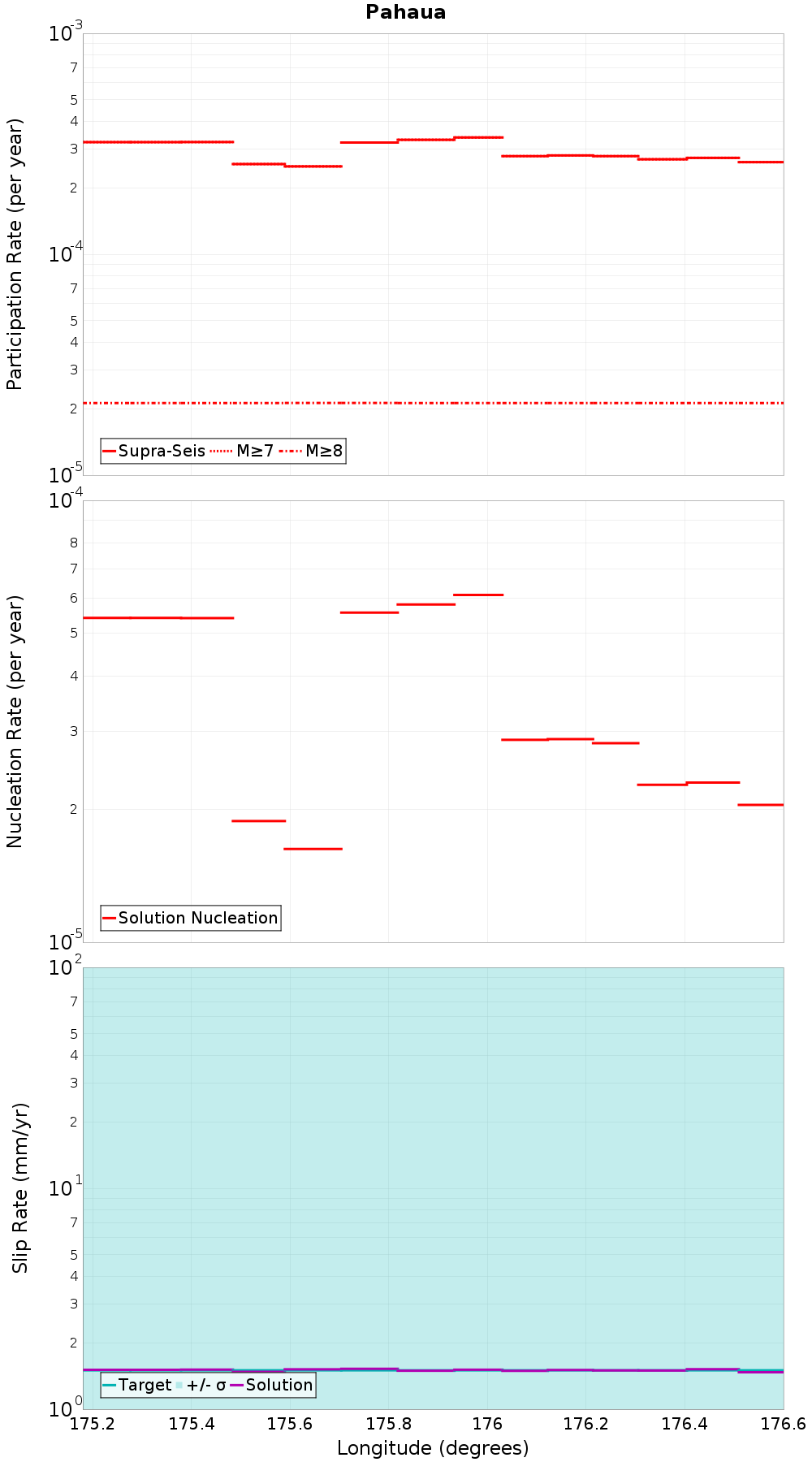

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kekerengu Bank, 0 km away
Uruti Basin 2, 0.14 km away
BooBoo, 0.16 km away
Uruti Basin, 0.28 km away
Opouawe - Uruti, 2.68 km away
Uruti East - PorWest 1, 7.19 km away
Te Rapa 2, 10.36 km away
Uruti Ridge 2, 12.05 km away
Honeycomb, 13.47 km away
Palliser - Kaiwhata, 13.63 km away

Kekerengu Bank, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,898
Co-rupture Rate	1.9628348E-4

Uruti Basin 2, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,733
Co-rupture Rate	7.204145E-7

BooBoo, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	3,404
Co-rupture Rate	1.2777346E-4

Uruti Basin, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	3,436
Co-rupture Rate	2.4973243E-4

Opouawe - Uruti, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,607
Co-rupture Rate	1.1675538E-4

Uruti East - PorWest 1, 7.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	false
Co-rupture Count	2,502
Co-rupture Rate	1.0541829E-4

Te Rapa 2, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	false
Co-rupture Count	207
Co-rupture Rate	2.5108621E-8

Uruti Ridge 2, 12.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	false
Co-rupture Count	1,132
Co-rupture Rate	1.459763E-4

Honeycomb, 13.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,416
Co-rupture Rate	9.511727E-5

Palliser - Kaiwhata, 13.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMFBQR0Vq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,432
Co-rupture Rate	1.1401755E-5
