Elliott Details

PropertyValue
Rupture Count12,195
Ruptures Above Sect Min Mag12,191
Ruptures w/ Nonzero Rates211
Magnitude Range[6.92, 8.39]
Length Range[24, 849] km
Total Rate3.144824E-4 /yr
Multi-Fault Rate3.144824E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults174

Table Of Contents

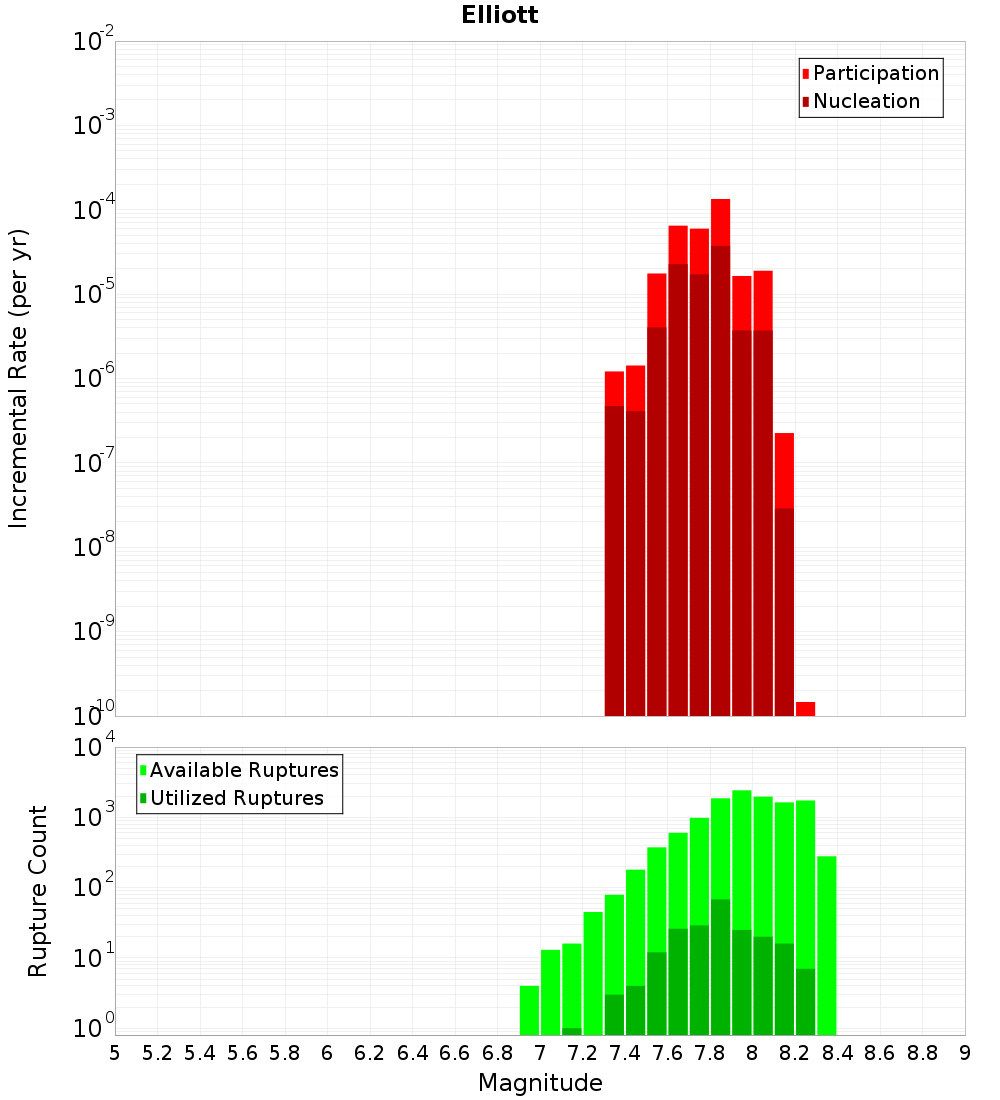

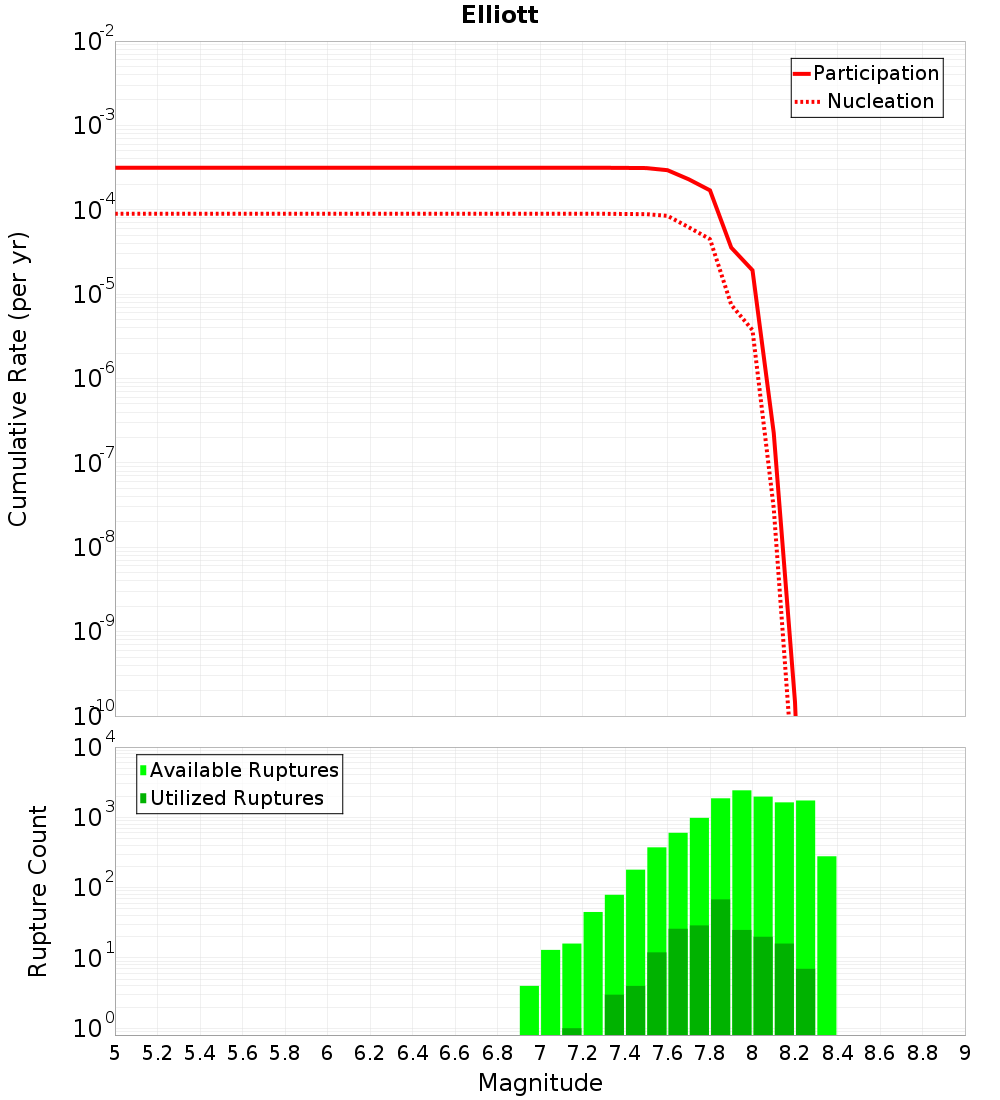

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

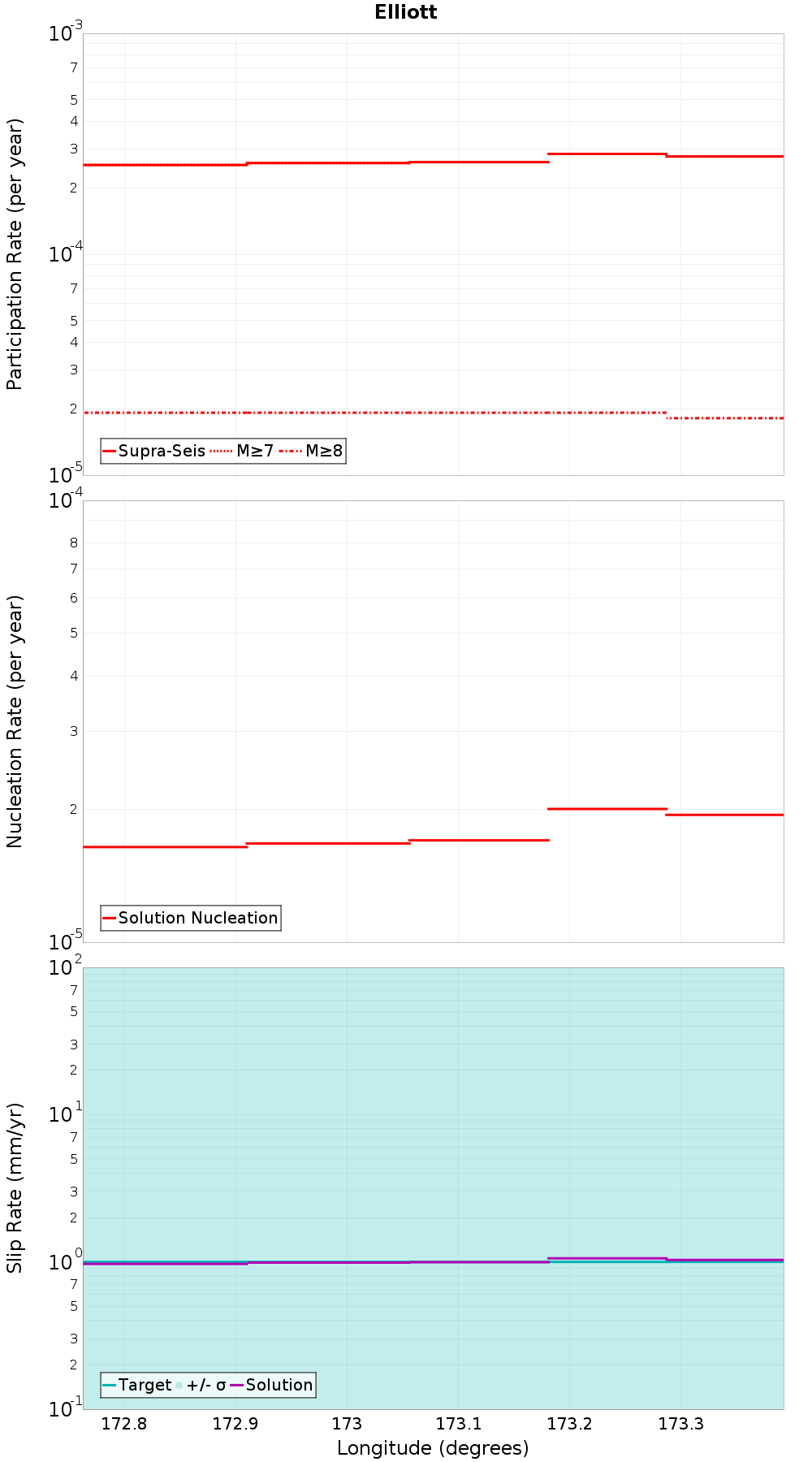

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Clarence: Central, 0 km away
Clarence: Northeast, 0.01 km away
Clarence: Southwest, 0.33 km away
Fowlers, 0.4 km away
Fidget, 3.22 km away
Barefell, 8.47 km away
Awatere: Northeast 1, 9.09 km away
Jordan, 9.78 km away
Awatere: Southwest, 10.34 km away
Leader: North, 10.96 km away
Hope: Conway, 11.08 km away
Hanmer, 12.46 km away
Hope: Hanmer NW, 12.52 km away
StoneJug, 14.23 km away
Hope: Hamner SE, 14.69 km away

Clarence: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?false
Co-rupture Count341
Co-rupture Rate1.0104108E-10

Clarence: Northeast, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?true
Co-rupture Count1,930
Co-rupture Rate1.8412148E-4

Clarence: Southwest, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?true
Co-rupture Count6,129
Co-rupture Rate6.9981535E-5

Fowlers, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?true
Co-rupture Count1,114
Co-rupture Rate6.0268696E-5

Fidget, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?true
Co-rupture Count8,052
Co-rupture Rate9.283997E-5

Barefell, 8.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Northeast 1, 9.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate0.0

Jordan, 9.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate2.9574392E-5

Awatere: Southwest, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Leader: North, 10.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?true
Co-rupture Count1,753
Co-rupture Rate3.4951E-5

Hope: Conway, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?true
Co-rupture Count313
Co-rupture Rate9.007946E-5

Hanmer, 12.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?false
Co-rupture Count160
Co-rupture Rate4.1233146E-5

Hope: Hanmer NW, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate3.8699545E-5

StoneJug, 14.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?true
Co-rupture Count325
Co-rupture Rate2.5509486E-5

Hope: Hamner SE, 14.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxODAuMGd6c2k1
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate4.8317215E-5
