Waitahuna 1 Details

Property	Value
Rupture Count	17
Ruptures Above Sect Min Mag	17
Ruptures w/ Nonzero Rates	9
Magnitude Range	[7.21, 7.91]
Length Range	[23, 133] km
Total Rate	1.0973548E-5 /yr
Multi-Fault Rate	9.755732E-6 /yr (88.90%)
Directly-Connected Faults	2
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

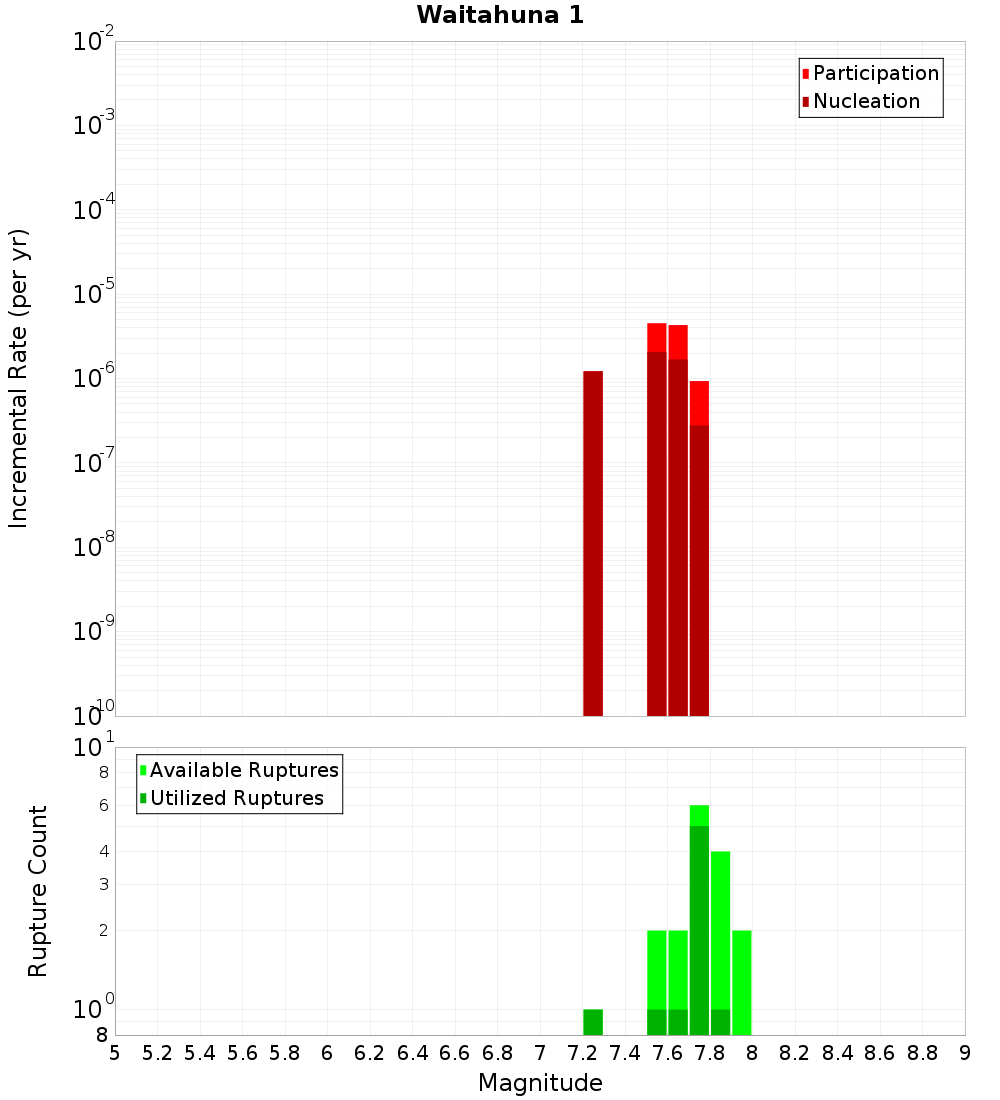

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

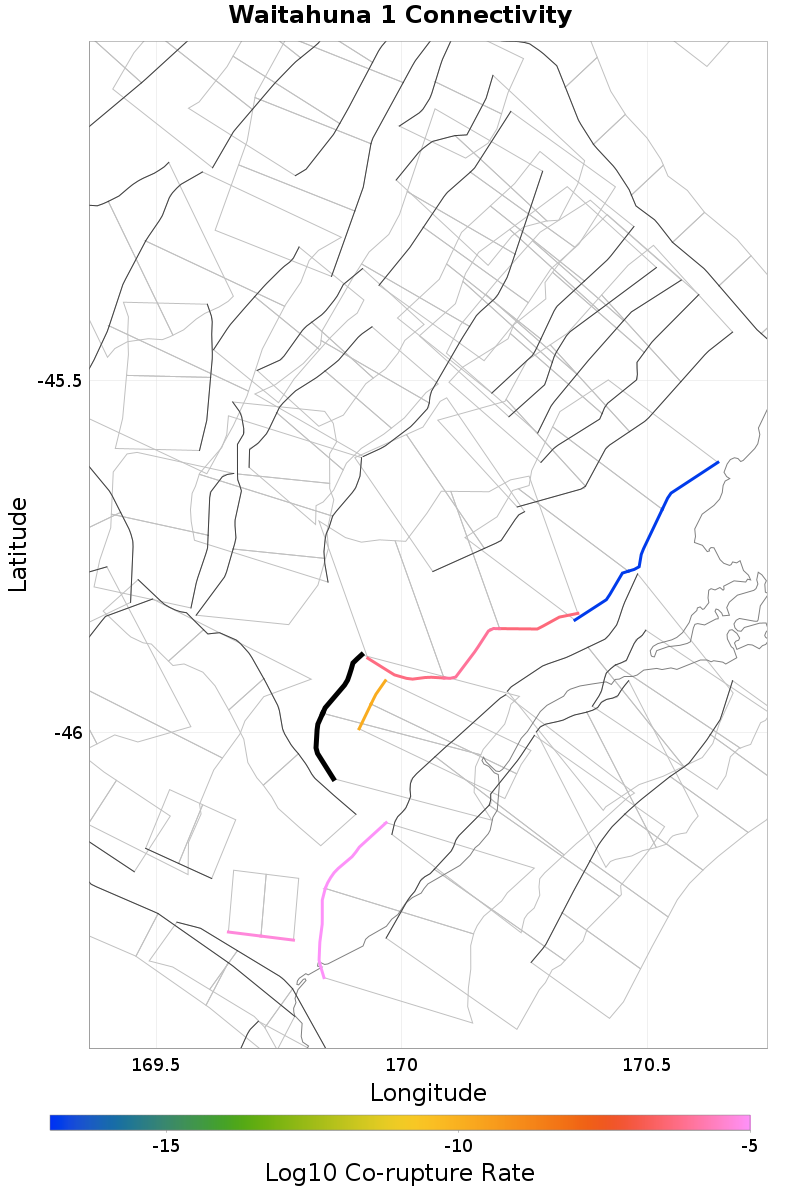

Connectivity

Nearby Sections

Fault Section
Maungatua - North Taieri, 0.31 km away
Tuapeka, 1.92 km away
Waitahuna 2, 3.29 km away
Titri Central, 7.94 km away
Titri South, 8.31 km away
Hyde South - The Twins, 12.65 km away

Maungatua - North Taieri, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTMuMFR1ZmtW
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	9.3290146E-7

Tuapeka, 1.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTMuMFR1ZmtW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 2, 3.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTMuMFR1ZmtW
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	1.3761957E-10

Titri Central, 7.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTMuMFR1ZmtW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri South, 8.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTMuMFR1ZmtW
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	9.755732E-6

Hyde South - The Twins, 12.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTMuMFR1ZmtW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
