Tutaki Details

Property	Value
Rupture Count	11,804
Ruptures Above Sect Min Mag	11,802
Ruptures w/ Nonzero Rates	1,128
Magnitude Range	[7.17, 8.66]
Length Range	[24, 947] km
Total Rate	5.0893195E-5 /yr
Multi-Fault Rate	4.914182E-5 /yr (96.56%)
Directly-Connected Faults	5
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

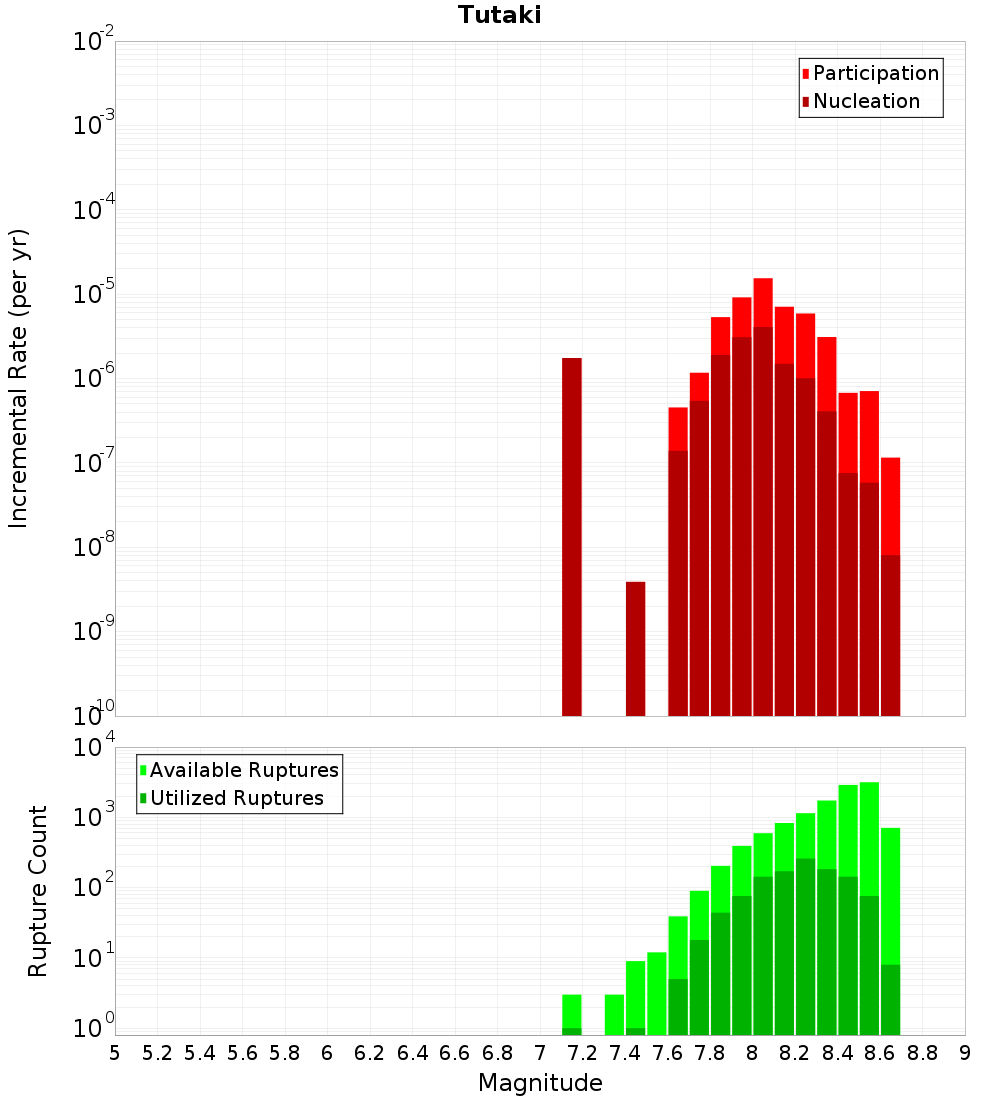

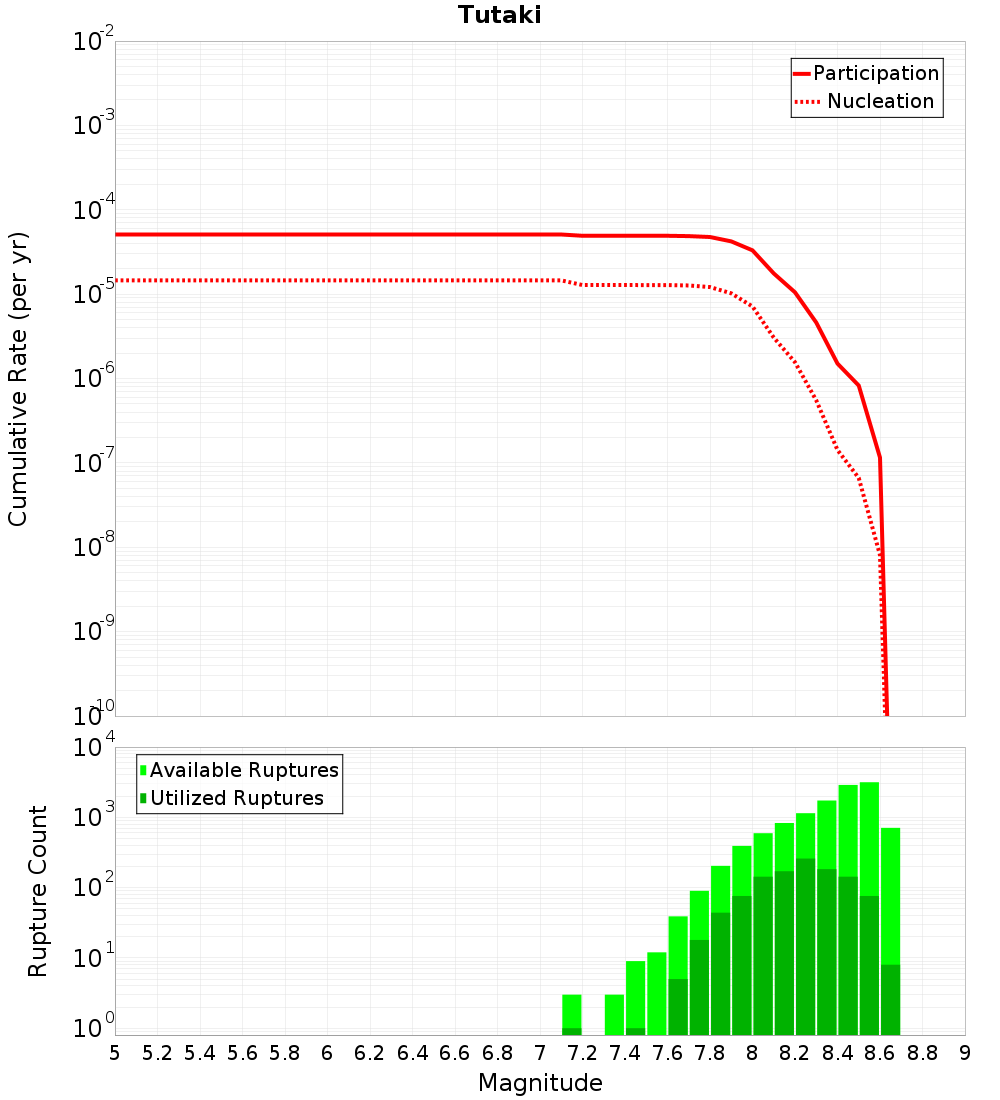

Magnitude-Frequency Distribution

Incremental	Cumulative

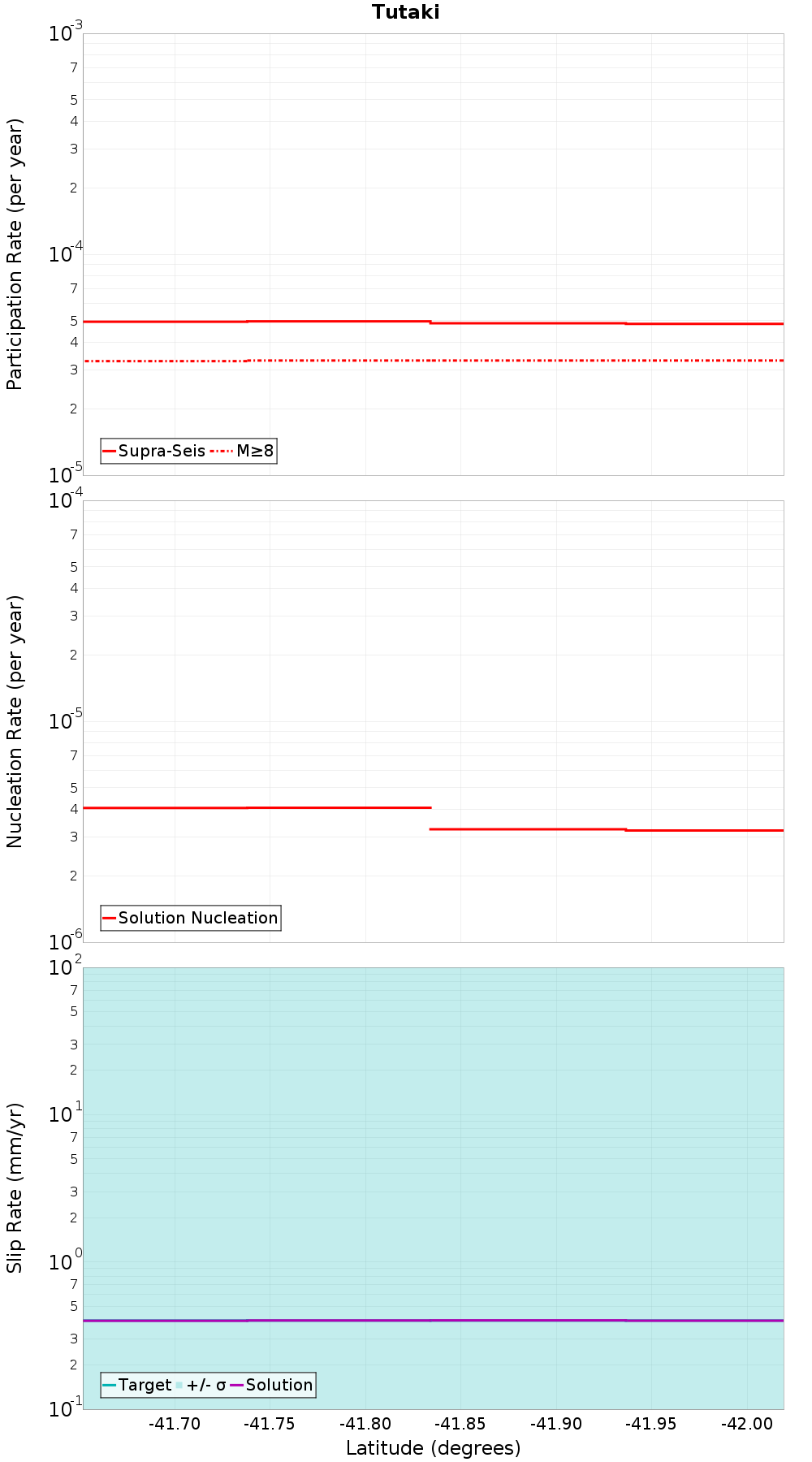

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0.13 km away
Flaxmore - Waimea - Tahunanui, 2.49 km away
Ruby Bay - Moutere, 3.43 km away
Wairau, 7.34 km away
Awatere: Southwest, 9.47 km away
Whangamoa, 14.86 km away

Alpine: Springs Junction to Tophouse, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTYuNWNkbWJi
Connected?	true
Directly Connected?	true
Co-rupture Count	7,144
Co-rupture Rate	2.0571119E-5

Flaxmore - Waimea - Tahunanui, 2.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTYuNWNkbWJi
Connected?	true
Directly Connected?	true
Co-rupture Count	191
Co-rupture Rate	9.017969E-7

Ruby Bay - Moutere, 3.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTYuNWNkbWJi
Connected?	true
Directly Connected?	true
Co-rupture Count	9,010
Co-rupture Rate	2.2693277E-5

Wairau, 7.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTYuNWNkbWJi
Connected?	true
Directly Connected?	true
Co-rupture Count	295
Co-rupture Rate	2.0617541E-7

Awatere: Southwest, 9.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTYuNWNkbWJi
Connected?	true
Directly Connected?	true
Co-rupture Count	4,677
Co-rupture Rate	2.753859E-5

Whangamoa, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkxOTYuNWNkbWJi
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	2.0627002E-8
