Clarence: Southwest Details

Property	Value
Rupture Count	27,431
Ruptures Above Sect Min Mag	27,425
Ruptures w/ Nonzero Rates	5,761
Magnitude Range	[6.85, 8.43]
Length Range	[23, 973] km
Total Rate	0.0011258082 /yr
Multi-Fault Rate	0.0011258082 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	213

Table Of Contents

Magnitude-Frequency Distribution

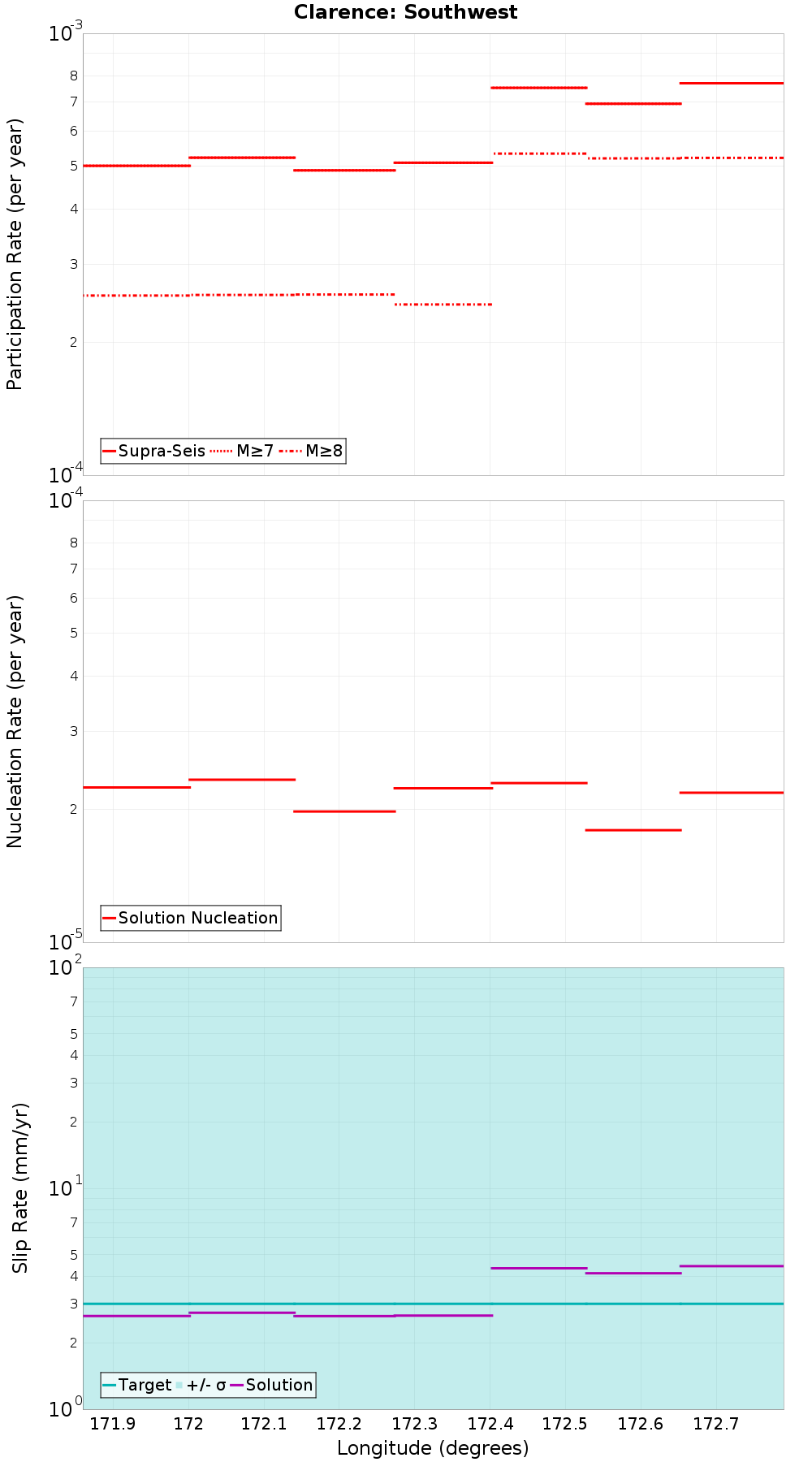

Along-Strike Values

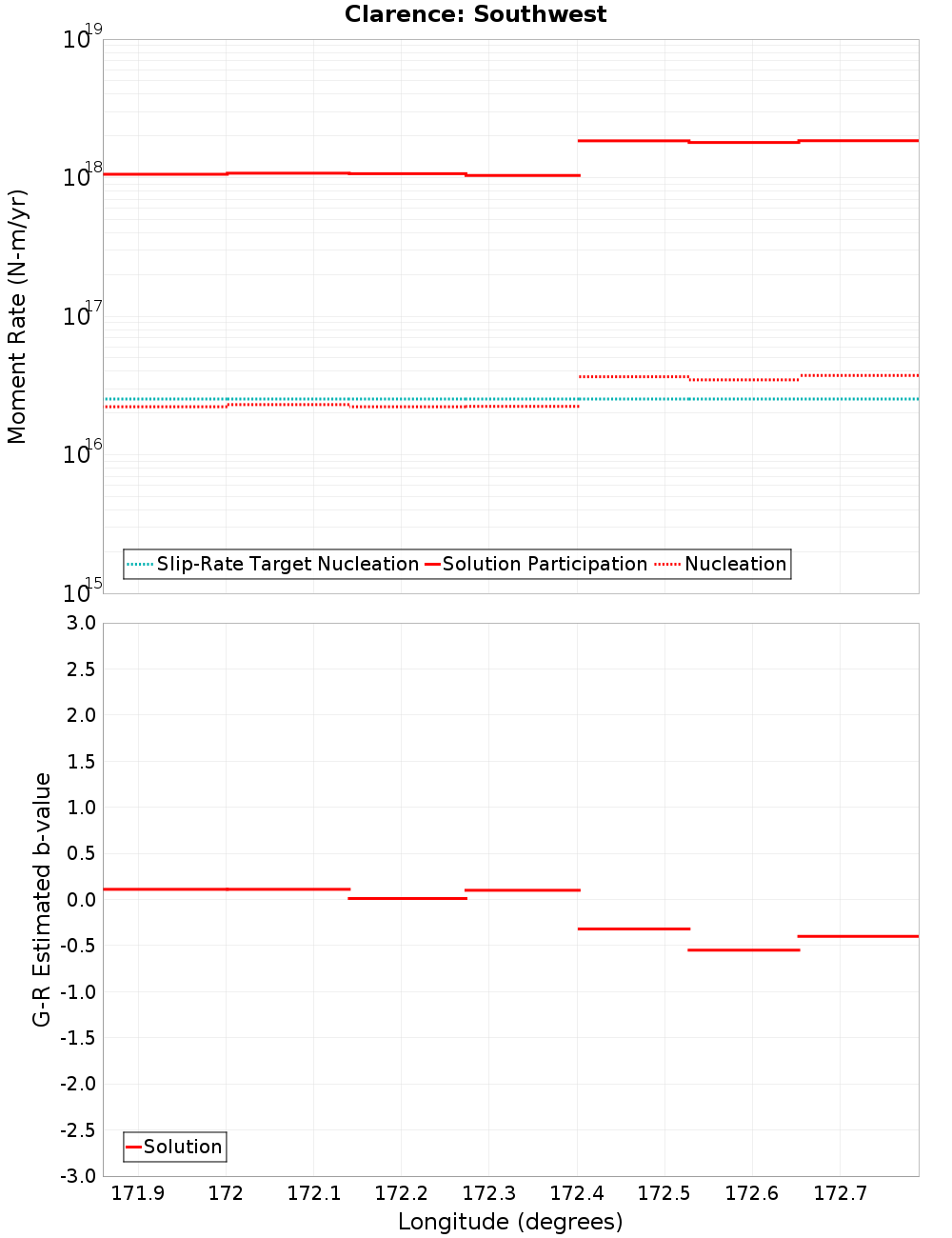

- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Clarence: Central, 0 km away	Kakapo, 8.64 km away
Alpine: Kaniere to Springs Junction, 0.21 km away	Esk North, 8.71 km away
Elliott, 0.33 km away	Hanmer, 11.45 km away
Fowlers, 2.09 km away	Hope: Kakapo-2-Hamner, 12.23 km away
Hope: Hope River, 5.56 km away	Hope: Hanmer NW, 12.23 km away
Alpine: Springs Junction to Tophouse, 5.57 km away	Kelly, 13.14 km away
White Creek - buried, 6.06 km away	Hope: Taramakau, 13.86 km away
Hope: Hurunui, 8.29 km away	Hope: Hamner SW, 13.9 km away

Clarence: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	16,820
Co-rupture Rate	4.1588664E-4

Alpine: Kaniere to Springs Junction, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	6,907
Co-rupture Rate	3.4097818E-4

Elliott, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	6,129
Co-rupture Rate	8.7044435E-5

Fowlers, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,413
Co-rupture Rate	2.5155512E-5

Hope: Hope River, 5.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	7,487
Co-rupture Rate	4.834078E-4

Alpine: Springs Junction to Tophouse, 5.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	838
Co-rupture Rate	8.18107E-5

White Creek - buried, 6.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hurunui, 8.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	8,724
Co-rupture Rate	5.5072963E-4

Kakapo, 8.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,940
Co-rupture Rate	1.11045956E-4

Esk North, 8.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	789
Co-rupture Rate	7.930223E-5

Hanmer, 11.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	2,333
Co-rupture Rate	3.4405562E-4

Hope: Kakapo-2-Hamner, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	169
Co-rupture Rate	9.660368E-13

Hope: Hanmer NW, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	58
Co-rupture Rate	6.1676415E-9

Kelly, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	10,808
Co-rupture Rate	5.848416E-4

Hope: Taramakau, 13.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	172
Co-rupture Rate	1.0993286E-9

Hope: Hamner SW, 13.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	96
Co-rupture Rate	1.8651908E-13
