Te Heka Details

Property	Value
Rupture Count	509
Ruptures Above Sect Min Mag	507
Ruptures w/ Nonzero Rates	168
Magnitude Range	[6.81, 7.97]
Length Range	[22, 324] km
Total Rate	8.5164036E-5 /yr
Multi-Fault Rate	8.5164036E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	31

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

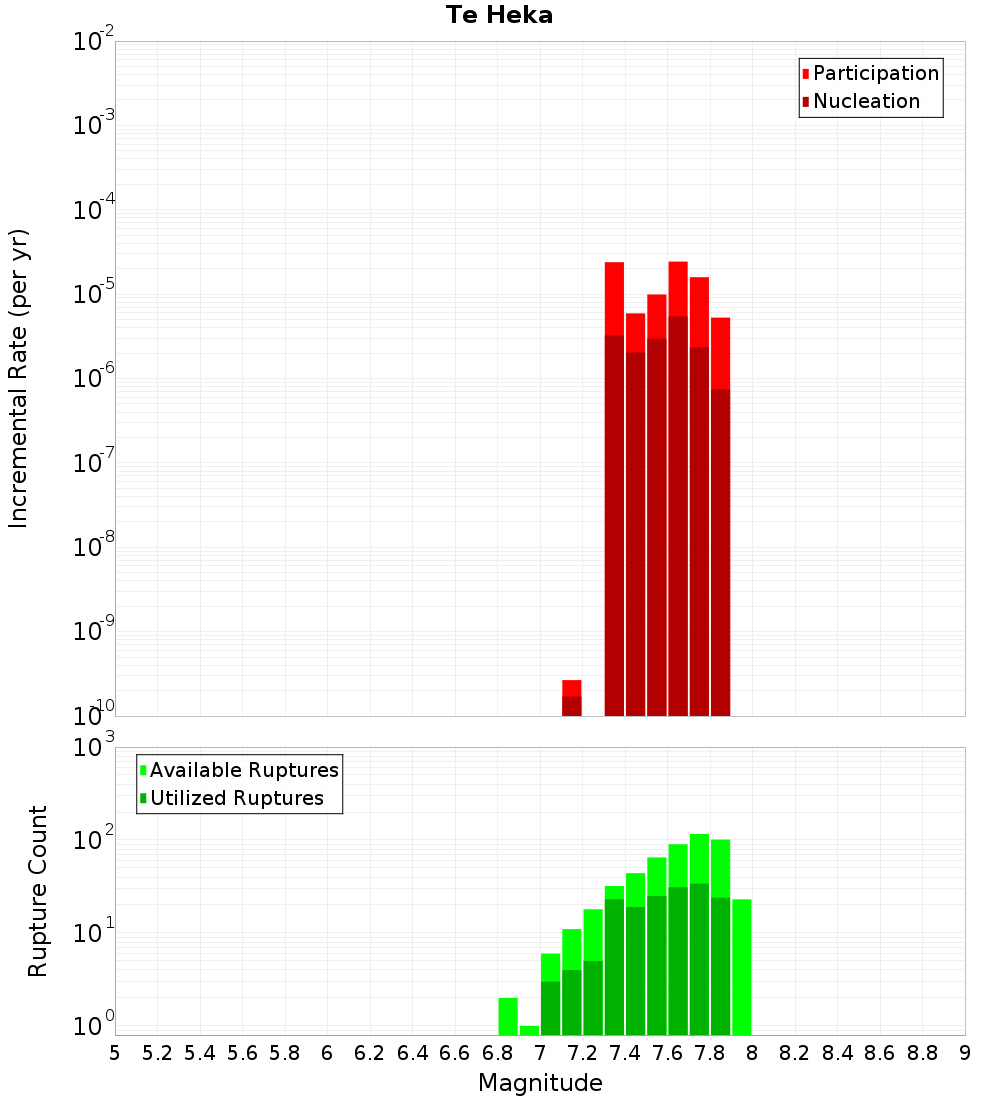

Magnitude-Frequency Distribution

Incremental	Cumulative

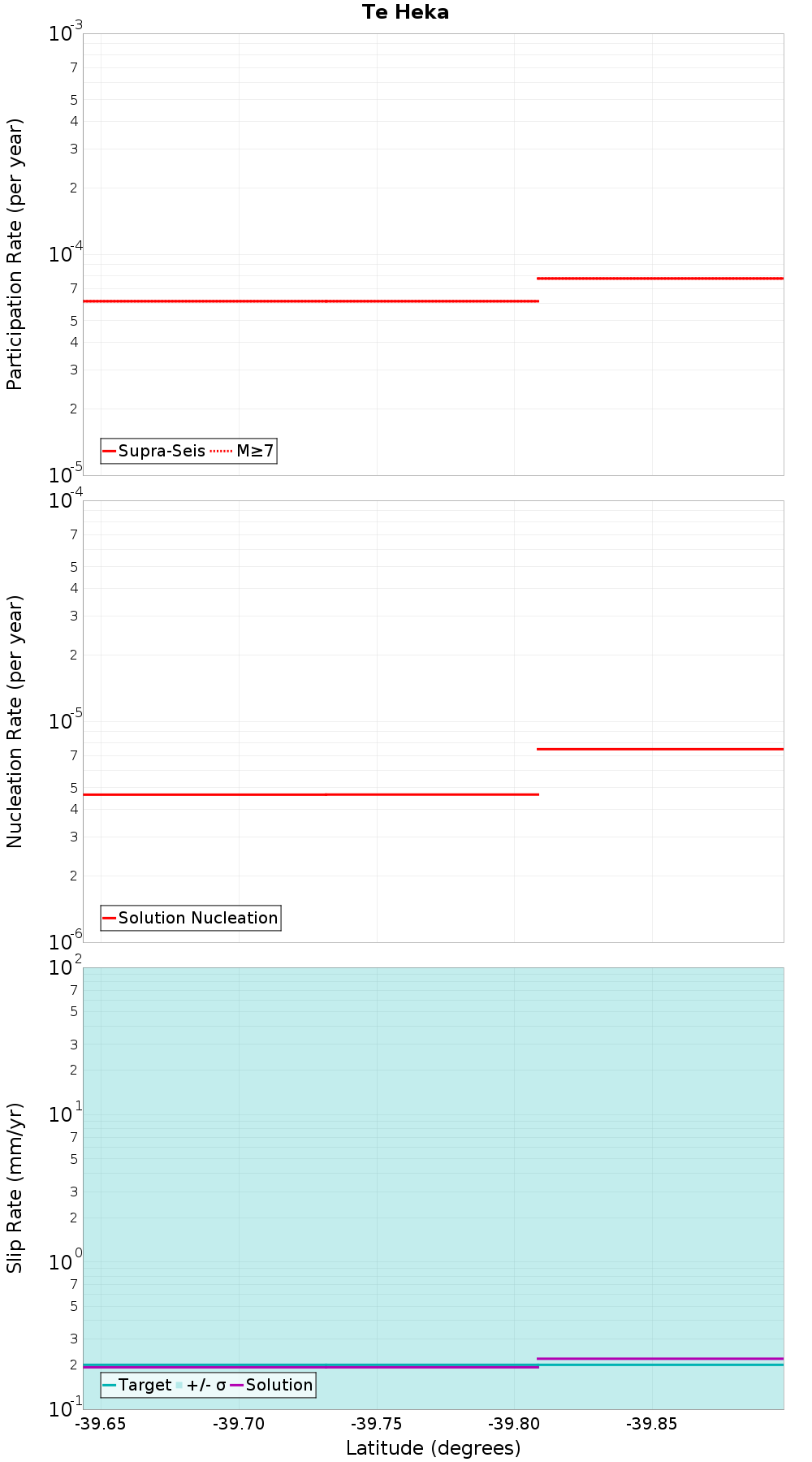

Along-Strike Values

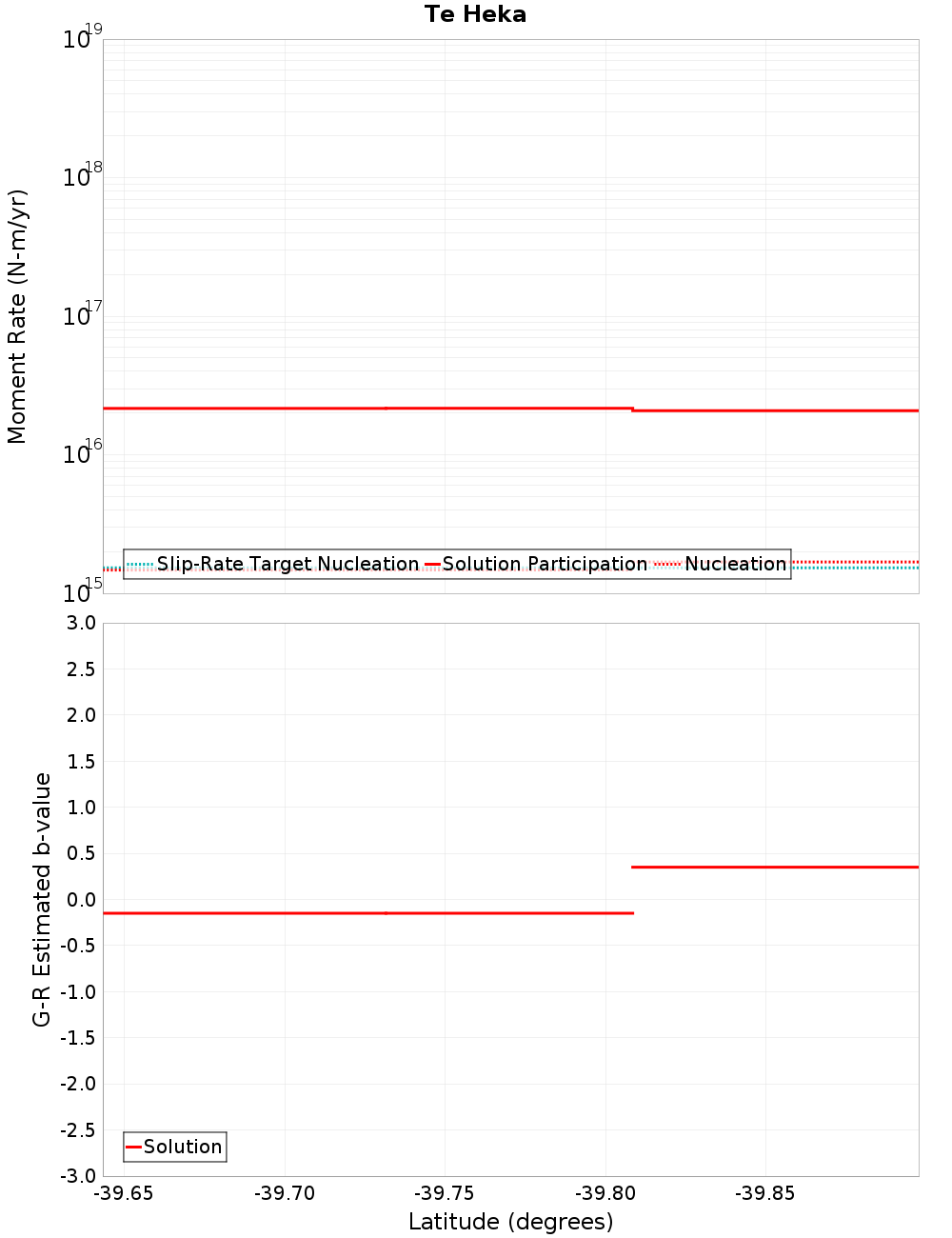

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awanui, 0.14 km away
Waipukurau - Poukawa, 5.65 km away
Oruawharo - Mangatoro, 8.05 km away
Tukituki Thrust, 11.15 km away
Ruataniwha, 12.04 km away
Mohaka: North, 14.28 km away
Wakarara, 14.9 km away
Mohaka: South, 14.94 km away

Awanui, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	383
Co-rupture Rate	2.9150746E-5

Waipukurau - Poukawa, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	138
Co-rupture Rate	2.312674E-5

Oruawharo - Mangatoro, 8.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	260
Co-rupture Rate	6.600827E-5

Tukituki Thrust, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	44
Co-rupture Rate	2.3871793E-5

Ruataniwha, 12.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	8.2303235E-15

Mohaka: North, 14.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	238
Co-rupture Rate	1.1970483E-5

Wakarara, 14.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mohaka: South, 14.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	5.5573434E-15
