Whareama Bank Details

Property	Value
Rupture Count	360
Ruptures Above Sect Min Mag	340
Ruptures w/ Nonzero Rates	164
Magnitude Range	[6.60, 7.90]
Length Range	[17, 335] km
Total Rate	5.9850694E-4 /yr
Multi-Fault Rate	5.9824897E-4 /yr (99.96%)
Directly-Connected Faults	4
All Co-Rupturing Faults	24

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

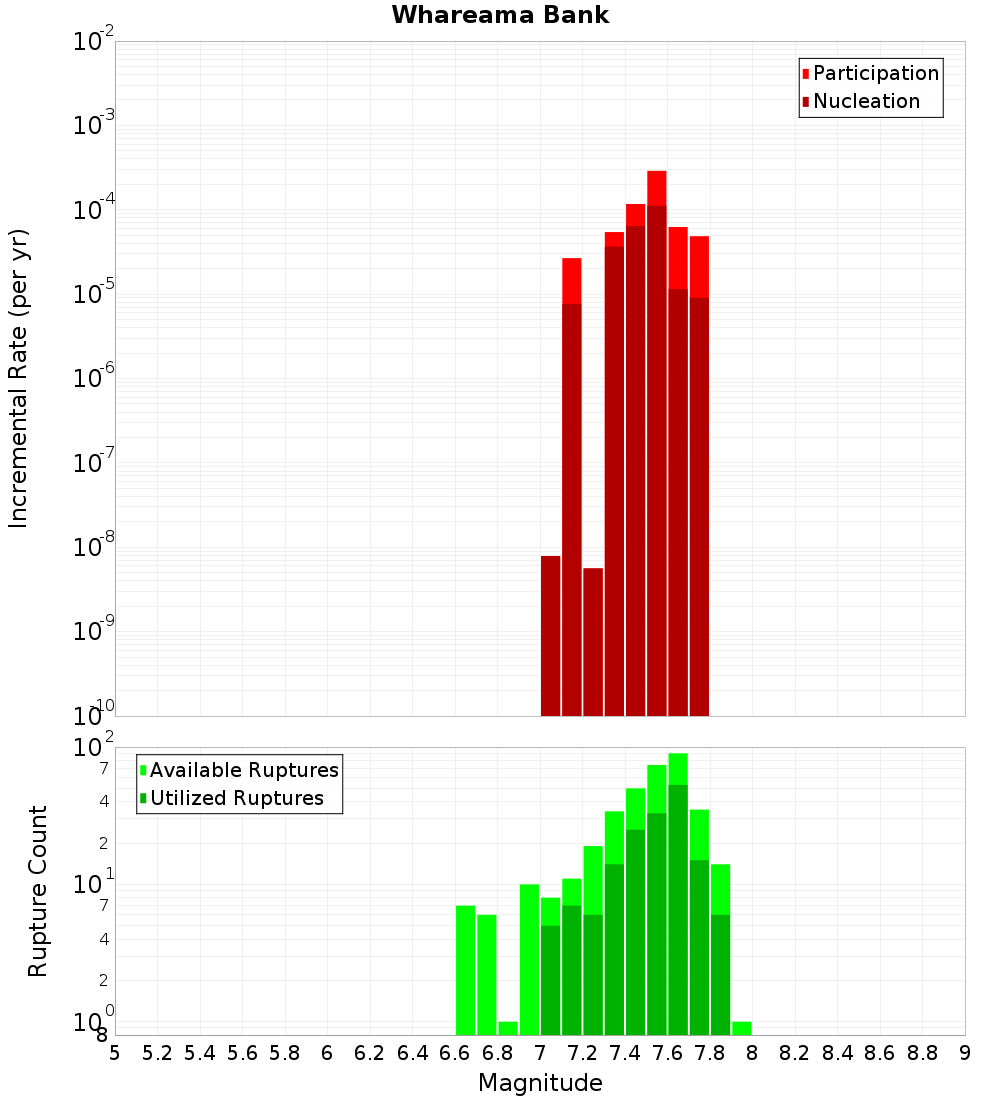

Magnitude-Frequency Distribution

Incremental	Cumulative

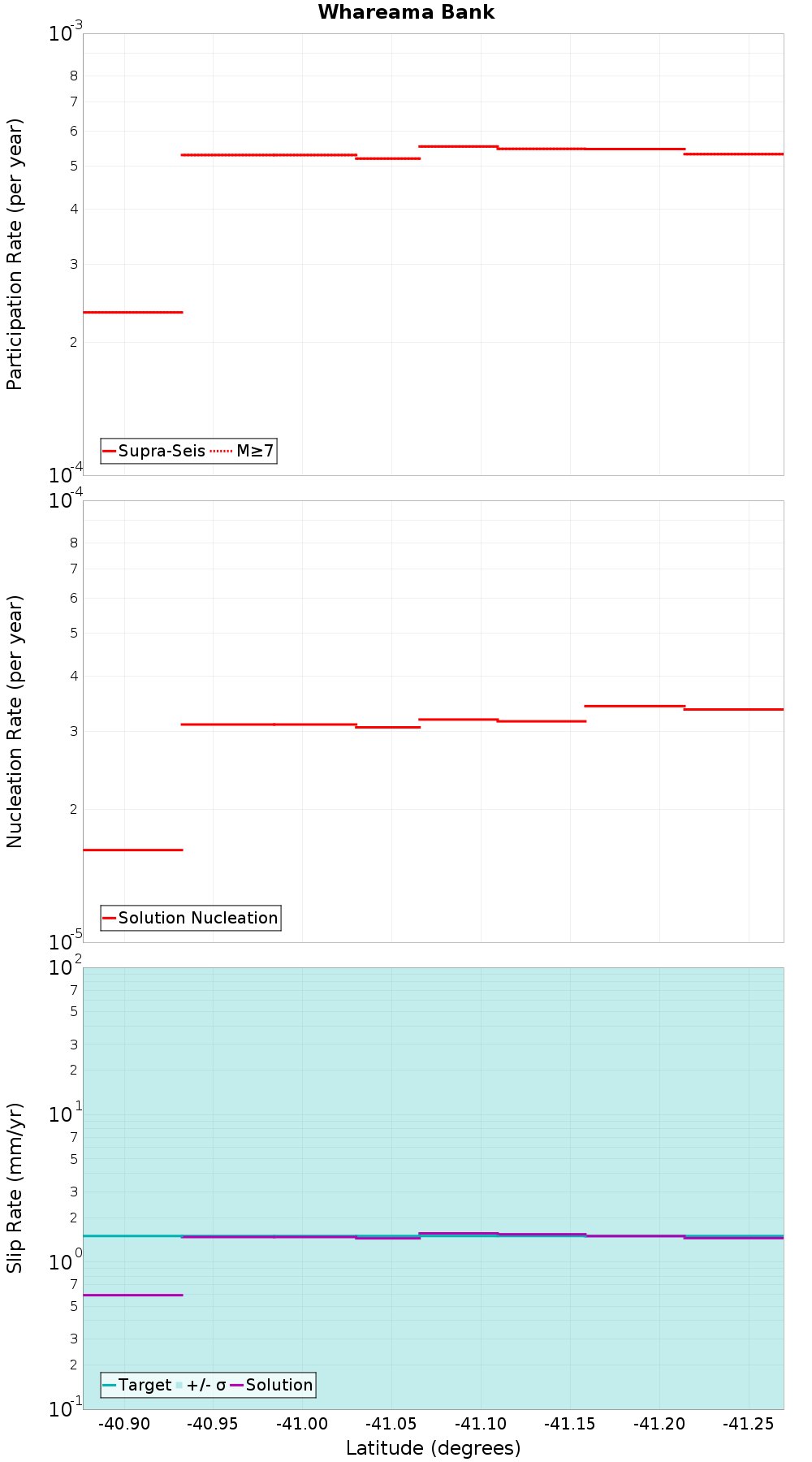

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Uruti Basin, 3.49 km away
Riversdale, 5.42 km away
Uruti North, 5.78 km away
Palliser - Kaiwhata, 6.44 km away
Riversdale North, 7.05 km away
Madden Banks, 7.87 km away
Honeycomb, 8.19 km away
Uruti Basin 2, 9.24 km away
Mataikona East, 10.47 km away
Uruti Point, 12.23 km away
Mataikona, 12.73 km away

Uruti Basin, 3.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	1.0276264E-12

Riversdale, 5.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	50
Co-rupture Rate	2.3324048E-4

Uruti North, 5.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	145
Co-rupture Rate	4.1818646E-5

Palliser - Kaiwhata, 6.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	68
Co-rupture Rate	1.7887294E-4

Riversdale North, 7.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	2.6493146E-5

Madden Banks, 7.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	true
Co-rupture Count	180
Co-rupture Rate	3.3851532E-4

Honeycomb, 8.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	1.73286E-17

Uruti Basin 2, 9.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	88
Co-rupture Rate	3.3907178E-12

Mataikona East, 10.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	4.468655E-16

Uruti Point, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mataikona, 12.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMTAuME5VZXFC
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	2.6493146E-5
