Rauoterangi Details
| Property | Value |
|---|---|
| Rupture Count | 109 |
| Ruptures Above Sect Min Mag | 108 |
| Ruptures w/ Nonzero Rates | 44 |
| Magnitude Range | [6.99, 7.92] |
| Length Range | [24, 245] km |
| Total Rate | 1.4890773E-4 /yr |
| Multi-Fault Rate | 1.0333572E-4 /yr (69.40%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 16 |
Table Of Contents

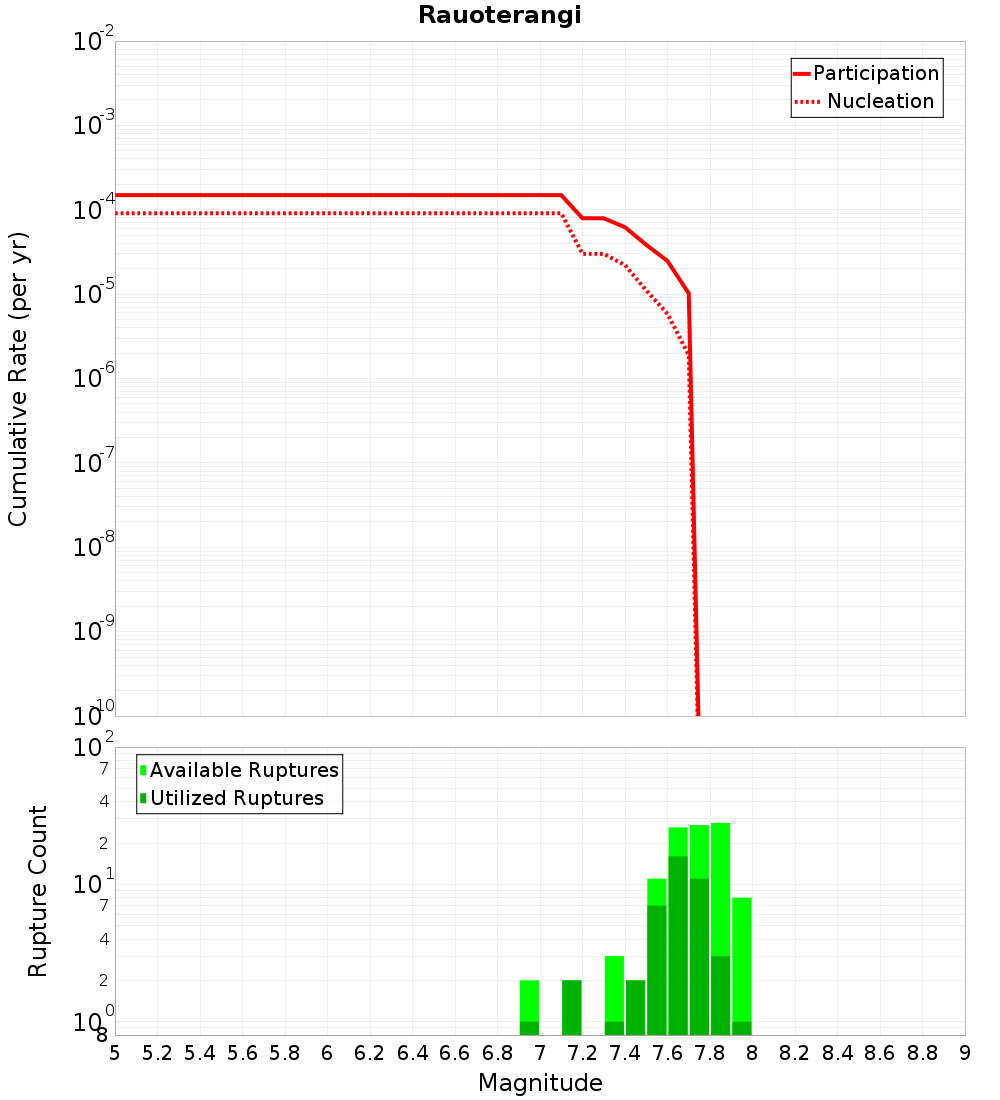

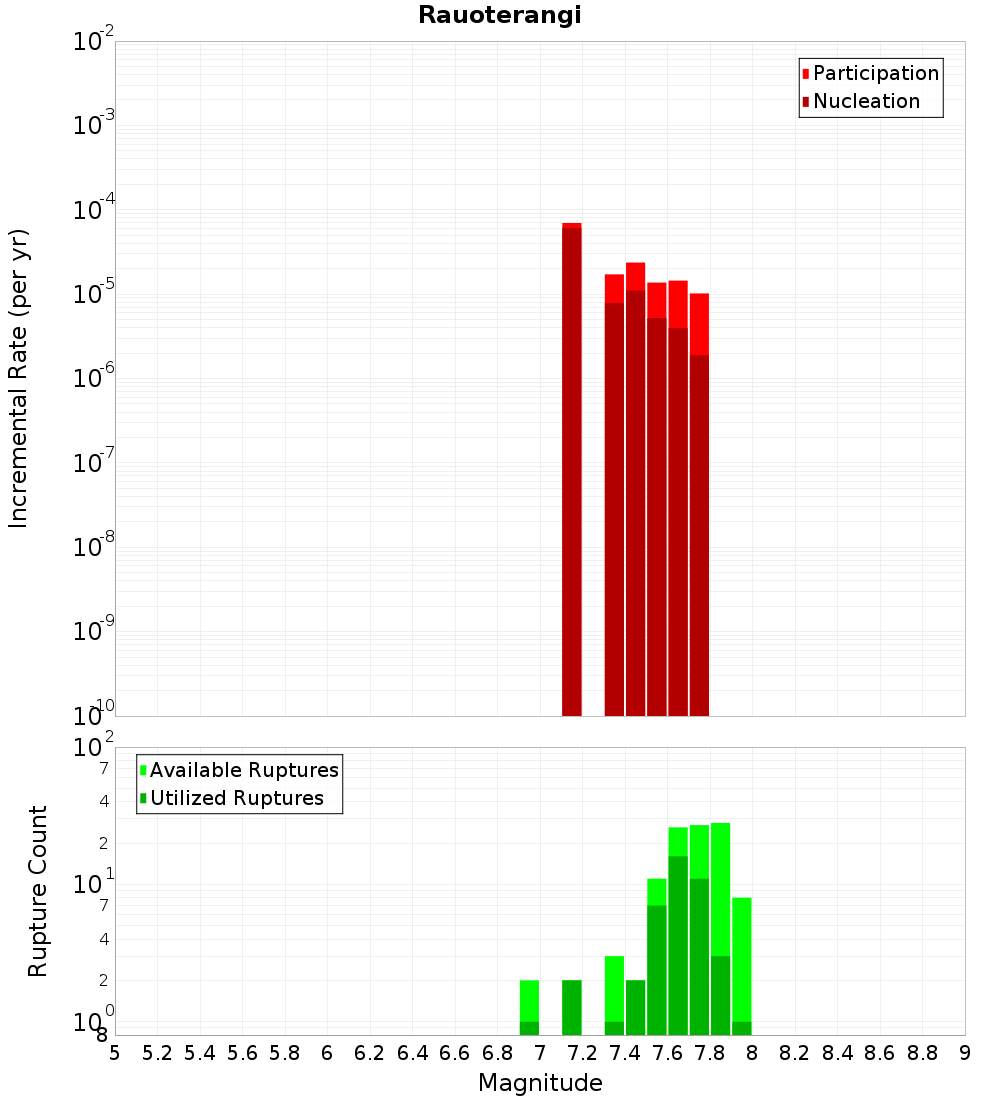

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

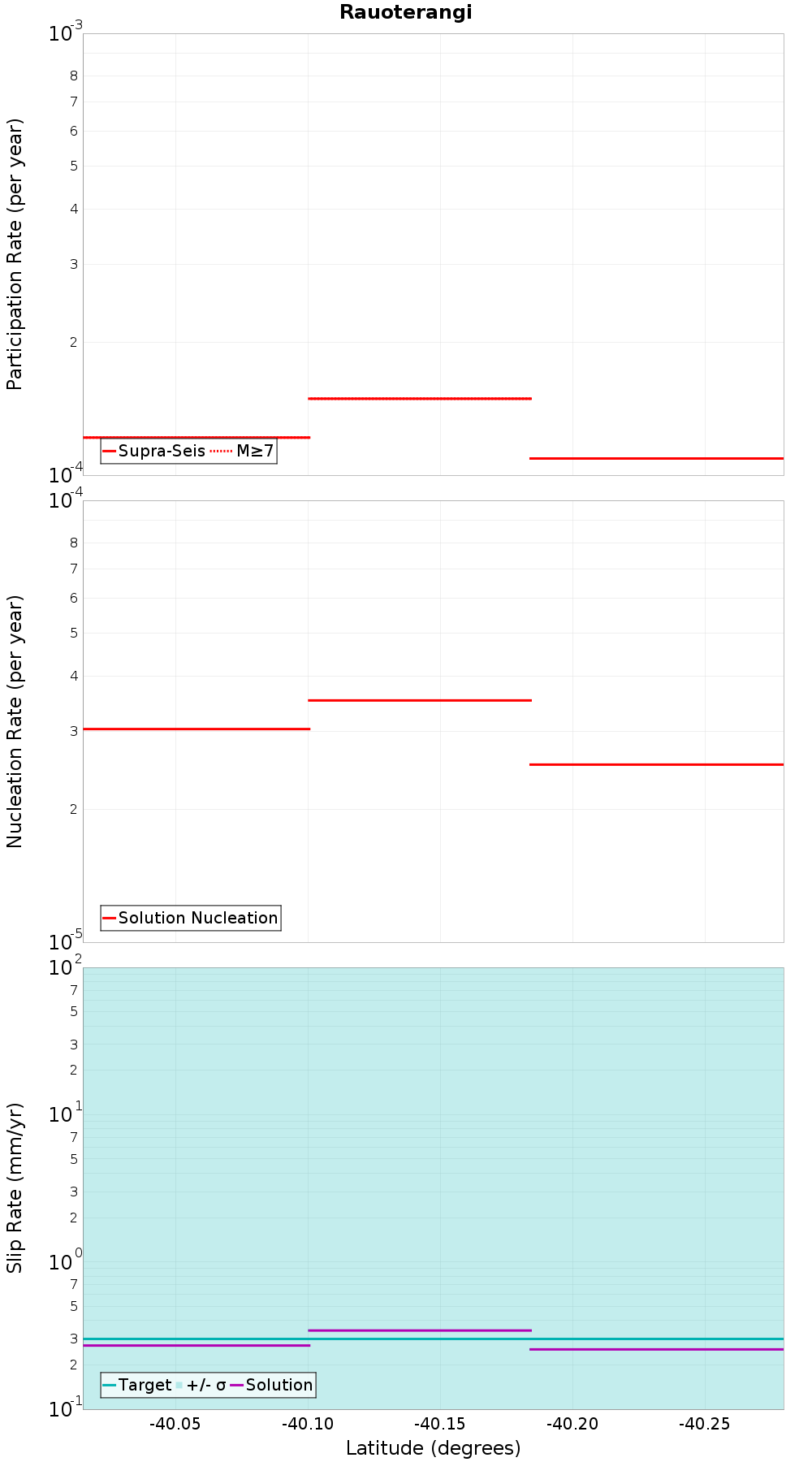

Along-Strike Values

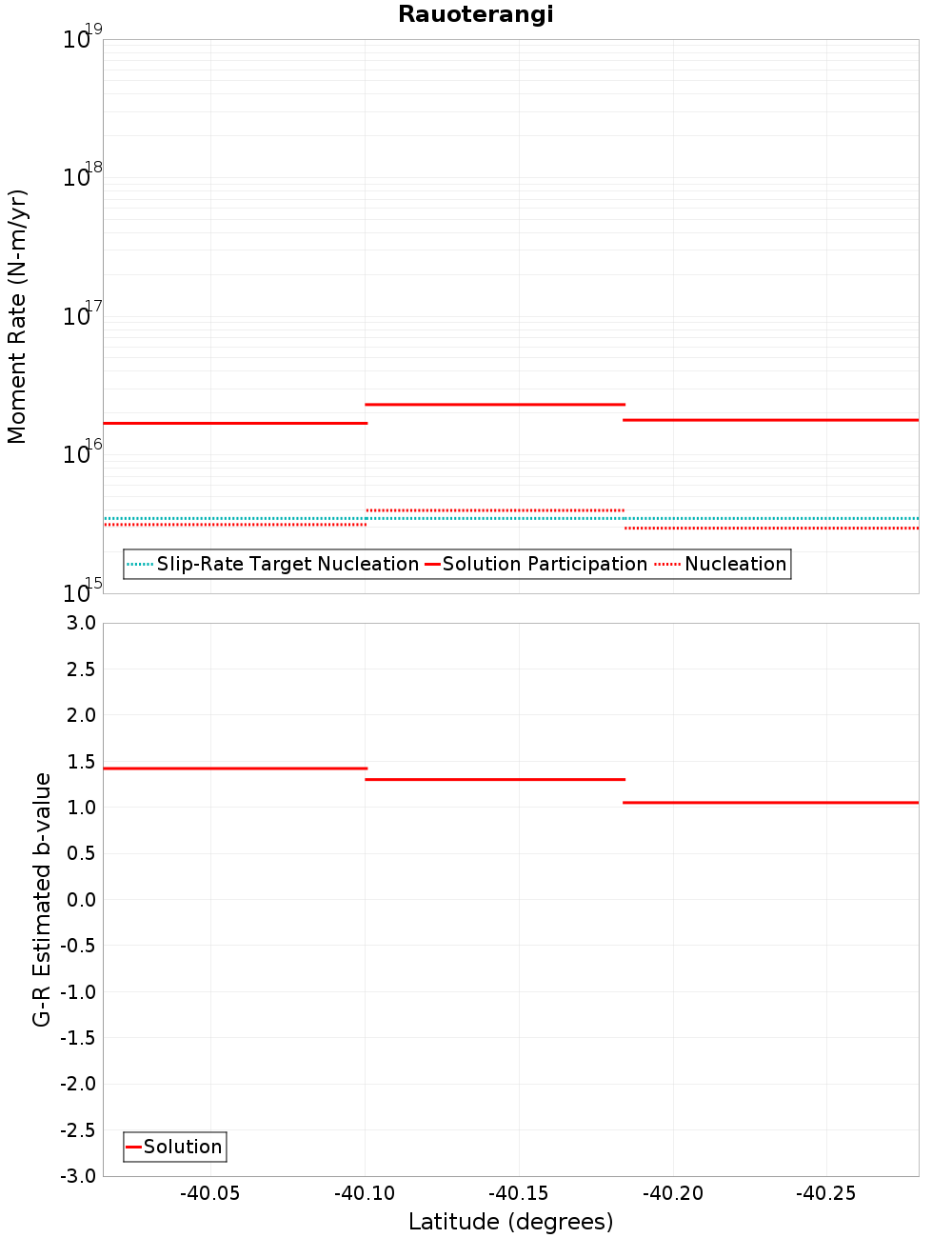

Moment-Rates and b-Values

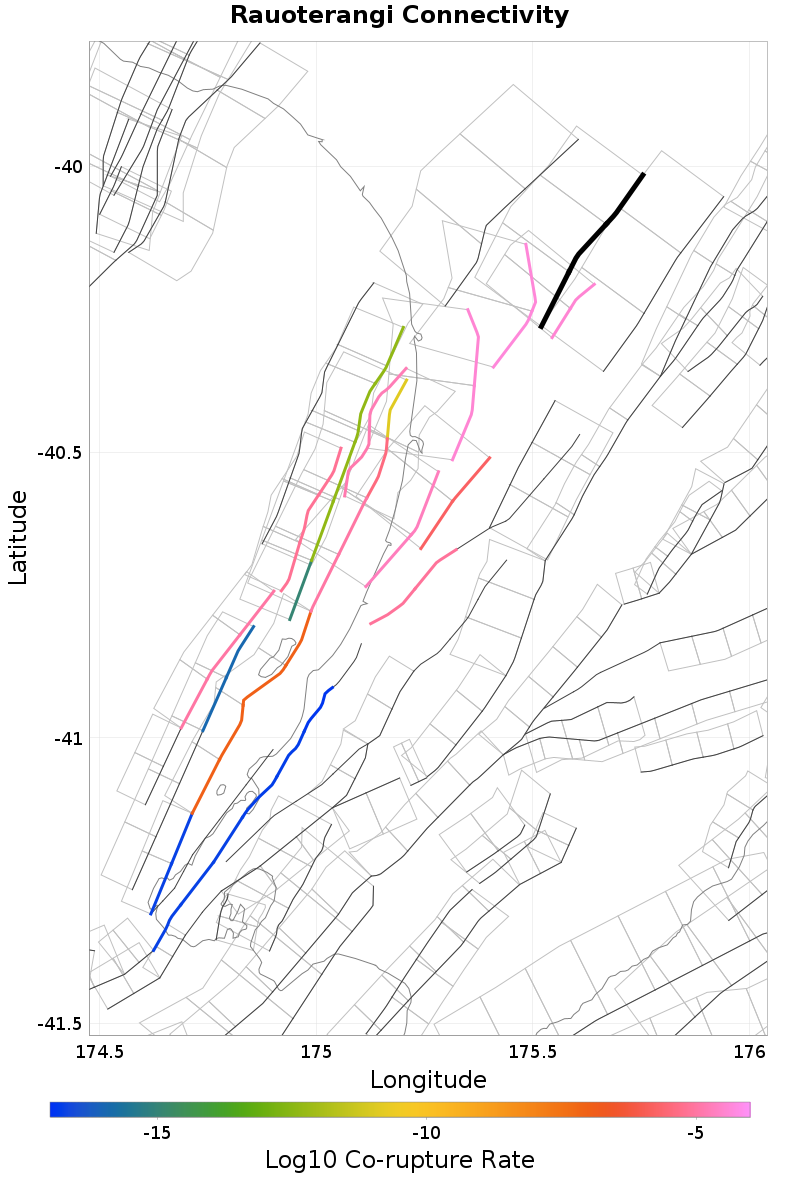

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Mt Stewart, 2.5 km away |
| Taonui, 2.62 km away |
| Mascarin, 11.5 km away |
| Himatangi, 11.71 km away |
| Leedstown, 12.42 km away |
| Pohangina, 12.82 km away |
| Tokomaru, 14.68 km away |
Mt Stewart, 2.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 97 |
| Co-rupture Rate | 4.2945354E-5 |
Taonui, 2.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 52 |
| Co-rupture Rate | 3.541458E-5 |
Mascarin, 11.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Himatangi, 11.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 3.624743E-5 |
Leedstown, 12.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pohangina, 12.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tokomaru, 14.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
