Wheao: South Details

Property	Value
Rupture Count	15,069
Ruptures Above Sect Min Mag	15,057
Ruptures w/ Nonzero Rates	314
Magnitude Range	[6.68, 8.28]
Length Range	[19, 670] km
Total Rate	1.891417E-4 /yr
Multi-Fault Rate	1.891417E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	107

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

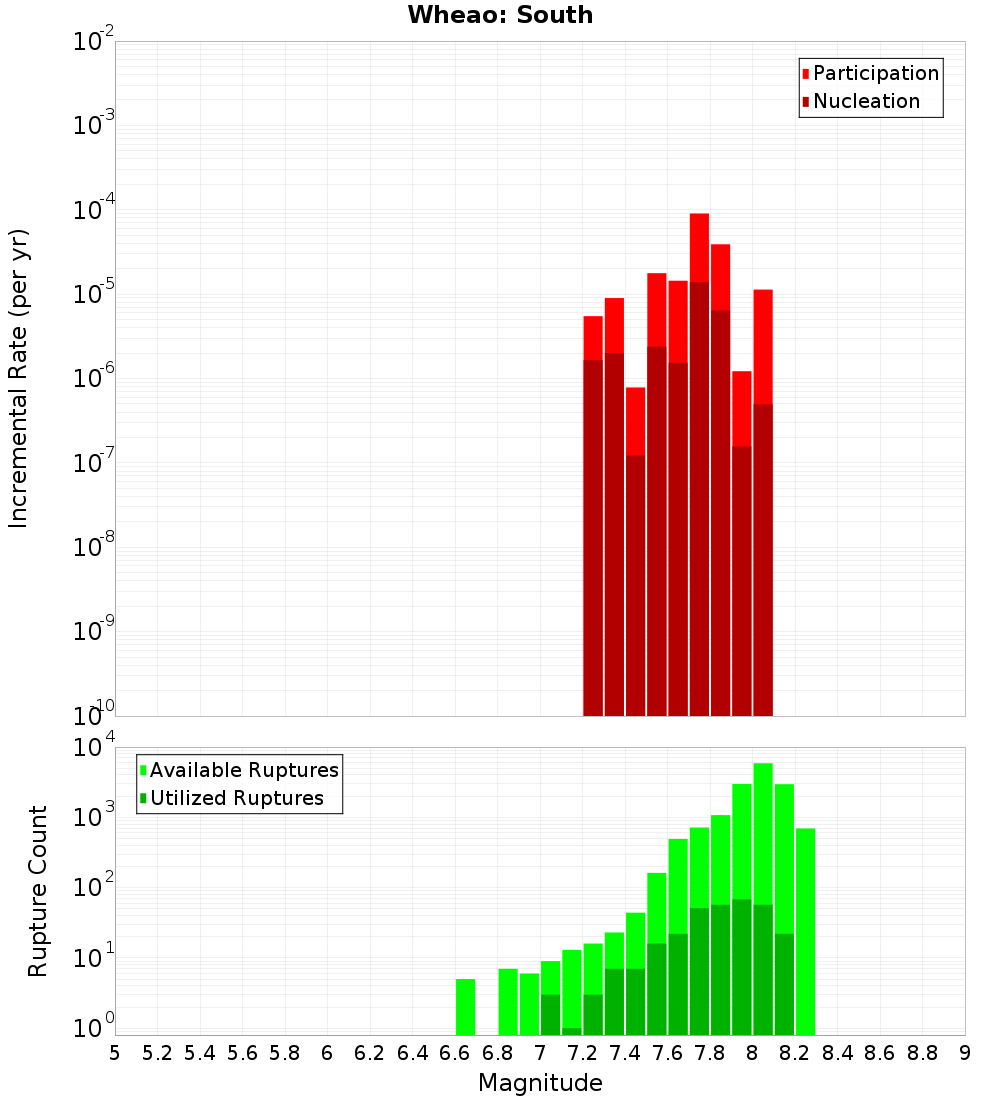

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

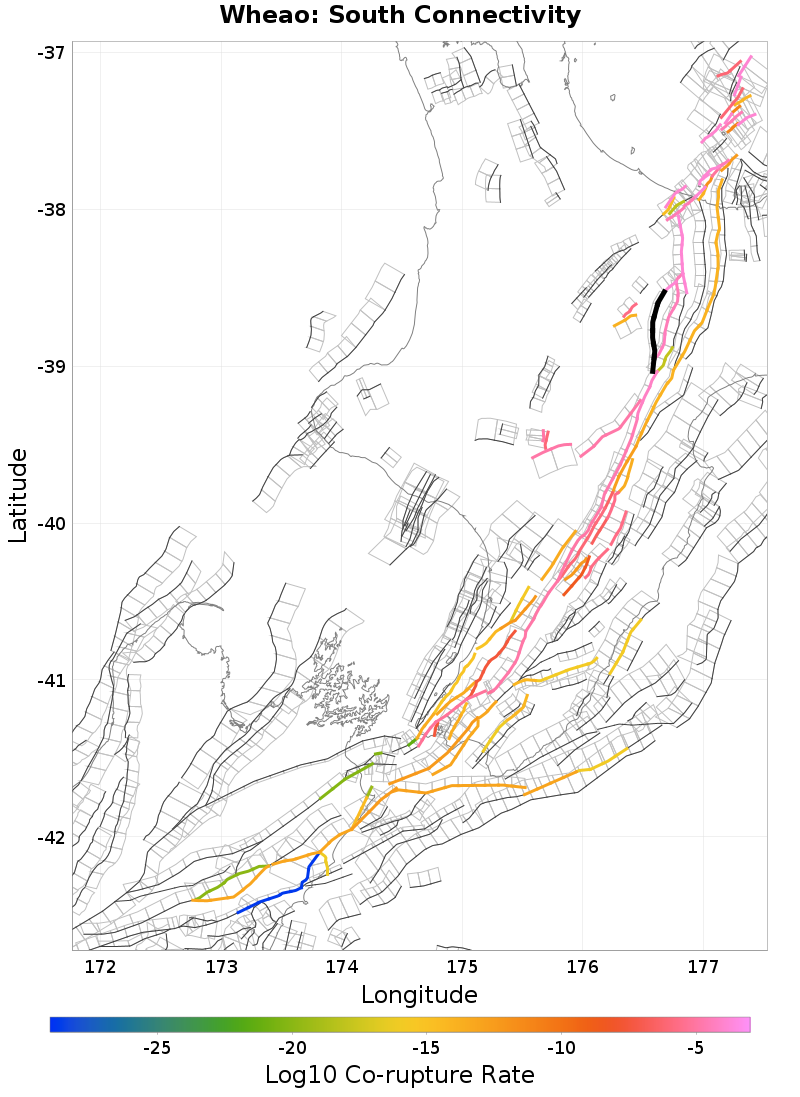

Connectivity

Nearby Sections

Fault Section
Wheao: North, 0 km away
Waiohau: South, 0.22 km away
Te Whaiti South, 0.44 km away
Ruahine: North, 2.68 km away
Kaingaroa 1, 4.66 km away
Te Whaiti North, 11.11 km away
Waiohau: North, 11.7 km away
Kaingaroa 3, 12.86 km away
Mohaka: North, 13.51 km away
Whakatane: South, 14.52 km away
Waimana: South, 14.54 km away
Kaingaroa 2, 14.76 km away

Wheao: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	true
Directly Connected?	true
Co-rupture Count	9,427
Co-rupture Rate	1.2508807E-4

Waiohau: South, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	9.956208E-19

Te Whaiti South, 0.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	true
Directly Connected?	true
Co-rupture Count	608
Co-rupture Rate	4.1665862E-5

Ruahine: North, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	true
Directly Connected?	true
Co-rupture Count	13,426
Co-rupture Rate	6.4053624E-5

Kaingaroa 1, 4.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	true
Directly Connected?	true
Co-rupture Count	353
Co-rupture Rate	1.20096795E-14

Te Whaiti North, 11.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	true
Directly Connected?	false
Co-rupture Count	152
Co-rupture Rate	3.1739106E-5

Waiohau: North, 11.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	true
Directly Connected?	false
Co-rupture Count	8,593
Co-rupture Rate	1.2603009E-4

Kaingaroa 3, 12.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	true
Directly Connected?	true
Co-rupture Count	110
Co-rupture Rate	0.0

Mohaka: North, 13.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	true
Directly Connected?	false
Co-rupture Count	866
Co-rupture Rate	3.0180102E-14

Whakatane: South, 14.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimana: South, 14.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	true
Directly Connected?	false
Co-rupture Count	1,066
Co-rupture Rate	1.0781386E-14

Kaingaroa 2, 14.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjEuME5Bb0Zq
Connected?	true
Directly Connected?	true
Co-rupture Count	68
Co-rupture Rate	1.8343187E-6
