Alpine: Springs Junction to Tophouse Details

PropertyValue
Rupture Count70,243
Ruptures Above Sect Min Mag70,237
Ruptures w/ Nonzero Rates26,466
Magnitude Range[6.90, 8.52]
Length Range[24, 1,132] km
Total Rate0.0027058644 /yr
Multi-Fault Rate0.0026288477 /yr (97.15%)
Directly-Connected Faults8
All Co-Rupturing Faults142

Table Of Contents

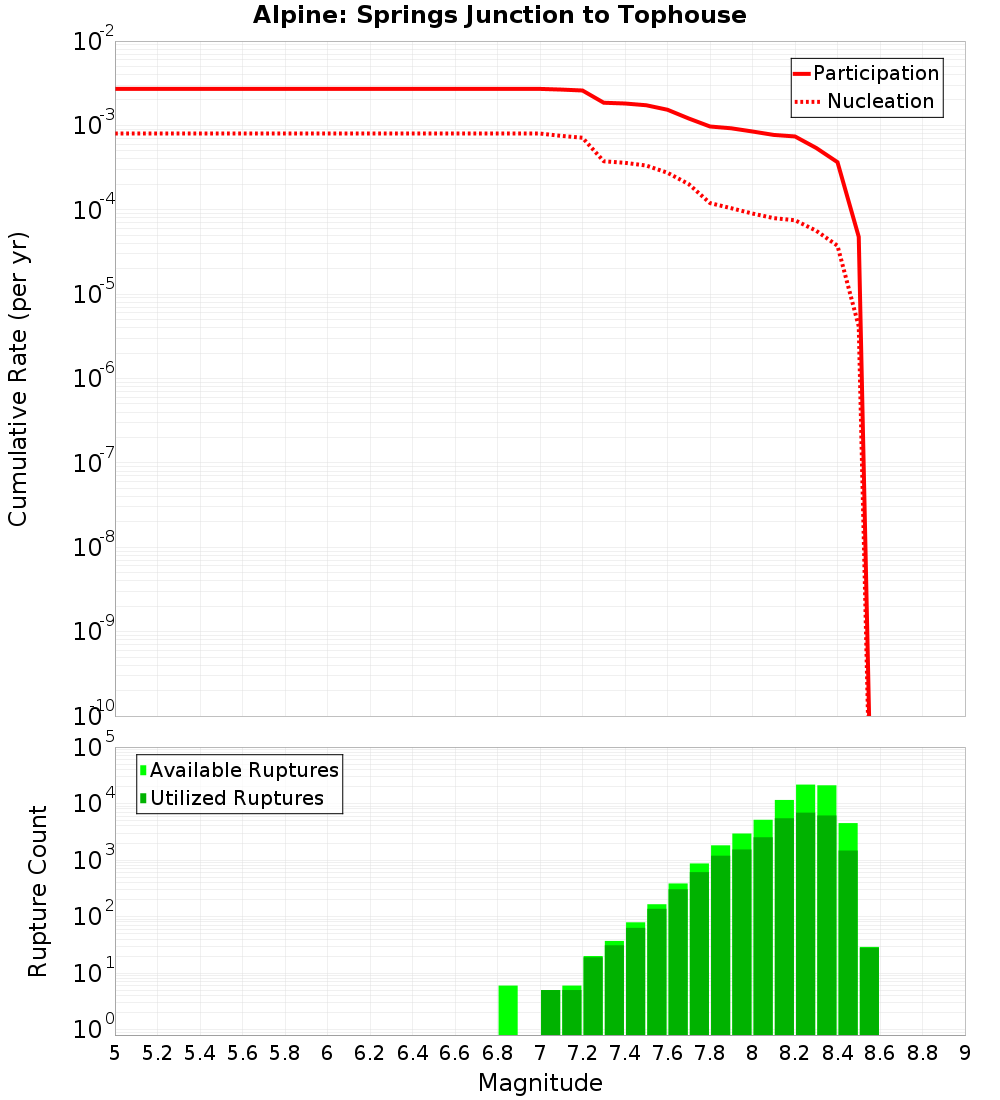

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

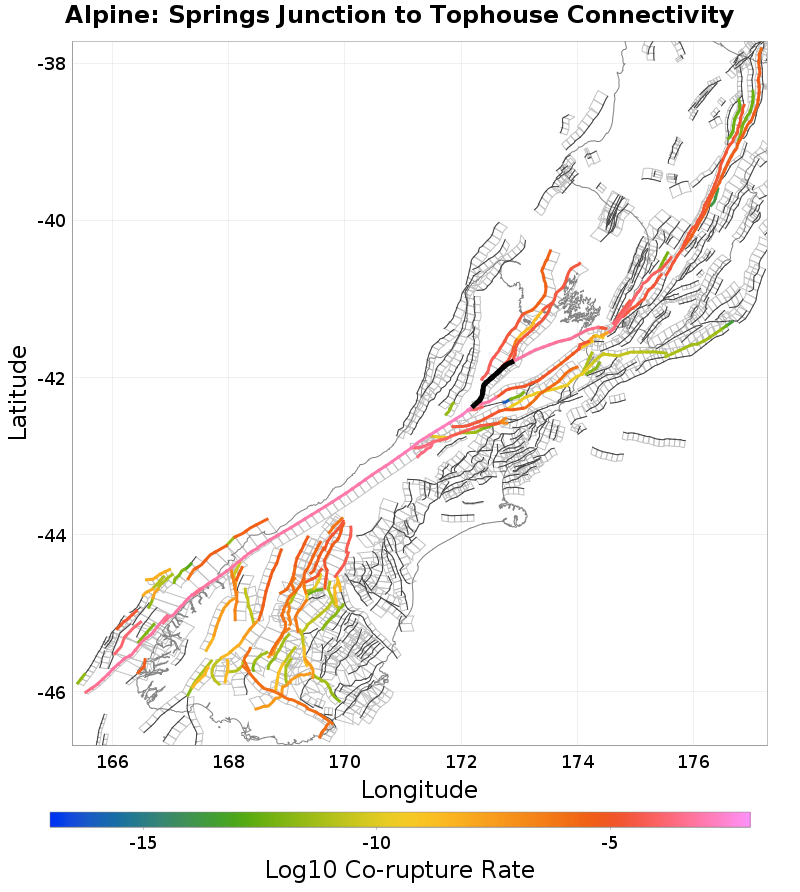

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Kaniere to Springs Junction, 0 km away
Whangamoa, 0 km away
Awatere: Southwest, 0 km away
Wairau, 0 km away
Tutaki, 0.13 km away
Fowlers, 0.19 km away
Flaxmore - Waimea - Tahunanui, 0.45 km away
Clarence: Southwest, 5.57 km away
Hope: Hope River, 13.43 km away

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q
Connected?true
Directly Connected?true
Co-rupture Count68,054
Co-rupture Rate0.0017874474

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q
Connected?true
Directly Connected?true
Co-rupture Count31,470
Co-rupture Rate2.6132608E-5

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q
Connected?true
Directly Connected?true
Co-rupture Count692
Co-rupture Rate7.223181E-4

Wairau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q
Connected?true
Directly Connected?true
Co-rupture Count25,931
Co-rupture Rate7.5727823E-4

Tutaki, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q
Connected?true
Directly Connected?true
Co-rupture Count7,144
Co-rupture Rate6.6450084E-5

Fowlers, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q
Connected?true
Directly Connected?true
Co-rupture Count335
Co-rupture Rate9.952994E-5

Flaxmore - Waimea - Tahunanui, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q
Connected?true
Directly Connected?true
Co-rupture Count5,883
Co-rupture Rate2.7224083E-5

Clarence: Southwest, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q
Connected?true
Directly Connected?true
Co-rupture Count838
Co-rupture Rate3.5301626E-5

Hope: Hope River, 13.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q
Connected?true
Directly Connected?false
Co-rupture Count6,599
Co-rupture Rate8.601019E-5
