Tokomaru Details
| Property | Value |
|---|---|
| Rupture Count | 1,710 |
| Ruptures Above Sect Min Mag | 1,708 |
| Ruptures w/ Nonzero Rates | 1,170 |
| Magnitude Range | [6.78, 8.40] |
| Length Range | [19, 888] km |
| Total Rate | 5.4215525E-5 /yr |
| Multi-Fault Rate | 5.4215525E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 106 |
Table Of Contents

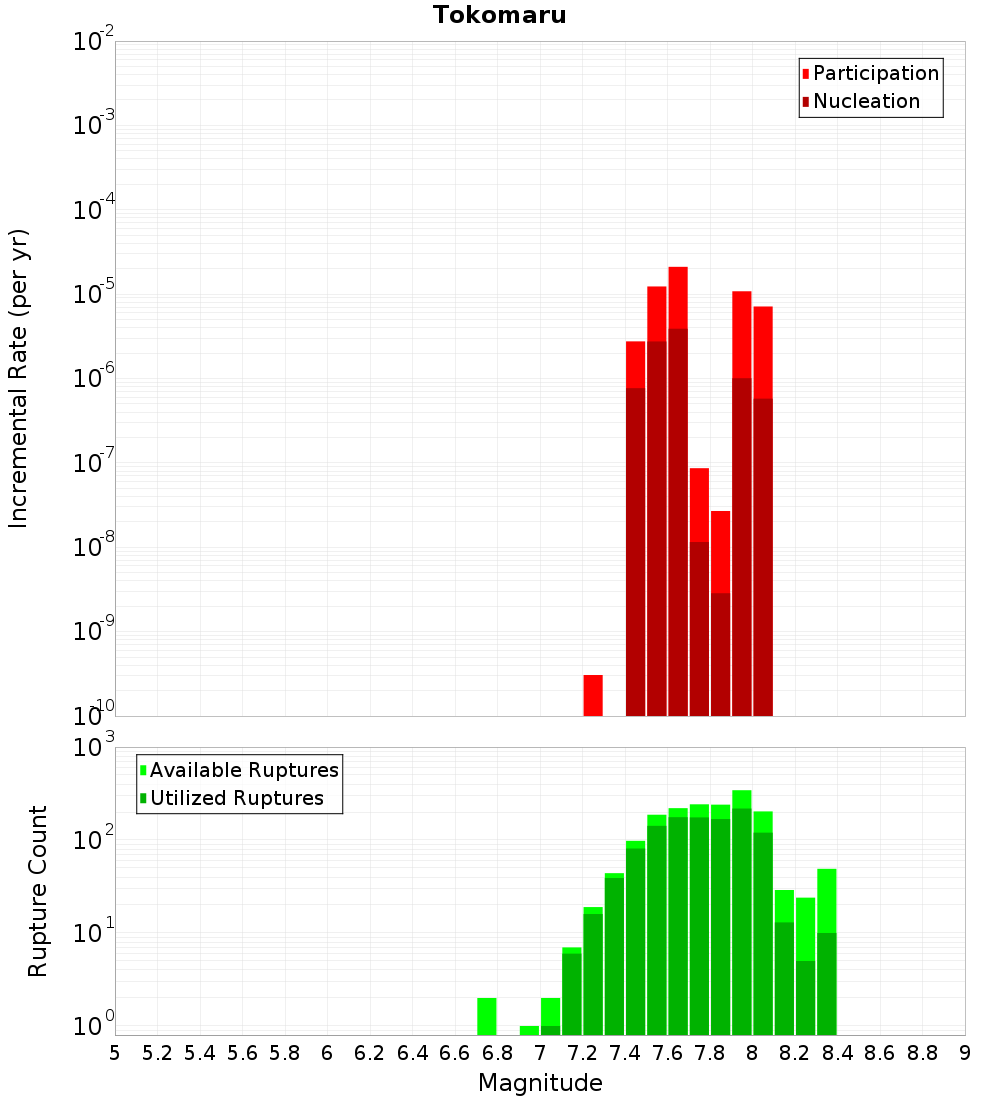

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

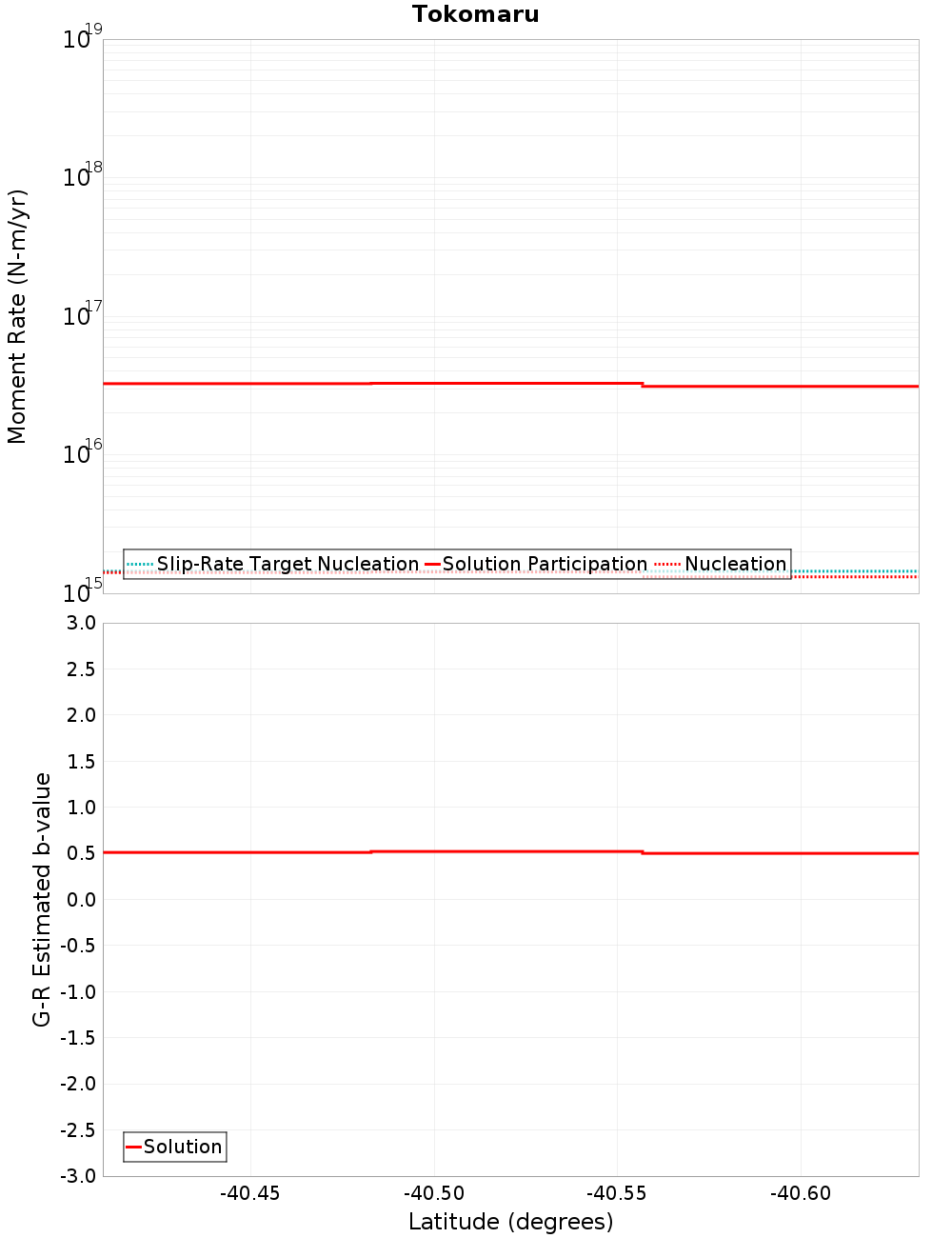

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Wellington: Pahiatua, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 300 |
| Co-rupture Rate | 8.8347746E-11 |
Northern Ohariu, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 629 |
| Co-rupture Rate | 5.213291E-5 |
Wellington: Tararua 3, 1.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,044 |
| Co-rupture Rate | 4.1788902E-5 |
Otaki Forks: 2, 3.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 344 |
| Co-rupture Rate | 3.5987355E-6 |
Levin Anticline, 5.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pahiatua, 9.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pohangina, 9.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 1.3608159E-13 |
Wairarapa: 3, 11.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Himatangi, 12.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Taonui, 12.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Poroutawhao, 13.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mt Stewart, 13.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dreyers Rock, 14.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mohaka: South, 14.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 205 |
| Co-rupture Rate | 6.614529E-11 |
Ruahine: South, 14.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 90 |
| Co-rupture Rate | 1.7636194E-12 |
Rauoterangi, 14.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMjMuMFBKSE5Q | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
