Brothers Details
| Property | Value |
|---|---|
| Rupture Count | 1,857 |
| Ruptures Above Sect Min Mag | 1,853 |
| Ruptures w/ Nonzero Rates | 163 |
| Magnitude Range | [6.78, 8.15] |
| Length Range | [21, 538] km |
| Total Rate | 2.8968154E-5 /yr |
| Multi-Fault Rate | 2.896815E-5 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 64 |
Table Of Contents

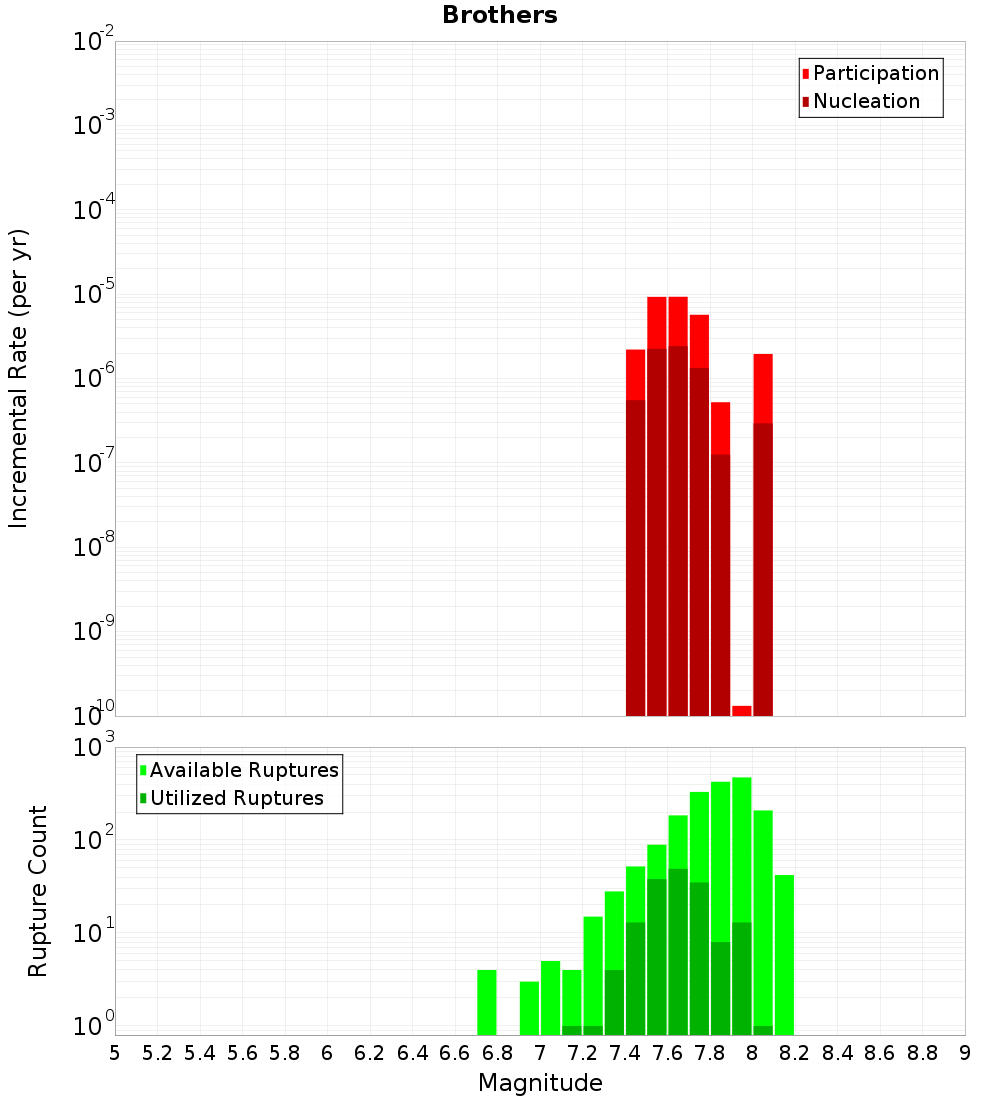

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

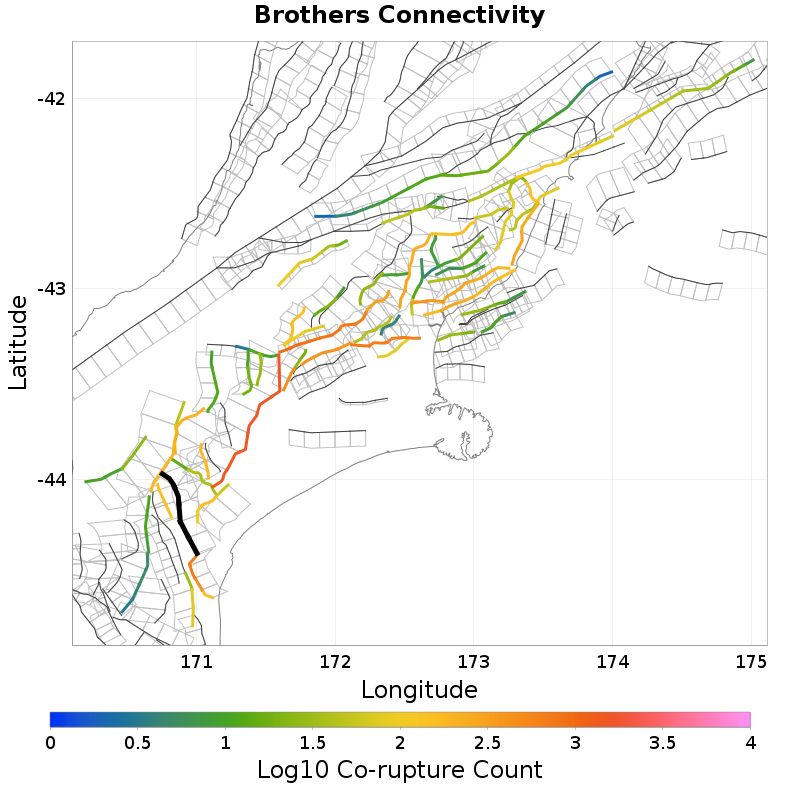

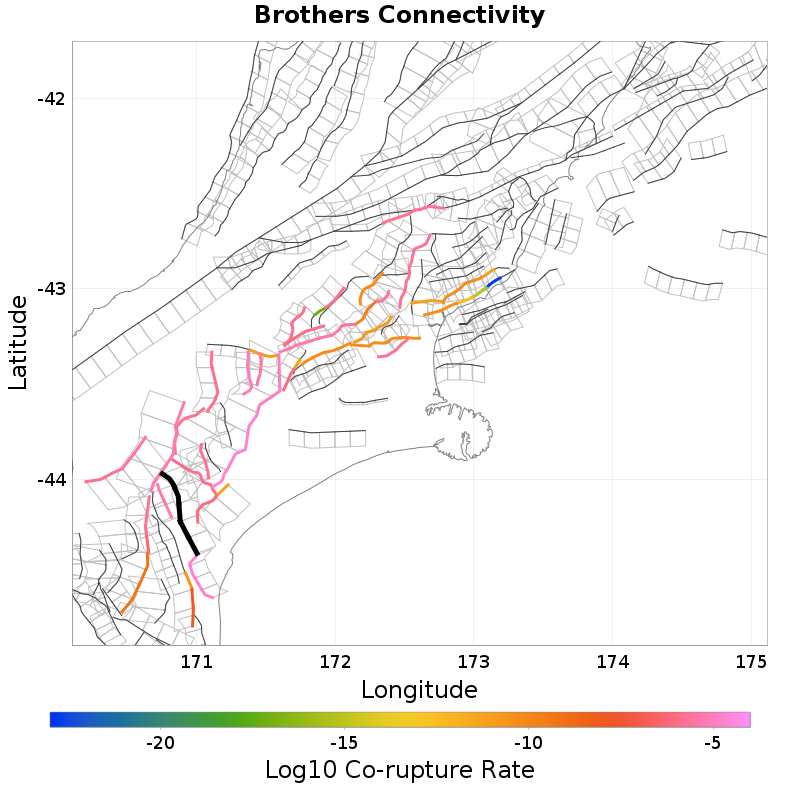

Connectivity
 |  |
|---|
Nearby Sections
Sugarloaf, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 38 |
| Co-rupture Rate | 1.4303836E-6 |
Hutt Peel, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,646 |
| Co-rupture Rate | 1.8617493E-5 |
Catherine, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 175 |
| Co-rupture Rate | 1.8030705E-6 |
Maungati, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 696 |
| Co-rupture Rate | 1.7153941E-5 |
Fox Peak, 1.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 214 |
| Co-rupture Rate | 8.4771455E-6 |
Edith, 2.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 4.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 155 |
| Co-rupture Rate | 8.710795E-7 |
Albury, 4.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 139 |
| Co-rupture Rate | 5.389165E-6 |
Irishman Creek, 7.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 3.891438E-6 |
Hunters, 7.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 75 |
| Co-rupture Rate | 1.7154754E-8 |
Ben McLeod, 8.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 214 |
| Co-rupture Rate | 1.486629E-6 |
Opawa, 8.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Chamberlain, 12.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzEuNWR5UzNT | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
