Marlborough Slope 4 Details
| Property | Value |
|---|---|
| Rupture Count | 944 |
| Ruptures Above Sect Min Mag | 942 |
| Ruptures w/ Nonzero Rates | 126 |
| Magnitude Range | [6.84, 8.30] |
| Length Range | [17, 500] km |
| Total Rate | 1.5207886E-4 /yr |
| Multi-Fault Rate | 1.5207879E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 30 |
Table Of Contents

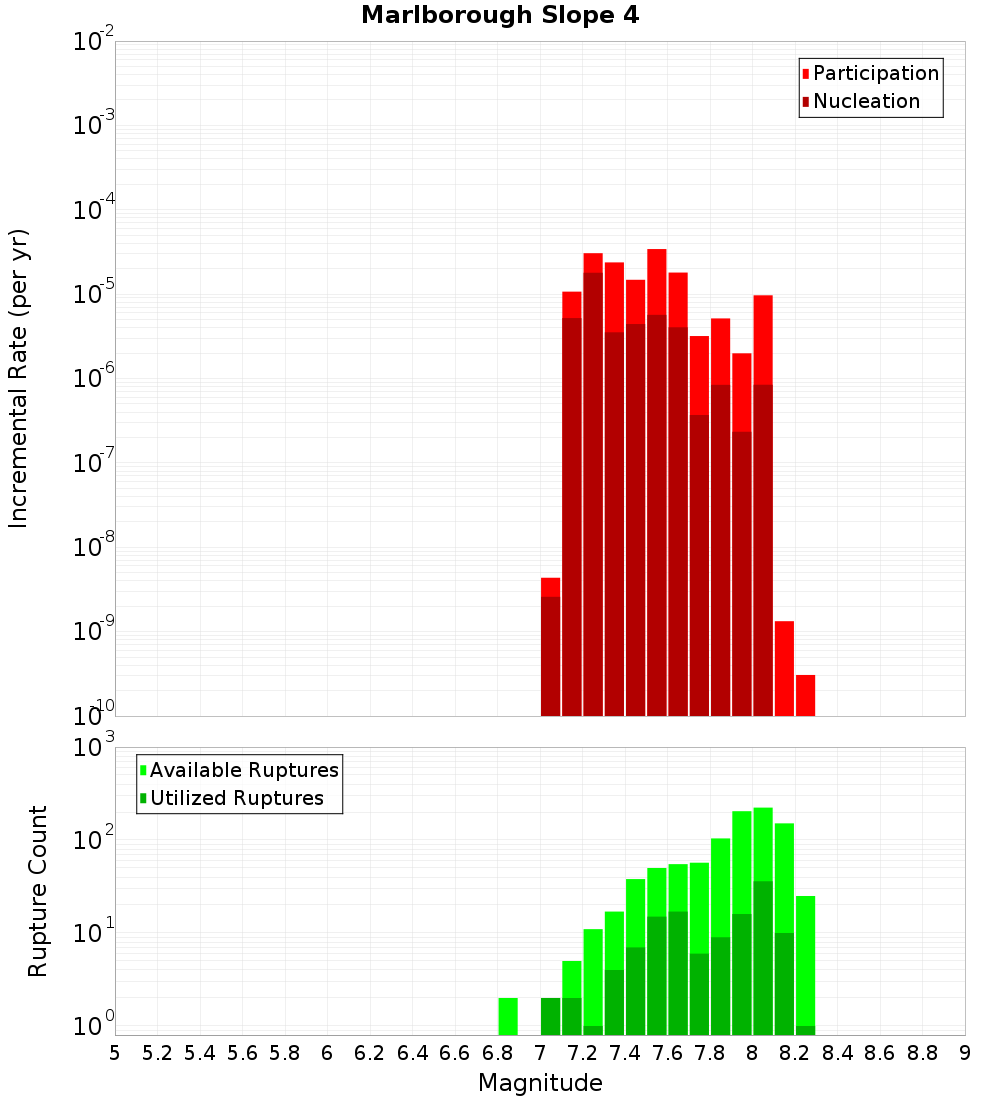

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

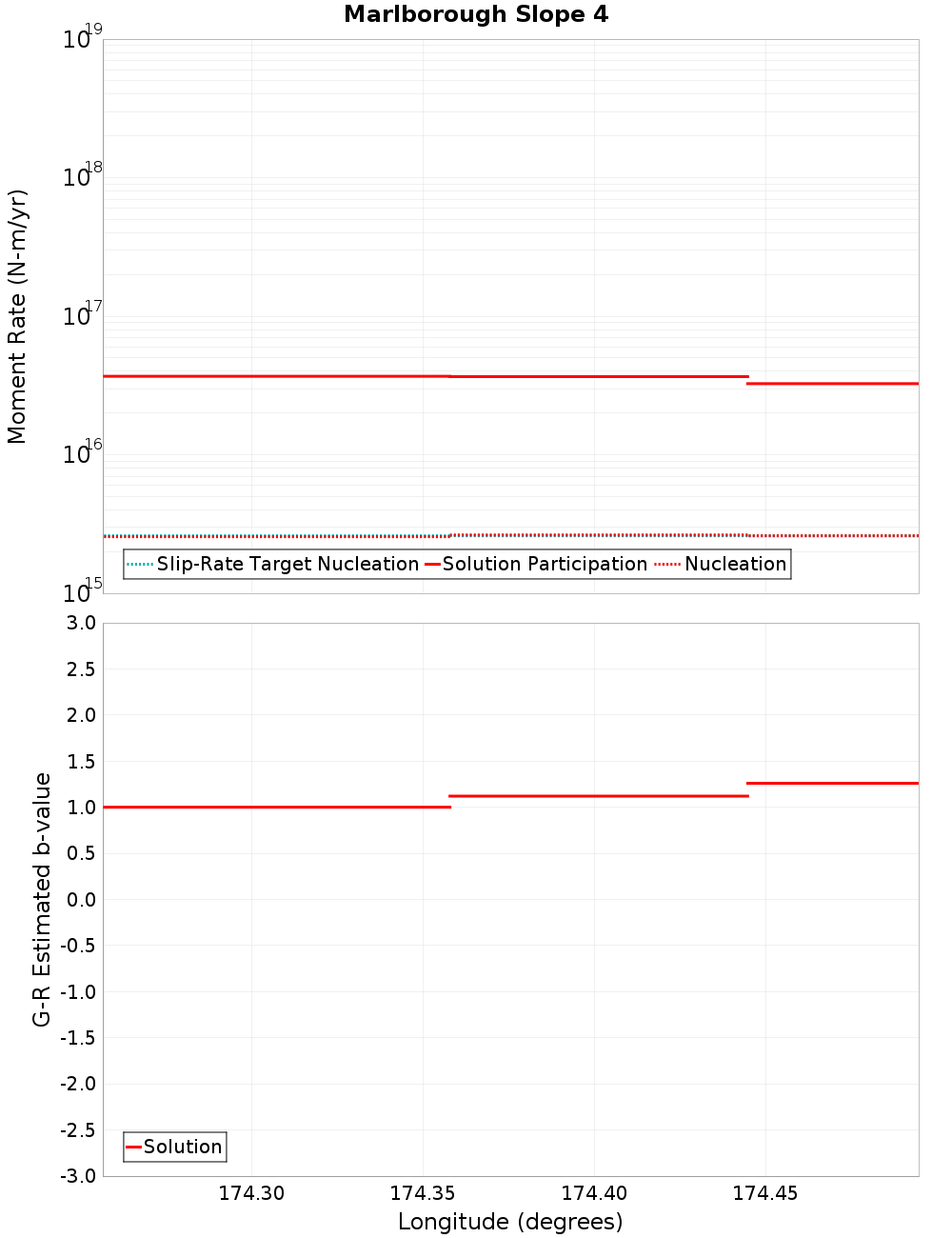

Moment-Rates and b-Values

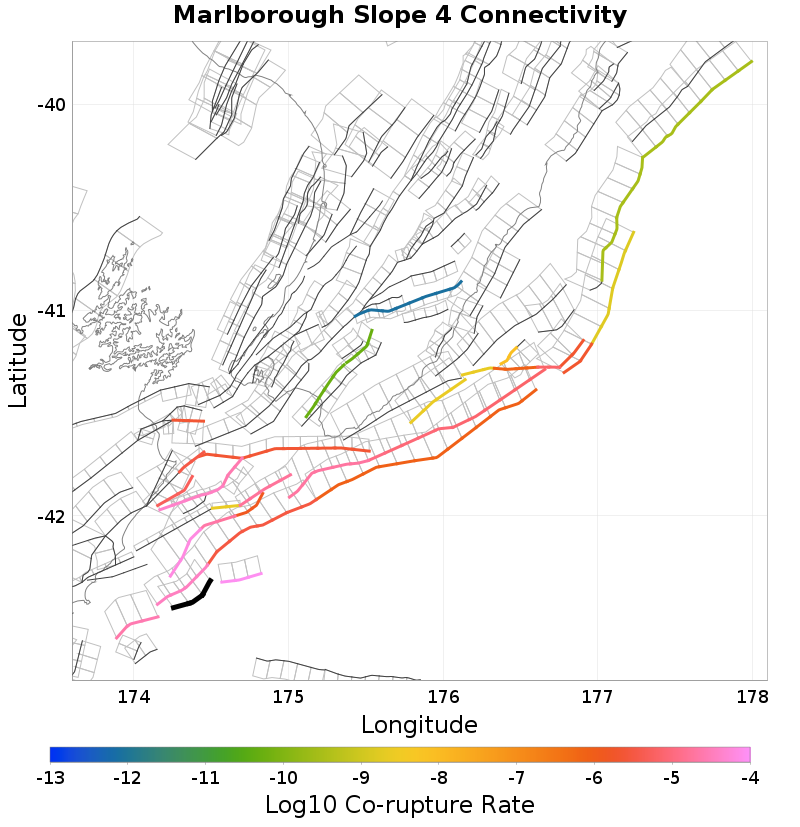

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kekerengu Bank, 4.72 km away |
| Marlborough Slope 3, 6.08 km away |
| Marlborough Slope 2, 6.6 km away |
| Upper Slope, 12.3 km away |
| Kaikoura - Mangamaunu, 13.21 km away |
Kekerengu Bank, 4.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 828 |
| Co-rupture Rate | 3.778828E-5 |
Marlborough Slope 3, 6.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 8.55416E-5 |
Marlborough Slope 2, 6.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 257 |
| Co-rupture Rate | 2.612136E-5 |
Upper Slope, 12.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 107 |
| Co-rupture Rate | 6.342732E-5 |
Kaikoura - Mangamaunu, 13.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
