Ruahine: South Details

PropertyValue
Rupture Count27,147
Ruptures Above Sect Min Mag27,144
Ruptures w/ Nonzero Rates174
Magnitude Range[7.09, 8.71]
Length Range[24, 1,129] km
Total Rate2.0048836E-4 /yr
Multi-Fault Rate1.6769524E-4 /yr (83.64%)
Directly-Connected Faults7
All Co-Rupturing Faults128

Table Of Contents

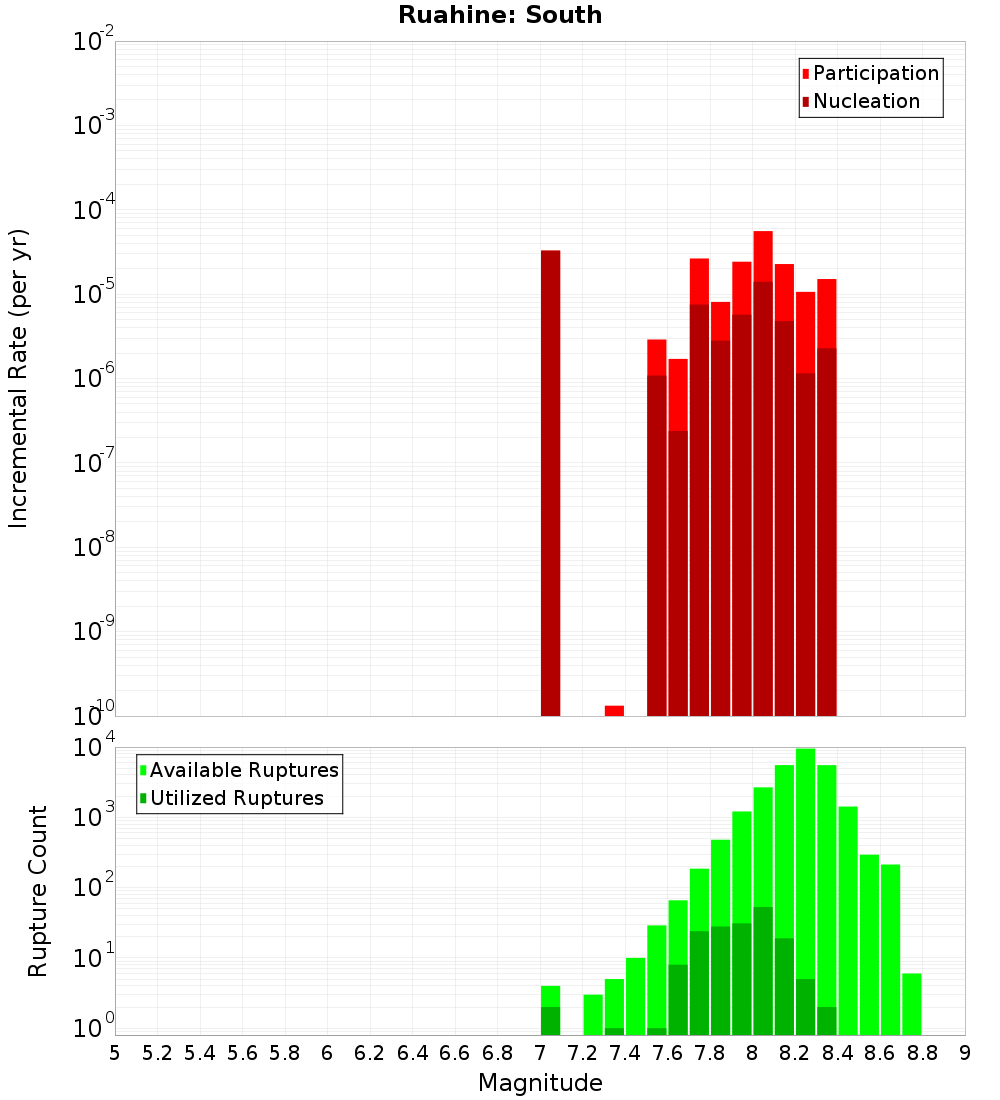

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

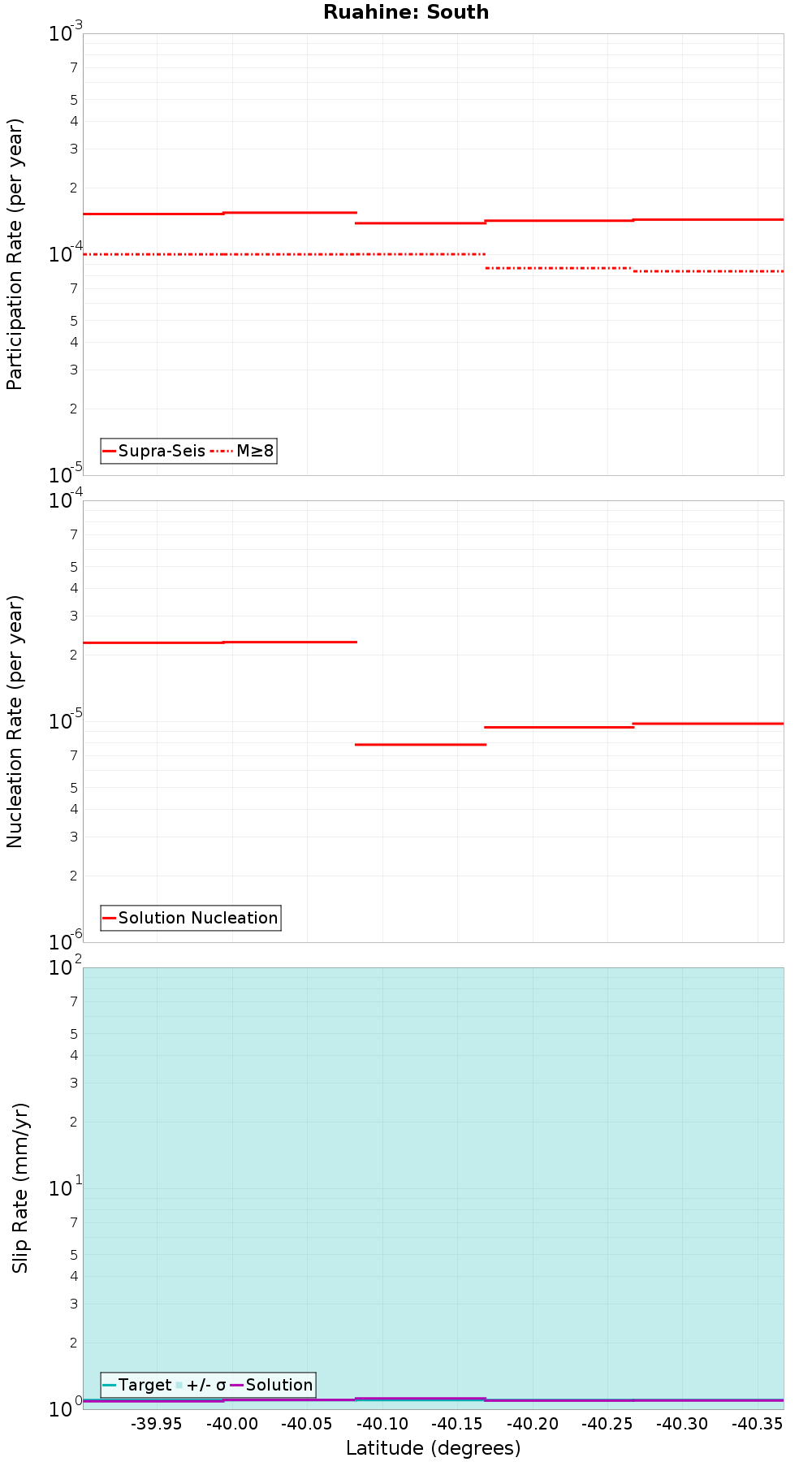

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

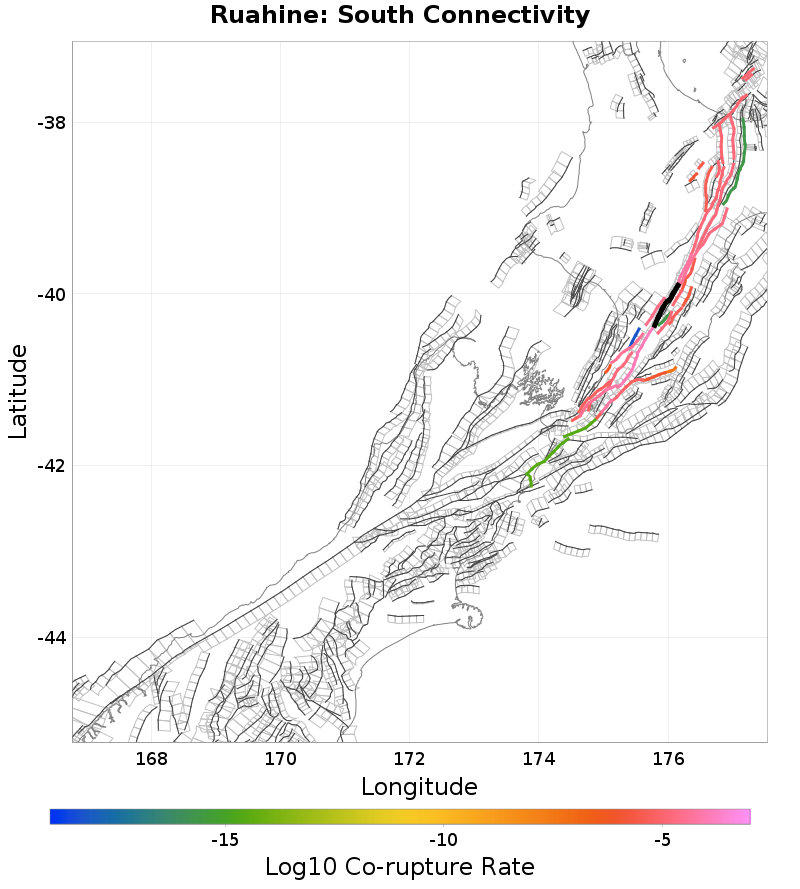

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington: Pahiatua, 0 km away
Mohaka: South, 0 km away
Ruahine: Central, 0.16 km away
Rangefront, 0.19 km away
Woodville, 1.31 km away
Pohangina, 5.25 km away
Pahiatua, 5.97 km away
Ruataniwha, 9.87 km away
Maunga, 13.33 km away
Wakarara, 14.13 km away
Tokomaru, 14.38 km away

Wellington: Pahiatua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?true
Co-rupture Count24,389
Co-rupture Rate1.41257E-4

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?true
Co-rupture Count7,982
Co-rupture Rate4.200968E-5

Ruahine: Central, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?true
Co-rupture Count16,332
Co-rupture Rate6.141066E-5

Rangefront, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?true
Co-rupture Count971
Co-rupture Rate9.694415E-6

Woodville, 1.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?true
Co-rupture Count82
Co-rupture Rate2.2277644E-16

Pohangina, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?true
Co-rupture Count973
Co-rupture Rate2.4093917E-5

Pahiatua, 5.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?true
Co-rupture Count734
Co-rupture Rate1.797903E-5

Ruataniwha, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate1.6897503E-6

Maunga, 13.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?false
Co-rupture Count213
Co-rupture Rate5.2343935E-6

Wakarara, 14.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?false
Co-rupture Count402
Co-rupture Rate3.2523747E-6

Tokomaru, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTkyMzQuMFRvV2Zx
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate6.327336E-19
